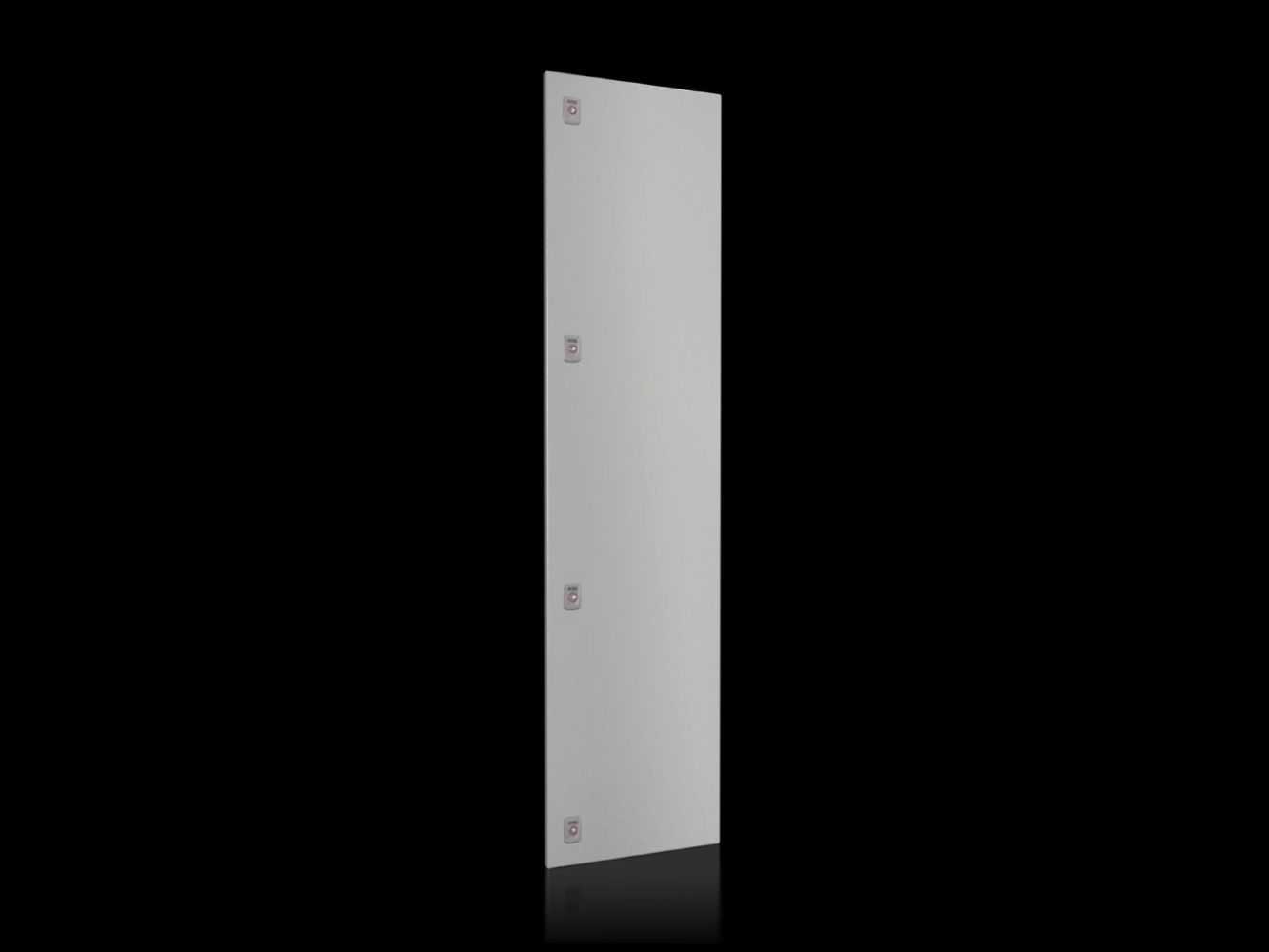

Rittal 9682156 SV partial door for VX, W x H: 400x1600 mm

Your rating:
Average rating
product review for Rittal 9682156 SV partial door for VX, W x H: 400x1600 mm
( 4 / 5 ) 1 ratings
Rittal 9682156
This image may differ from the desired article.
Rittal 9682156Rittal 9682156
124,20 EUR
( 147,80 EUR incl. VAT )
≈ £103.96  |  ≈ $136.50
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9682156 SV partial door for VX, W x H: 400x1600 mm
Datasheet:file_download Download
Lieske Part No.:591450
Mfg Part No: 9682156
UPC/EAN: 4028177928855
Weight:13.2 kg
Type:SV 9682156

Product information for Rittal 9682156:

The Rittal SV 9682156 is a partial door for VX enclosures, designed as a replacement for a complete door or rear panel. With a width of 400 mm and a height of 1,600 mm, it fits precisely into enclosures with a width of 400 mm. The door is made of sheet steel with a thickness of 2 mm and features a structured coating in the colour RAL 7035, ensuring a robust and uniform surface. The protection rating IP 54 according to IEC 60 529 protects against dust and splashing water, making it suitable for use in industrial environments. The maximum opening angle of the partial door is 130°, providing sufficient accessibility for maintenance work.

Applications

The partial door is specifically developed for VX enclosures, where it serves as a modular solution for covering parts of the enclosure interior. It can be combined freely with other partial doors to meet individual covering requirements. A front trim panel is required at the top and bottom of the partial door to ensure a clean appearance. The door can be hinged on the right or left side, enabling flexible installation in various enclosure configurations.

Functions and Equipment in Detail

The partial door is standard-equipped with a double-bar lock insert, ensuring secure locking. The number of locks is four, providing stable fastening. The lock inserts are interchangeable with version A, allowing adaptation to specific security requirements. The delivery includes the partial door itself, a partition, hinges, lock components, and the required mounting materials. Installation is carried out using the provided mounting elements included in the delivery.

Technology Explained Simply

The use of sheet steel with a thickness of 2 mm ensures high mechanical stability and resistance to mechanical stress. The structured coating in RAL 7035 provides a uniform surface finish that is both aesthetically pleasing and resistant to contamination. The IP 54 protection rating means the door is dust-tight and protected against splashing water, making it suitable for use in production environments or outdoor areas. The maximum opening of 130° allows good access to the interior of the enclosure.

Compatibility and Accessories

The partial door is specifically designed for VX enclosures with a width of 400 mm. As accessories, front trim panels in various sizes (e.g. 400x100 mm, 400x300 mm) are available and must be mounted at the top and bottom of the partial door. Additionally, lock inserts made of zinc die-cast in various lengths (e.g. 27 mm) can be used to adapt the locking function. Mini comfort handles for AX and KX systems are also available as an addition to facilitate operation. For doors without a viewing window and a height of 600 to 1,000 mm, the installation of monitor frame 2305.000 is possible to enable an integrated control surface.

Installation and Mounting

The partial door is mounted at the designated attachment points of the VX enclosure. The hinges allow for optional mounting on the left or right side, enabling flexible adaptation to the respective enclosure configuration. The provided mounting materials included in the delivery simplify the installation.

Operational Advantages

The modular design of the partial door allows flexible adaptation to different enclosure configurations. The IP 54 protection rating ensures reliable protection against dust and splashing water, increasing service life and reliability. The interchangeable lock inserts offer flexibility in security equipment. The integrated mounting technology and included mounting materials reduce installation time and facilitate maintenance.

The partial door is suitable for use in industrial plants, such as in manufacturing, power supply, or automation technology. The combinability with other partial doors and the availability of matching front trim panels and lock accessories enable a customised solution for specific requirements.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 4
Width400 mm
Height1.600 mm
Suitable forWidth: = 400 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)50.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682156, EAN: 4028177928855

Questions & answers

What is the delivery time of Rittal 9682156 SV partial door for VX, W x H: 400x1600 mm?

The article Rittal 9682156 SV partial door for VX, W x H: 400x1600 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682156 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682156 SV partial door for VX, W x H: 400x1600 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682156 SV partial door for VX, W x H: 400x1600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
