Rittal 2537100 Mini comfort handle AX

Your rating:
Average rating
product review for Rittal 2537100 Mini comfort handle AX
( 4.7 / 5 ) 3 ratings

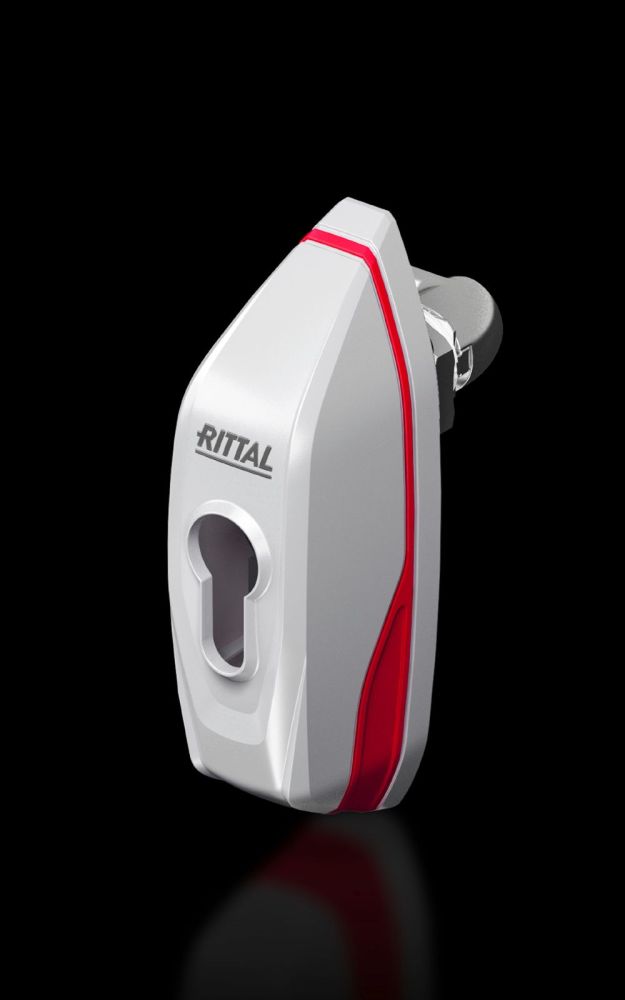

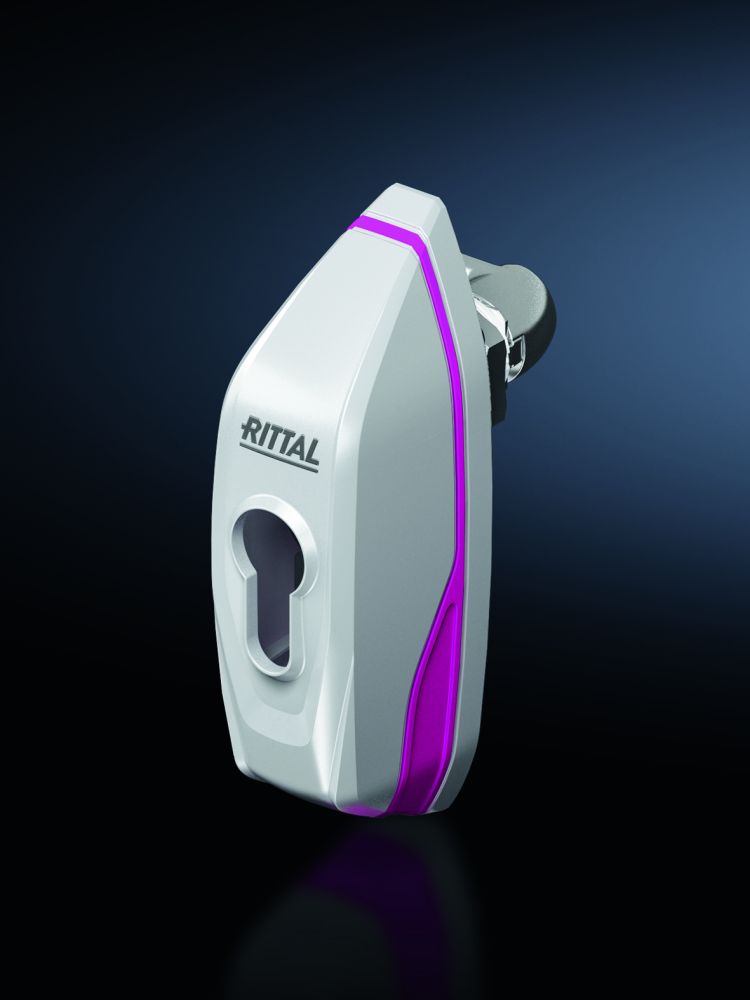

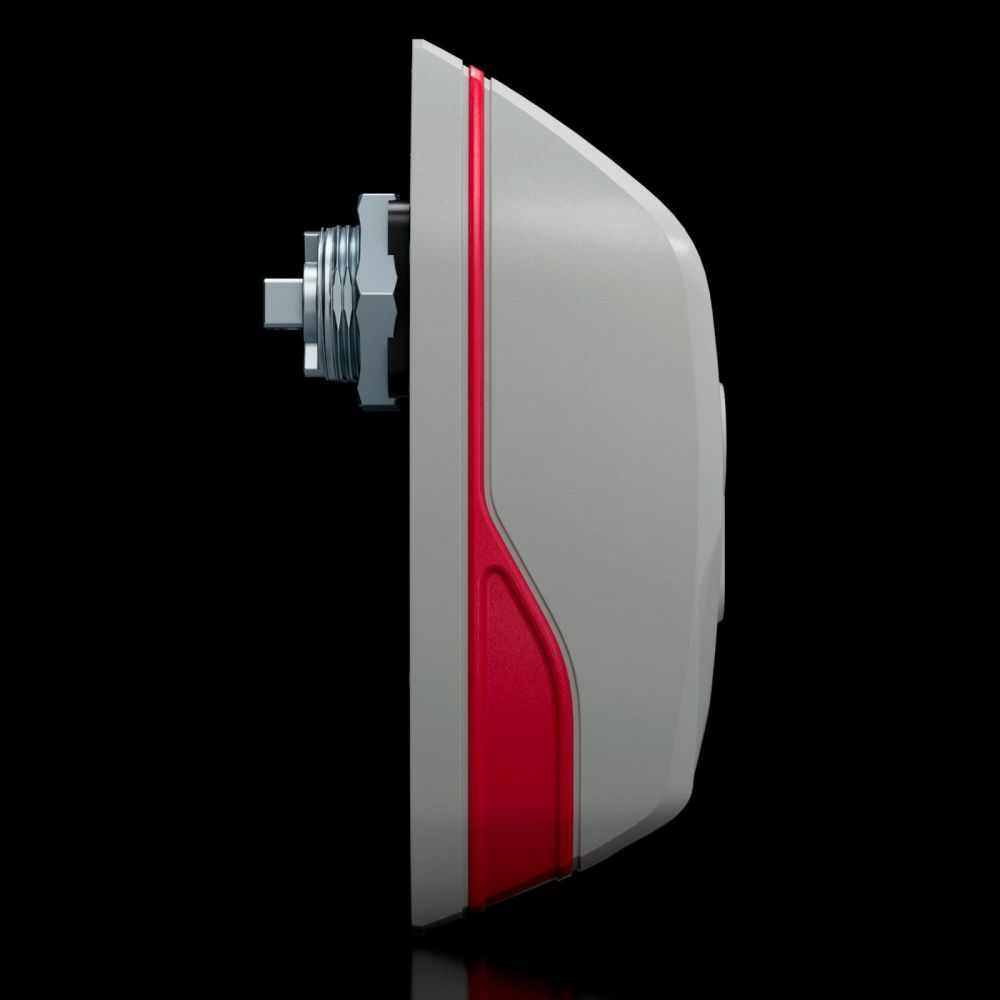

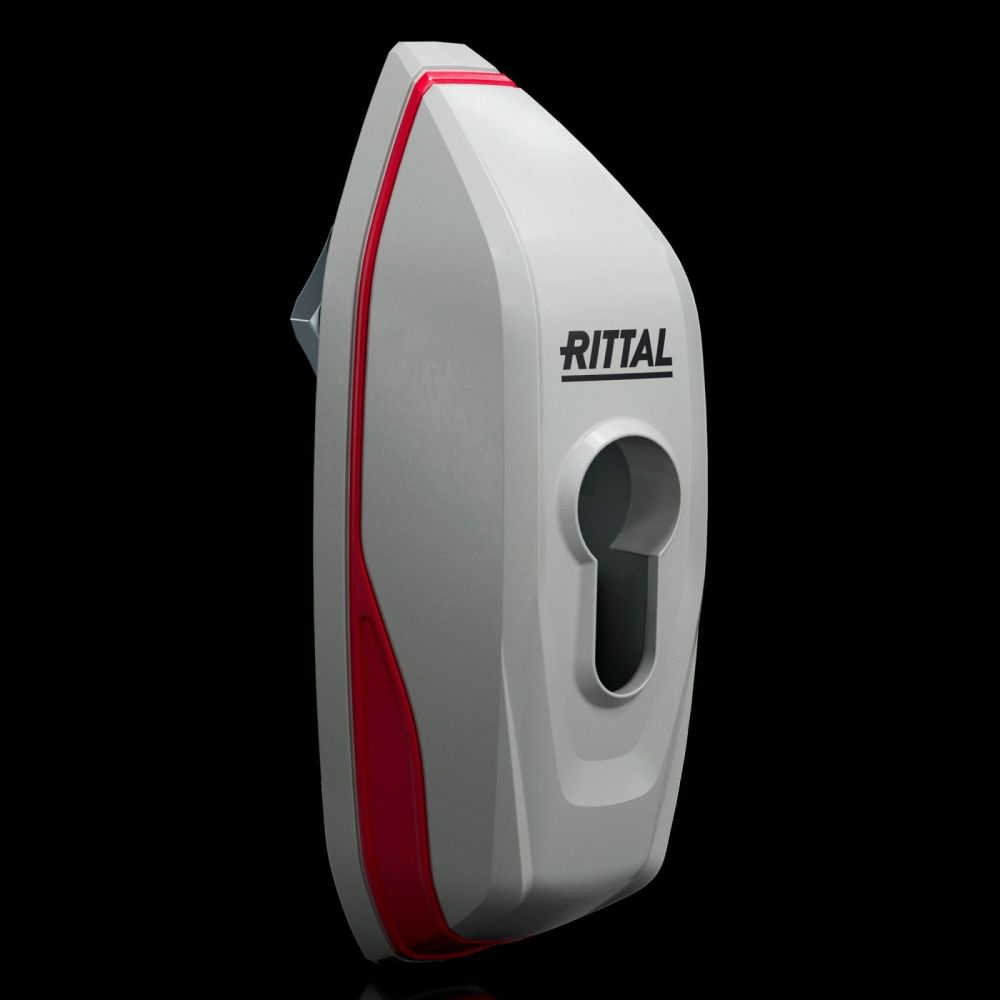

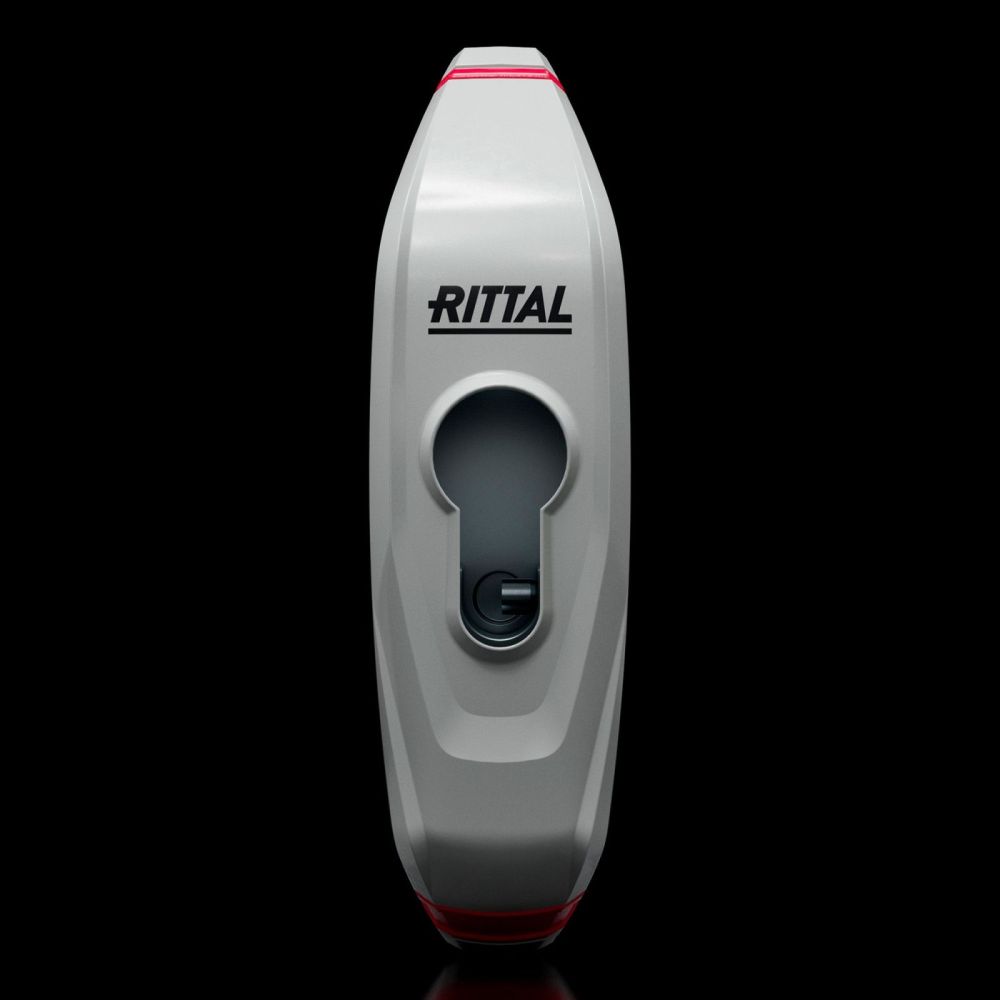

Rittal 2537100
This image may differ from the desired article.
Rittal 2537100Rittal 2537100Rittal 2537100Rittal 2537100Rittal 2537100Rittal 2537100Rittal 2537100
-6% 34,39 EUR 36,44 EUR
( 40,92 EUR incl. VAT )
≈ £28.78  |  ≈ $37.79
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 2537100 Mini comfort handle AX
Datasheet:file_download Download
Lieske Part No.:1598253
Mfg Part No: 2537100
UPC/EAN: 4028177938342
Weight:0.3 kg
Type:AX 2537100

Product information for Rittal 2537100:

The Rittal AX 2537100 is a Mini-Comfort Handle for enclosures and housings, specifically designed for use with AX- and KX-housings with latch. It serves as a mechanical locking handle, securely closing the door or cover of an enclosure while enabling convenient operation. The handle is prepared for installation of lock inserts and half cylinders in accordance with DIN 18 252, allowing flexible combination with various security systems. The design is suitable for half cylinders with a total length of 40 or 45 mm as well as for security and push-button inserts with a length of 40 mm. Installation is carried out on housings with latch, with compatibility provided for various housing types including AX with latch sheet metal, AX IT with latch lock, KX E-Box, VX partial door, stand console CX, console top section CX, and console middle section CX.

Applications
This handle is used in industrial and technical installations where secure and user-friendly door locking is required. It is particularly suitable for enclosures in production environments where access to electrical or IT components must be controlled. Its use in AX- and KX-systems makes it a standard accessory for Rittal control systems. The Type rating according to UL 50E includes categories Type 1, Type 3R, Type 4, and Type 12, confirming suitability for indoor and outdoor use under specific environmental conditions.

Functions and Equipment in Detail
The Mini-Comfort Handle is designed to pivot forward when unlocking and then swing to open the lock. This mechanism enables intuitive operation, even with frequent use. The design is intended for lock inserts type A, ensuring compatibility with standard security systems. Compatibility with ASSA- and KESO/KABA-systems is also provided, facilitating adaptation to existing security concepts. The surface is powder-coated and finished in RAL 7035, enabling robust and visually uniform design of enclosure fronts.

Technology Explained Simply
The handle is made of zinc die-cast and plastic, achieving sufficient strength while maintaining low weight. The material combination ensures high mechanical load capacity and resistance to wear. The powder-coated surface provides additional corrosion protection and is suitable for industrial environments. The installation length of the profiles is 40 or 45 mm, enabling use with common cylinders.

Compatibility and Accessories
The handle is specifically designed for use with AX- and KX-housings with latch. It is compatible with various housing types, including VX partial door, stand console CX, and console top section CX. As accessories, lock inserts made of zinc die-cast, half cylinders with a length of 40 mm, and security and push-button inserts can be used. Combination with Ergoform-S security locks or push-button and security switch disconnectors is also possible, enabling integration of the handle into various security concepts.

Installation and Mounting

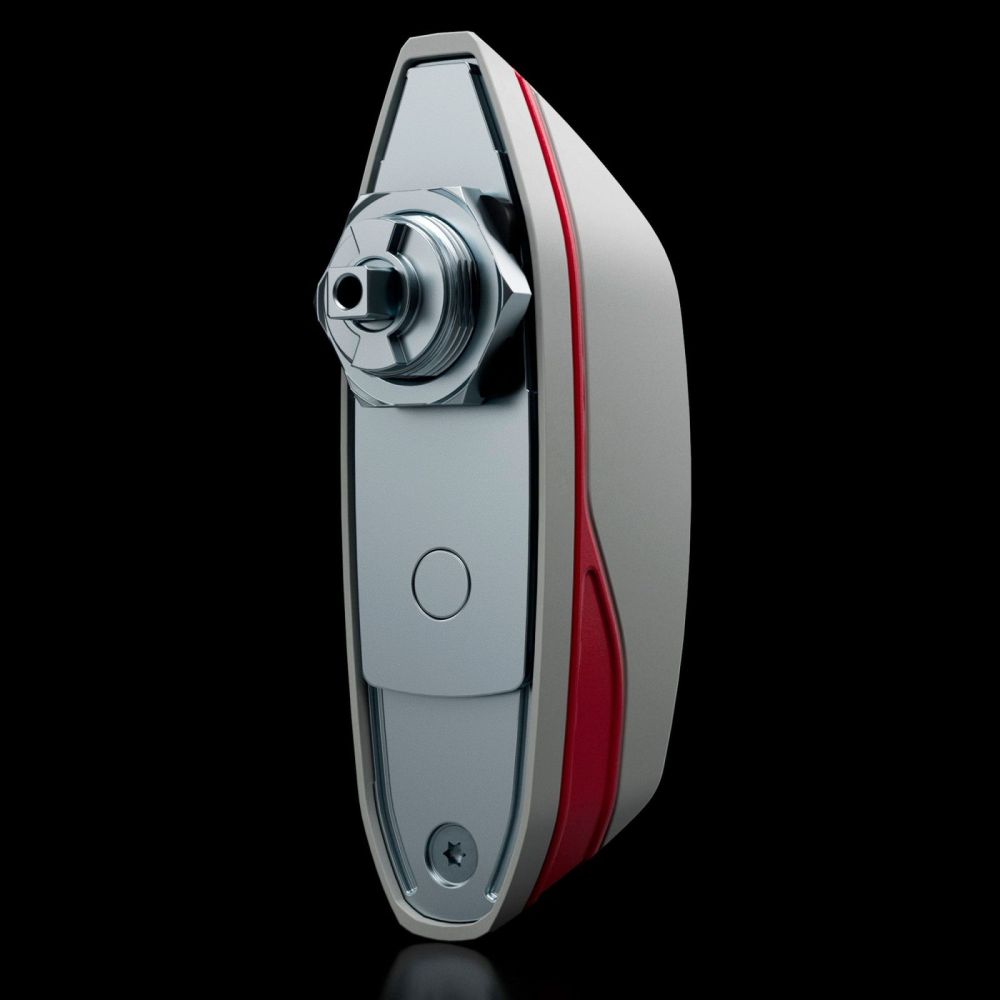

Mounting is carried out on existing latches of the housings. The handle is inserted into the designated holes and secured with appropriate fastening elements. Installation does not require special tools, although the use of a screwdriver or pliers is recommended. The installation length of the lock inserts and half cylinders must match the specified dimensions to ensure secure operation.

Operational Advantages
The Mini-Comfort Handle offers clear and simple operation that remains reliable even with frequent use. The use of standardized lock inserts and half cylinders allows flexible adaptation to different security requirements. The robust construction from zinc die-cast and plastic ensures long service life, even under industrial conditions. The powder-coated surface in RAL 7035 integrates visually into existing enclosure installations and prevents corrosion. The UL 50E approval for Type 1, Type 3R, Type 4, and Type 12 ensures suitability for various environments, including humid or dusty areas.

General
ModelFor lock inserts and profile half-cylinders
MaterialZinc die-cast, plastic
Surface protectionPowder-coated
ColourRAL 7035
LockLocking execution: Prepared for locking inserts, type A, for installation of profile half-cylinders 40 or 45 mm total length (according to DIN 18 252) or safety and push-button inserts with a length of 40 mm
Suitable for housing typeAX with pre-drilled steel sheet, AX IT with pre-drilled closure, KX E-Box, VX partition door, CX console, CX console top, CX console middle
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12


Product data sheet
Datasheet for Rittal 2537100, EAN: 4028177938342
