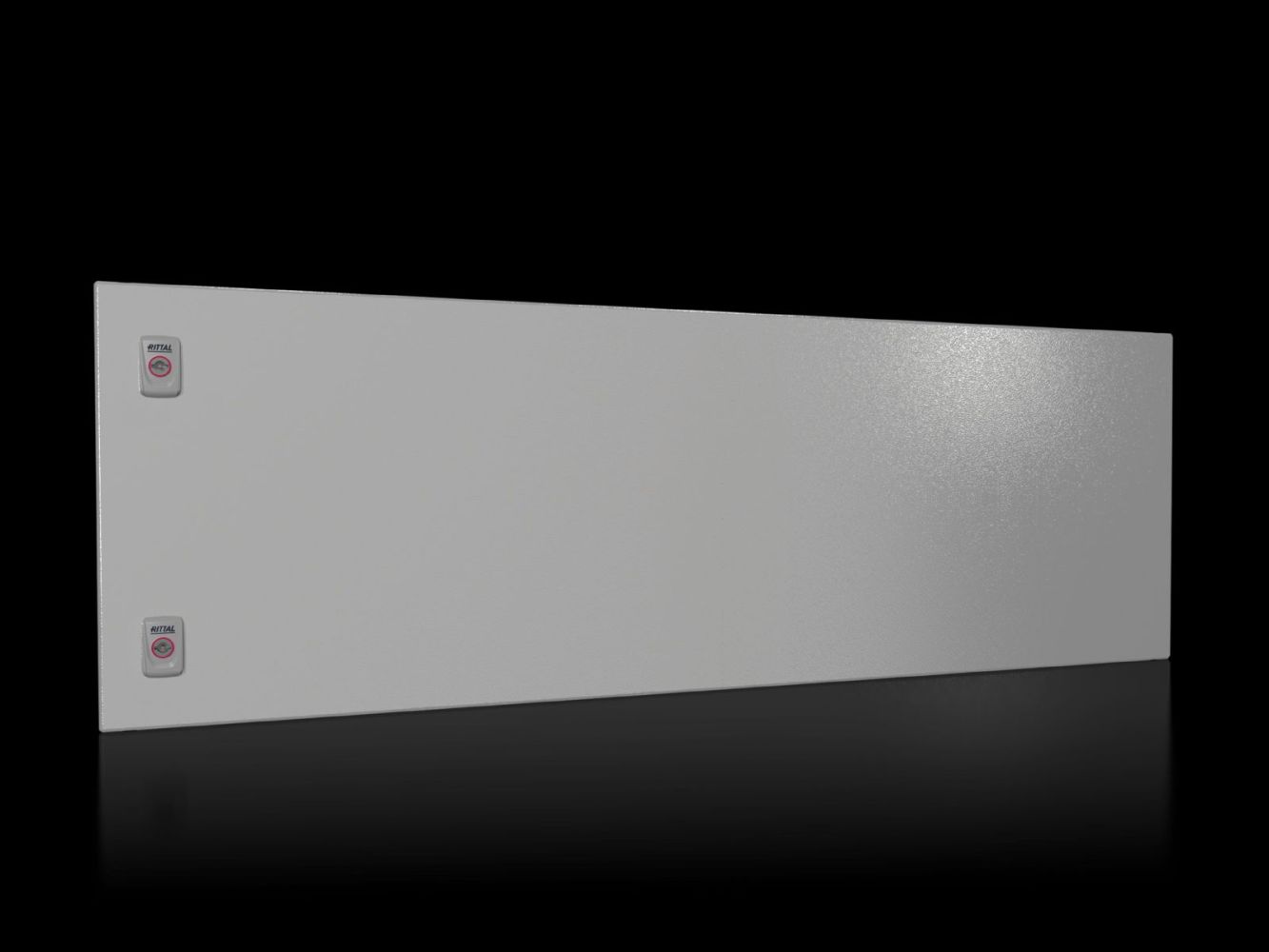

Rittal 9682124 SV partial door for VX, W x H: 1200x400 mm

Your rating:
Average rating
product review for Rittal 9682124 SV partial door for VX, W x H: 1200x400 mm
( 4 / 5 ) 2 ratings
Rittal 9682124
This image may differ from the desired article.
-10% 93,96 EUR 104,88 EUR
( 111,81 EUR incl. VAT )
≈ £78.64  |  ≈ $103.26
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9682124 SV partial door for VX, W x H: 1200x400 mm
Datasheet:file_download Download
Lieske Part No.:591478
Mfg Part No: 9682124
UPC/EAN: 4028177928954
Weight:11.56 kg
Type:SV 9682124

Product information for Rittal 9682124:

The Rittal SV 9682124 is a partial door for VX enclosures, designed as a replacement for a complete door or rear panel. With a width of 1,200 mm and a height of 400 mm, it fits exactly into enclosures with a width of 1,200 mm. The door is made of sheet steel with a thickness of 2 mm and is coated with a textured paint in the colour RAL 7035, ensuring a robust and uniform surface. The protection rating IP 54 according to IEC 60 529 protects against dust and splashing water, making the partial door suitable for use in industrial environments where certain environmental stresses are expected.

Applications

The partial door is used in VX-series enclosures where a full door is not required or a modular division of the front side is desired. It can be combined freely with other partial doors to create different arrangements. A front trim panel is required at the top and bottom of the partial door to ensure a clean appearance. The door is intended for use in enclosures employed in electrical and automation technology, for example in manufacturing industry or building automation.

Functions and Equipment in Detail

The partial door features a standard double-bar lock insert, ensuring secure locking. The number of locks is two, enabling stable fastening. The door can be hinged on the right or left side, allowing flexible installation in various enclosure configurations. The maximum opening angle is 130°, sufficient to ensure access to the installed components. The delivery includes the partial door, a partition strip, hinges, lock parts, and the required mounting material.

Technology Explained Simply

The sheet steel material with a thickness of 2 mm provides sufficient stability and resistance to mechanical stress. The textured paint in RAL 7035 ensures a uniform, abrasion-resistant surface that integrates well in industrial environments. The protection rating IP 54 means the partial door is dust-tight and protected against splashing water, making it suitable for use in indoor areas with increased humidity or occasional splashing water exposure. The lock parts enable secure fastening, and the double-bar lock insert is replaceable, for example, with lock inserts of type A.

Compatibility and Accessories

The partial door is specifically designed for VX enclosures with a width of 1,200 mm. Compatible accessories include lock inserts made of zinc die-cast with a length of 27 mm, front trim panels for VX enclosures in various sizes (e.g. 1200x300 mm or 1200x100 mm), and mini comfort handles AX suitable for padlocks. These components can be used to adjust security settings or improve operability. The front trim panels are required to complete the partial door visually and mechanically.

Mounting and Installation

Mounting is done using the hinges and mounting material included in the delivery. The door can be hinged on the right or left side, allowing flexible adaptation to the respective enclosure configuration. The partition strip and lock parts are already integrated, so no additional mounting components are needed. The maximum opening of 130° ensures sufficient access angle to maintain or inspect the installed components.

Advantages in Operation

The modular design of the partial door allows flexible adaptation to different enclosure configurations. The IP 54 protection rating provides sufficient protection against environmental stresses, while the robust sheet steel construction ensures a long service life. The integrated lock parts and mounting material included in the delivery reduce installation time and simplify the installation process. The replaceability of the lock insert also allows security settings to be adjusted as needed.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 2
Width1.200 mm
Height400 mm
Suitable forWidth: = 1.200 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)44 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682124, EAN: 4028177928954

Questions & answers

What is the delivery time of Rittal 9682124 SV partial door for VX, W x H: 1200x400 mm?

The article Rittal 9682124 SV partial door for VX, W x H: 1200x400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682124 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682124 SV partial door for VX, W x H: 1200x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682124 SV partial door for VX, W x H: 1200x400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
