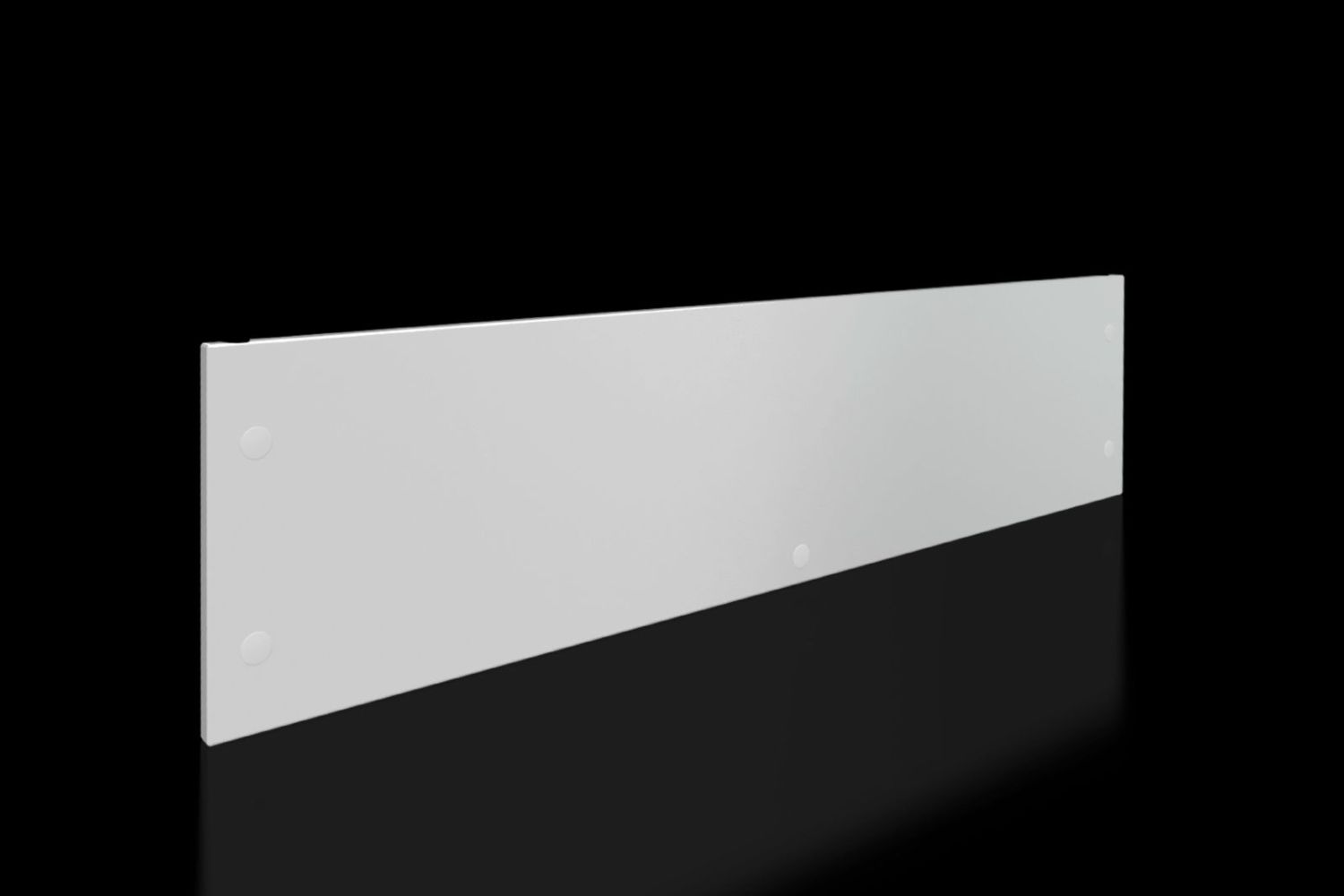

Rittal 9682342 SV front trim panel for VX, bottom, W x H: 1200x300 mm

Your rating:
Average rating
product review for Rittal 9682342 SV front trim panel for VX, bottom, W x H: 1200x300 mm
( 0 / 5 ) 0 ratings
Rittal 9682342
This image may differ from the desired article.
Rittal 9682342Rittal 9682342
-12% 90,05 EUR 102,53 EUR
( 107,16 EUR incl. VAT )
≈ £75.37  |  ≈ $98.96
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9682342 SV front trim panel for VX, bottom, W x H: 1200x300 mm
Datasheet:file_download Download
Lieske Part No.:591457
Mfg Part No: 9682342
UPC/EAN: 4028177929968
Weight:6.9 kg
Type:SV 9682342

Product information for Rittal 9682342:

The Rittal SV 9682342 is a front trim panel for enclosures of the VX system, specifically designed as a lower closure when using partial doors. The product serves for optical and functional closure of the front side of an enclosure, featuring a robust construction made of steel sheet with a thickness of 1.5 mm. The surface is coated with structured paint, ensuring a uniform, slightly textured appearance and high mechanical durability. The colour corresponds to standard RAL 7035, a grey-beige tone commonly used in industrial environments. The front trim panel has a height of 300 mm and is designed for enclosures with a width of 1,200 mm.

Applications
The front trim panel is used in industrial environments, particularly in systems that employ modular front design with partial doors. It serves as a finishing element at the lower edge of the front, completing the aesthetic appearance and simultaneously creating a sealed, dust- and dirt-resistant surface. The product is used in enclosures applied in automation systems, machine building, or power supply systems.

Functions and Equipment in Detail
The front trim panel can be removed from the outside by loosening the fastening screws. This allows for easy maintenance and inspection of components located behind the front trim panel, without having to open the entire door or enclosure. The delivery includes the front trim panel itself, a partition strip, and the required fastening material. The fastening is done using screws included in the delivery, enabling secure mounting to the enclosure front.

Technology Explained Simply
The steel sheet material with a thickness of 1.5 mm provides sufficient mechanical stability to protect the front trim panel against mechanical stresses such as contact, light impacts, or vibrations. The structured paint finish ensures a uniform surface texture, which is not only visually appealing but also offers some resistance against scratches and dirt. The colour RAL 7035 is an industry standard and enables visual harmonization with other components in the enclosure. The dimensions of 300 mm height and compatibility with a width of 1,200 mm make the front trim panel specifically suitable for enclosures of these dimensions.

Compatibility and Accessories
The front trim panel is specifically designed for enclosures of the VX system and adapts to the modular front design. It is used in combination with partial doors to visually complete the front side. Compatibility is limited to enclosures with a width of 1,200 mm.

Installation and Mounting
Mounting is done by attaching the front trim panel to the lower edge of the enclosure front. For this, the partition strip included in the delivery is positioned at the designated location, and the front trim panel is fastened using the screws included in the delivery. The mounting can be performed from the outside without opening the enclosure’s interior. The fastening screws ensure secure and durable attachment of the front trim panel.

Operational Advantages
The front trim panel offers a simple and quick way to visually close the front side of an enclosure, without requiring additional tools or special mounting procedures. The ability to remove the front trim panel from the outside facilitates maintenance and inspection of components located behind it. The robust construction from steel sheet and the structured paint coating ensure long service life and high resistance to industrial environmental conditions. The colour RAL 7035 enables visual uniformity with other components in the enclosure.

The front trim panel is available in a packaging unit of one piece. The net weight is 6.4 kg, the gross weight 6.9 kg. The product is identified by the manufacturer’s number SV 9682342. The environmental impact is indicated by the PCF value (Cradle-to-Gate) of 26.3 kg CO2 eq (Category B), which is approximately calculated based on product weight and self-declared.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryFront panel, partition, including mounting hardware
Height300 mm
Suitable forWidth: = 1.200 mm
PCF/VE (Cradle-to-Gate)26.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682342, EAN: 4028177929968

Questions & answers

What is the delivery time of Rittal 9682342 SV front trim panel for VX, bottom, W x H: 1200x300 mm?

The article Rittal 9682342 SV front trim panel for VX, bottom, W x H: 1200x300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682342 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682342 SV front trim panel for VX, bottom, W x H: 1200x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682342 SV front trim panel for VX, bottom, W x H: 1200x300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
