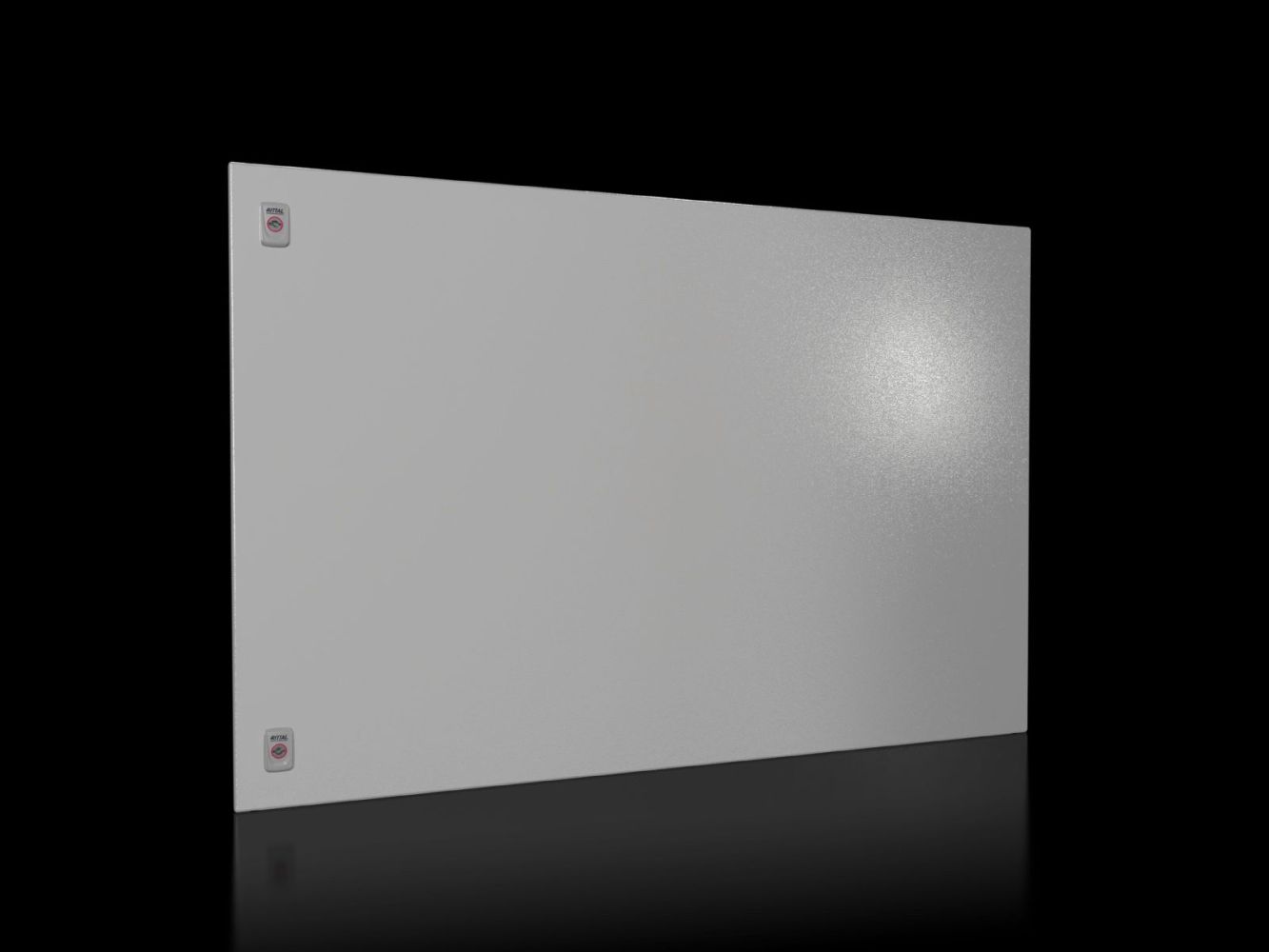

Rittal 9682128 SV partial door for VX, W x H: 1200x800 mm

Your rating:
Average rating
product review for Rittal 9682128 SV partial door for VX, W x H: 1200x800 mm
( 4 / 5 ) 2 ratings
Rittal 9682128
This image may differ from the desired article.
Rittal 9682128Rittal 9682128
-12% 141,68 EUR 161,31 EUR
( 168,60 EUR incl. VAT )
≈ £118.59  |  ≈ $155.71
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9682128 SV partial door for VX, W x H: 1200x800 mm
Datasheet:file_download Download
Lieske Part No.:591444
Mfg Part No: 9682128
UPC/EAN: 4028177929166
Weight:19.88 kg
Type:SV 9682128

Product information for Rittal 9682128:

The Rittal SV 9682128 is a partial door for VX enclosures, designed as a replacement for a complete door or rear panel. With dimensions of 1,200 mm width and 800 mm height, it fits exactly into enclosures with a width of 1,200 mm. The door is made of steel sheet with a thickness of 2 mm and is coated with a textured lacquer in the colour RAL 7035, ensuring a robust and uniform surface. The protection class IP 54 according to IEC 60 529 protects against dust and splashing water, making the partial door suitable for use in industrial environments where certain environmental stresses are expected.

Applications
The partial door is used in industrial electrical engineering to enable access to specific areas within a VX enclosure without having to open the entire front. It is particularly suitable for installations where a modular division of the enclosure front is required, for example, to service or inspect individual devices or modules without opening the entire enclosure door. The partial doors can be combined freely with each other, enabling flexible configurations. At the top and bottom ends of the partial door, a front trim panel is required to ensure a clean visual appearance.

Functions and Equipment in Detail
The SV 9682128 features a standard double-bar lock insert, ensuring secure locking. The number of locks is two, providing stable and secure fastening. The door can be hinged on the right or left side, allowing flexible installation in various enclosure configurations. The maximum opening angle is 130°, which is sufficient to ensure good access to components behind the door. The delivery includes the partial door itself, a partition, hinges, locking parts, and the required mounting material.

Technology Explained Simply
The steel sheet material with a thickness of 2 mm provides sufficient stability and resistance to mechanical stress. The textured lacquer surface in RAL 7035 is not only aesthetically pleasing but also resistant to dirt and mechanical wear. The protection class IP 54 means that the partial door is dust-tight and protected against splashing water, making it suitable for use in indoor environments with increased humidity or occasional splashing water exposure. The door is not designed for outdoor use or in highly humid environments such as wet areas.

Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 1,200 mm. It can be combined with various accessories, including lock inserts made of zinc die-cast with a length of 27 mm, as well as front trim panels in various sizes (e.g. 1200x300 mm or 1200x100 mm) for the upper and lower edge finishes. Additionally, the installation of a monitor frame (part number 2305.000) is possible for doors without a viewing window (height 600–1000 mm). The lock inserts are interchangeable with version A, allowing adaptation to specific safety requirements.

Mounting and Installation
Mounting is done using the hinges and mounting materials included in the delivery. The door can be hinged on the right or left side, allowing flexible adaptation to the respective enclosure configuration. The maximum opening of 130° ensures sufficient access angle without the door having to be opened excessively.

Advantages in Operation
The modular design of the partial door enables precise and flexible use within an enclosure. The possibility to hinge the door on both sides increases flexibility in planning the enclosure front. The IP 54 protection class ensures sufficient protection against dust and splashing water, increasing reliability in industrial applications. The use of steel sheet and textured lacquer ensures long service life and resistance to mechanical and chemical stresses. The integrated locks ensure secure locking, which is important for protecting electrical components.

The partial door is available in a packaging unit of one piece and has a net weight of 18.5 kg. The PCF values (Cradle-to-Gate) amount to 75.7 kg CO2 eq (Category B), with the value being approximately calculated and self-declared based on product weight.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 2
Width1.200 mm
Height800 mm
Suitable forWidth: = 1.200 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)75.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682128, EAN: 4028177929166
