Rittal 9682332 SV front trim panel for VX, bottom, W x H: 1200x100 mm

Your rating:
Average rating
product review for Rittal 9682332 SV front trim panel for VX, bottom, W x H: 1200x100 mm
( 5 / 5 ) 1 ratings

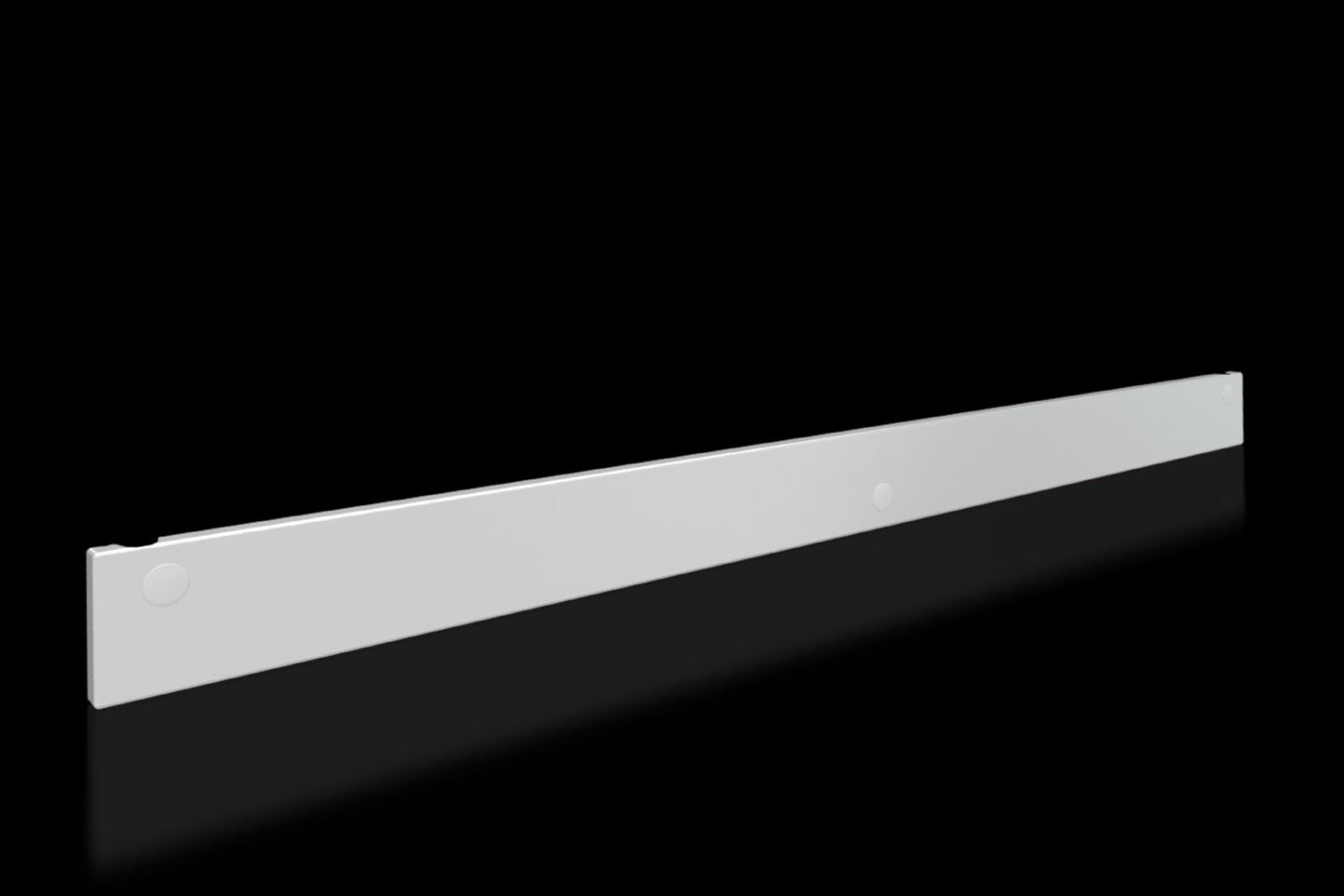

Rittal 9682332
This image may differ from the desired article.
Rittal 9682332Rittal 9682332
-12% 91,77 EUR 104,48 EUR
( 109,21 EUR incl. VAT )
≈ £76.81  |  ≈ $100.86
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9682332 SV front trim panel for VX, bottom, W x H: 1200x100 mm
Datasheet:file_download Download
Lieske Part No.:591456
Mfg Part No: 9682332
UPC/EAN: 4028177929951
Weight:3.714 kg
Type:SV 9682332

Product information for Rittal 9682332:

The Rittal SV 9682332 is a front trim panel for VX control panels, specifically designed as a lower closure when used with partial doors. The product enables modular design of the front side of enclosures and provides a clean, uniform appearance. The front trim panel is manufactured from steel sheet with a thickness of 1.5 mm and features a surface finish of textured paint in the colour RAL 7035, ensuring a robust and even coating. The dimensions are a height of 100 mm and a width of 1,200 mm, making it specifically designed for enclosures with a width of 1,200 mm.

Applications

The front trim panel is intended for use in industrial enclosures, particularly in combination with partial doors, to provide a visually finished front side. It is commonly used in automation technology, power supply systems, or process control applications where a clear and structured front design is required. The construction allows for easy installation and maintenance, as the panel can be removed from the outside by loosening the screws without needing to open the entire enclosure.

Functions and Equipment in Detail

The SV 9682332 is supplied with a partition strip and the necessary mounting hardware. The partition strip provides mechanical stabilization and ensures a secure connection between the front trim panel and the enclosure housing. Mounting is achieved using screws included in the delivery scope. The front trim panel is designed for easy installation and can be fitted without additional tools or components. The textured paint surface offers high resistance to mechanical stress and environmental influences.

Technology Explained Simply

The steel sheet material with a thickness of 1.5 mm ensures sufficient strength and stability to protect the front trim panel even under industrial conditions. The RAL 7035 colour is a grey, slightly textured paint that integrates well into industrial environments. The textured coating prevents dust accumulation and facilitates cleaning. The height of 100 mm and width of 1,200 mm are matched to standard dimensions of VX control panels to enable precise fitting.

Compatibility and Accessories

The front trim panel is specifically designed for enclosures with a width of 1,200 mm and is used in combination with partial doors. It is part of Rittal’s modular system accessories and can be combined with other front trim panels and partition strips from the same system to achieve a consistent front design. The use of partial doors allows targeted access to specific areas of the enclosure, while the front trim panel closes off the lower section.

Installation and Mounting

Mounting is performed by securing the front trim panel to the lower edge of the enclosure, with the partition strip serving as the mechanical connection. The screws included in the delivery allow for secure and simple fastening. The front trim panel can be removed from the outside, facilitating maintenance and inspection of components behind it. No additional tools or mounting aids are required.

Operational Advantages

The front trim panel provides a clean and professional appearance for enclosures equipped with partial doors. The simple installation and maintenance reduce labour effort during installation and servicing. The use of steel sheet and textured paint ensures high mechanical strength and durability, even in demanding industrial environments. The modular design allows flexible adaptation to different enclosure design requirements.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryFront panel, partition, including mounting hardware
Height100 mm
Suitable forWidth: = 1.200 mm
PCF/VE (Cradle-to-Gate)12.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682332, EAN: 4028177929951

Questions & answers

What is the delivery time of Rittal 9682332 SV front trim panel for VX, bottom, W x H: 1200x100 mm?

The article Rittal 9682332 SV front trim panel for VX, bottom, W x H: 1200x100 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682332 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682332 SV front trim panel for VX, bottom, W x H: 1200x100 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682332 SV front trim panel for VX, bottom, W x H: 1200x100 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
