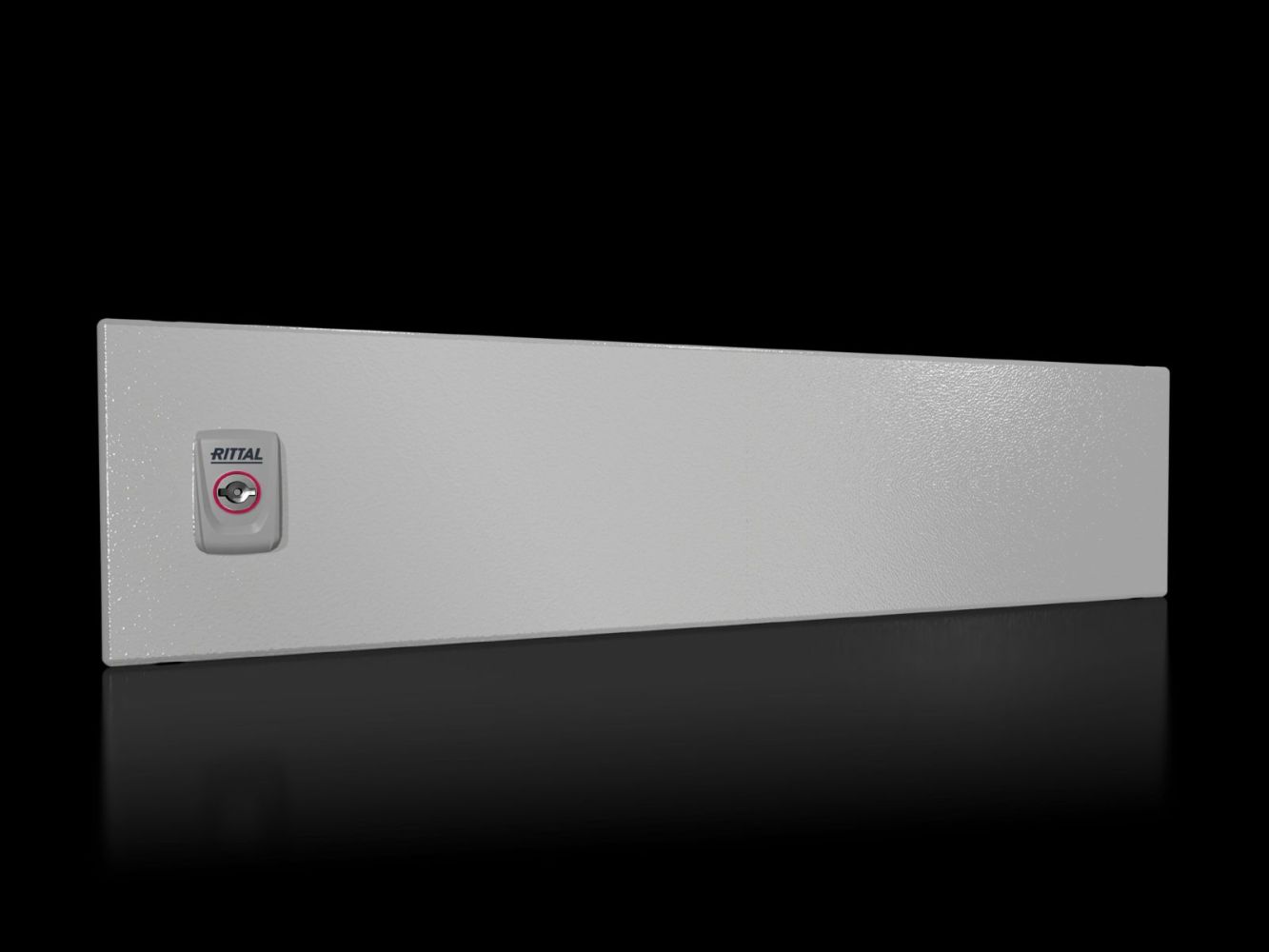

Rittal 9682161 SV partial door for VX, W x H: 600x150 mm

Your rating:
Average rating
product review for Rittal 9682161 SV partial door for VX, W x H: 600x150 mm
( 0 / 5 ) 0 ratings
Rittal 9682161
This image may differ from the desired article.
Rittal 9682161Rittal 9682161
42,21 EUR
( 50,23 EUR incl. VAT )
≈ £35.33  |  ≈ $46.39
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682161 SV partial door for VX, W x H: 600x150 mm
Datasheet:file_download Download
Lieske Part No.:591451
Mfg Part No: 9682161
UPC/EAN: 4028177928879
Weight:2.9 kg
Type:SV 9682161

Product information for Rittal 9682161:

The Rittal SV 9682161 is a partial door for VX enclosures, designed as a replacement for a complete door or rear panel. It serves for flexible partitioning and compartmentalization within an enclosure and enables modular design of the front side. The partial door has a width of 600 mm and a height of 150 mm and is specifically designed for enclosures with a width of 600 mm. The product is made of sheet steel with a thickness of 2 mm and is coated with a textured paint in the colour RAL 7035, ensuring a robust and uniform surface. The protection class IP 54 according to IEC 60 529 protects against dust and splashing water, enabling use in industrial environments with moderate contamination risk.

Applications
The partial door is used in industrial electrical engineering where flexible and modular enclosure design is required. It is particularly suitable for installations where not the entire front surface needs to be covered, but only specific areas need to be protected or separated. The combination with other partial doors allows individual adaptation to the respective installation configuration. At the top and bottom of the enclosure, a front trim panel is required each to ensure a clean optical and functional finishing line.

Functions and Equipment in Detail
The partial door is equipped with a standard double-bar lock insert, ensuring secure locking. This lock is interchangeable with lock inserts of type A, allowing adaptation to specific security requirements. The door can be hinged on the right or left side, enabling flexible installation in various enclosure configurations. The maximum opening angle is 130°, providing sufficient space for access to installed components. The delivery includes the partial door, a partition strip, hinges, lock components, and the required mounting materials.

Technology Explained Simply
The use of sheet steel with 2 mm thickness ensures high mechanical stability and resistance to external influences. The textured paint in RAL 7035 provides a uniform, abrasion-resistant surface that fits well in industrial environments. The protection class IP 54 means the partial door is dust-tight and protected against splashing water, making it suitable for use in production halls or other industrial rooms. Installation is done using the included mounting materials, ensuring secure and durable anchoring in the enclosure.

Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 600 mm. It can be combined freely with other partial doors to create individual front configurations. As accessories, various front trim panels are available, including models with IP 54 and IP 2X, as well as top-hinged panels in various dimensions. Additionally, lock inserts made of zinc die-cast in various lengths and types can be used to adjust security settings. Mini comfort handles for padlocks are also available as an option to facilitate access.

Installation and Mounting
Installation is done by securing the partial door to the designated mounting points in the enclosure, using the included hinges and mounting materials. The door can be hinged on the right or left side, allowing flexible adaptation to the respective enclosure configuration. The maximum opening of 130° ensures sufficient access angle. Combining with other partial doors and front trim panels requires observing the necessary clearances and mounting instructions to ensure a stable and secure installation.

Operational Advantages
The modular design of the partial door enables flexible and adaptable enclosure design tailored to the specific requirements of the installation. The use of standard components such as hinges, locks, and mounting materials simplifies installation and maintenance. The protection class IP 54 provides sufficient protection against dust and splashing water, increasing reliability in industrial environments. The interchangeability of the lock insert allows adaptation to different security requirements without replacing the entire door.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 1
Width600 mm
Height150 mm
Suitable forWidth: = 600 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)11 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682161, EAN: 4028177928879

Questions & answers

What is the delivery time of Rittal 9682161 SV partial door for VX, W x H: 600x150 mm?

The article Rittal 9682161 SV partial door for VX, W x H: 600x150 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682161 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682161 SV partial door for VX, W x H: 600x150 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682161 SV partial door for VX, W x H: 600x150 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
