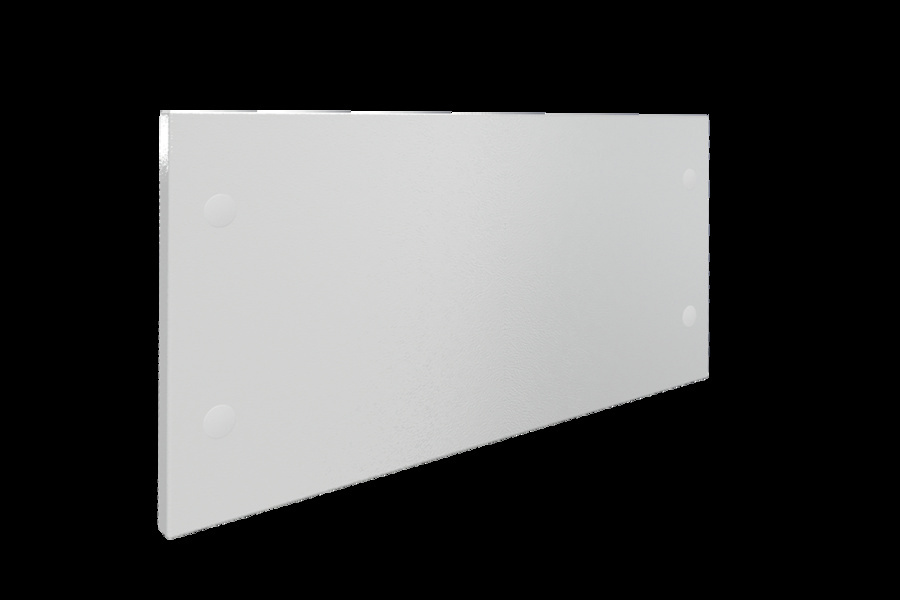

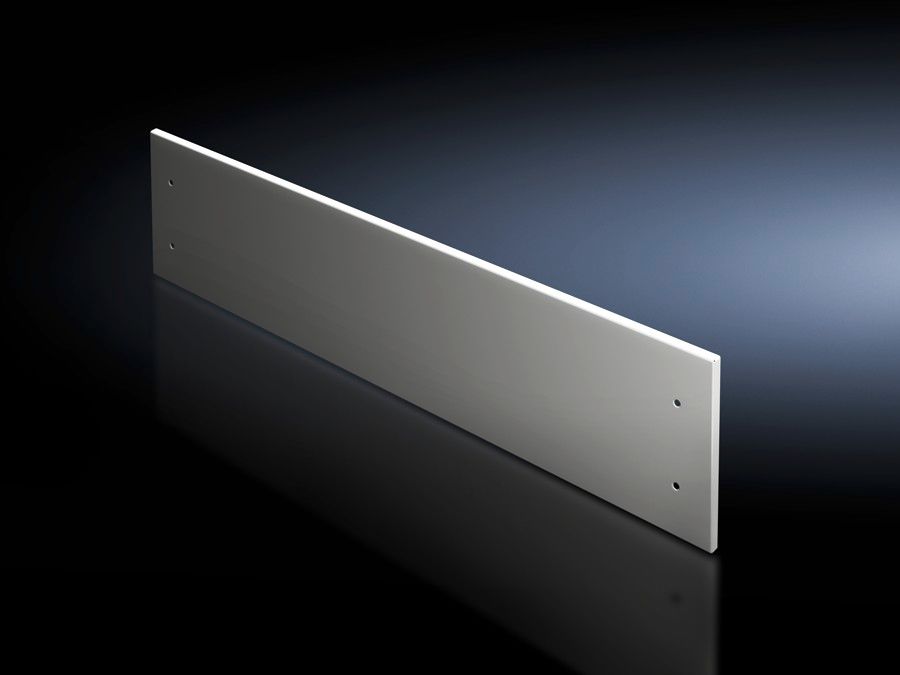

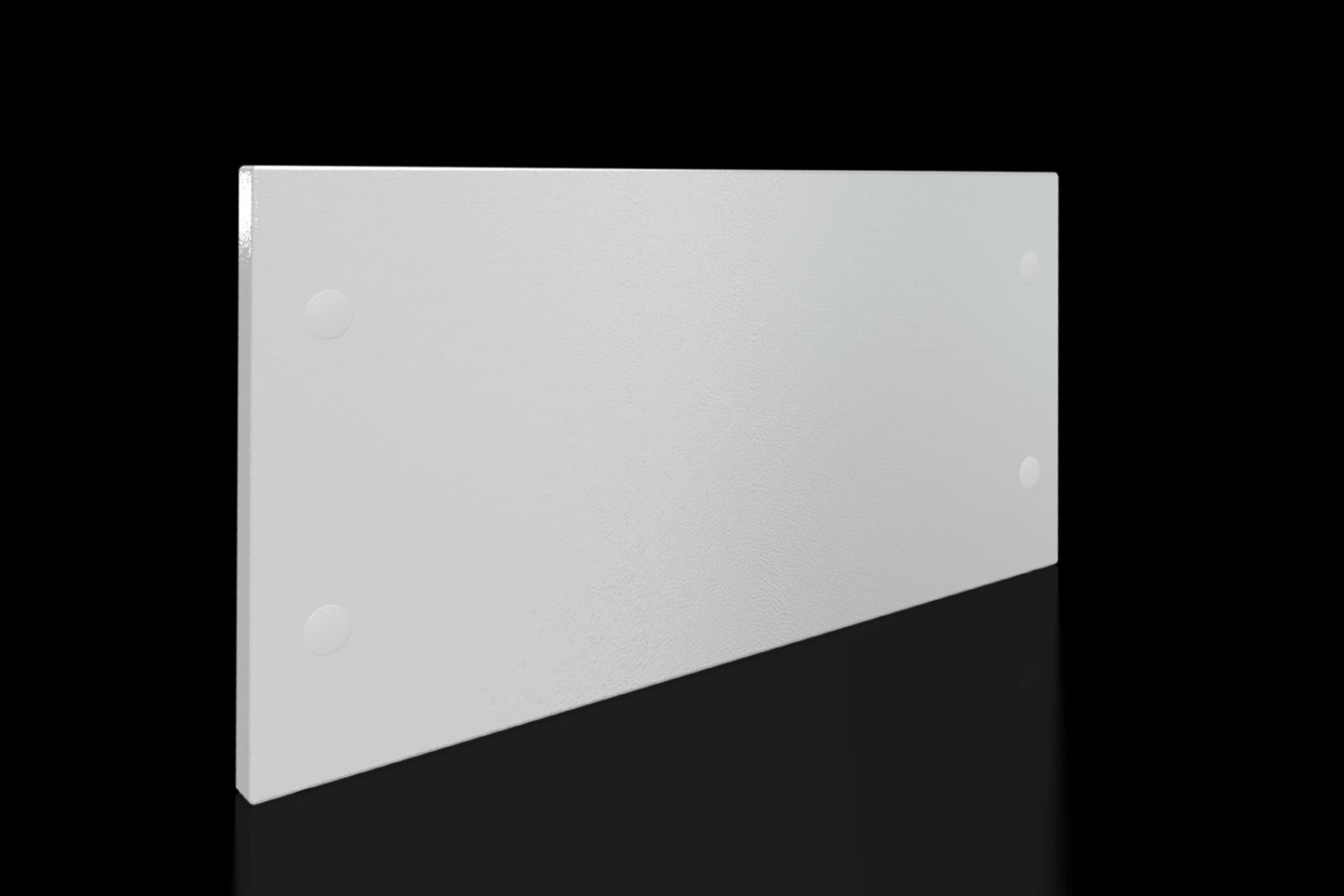

Rittal 9682326 SV front trim panel for VX, top, IP 54, W x H: 600x300 mm

Your rating:
Average rating
product review for Rittal 9682326 SV front trim panel for VX, top, IP 54, W x H: 600x300 mm
( 4.8 / 5 ) 4 ratings
Rittal 9682326
This image may differ from the desired article.
Rittal 9682326Rittal 9682326Rittal 9682326Rittal 9682326
52,79 EUR
( 62,82 EUR incl. VAT )
≈ £44.19  |  ≈ $58.02
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682326 SV front trim panel for VX, top, IP 54, W x H: 600x300 mm
Datasheet:file_download Download
Lieske Part No.:1597396
Mfg Part No: 9682326
UPC/EAN: 4028177929678
Weight:3.14 kg
Type:VX 9682326

Product information for Rittal 9682326:

The Rittal SV front trim panel for VX, top, type 9682326, is a closed front cover made of steel sheet with a thickness of 1.5 mm, used as an upper closure in modular front design of enclosures, particularly when partial doors are used. The front trim panel is finished in RAL 7035 and features a structured paint surface, ensuring a robust and uniform coating. With a height of 300 mm and designed for a width of 600 mm, it is specifically conceived for enclosure fronts of these dimensions. The front trim panel offers a protection rating of IP 54, meaning it is dust-tight and protected against splashing water from any direction, making it suitable for use in industrial environments with increased contamination or moisture exposure.

Applications
The front trim panel primarily serves as an optical and functional closure for the upper front side of an enclosure when partial doors are installed. It ensures a uniform and clean front design and prevents dust, splashing water, or small foreign objects from entering the enclosure area. Its use is typical in industrial electrical engineering, during the installation of control and distribution enclosures, and in systems requiring modular front design.

Functions and Equipment in Detail
The front trim panel can be removed from the outside by loosening the screws, enabling easy maintenance and inspection of components behind it. Installation is carried out at the upper edge of the enclosure front, with the required partition strip already included in the delivery scope of the installed partial doors.

Technology Explained Simply
The construction from 1.5 mm thick steel sheet ensures sufficient mechanical stability and resistance to mechanical stress. The structured paint surface provides additional protection against corrosion and contamination and ensures a uniform, easy-to-clean surface. The protection rating IP 54 means the front trim panel is dust-tight and protected against splashing water from any direction, making it suitable for use in industrial environments with increased moisture or contamination exposure.

Compatibility and Accessories
The front trim panel is specifically designed for enclosures with a width of 600 mm and fits precisely into the modular front design of Rittal's VX series. It is used in combination with partial doors, with installation carried out via the partition strip elements already included in the partial doors. The front trim panel is not intended for use without partial doors, as it was developed as a closure component for this configuration. Compatibility is limited to the specified dimensions and the VX enclosure series.

Installation and Mounting
Installation is performed by securing the front trim panel to the upper edge of the enclosure front, using the screws included in the delivery scope. The front trim panel is attached to the already installed partial doors, with the partition strip required for mounting already included in the delivery scope of the partial doors. Removal of the front trim panel is also done by loosening the screws from the outside, enabling maintenance without disassembling the entire front.

Advantages in Operation
The front trim panel provides a clean and uniform front design, improving the visual appearance of the enclosure. The easy removal allows for quick inspection and maintenance of components behind it. The protection rating IP 54 ensures sufficient protection against dust and splashing water, increasing the reliability and service life of enclosure components. The use of steel sheet and structured paint ensures high mechanical and chemical resistance, securing its suitability for demanding industrial environments.

General
ModelClosed
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Height300 mm
Suitable forWidth: = 600 mm
PCF/VE (Cradle-to-Gate)12 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682326, EAN: 4028177929678

Questions & answers

What is the delivery time of Rittal 9682326 SV front trim panel for VX, top, IP 54, W x H: 600x300 mm?

The article Rittal 9682326 SV front trim panel for VX, top, IP 54, W x H: 600x300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682326 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682326 SV front trim panel for VX, top, IP 54, W x H: 600x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682326 SV front trim panel for VX, top, IP 54, W x H: 600x300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
