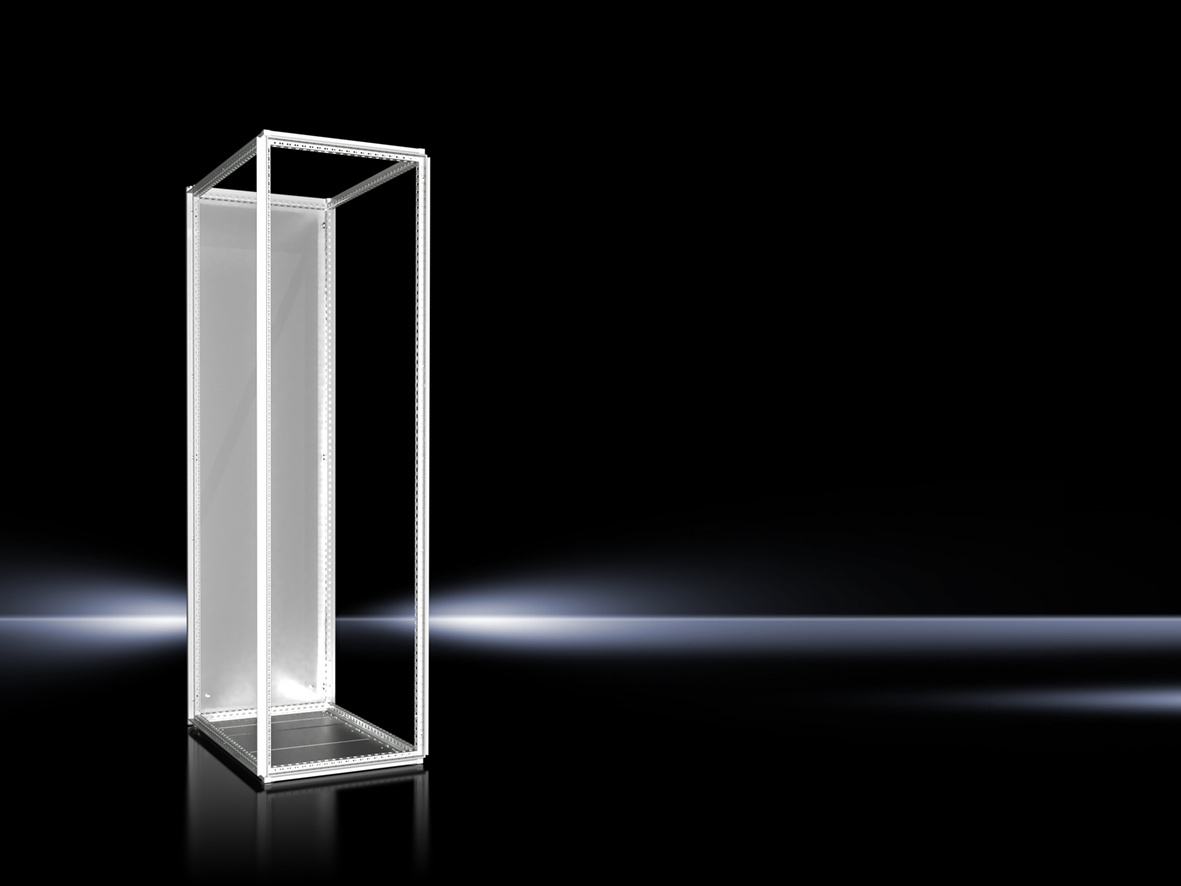

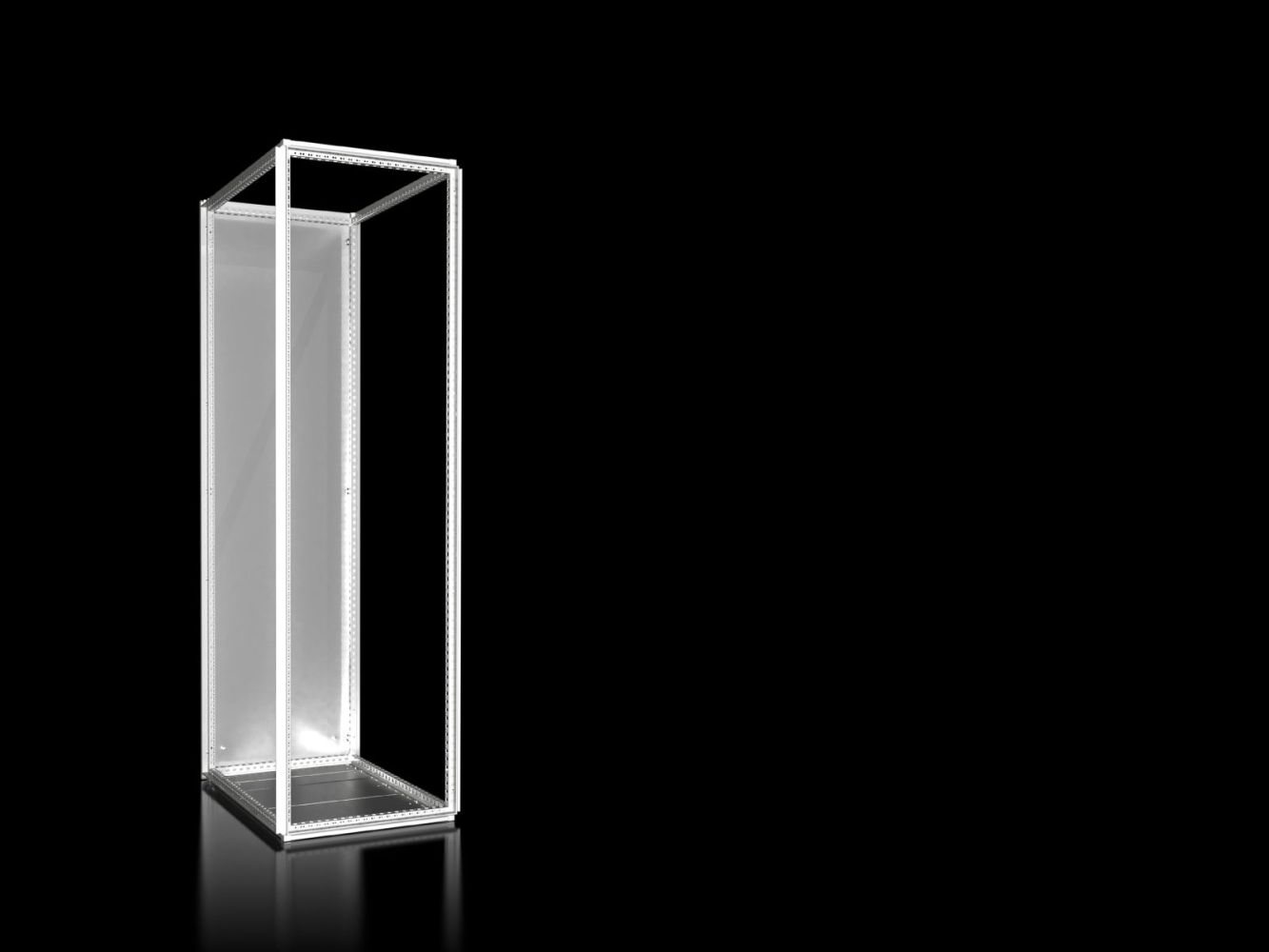

Rittal 9680608 VX modular enclosure, W x H x D: 600x2000x800 mm
|
361,10 EUR |
|
|
( 429,71 EUR incl. VAT ) ≈ £302.24 | ≈ $396.85 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440990 |
| Mfg Part No: | 9680608 |
| UPC/EAN: | 4028177929593 |
| Weight: | 49.2 kg |
| Type: | VX 9680.608 |
Product information for Rittal 9680608:
Applications
The enclosure is designed for use in industrial plants where high mechanical stability and protection against dust and splashing water are required. The protection rating IP 54, which is achieved depending on the cladding, makes it suitable for indoor areas where occasional splashing water or dust exposure occurs. The modular design allows for flexible adaptation to different requirements, for example by integrating partial doors or additional side panels.
Functions and equipment in detail
The enclosure frame is dip-primed, the rear panel is also dip-primed and externally powder-coated with a textured lacquer, ensuring high corrosion resistance and mechanical strength. The base plates are galvanized to provide an additional protective layer against moisture and corrosion. The color of the enclosure is RAL 7035, a gray tone commonly used in industrial environments. The delivery scope includes the enclosure frame, rear panel and base plates – all necessary elements to assemble the enclosure as a basic structure.
Technology explained simply
The material thickness of 1.5 mm steel sheet ensures sufficient strength to safely support the components mounted in the enclosure. The surface treatment with dip priming and powder coating provides high protection against corrosion, especially in damp or aggressive environments. The protection rating IP 54 means that the enclosure is protected against dust and splashing water, making it suitable for many industrial applications. The test basis IEC 61 439-1/-2 and IEC 61 641 ensures compliance with international standards for switchgear and electrical equipment.
Compatibility and accessories
The enclosure is part of the VX system and can be extended with various accessories. These include SV partial doors in various heights (e.g. 600x1000 mm, 600x1200 mm, 600x1800 mm) as well as SV front trim panels in various versions, including with viewing window. Additionally, plinth corner pieces and plinth trim panels in various sizes are available to visually and mechanically finish the enclosure. A VX baying connector enables the connection of multiple enclosures into a row. The VX side panel is screwable and designed for dimensions 2000x800 mm. These components allow individual adaptation to the respective application.
Mounting and installation
Assembly is done by screwing together the individual elements. The enclosure frame is connected to the rear panel and base plates. The use of levelling feet (e.g. M12, adjustment height 18–43 mm) allows for level positioning on uneven surfaces. Installation is usually carried out by skilled workers familiar with enclosure mounting. The dimensions and weight (net weight 44.7 kg) are designed so that the enclosure can be safely positioned with the help of lifting or transport equipment.
t
Advantages in operation
The enclosure offers high mechanical stability and good protection against environmental influences. The modular design allows for flexible expansion and adaptation to future requirements. The use of standardized accessories from the VX system ensures high compatibility and facilitates maintenance. The surface treatment ensures a long service life, even in demanding environments. Compliance with standards IEC 61 439-1/-2 and IEC 61 641 ensures safety and reliability in operation.
The PCF values (Cradle-to-Gate) amount to 132.3 kg CO2 eq per packaging unit, where class B indicates that the value was approximately calculated based on the product weight. These figures serve transparency in the life cycle, without affecting the technical functionality of the enclosure.
| General | |
| Material | Sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, rear panel, base plates |
| Degree of protection IP according to EN 60 529 | Up to IP 54 (depending on cladding) |
| Test basis | IEC 61 439-1/-2, IEC 61 641 |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| PCF/VE (Cradle-to-Gate) | 132.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 9680608 VX modular enclosure, W x H x D: 600x2000x800 mm?
The article Rittal 9680608 VX modular enclosure, W x H x D: 600x2000x800 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9680608 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9680608 VX modular enclosure, W x H x D: 600x2000x800 mm always at the best possible price. We can give you a discount of 2% on Rittal 9680608 VX modular enclosure, W x H x D: 600x2000x800 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
