Rittal 9682356 SV front trim panel for VX, bottom, IP 2X, W x H: 600x300 mm

Your rating:
Average rating
product review for Rittal 9682356 SV front trim panel for VX, bottom, IP 2X, W x H: 600x300 mm
( 5 / 5 ) 1 ratings
Rittal 9682356

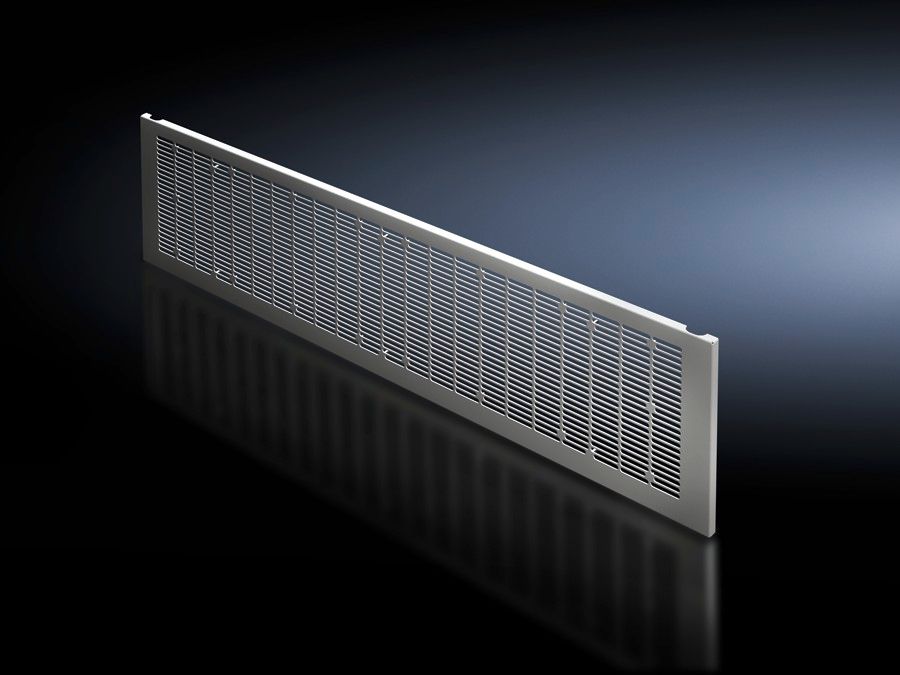

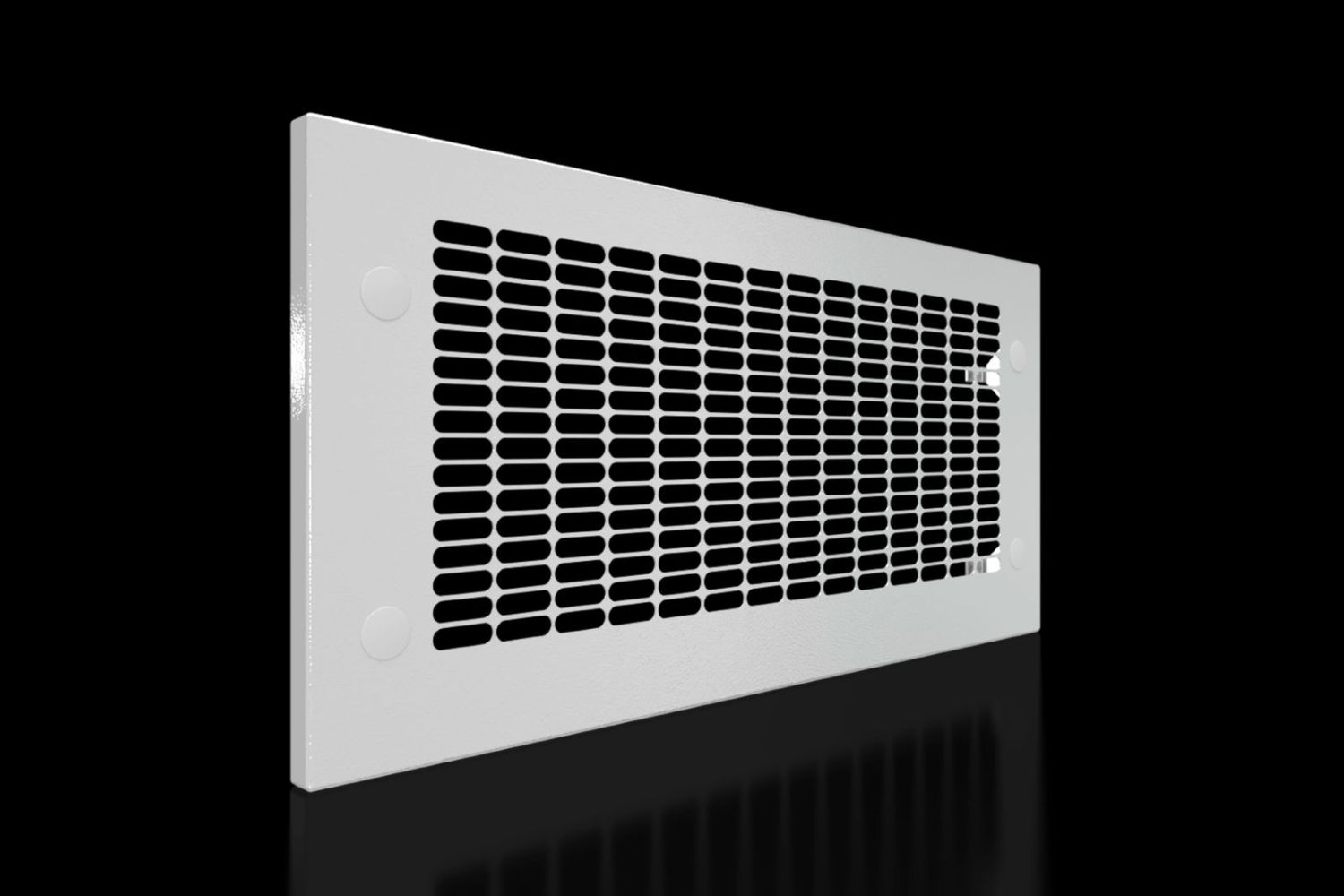

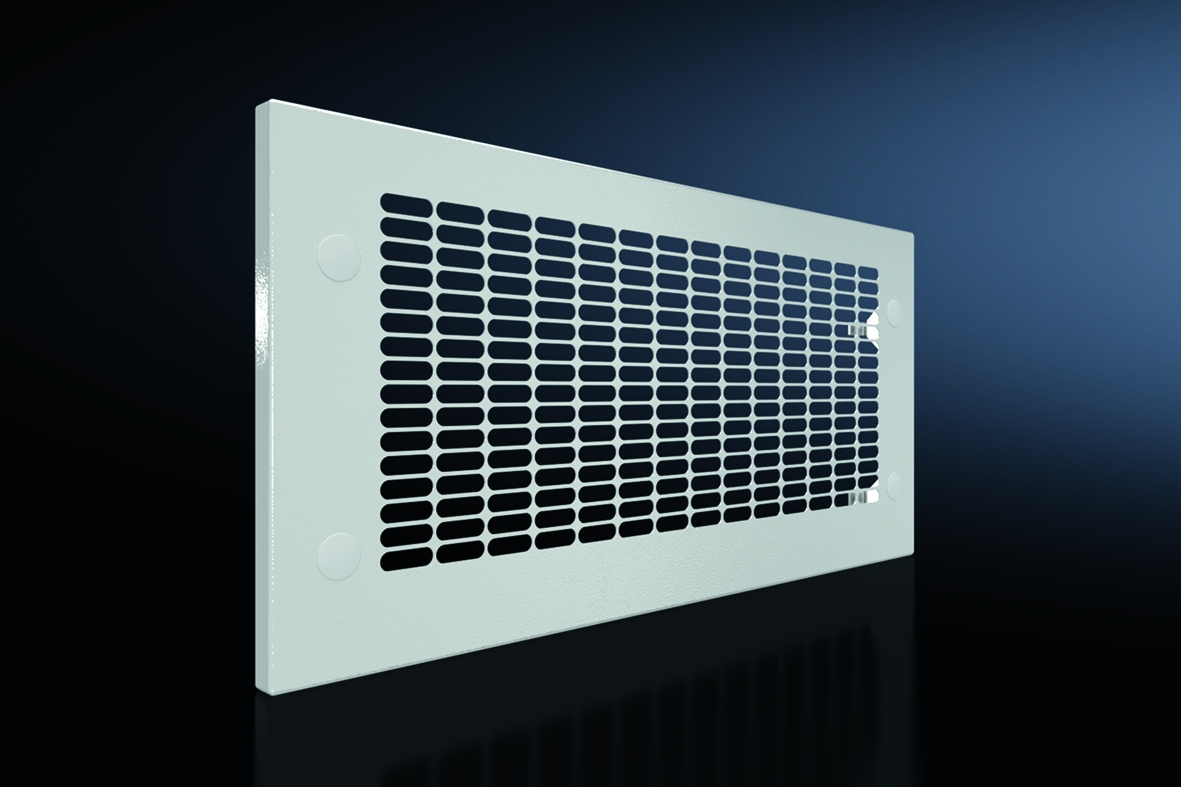

This image may differ from the desired article.
Rittal 9682356Rittal 9682356Rittal 9682356
-9% 69,81 EUR 76,72 EUR
( 83,07 EUR incl. VAT )
≈ £58.43  |  ≈ $76.72
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9682356 SV front trim panel for VX, bottom, IP 2X, W x H: 600x300 mm
Datasheet:file_download Download
Lieske Part No.:1285207
Mfg Part No: 9682356
UPC/EAN: 4028177929814
Weight:2.98 kg
Type:VX 9682356

Product information for Rittal 9682356:

The SV front trim panel for VX, bottom, IP 2X, is a system accessory from Rittal, used as a lower closure in modular front design of enclosures, particularly when partial doors are used. The product is specifically designed for enclosures with a width of 600 mm and has a height of 300 mm. It serves for optical and functional closure design of the front side, where the front trim panel can be removed from the outside by loosening the screws, facilitating maintenance and inspection.

Applications

The front trim panel is designed for use in industrial environments where structured and secure front design of enclosures is required. It is used in combination with partial doors to close the lower front side while simultaneously enabling ventilation. The design with ventilation opening ensures sufficient air circulation to regulate the internal temperature of the enclosure. The protection rating IP 2X provides protection against contact with fingers and against solid foreign objects, but not against water or dust.

Functions and Equipment in Detail

The front trim panel is made of sheet steel with a thickness of 1.5 mm, coated with a textured paint. The colour corresponds to RAL 7035, a grey-black tone commonly used in industrial applications. The delivery includes the front trim panel itself, a partition strip, and the required mounting material. Mounting is done via screws accessible from the outside, enabling easy installation and removal.

Technology Explained Simply

The ventilation opening in the front trim panel enables passive ventilation, contributing to cooling of components installed in the enclosure. The protection rating IP 2X means the front trim panel is protected against contact with fingers and against ingress of solid foreign objects with a diameter of at least 12.5 mm. This is sufficient for many industrial applications where no high requirements for water tightness or dust protection exist. The use of sheet steel with 1.5 mm thickness ensures adequate mechanical stability and durability.

Compatibility and Accessories

The front trim panel is specifically designed for enclosures with a width of 600 mm. For upper ventilation, when using this IP 2X front trim panel, a matching roof plate with IP 2X protection rating is required to maintain consistent protection class. Suitable accessories include roof plates for VX in dimensions 600x600 mm and 600x800 mm, which also feature the IP 2X protection rating.

Mounting and Installation

Installation is done by securing the front trim panel to the lower front side of the enclosure using the screws included in the delivery. The front trim panel is fastened at the designated mounting points, where the partition strip serves for stabilisation and connection to adjacent components. Removal is also simple, as the screws can be loosened from the outside.

Advantages in Operation

The front trim panel provides a clean and professional appearance for the front side of the enclosure. The integrated ventilation supports cooling of electronic components, increasing the lifespan and reliability of the devices. Easy mounting and removal facilitate maintenance and inspection without needing to open the entire enclosure. The use of sheet steel with textured paint ensures high mechanical strength and corrosion resistance in industrial environments.

General
Modelwith ventilation opening
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryFront panel, partition, including mounting hardware
NoteWhen using front panels IP 2X, a roof sheet with protection rating IP 2X must be selected for the upper ventilation
Height300 mm
Suitable forWidth: = 600 mm
PCF/VE (Cradle-to-Gate)11.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682356, EAN: 4028177929814

Questions & answers

What is the delivery time of Rittal 9682356 SV front trim panel for VX, bottom, IP 2X, W x H: 600x300 mm?

The article Rittal 9682356 SV front trim panel for VX, bottom, IP 2X, W x H: 600x300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682356 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682356 SV front trim panel for VX, bottom, IP 2X, W x H: 600x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682356 SV front trim panel for VX, bottom, IP 2X, W x H: 600x300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
