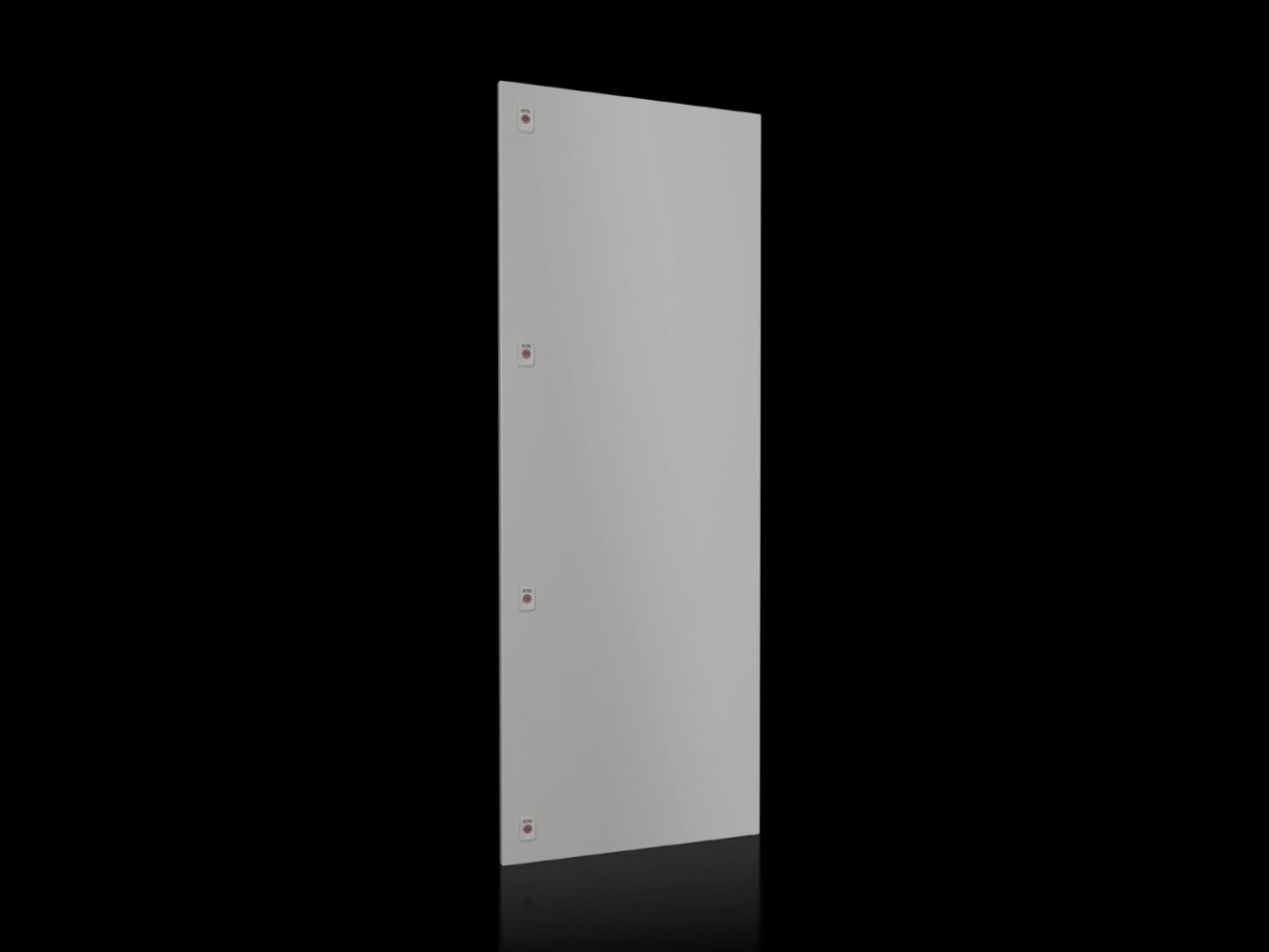

Rittal 9682176 SV partial door for VX, W x H: 600x1600 mm,

Your rating:
Average rating
product review for Rittal 9682176 SV partial door for VX, W x H: 600x1600 mm,
( 5 / 5 ) 4 ratings
Rittal 9682176
This image may differ from the desired article.
Rittal 9682176Rittal 9682176Rittal 9682176
-30% 137,41 EUR 194,98 EUR
( 163,52 EUR incl. VAT )
≈ £115.01  |  ≈ $151.01
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9682176 SV partial door for VX, W x H: 600x1600 mm,
Datasheet:file_download Download
Lieske Part No.:1903718
Mfg Part No: 9682176
UPC/EAN: 4028177929098
Weight:21 kg
Type:SV 9682176

Product information for Rittal 9682176:

The Rittal SV 9682176 is a partial door for VX enclosures, which can be used as a replacement for a complete door or a rear panel. With a width of 600 mm and a height of 1,600 mm, it is specifically designed for enclosures of this width. The door is made of steel sheet with a thickness of 2 mm and features a structured paint surface in the color RAL 7035, providing a robust and uniform surface. The protection rating IP 54 according to IEC 60 529 ensures protection against dust and splashing water, making the partial door suitable for use in industrial environments where certain environmental stresses are expected.

Applications
The partial door is intended for use in VX enclosures where a flexible division of the front side is required. It can be combined freely with other partial doors to create different arrangements. A front trim panel is required at the top and bottom of the partial door to ensure a closed and aesthetically uniform front. The door can be hinged on the right or left side, enabling flexible installation at various positions within the enclosure.

Functions and Equipment in Detail
The partial door features a standard double-bar lock insert, which can be replaced with lock inserts of type A. This allows adaptation to different security requirements or access concepts. The locking components include a total of four locks, ensuring secure latching. The opening angle of the partial doors is up to 130°, which is sufficient to allow access to the installed components without the door needing to be opened excessively.

Technology Explained Simply
The use of steel sheet with 2 mm thickness ensures high mechanical stability and resistance to external influences. The structured paint surface provides a uniform coating that is scratch-resistant and durable against environmental influences. The protection rating IP 54 means the door is dust-tight and protected against splashing water, making it suitable for use in production environments or rooms with increased humidity. The RAL 7035 color is a gray, neutral tone that integrates well into industrial facilities.

Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 600 mm. Various front trim panels are available as accessories and must be mounted at the top and bottom of the partial door. Front trim panels are available in different heights (e.g. 300 mm, 100 mm) and protection ratings IP 54, IP 2X). Additionally, lock inserts made of zinc die-cast with a length of 27 mm are available as replacements for the standard double-bar lock insert. For doors without a viewing window with a height of 600 to 1000 mm, the installation of monitor frame 2305.000 is possible, enabling integration of control or display units. Mini comfort handles AX are also available as accessories and can be used for more ergonomic operation of the locks.

Installation and Mounting
The partial door is supplied with a partition, hinges, locking components, and fastening material, enabling direct installation in the enclosure. Mounting is done at the designated fastening points in the enclosure, with hinges and locks installed according to the desired hinge direction (right or left).

Operational Advantages
The modular design of the partial door allows flexible adaptation to different requirements in the enclosure. The combinability with other partial doors and the choice of hinge direction increase flexibility in planning. The robust material construction and protection rating IP 54 ensure long service life and low maintenance requirements. The integrated locks provide secure access control, with the replaceable lock inserts allowing adaptation to specific security conditions. The supply with fastening material and partition reduces the need for additional components and speeds up installation.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 4
Width600 mm
Height1.600 mm
Suitable forWidth: = 600 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)80 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682176, EAN: 4028177929098
