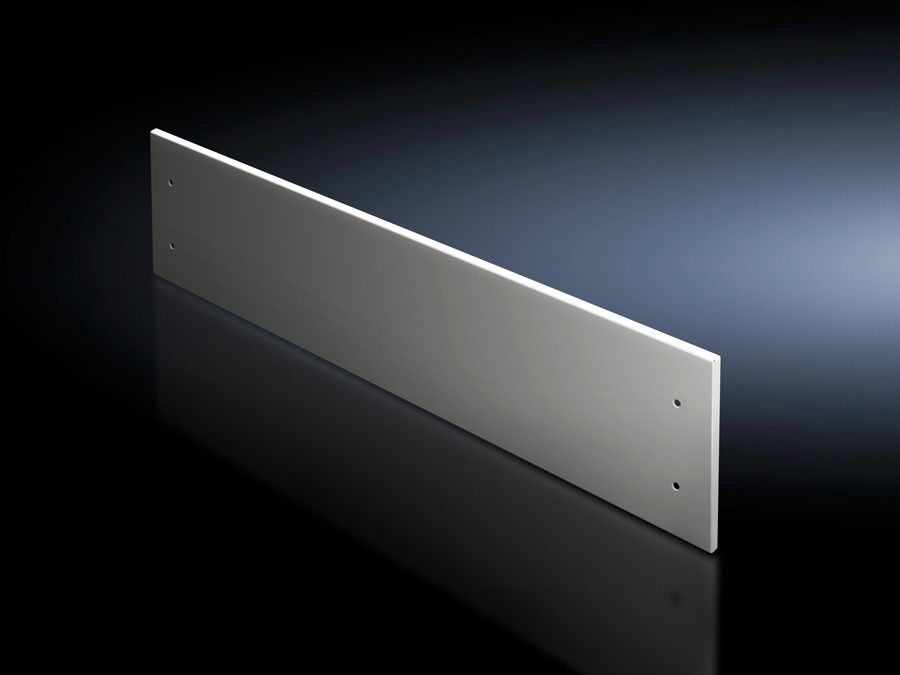

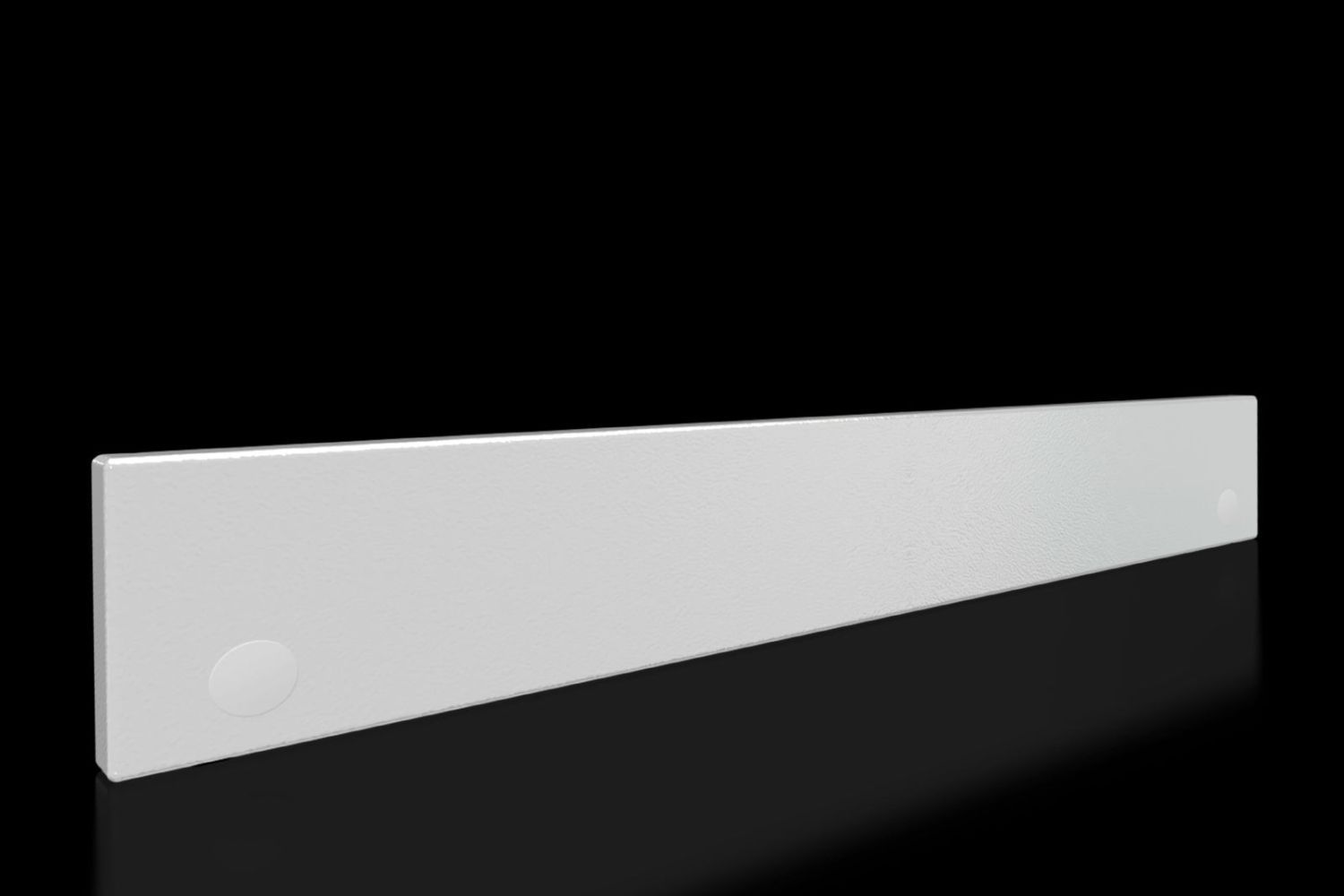

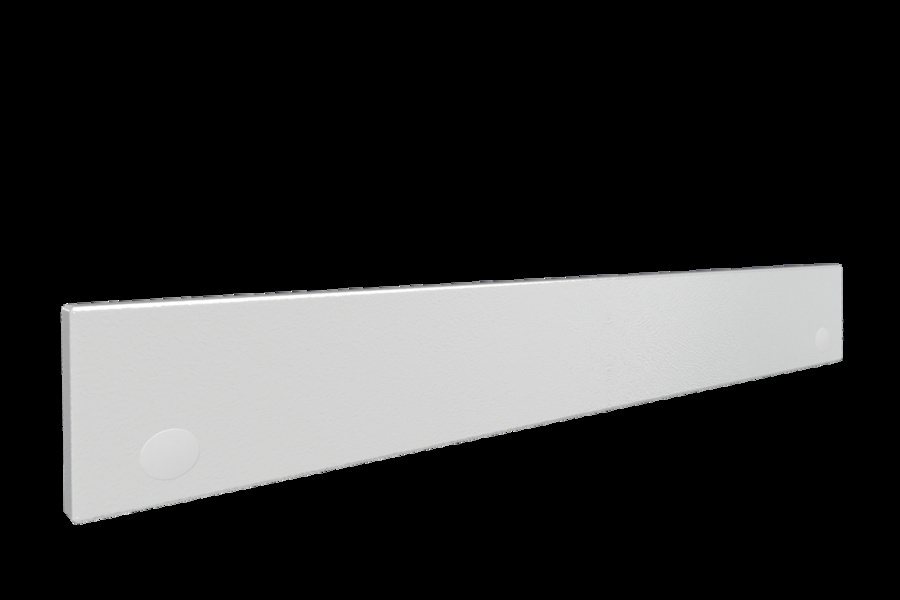

Rittal 9682316 SV front trim panel for VX, top, IP 54, W x H: 600x100 mm

Your rating:
Average rating
product review for Rittal 9682316 SV front trim panel for VX, top, IP 54, W x H: 600x100 mm
( 5 / 5 ) 1 ratings
Rittal 9682316
This image may differ from the desired article.
Rittal 9682316Rittal 9682316Rittal 9682316Rittal 9682316
42,09 EUR
( 50,09 EUR incl. VAT )
≈ £35.23  |  ≈ $46.26
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682316 SV front trim panel for VX, top, IP 54, W x H: 600x100 mm
Datasheet:file_download Download
Lieske Part No.:1903720
Mfg Part No: 9682316
UPC/EAN: 4028177929623
Weight:1.42 kg
Type:VX 9682316

Product information for Rittal 9682316:

Rittal SV front trim panel for VX, top, type 9682316, serves as the upper closure for modular front design when using partial doors in enclosures. It is specifically designed for enclosures with a width of 600 mm and features a closed design with dimensions of 600 mm width and 100 mm height. The front trim panel is manufactured from steel sheet with a thickness of 1.5 mm and has a surface finish of textured paint in the color RAL 7035, providing a robust and uniform appearance. Installation is carried out using included mounting hardware, allowing the front trim panel to be removed from the outside by loosening the screws.

Applications

The front trim panel is intended for use in industrial enclosures, particularly in combination with partial doors, to ensure a uniform and closed front design. It serves as a visual closure at the top edge of the enclosure front and contributes to a clean, professional appearance. The IP54 protection rating makes it suitable for environments requiring a certain level of protection against dust and splashing water, for example in production halls or technical rooms with moderate contamination risk.

Functions and Equipment in Detail

The front trim panel is designed as a closed component without any openings or cutouts. The textured paint surface offers good resistance to mechanical stress and environmental influences. The color RAL 7035 corresponds to a gray shade that integrates well in industrial environments. The included mounting hardware enables simple and secure installation on the enclosure front. The front trim panel can be removed from the outside, allowing maintenance or replacement without dismantling the entire enclosure front.

Technology Explained Simply

The use of steel sheet with a thickness of 1.5 mm ensures sufficient mechanical stability to protect the front trim panel against bending and mechanical impacts. The textured paint finish improves surface quality and increases resistance to corrosion and contamination. The IP54 protection rating means the front trim panel is protected against dust (protection class 5) and splashing water from any direction (protection class 4), making it suitable for use in slightly contaminated or damp environments. The dimensions of 600 mm width and 100 mm height are aligned with standard enclosure widths to ensure precise fitting.

Compatibility and Accessories

The front trim panel is specifically designed for enclosures with a width of 600 mm and is used in combination with partial doors. The front trim panel is not intended for other widths or enclosure types.

Installation and Mounting

Installation is performed by securing the front trim panel to the top edge of the enclosure front using the included mounting hardware. The screws can be loosened from the outside to remove the front trim panel if required. The front trim panel is designed to seamlessly match partial doors, ensuring a uniform front design.

Operational Advantages

The front trim panel offers simple and quick installation, along with secure fastening that enables maintenance without dismantling the entire enclosure front. The IP54 protection rating provides sufficient protection in industrial environments. The use of steel sheet and textured paint ensures high mechanical stability and durability. The uniform color design in RAL 7035 supports a professional and orderly appearance of the enclosure front.

General
ModelClosed
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Height100 mm
Suitable forWidth: = 600 mm
PCF/VE (Cradle-to-Gate)5.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682316, EAN: 4028177929623

Questions & answers

What is the delivery time of Rittal 9682316 SV front trim panel for VX, top, IP 54, W x H: 600x100 mm?

The article Rittal 9682316 SV front trim panel for VX, top, IP 54, W x H: 600x100 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682316 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682316 SV front trim panel for VX, top, IP 54, W x H: 600x100 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682316 SV front trim panel for VX, top, IP 54, W x H: 600x100 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
