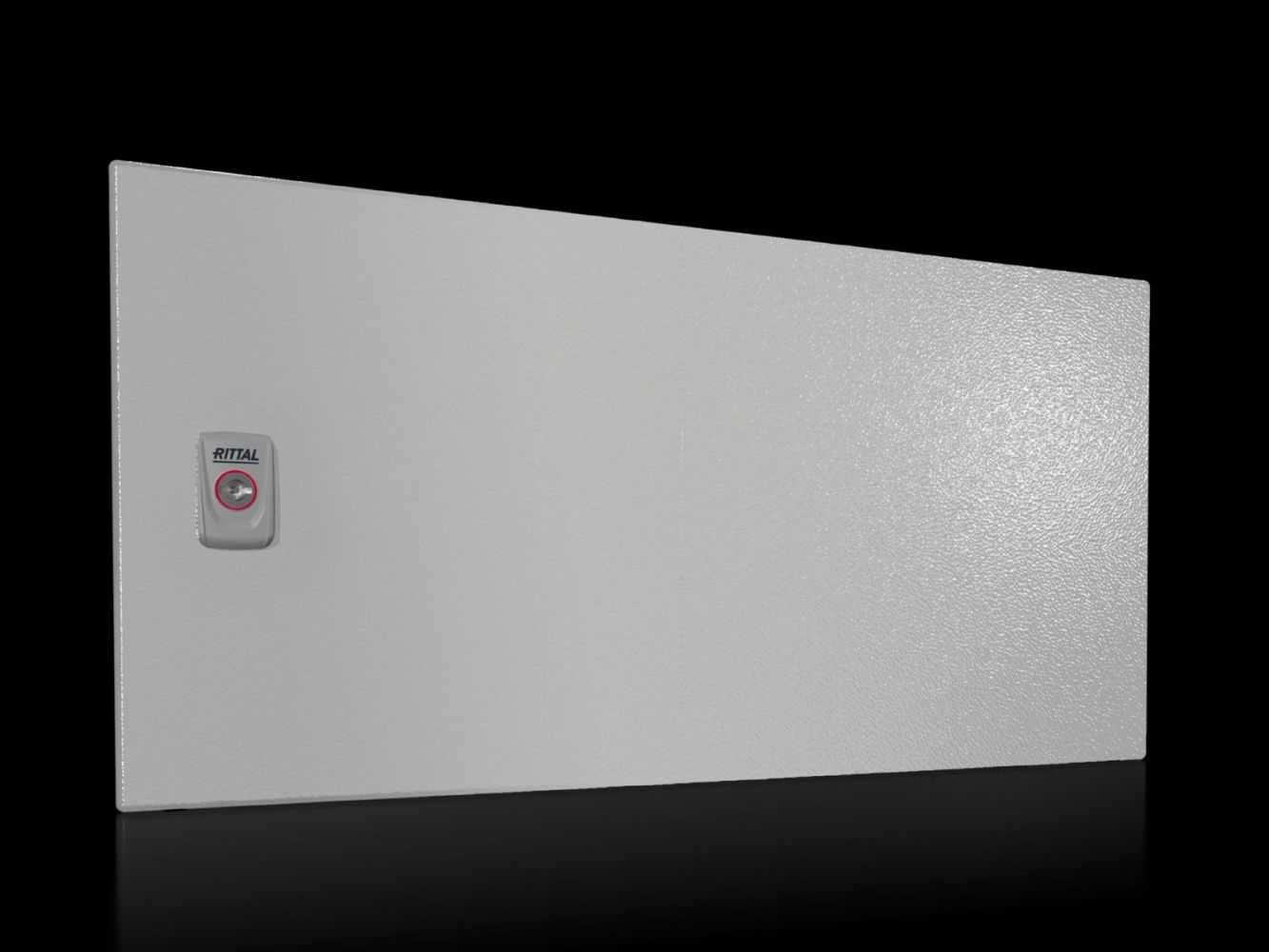

Rittal 9682163 SV partial door for VX, W x H: 600x300 mm

Your rating:
Average rating
product review for Rittal 9682163 SV partial door for VX, W x H: 600x300 mm
( 4 / 5 ) 2 ratings
Rittal 9682163
This image may differ from the desired article.
Rittal 9682163Rittal 9682163
-11% 53,71 EUR 60,36 EUR
( 63,91 EUR incl. VAT )
≈ £44.96  |  ≈ $59.03
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9682163 SV partial door for VX, W x H: 600x300 mm
Datasheet:file_download Download
Lieske Part No.:591452
Mfg Part No: 9682163
UPC/EAN: 4028177928848
Weight:4.5 kg
Type:SV 9682163

Product information for Rittal 9682163:

The Rittal SV 9682163 is a partial door for VX enclosures, designed to replace a complete door or a rear panel. It is specifically designed for enclosures with a width of 600 mm and features dimensions of 600 mm width and 300 mm height. The partial door is made of steel sheet with a thickness of 2 mm and is coated with a textured paint in the colour RAL 7035. The surface provides robust protection against mechanical stress and is suitable for use in industrial environments. The protection rating IP 54 according to IEC 60 529 ensures protection against dust and splashing water, making the door suitable for use in indoor environments as well as in slightly damp or dusty conditions.

Applications
The partial door is intended for use in VX enclosures, where it functions as part of a modular door construction. It can be combined freely with other partial doors to create individual door configurations. At the top and bottom of the door construction, a front trim panel is required to ensure a closed appearance. The door is suitable for controlling access to specific areas within the enclosure without having to open the entire door. This is particularly useful in installations where only certain modules or components need to be frequently maintained or inspected.

Functions and Equipment in Detail
The SV 9682163 features a standard double-bar lock insert, ensuring secure locking. This lock is interchangeable with lock inserts of type A, allowing adaptation to specific security requirements. The door can be hinged on the right or left side, enabling flexible installation in various enclosure configurations. The maximum opening angle is 130°, sufficient to ensure access to components behind the door. The delivery scope includes the partial door itself, a partition, hinges, lock components, and the required mounting material.

Technology Explained Simply
The use of steel sheet with a thickness of 2 mm ensures high mechanical stability and durability. The textured paint provides additional protection against corrosion and mechanical damage. The protection rating IP 54 means the door is protected against dust and splashing water, making it suitable for use in production environments, workshops, or other industrial applications. The door is not intended for outdoor use or in highly damp environments, as the IP 54 protection rating does not provide complete watertightness.

Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 600 mm. As accessories, various front trim panels are available, including front trim panels for VX in IP 54 and IP 2X versions, each in dimensions 600x300 mm and 600x100 mm. Additionally, lock inserts made of zinc die-cast with a length of 27 mm can be used to adjust the door's security. Mini comfort handles from the AX series are also available to facilitate operation of the locks. The partial door can be combined with other partial doors to create larger door constructions, with a front trim panel required at the top and bottom ends.

Installation and Mounting
Installation is carried out using the hinges and mounting materials included in the delivery scope. The door can be hinged on the right or left side, allowing flexible adaptation to the respective enclosure configuration. The maximum opening of 130° ensures sufficient access angle. The partial door is designed to be directly installed into the designated mounting openings of the VX enclosure front.

Operational Advantages
The modular construction of the partial door allows flexible adaptation to different requirements. The ability to open only specific areas of the enclosure reduces air flow stress and increases safety, as the entire enclosure does not need to be opened. The robust construction from steel sheet and the IP 54 protection rating ensure long service life and low maintenance. The interchangeable locks allow adaptation to specific security requirements without having to replace the entire door. The use of front trim panels at the top and bottom ends ensures a professional appearance and prevents dust or moisture from entering at the edges.

General
MaterialSheet steel, 2 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryPartition door, partition web, hinges, locking parts, including fastening material
NoteMaximum opening angle of partition doors 130°
LockNumber of locks: 1
Width600 mm
Height300 mm
Suitable forWidth: = 600 mm
Degree of protection IP according to IEC 60 529IP 54
PCF/VE (Cradle-to-Gate)17.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9682163, EAN: 4028177928848

Questions & answers

What is the delivery time of Rittal 9682163 SV partial door for VX, W x H: 600x300 mm?

The article Rittal 9682163 SV partial door for VX, W x H: 600x300 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9682163 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9682163 SV partial door for VX, W x H: 600x300 mm always at the best possible price. We can give you a discount of 2% on Rittal 9682163 SV partial door for VX, W x H: 600x300 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
