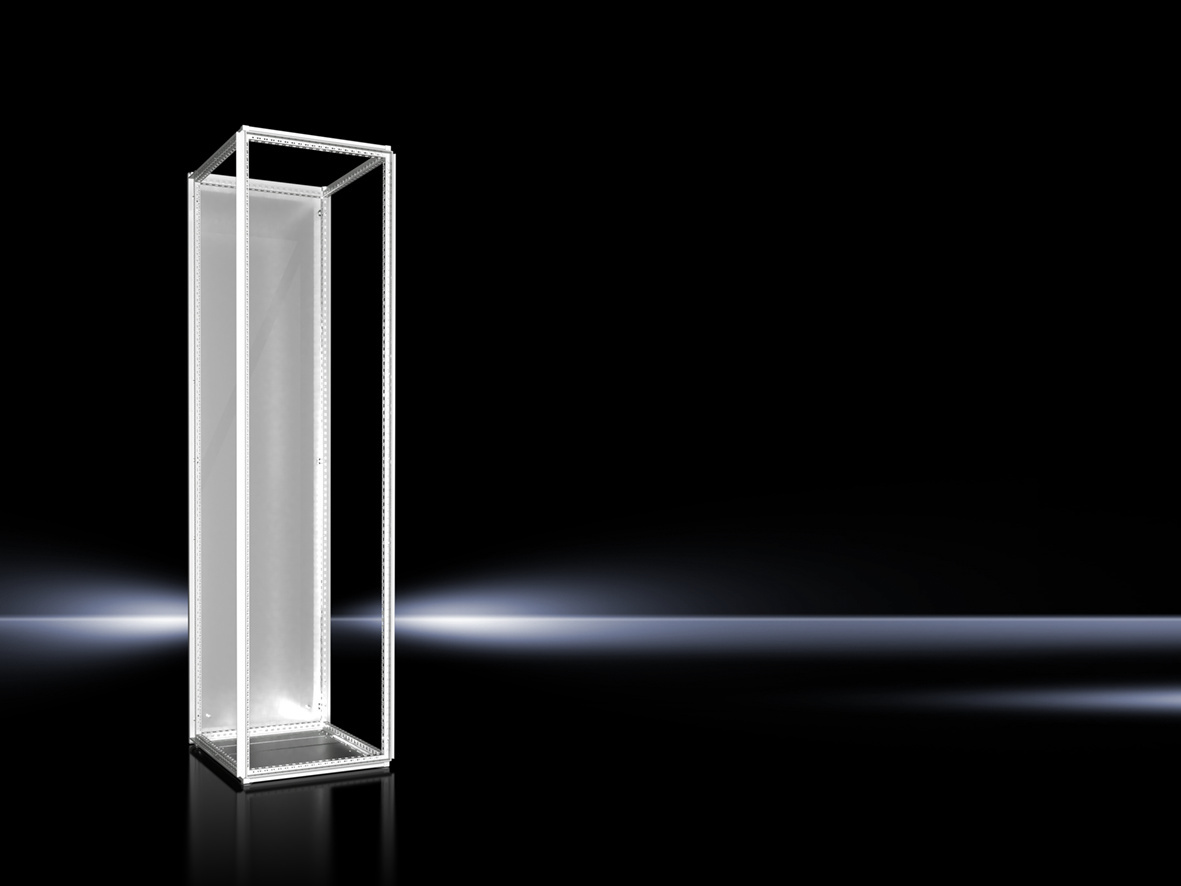

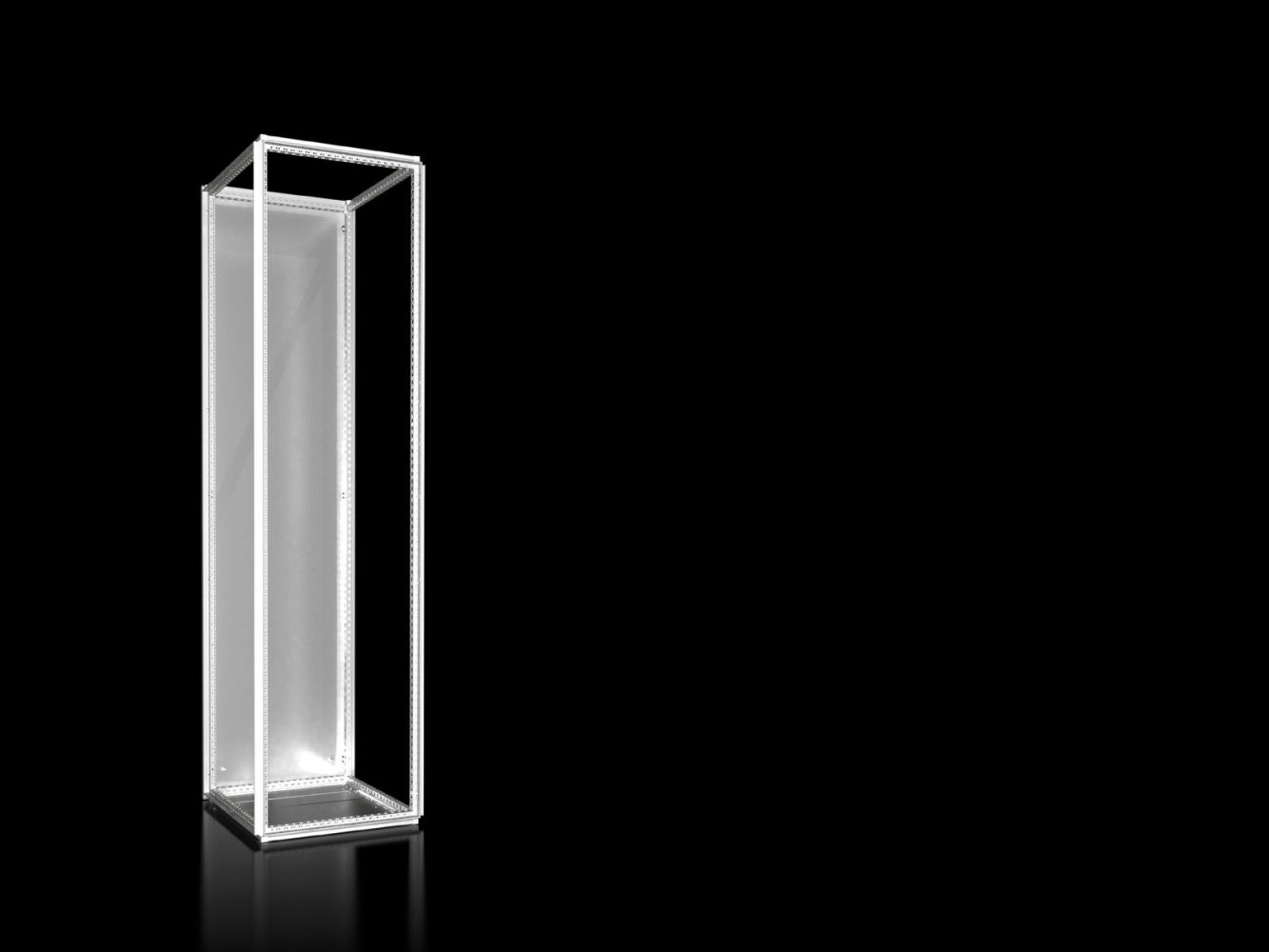

Rittal 9680626 VX modular enclosure, W x H x D: 600x2200x600 mm
|
362,25 EUR |
|
|
( 431,08 EUR incl. VAT ) ≈ £303.20 | ≈ $398.11 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441004 |
| Mfg Part No: | 9680626 |
| UPC/EAN: | 4028177929548 |
| Weight: | 49 kg |
| Type: | VX 9680.626 |
Product information for Rittal 9680626:
Applications
The enclosure is suitable for use in industrial plants, such as in manufacturing automation, power supply, or process control. It can be arranged in rows to create larger enclosure systems. The modular design allows flexible adaptation to different requirements for internal configuration and mounting of electrical components.
Functions and Equipment in Detail
The delivery includes the enclosure frame, rear panel, and base plates. These components form the basic structure of the enclosure, designed for mounting additional parts such as partial doors, front trim panels, or side panels. The degree of protection IP according to EN 60 529 is up to IP 54, depending on the type of cladding. This means the enclosure is protected against dust and splashing water, making it suitable for indoor use with moderate contamination risk.
Technology Explained Simply
The use of 1.5 mm thick sheet steel ensures sufficient strength to securely support electrical components mounted inside the enclosure. The dip-primed and powder-coated surface provides high corrosion resistance and is durable against mechanical stress. The galvanized base plates prevent rust formation, especially in humid environments. The test basis IEC 61 439-1/-2 and IEC 61 641 ensures compliance with international standards for enclosure systems, guaranteeing the safety and reliability of the product.
Compatibility and Accessories
The enclosure is compatible with various accessories that can be used for individual customization. These include SV partial doors in various heights (e.g. 1000 mm, 1200 mm, 1800 mm), front trim panels (e.g. IP 54, IP 2X), plinth trim panels and corner pieces, as well as screwable side panels. These elements allow customized design of front and side surfaces to optimize accessibility, safety, and visual appearance of the enclosure.
Mounting and Installation
Mounting is done by screwing together the individual components. The base plates are attached to the lower edge of the enclosure frame, and the rear panel is mounted on the back side. The exact installation instructions are described in the manufacturer's data sheet. The modular design allows flexible adaptation to different installation conditions and enables integration into existing enclosure systems.
Advantages in Operation
The enclosure offers high mechanical stability and good corrosion protection, increasing its service life and reliability. The modular design enables flexible and future-proof equipment, allowing easy adaptation to changing requirements. The IP 54 protection rating provides sufficient protection against environmental influences indoors, ensuring operational safety. The use of standardized norms (IEC 61 439-1/-2, IEC 61 641) ensures compatibility with other components and systems.
The product carbon footprint (PCF/VE) is 133 kg CO2 eq (Cat B), calculated approximately based on product weight and self-declared. This value serves as a reference for the environmental balance of the product over its life cycle from raw material extraction to manufacturing (Cradle-to-Gate).
| General | |
| Material | Sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, rear panel, base plates |
| Degree of protection IP according to EN 60 529 | Up to IP 54 (depending on cladding) |
| Test basis | IEC 61 439-1/-2, IEC 61 641 |
| Width | 600 mm |
| Height | 2.200 mm |
| Depth | 600 mm |
| PCF/VE (Cradle-to-Gate) | 133 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 9680626 VX modular enclosure, W x H x D: 600x2200x600 mm?
The article Rittal 9680626 VX modular enclosure, W x H x D: 600x2200x600 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9680626 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9680626 VX modular enclosure, W x H x D: 600x2200x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 9680626 VX modular enclosure, W x H x D: 600x2200x600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
