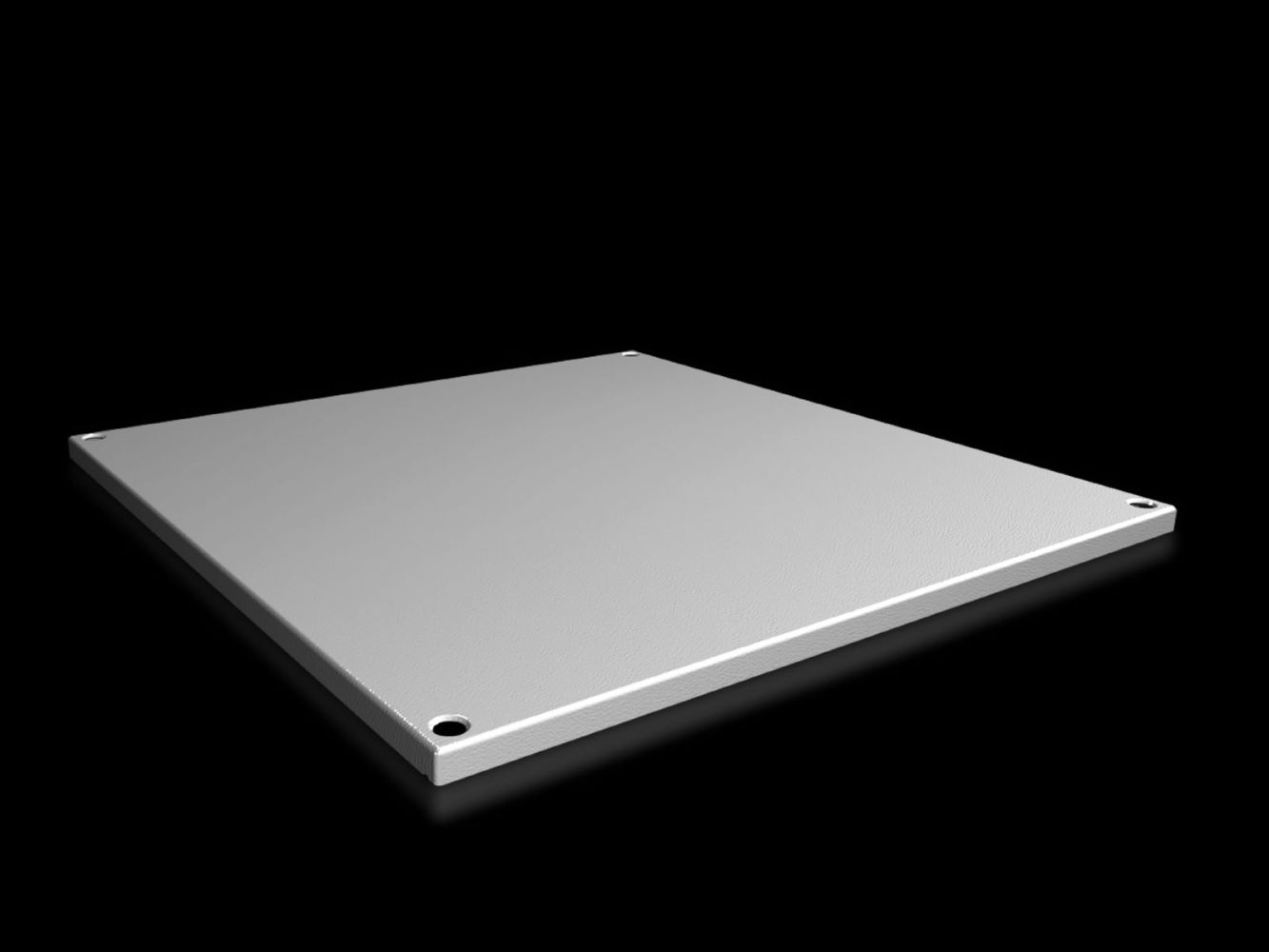

Rittal 9681666 SV roof plate for VX, width: 600x600 mm, IP 55

Your rating:
Average rating
product review for Rittal 9681666 SV roof plate for VX, width: 600x600 mm, IP 55
( 4.5 / 5 ) 2 ratings
Rittal 9681666
This image may differ from the desired article.
Rittal 9681666Rittal 9681666
50,72 EUR
( 60,36 EUR incl. VAT )
≈ £42.45  |  ≈ $55.74
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9681666 SV roof plate for VX, width: 600x600 mm, IP 55
Datasheet:file_download Download
Lieske Part No.:1903704
Mfg Part No: 9681666
UPC/EAN: 4028177926813
Weight:5.56 kg
Type:SV 9681666

Product information for Rittal 9681666:

The Rittal SV 9681666 is a roof plate for enclosures of the VX series, designed for a cabinet width and depth of 600 mm each. It serves as a replacement for the standard roof or as an addition for cabinets originally delivered without a roof plate. The product is specifically designed for use in industrial environments where a protection rating IP 55 is required to protect against dust and splashing water. The surface is coated with structured paint, providing a robust and durable coating resistant to mechanical stress and corrosion.

Applications

The roof plate is used in industrial electrical engineering and machine building, where enclosures must be protected from external influences such as precipitation, dust, or splashing water. It is particularly suitable for installations outdoors or in production halls with high humidity. The protection rating IP 55 ensures that the device remains functional even when briefly wetted or exposed to splashing water from all directions. Use in combination with VX enclosures or cabinets enables a uniform and standardized cabinet construction.

Features and Equipment in Detail

The roof plate is made of sheet steel with a thickness of 1.5 mm, providing sufficient mechanical stability and resistance to external loads. The color is RAL 7035, a gray-beige standard shade widely used in industry and well-integrated into industrial environments. The delivery includes fastening materials required for mounting on the cabinet. Installation is carried out directly onto the cabinet body, with the fastening elements ensuring a secure and tight connection.

Technology Explained Simply

The protection rating IP 55 means that the roof plate is dust-tight (no ingress of dust in harmful quantities) and protected against splashing water from all directions. This makes it suitable for use in environments where brief precipitation or splashing water from machine operation may occur. The 1.5 mm sheet steel material provides sufficient strength to withstand mechanical loads such as wind pressure or light impacts. The structured paint coating increases abrasion resistance and prevents corrosion, extending the service life of the roof plate.

Compatibility and Accessories

The roof plate is specifically designed for cabinets of the VX series with dimensions of 600 mm width and 600 mm depth. It is not suitable for other cabinet sizes or series. As accessories, transport eyes for VX, TS, SE are available, which are helpful in shipping logistics, as well as pressure plugs for roof plates IP 55, which can be used for pressure relief during installation.

Installation and Mounting

Installation is carried out using the fastening materials included in the delivery. The fastening elements are designed to ensure a tight and stable connection between the roof plate and the cabinet body. Installation does not require special tools, but proper fastening is necessary to maintain the IP 55 protection rating. Installation should take place in a dry and dust-free location to ensure optimal connection.

Operational Advantages

The roof plate provides reliable protection against external influences, extending the service life of the enclosure and increasing operational safety. The use of standard components such as the Rittal SV 9681666 enables easy replacement and maintenance. The robust construction from 1.5 mm sheet steel and structured paint coating ensures long durability even under industrial conditions. The IP 55 protection rating meets the requirements of many industrial applications, especially in areas with increased humidity or dust exposure.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forWidth: = 600 mm, Depth: = 600 mm


Product data sheet
Datasheet for Rittal 9681666, EAN: 4028177926813

Questions & answers

What is the delivery time of Rittal 9681666 SV roof plate for VX, width: 600x600 mm, IP 55?

The article Rittal 9681666 SV roof plate for VX, width: 600x600 mm, IP 55 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681666 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681666 SV roof plate for VX, width: 600x600 mm, IP 55 always at the best possible price. We can give you a discount of 2% on Rittal 9681666 SV roof plate for VX, width: 600x600 mm, IP 55 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
