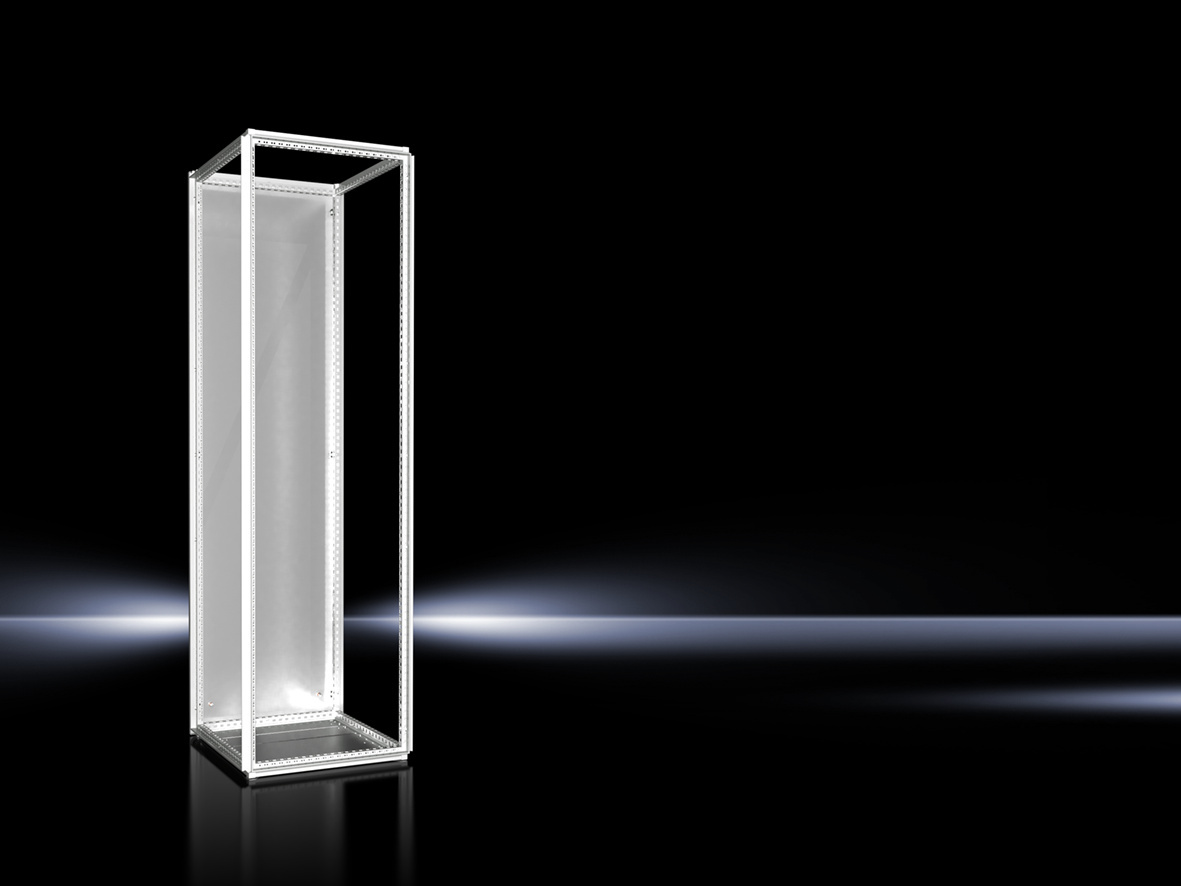

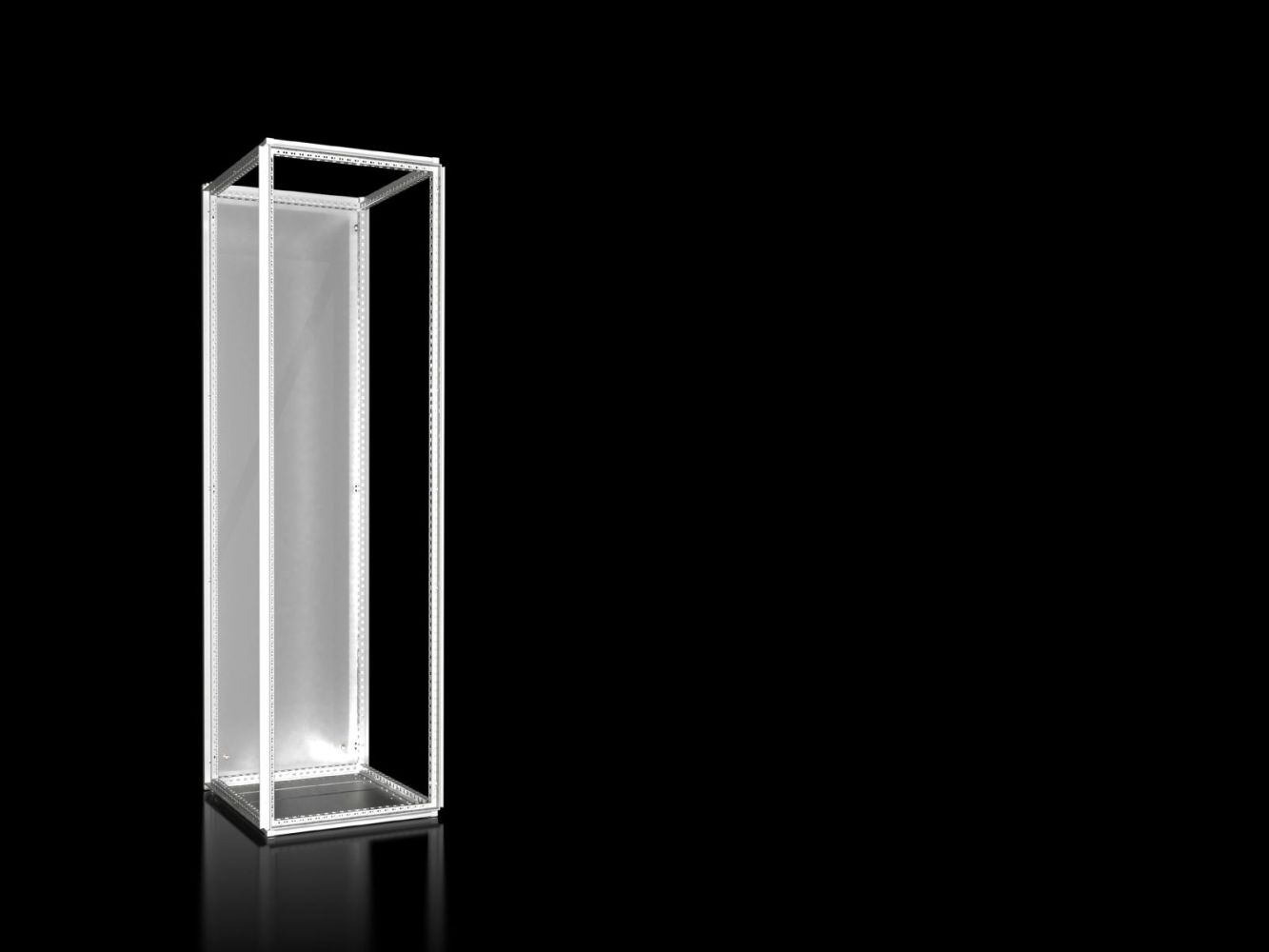

Rittal 9680606 VX modular enclosure, W x H x D: 600x2000x600 mm
|
346,15 EUR |
|
|
( 411,92 EUR incl. VAT ) ≈ £289.73 | ≈ $380.42 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440991 |
| Mfg Part No: | 9680606 |
| UPC/EAN: | 4028177929579 |
| Weight: | 45.2 kg |
| Type: | VX 9680.606 |
Product information for Rittal 9680606:
Applications
The enclosure is suitable for use in industrial environments, particularly in plants requiring modular expandability and clear structuring of electrical components. It can be used in production plants, automation systems or for the installation of control and switching technology. The modular design allows for flexible adaptation to different requirements, such as the installation of partial doors or additional partitions.
Functions and Equipment in Detail
The enclosure offers a protection rating up to IP 54, with the exact protection class depending on the type of cladding. This means the enclosure is dust-tight and protected against splashing water from all directions, making it suitable for use in indoor environments with increased contamination risk or occasional moisture. The design and safety testing are based on standards IEC 61 439-1/-2 and IEC 61 641, which apply to the manufacture of enclosures and electrical equipment. The processing of steel sheet with a thickness of 1.5 mm ensures high mechanical stability and resistance to external influences.
Technology Explained Simply
The dip-primed surface of the enclosure frame and rear panel provides a good corrosion protection base, while the powder-coated, textured lacquer on the rear panel offers an additional protective layer against environmental influences. The galvanized base sheets prevent corrosion in the lower parts of the enclosure, which are often exposed to increased moisture. The protection rating IP 54 is sufficient for many industrial applications, especially when there is no direct wetting or heavy dust accumulation. The modular construction allows for easy integration of partial doors and internal partition panels, which can be selected according to requirements.
Compatibility and Accessories
The enclosure is compatible with various accessories that allow for individual adaptation. These include SV partial doors in different heights (e.g. 1000 mm, 1200 mm, 1800 mm) and widths (600 mm), some with viewing windows, as well as front trim panels for the lower half of the enclosure in IP 54 or IP 2X. Additionally, plinth trim panels and corner pieces are available, enabling a neat finishing design. Side panels with dimensions 2000 mm height and 600 mm depth can also be mounted to secure and extend the enclosure. The combination with these parts allows for flexible design of the enclosure interior and optimal use of available space.
Mounting and Installation
Installation is carried out via the pre-fabricated enclosure frame, delivered with rear panel and base sheets. The components are designed to be easily assembled, with connection elements and mounting aids varying depending on the accessory. The modular design allows for step-by-step expansion and adaptation of the enclosure to specific requirements. The use of partial doors and partitions requires no additional tools, as mounting is done via designated fastening points.
Advantages in Operation
The enclosure offers high mechanical stability and a good protection class sufficient for many industrial applications. The modular design enables flexible use and expansion without having to replace the entire enclosure. The surface coating ensures long service life and resistance to corrosion. The use of 1.5 mm thick steel sheet ensures high strength, even under heavy operational loads. The protection rating IP 54 is suitable for many indoor applications, especially when there is no direct wetting or heavy dust accumulation. The combination with various accessories allows for individual design of the enclosure interior and optimal use of available space.
| General | |
| Material | Sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, rear panel, base plates |
| Degree of protection IP according to EN 60 529 | Up to IP 54 (depending on cladding) |
| Test basis | IEC 61 439-1/-2, IEC 61 641 |
| Width | 600 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| PCF/VE (Cradle-to-Gate) | 125.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 9680606 VX modular enclosure, W x H x D: 600x2000x600 mm?
The article Rittal 9680606 VX modular enclosure, W x H x D: 600x2000x600 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9680606 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9680606 VX modular enclosure, W x H x D: 600x2000x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 9680606 VX modular enclosure, W x H x D: 600x2000x600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
