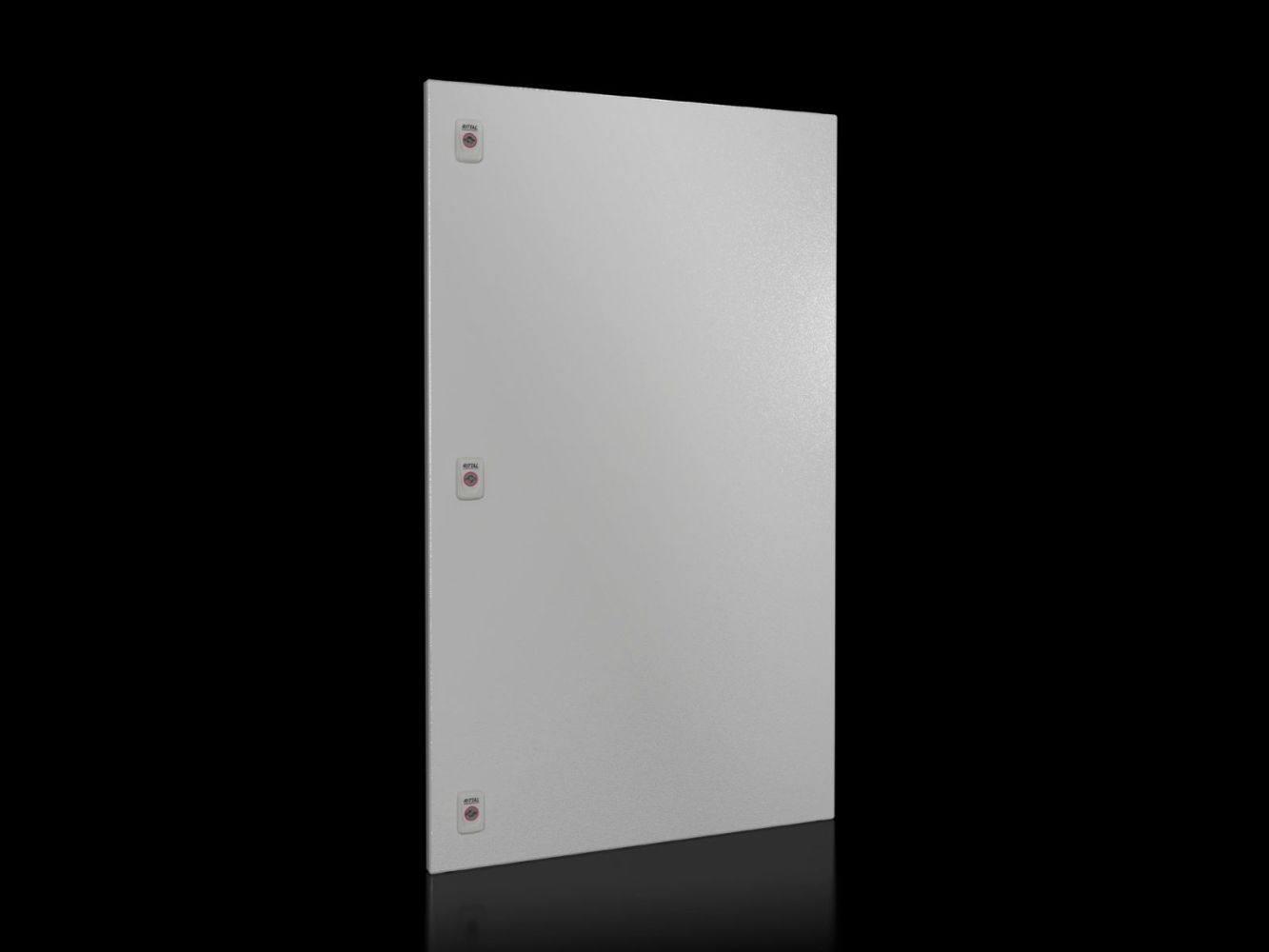

Rittal 9682160 SV partial door for VX, W x H: 600x1000 mm
|
-12% 118,80 EUR 135,26 EUR |
|
|
( 141,37 EUR incl. VAT ) ≈ £99.44 | ≈ $130.56 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 468941 |
| Mfg Part No: | 9682160 |
| UPC/EAN: | 4028177929074 |
| Weight: | 14.14 kg |
| Type: | SV 9682160 |
Product information for Rittal 9682160:
Applications
The partial door is used in industrial electrical engineering, particularly in VX-series enclosures, where a modular door configuration is required. It can be combined freely with other partial doors to create different access areas. At the top and bottom ends of the door arrangement, a front trim panel is required to ensure a closed and aesthetically uniform front. The door is intended for installation in enclosures where full access is not necessary, but only a limited area needs to be accessible.
Functions and Equipment in Detail
The SV 9682160 features a double-bar lock insert, which is mounted as standard and can be exchanged for lock inserts of type A. The door is equipped with three locks to ensure secure latching. The hinges allow a maximum opening angle of 130°, providing sufficient access to the interior of the enclosure. The door swing direction can be set to either right or left, enabling flexible installation in various enclosure configurations. The delivery includes the partial door, a partition, the hinges, the locking components, and the required mounting material.
Technology Explained Simply
The use of sheet steel with a thickness of 2 mm ensures high mechanical stability and resistance to vibrations and mechanical stress. The structured lacquer not only provides a decorative surface but also offers additional protection against corrosion and contamination. The IP 54 protection rating means the door is protected against dust and splashing water, making it suitable for use in production halls, workshops, or other industrial environments. The maximum opening of 130° allows good access to components inside the enclosure without requiring the door to be fully opened.
Compatibility and Accessories
The partial door is specifically designed for VX enclosures with a width of 600 mm. For complete installation, front trim panels are required at the top and bottom ends of the door arrangement. Various front trim panels are available as accessories, including models with IP 54 and IP 2X, as well as different heights (e.g. 300 mm or 100 mm). Additionally, lock inserts made of zinc die-cast in various lengths (e.g. 27 mm) can be used to adapt the locking function. For doors without a viewing window (height 600–1000 mm), the installation of monitor frame 2305.000 is possible, enabling integration of control or display units. Mini comfort handles for AX and KX systems are also available as accessories to facilitate operation.
Installation and Mounting
Mounting is done directly into the VX enclosure, where the door is fastened at the designated mounting points using the included material. The hinges are designed to ensure a secure and stable connection. The locking components are pre-installed but can be replaced with other variants if required. The door swing direction can be adjusted as needed during installation. The maximum opening of 130° allows sufficient access without requiring the door to be fully opened.
Operational Advantages
The modular design of the partial door enables flexible adaptation to different requirements in the enclosure. The combinability with other partial doors and the choice of door swing direction increase flexibility in planning and installation. The IP 54 protection rating ensures reliable operation in industrial environments. The standard equipment with locking and mounting components reduces installation effort. The use of sheet steel and structured lacquer ensures a long service life and low maintenance requirements.
| General | |
| Material | Sheet steel, 2 mm |
| Surface protection | Structured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | Partition door, partition web, hinges, locking parts, including fastening material |
| Note | Maximum opening angle of partition doors 130° |
| Lock | Number of locks: 3 |
| Width | 600 mm |
| Height | 1.000 mm |
| Suitable for | Width: = 600 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 |
| PCF/VE (Cradle-to-Gate) | 53.9 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
