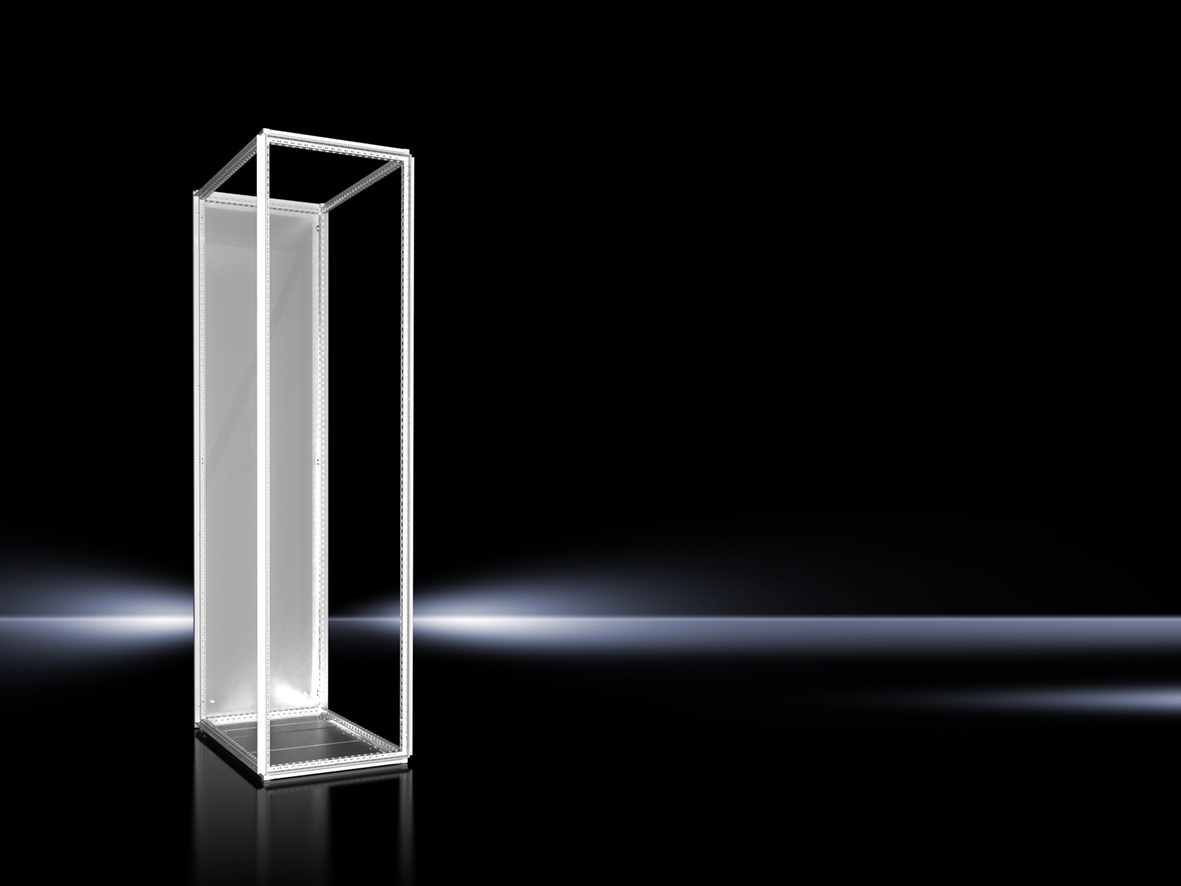

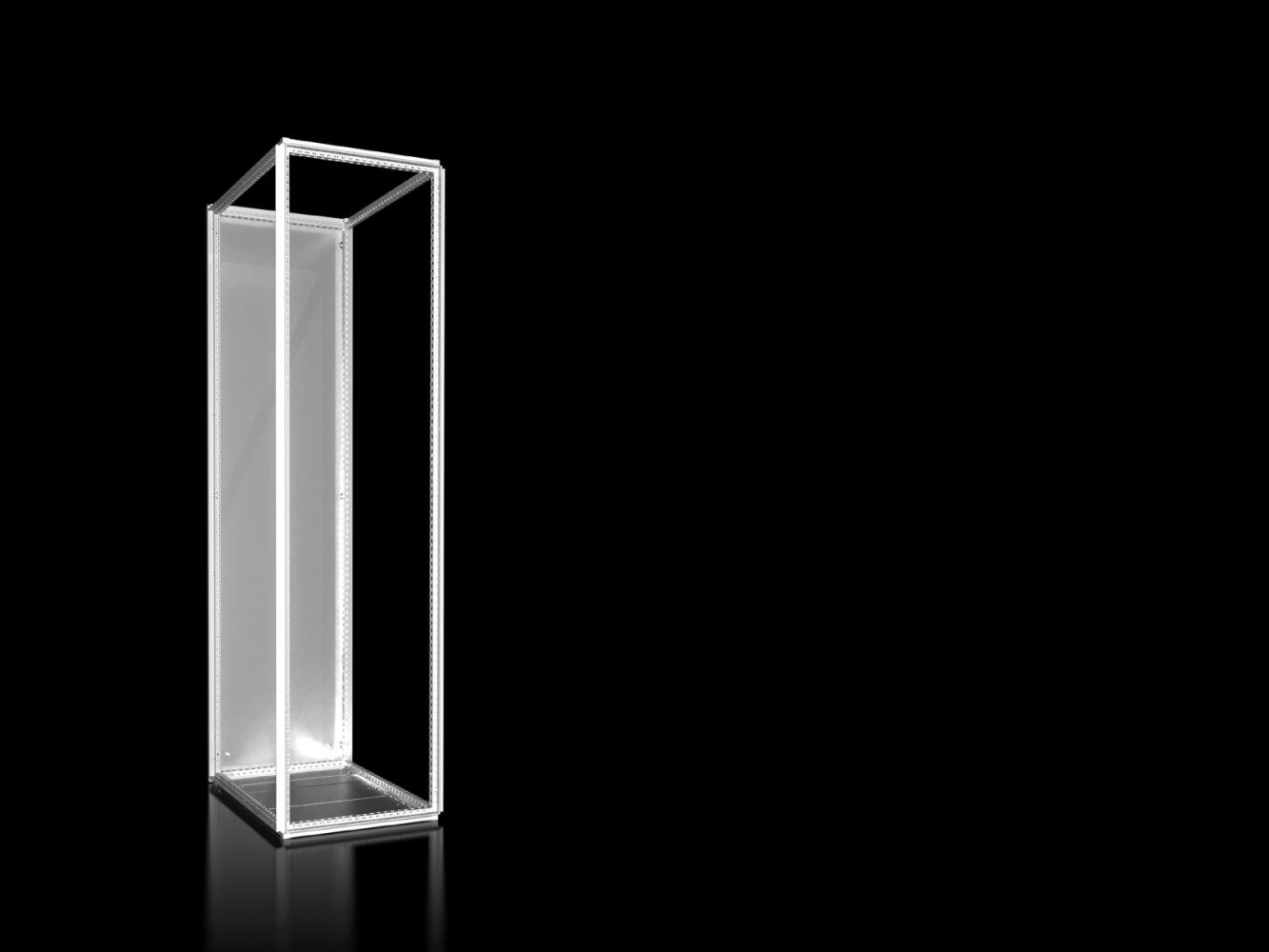

Rittal 9680628 VX modular enclosure, W x H x D: 600x2200x800 mm
|
387,55 EUR |
|
|
( 461,18 EUR incl. VAT ) ≈ £324.38 | ≈ $425.92 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441030 |
| Mfg Part No: | 9680628 |
| UPC/EAN: | 4028177929715 |
| Weight: | 52.2 kg |
| Type: | VX 9680.628 |
Product information for Rittal 9680628:
Applications
The enclosure is designed for use in industrial environments, particularly in production plants, automation systems or for the installation of control and distribution technology. The modular design allows for flexible adaptation to different requirements, such as the installation of partial doors, front trim panels or additional side panels. The protection rating IP up to 54 (depending on cladding) makes it suitable for indoor use where a certain level of protection against dust and splashing water is required. The test basis IEC 61 439-1/-2 and IEC 61 641 ensures compliance with international standards for switchgear and distribution enclosures.
Functions and equipment in detail
The delivery scope includes the enclosure frame, rear panel and base plates. These components form the basic structure of the enclosure, intended for the installation of electrical components, wiring or control elements. The use of sheet steel with a thickness of 1.5 mm ensures high mechanical stability and resistance to mechanical stress. The surface treatment with dip priming and powder coating provides good corrosion protection, especially in damp or slightly aggressive environments.
Technology explained simply
The protection rating IP 54 means that the enclosure is protected against dust and splashing water to a limited extent. This is particularly relevant when the enclosure is installed in areas where no direct moisture or heavy dust accumulation is expected. The note “depending on cladding” means that the actual protection class is influenced by the type of doors, front trim panels or other coverings used. The standards IEC 61 439-1/-2 and IEC 61 641 refer to the construction and testing of switchgear and distribution enclosures, ensuring the safety and reliability of the product.
Compatibility and accessories
The enclosure is designed for use with various accessories of the VX system. These include, for example, SV partial doors in various heights (e.g. 600x1000 mm, 600x800 mm, 600x1200 mm, 600x1800 mm, 600x150 mm, 600x300 mm, 600x1400 mm, 600x400 mm), SV front trim panels (e.g. bottom, IP 54, W x H: 600x300 mm or IP 2X, W x H: 600x300 mm), SV roof plates for cable entry (width 600x800 mm), plinth corner pieces with plinth trim panels (e.g. 8660002, 8660024), plinth trim panels (e.g. 100 mm, 200 mm, side 100x800 mm, 200x800 mm), VX side panels (for HT 2200x800 mm, screwable) as well as VX baying connectors (external, sheet steel, 1200 mm). These elements allow individual adaptation of the enclosure to specific requirements regarding accessibility, cable management and external design.
Mounting and installation
Mounting is done by screwing together the individual components. The enclosure frame forms the load-bearing structure to which the rear panel and base plates are attached. The use of levelling feet (e.g. M12, adjustment height 18–43 mm, 4 pieces) enables a level and stable positioning of the enclosure. The modular design allows for flexible arrangement of components within the enclosure, with the positioning of partial doors, front trim panels or other elements being variable according to requirements.
Advantages in operation
The enclosure offers high mechanical stability and good corrosion protection due to the surface treatments used. The modular construction allows flexible adaptation to different applications, thereby facilitating maintenance and expansion of the installed technology. Compliance with the standards IEC 61 439-1/-2 and IEC 61 641 ensures safety and reliability in operation. The protection rating IP 54 (depending on cladding) provides sufficient protection for indoor use with moderate environmental conditions. The PCF value of 137.5 kg CO2 eq (Cat B) indicates the environmental impact of the product over its life cycle from raw material extraction to manufacturing (Cradle-to-Gate).
| General | |
| Material | Sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, rear panel: dip-primed, externally powder-coated, textured lacquer, base plates: galvanized |
| Colour | RAL 7035 |
| Scope of delivery | Cabinet frame, rear panel, base plates |
| Degree of protection IP according to EN 60 529 | Up to IP 54 (depending on cladding) |
| Test basis | IEC 61 439-1/-2, IEC 61 641 |
| Width | 600 mm |
| Height | 2.200 mm |
| Depth | 800 mm |
| PCF/VE (Cradle-to-Gate) | 137.5 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
