Rittal 8128245 VX side panel, VE2, screwable, for HT 2200x800 mm (freight shipping)

Your rating:
Average rating
product review for Rittal 8128245 VX side panel, VE2, screwable, for HT 2200x800 mm (freight shipping)
( 4.6 / 5 ) 14 ratings

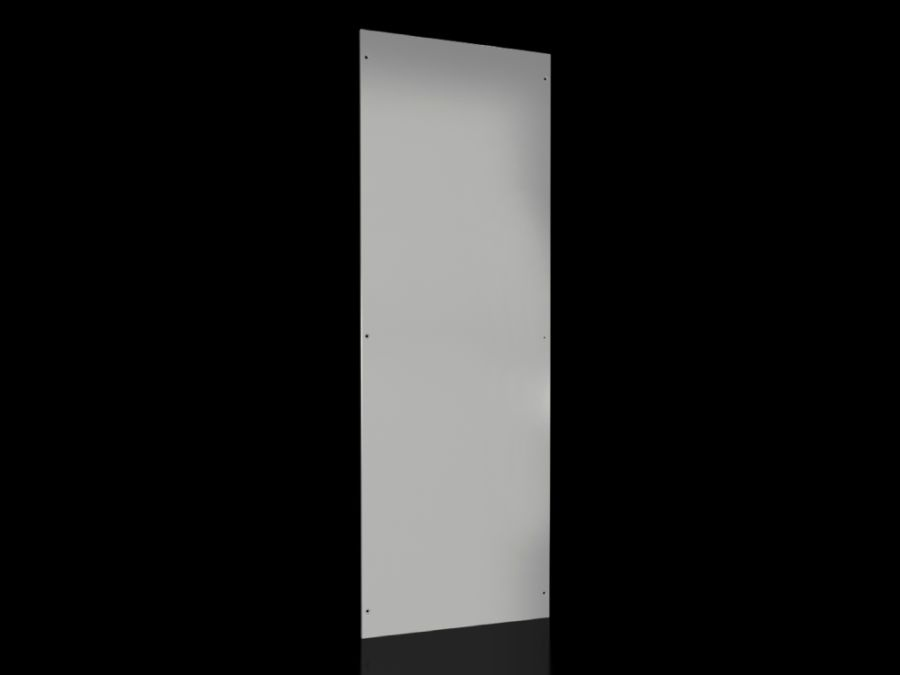

Rittal 8128245
This image may differ from the desired article.
Rittal 8128245Rittal 8128245Rittal 8128245
-10% 182,51 EUR 203,59 EUR
( 217,19 EUR incl. VAT )
≈ £152.76  |  ≈ $200.58
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8128245 VX side panel, VE2, screwable, for HT 2200x800 mm (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1440656
Mfg Part No: 8128245
UPC/EAN: 4028177921610
Weight:42.4 kg
Type:VX 8128.245

Product information for Rittal 8128245:

The Rittal VX 8128.245 is a screw-mounted side panel made of steel sheet, specifically designed for enclosures in the VX system. It is designed for enclosures with a height of 2,200 mm and a depth of 800 mm, serving as a stable closure for side surfaces in industrial applications. The product is made of 1.5 mm thick steel sheet, which is dip-primed and externally powder-coated, resulting in a uniform, durable surface in the colour RAL 7035. The side panel is designed for use in environments with increased requirements for protection rating and meets the protection rating IP 55 according to IEC 60 529, ensuring dust and splash water protection. Additionally, it complies with Type ratings Type 1 and Type 12 according to UL 50E, confirming suitability for indoor environments and areas with limited splash water or dirt ingress.

Applications

The side panel is used in industrial environments, particularly in enclosures and control cabinets built within the VX system. It is suitable for installations in production environments where high mechanical stability and protection against environmental influences are required. Its use in combination with other VX modules enables a modular and flexible enclosure construction that can be adapted to various requirements.

Functions and Equipment in Detail

The side panel is mounted by screwing, with clipsable side panel holders enabling time-saving and precise fastening. The holders are designed to support easy positioning in height and depth through an integrated hanging aid. This significantly simplifies installation and allows for single-person mounting. The flat part holders feature internal contact elements that ensure automatic equipotential bonding and enhance EMC protection. Additionally, earthing bolts with a large, paint-free contact surface are integrated to ensure optimal electrical connection and earthing.

Technology Explained Simply

The use of steel sheet with a thickness of 1.5 mm ensures high mechanical strength and resistance to mechanical stress. The dip priming and external powder coating protect the material from corrosion and ensure a long-lasting, aesthetically pleasing surface. The protection rating IP 55 means the side panel is dust-tight and protected against splashing water from all directions, making it suitable for use in damp or dusty environments. The Type ratings Type 1 and Type 12 according to UL 50E confirm suitability for indoor use and environments with limited splash water or dirt ingress.

Compatibility and Accessories

The side panel is specifically designed for VX enclosures with a height of 2,200 mm and a depth of 800 mm. It is compatible with other VX modules and can be combined with hinges for side panel, screw-mounted, as well as VX internal locking mechanism for side panel, galvanised, to enable additional functions such as secure locking or rotatable mounting.

Mounting and Installation

Mounting is done by screwing onto the designated holders. The clipsable holders and hanging aid facilitate precise positioning and enable quick and accurate installation. The integrated earthing bolts ensure a secure electrical connection, with the paint-free contact surface ensuring optimal contact. Installation can be carried out by one person, reducing labour effort.

Advantages in Operation

The side panel offers high mechanical stability and reliable protection against environmental influences. The easy mounting and integrated features such as automatic equipotential bonding and EMC protection increase the safety and reliability of the enclosure. The use of high-quality materials and the IP 55 protection rating ensure a long service life and low maintenance requirements. Compatibility with additional VX modules enables flexible and modular system design.

The delivery scope includes the side panel and the required mounting material. The packaging unit is 2 pieces.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forHousing type: VX, height: = 2,200 mm, depth: = 800 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)124.05 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8128245, EAN: 4028177921610

Questions & answers

What is the delivery time of Rittal 8128245 VX side panel, VE2, screwable, for HT 2200x800 mm (freight shipping)?

The article Rittal 8128245 VX side panel, VE2, screwable, for HT 2200x800 mm (freight shipping) is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8128245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8128245 VX side panel, VE2, screwable, for HT 2200x800 mm (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 8128245 VX side panel, VE2, screwable, for HT 2200x800 mm (freight shipping) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
