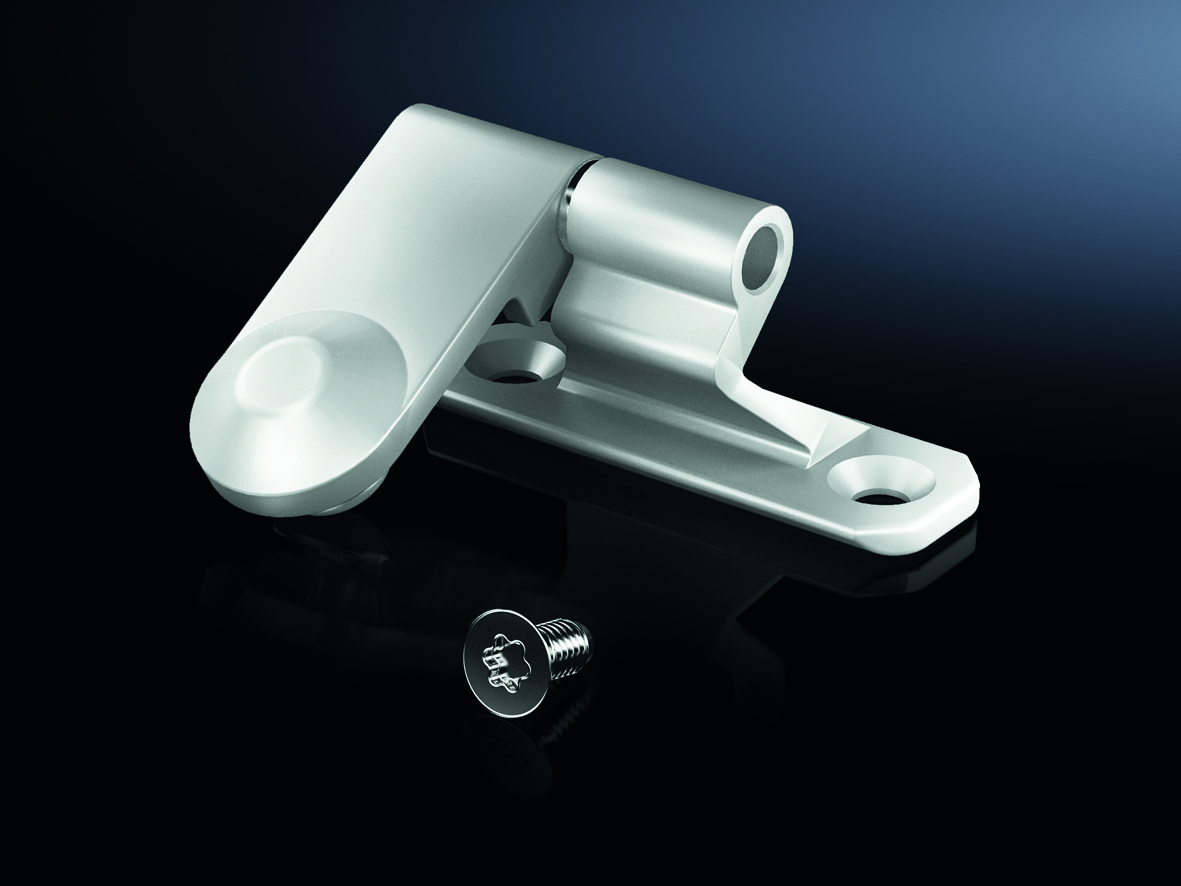

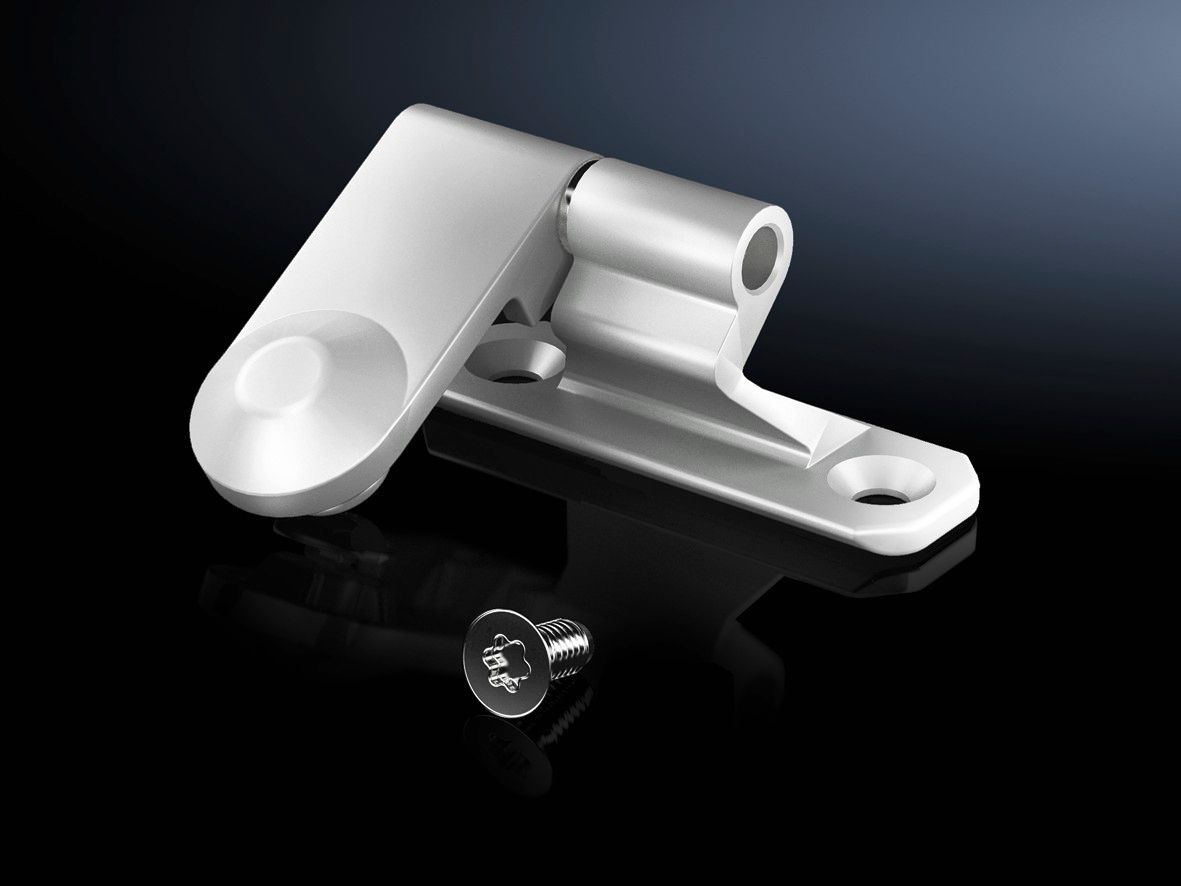

Rittal 8106260 Hinges for side panel, screwable
|
61,41 EUR |
|
|
( 73,08 EUR incl. VAT ) ≈ £51.40 | ≈ $67.49 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440703 |
| Mfg Part No: | 8106260 |
| UPC/EAN: | 4028177920958 |
| Weight: | 0.744 kg |
| Type: | VX 8106.260 |
Product information for Rittal 8106260:
Applications
The hinge is intended for use in industrial enclosures, particularly where a side panel must be opened to access components or wiring. It is suitable for installations in production environments, automation technology, or electrical installations, where secure and accessible mounting of side panels is required. Mounting is exclusively in the area of the enclosure rear panel, ensuring a stable fixation. The maximum side panel depth is 800 mm, making the hinge suitable for medium to large enclosure constructions.
Functions and Equipment in Detail
The hinge features an opening angle of 180°, enabling full opening of the side panel and facilitating access to internal components. Mounting is done by screwing, with the fastening material included in the delivery scope. This includes the necessary screws and nuts for secure attachment to the enclosure rear panel. The material choice of zinc die-cast ensures high strength and corrosion resistance, which is crucial for use in industrial environments. The colour RAL 7035 is standard for Rittal products and visually matches common enclosure colours.
Technology Explained Simply
The protection rating IP 55 means the hinge is protected against dust and splashing water. This makes it suitable for use in environments where moisture or dust exposure occurs, for example in production halls or outdoor areas. The opening angle of 180° allows full opening of the side panel, ensuring even large components or cable connections are easily accessible. Mounting is exclusively on the rear panel of the enclosure, ensuring stable and secure fixation. The maximum side panel depth of 800 mm limits use to medium to large enclosure constructions.
Compatibility and Accessories
The hinge is specifically designed for use with Rittal enclosures and can be combined with other Rittal system components, particularly side panels with a depth of up to 800 mm. It is not intended for use with other manufacturers or incompatible enclosure constructions. Installation is exclusively in the area of the enclosure rear panel, ensuring secure mounting. The packaging unit includes 6 pcs, suitable for larger projects or series installations.
Mounting and Installation

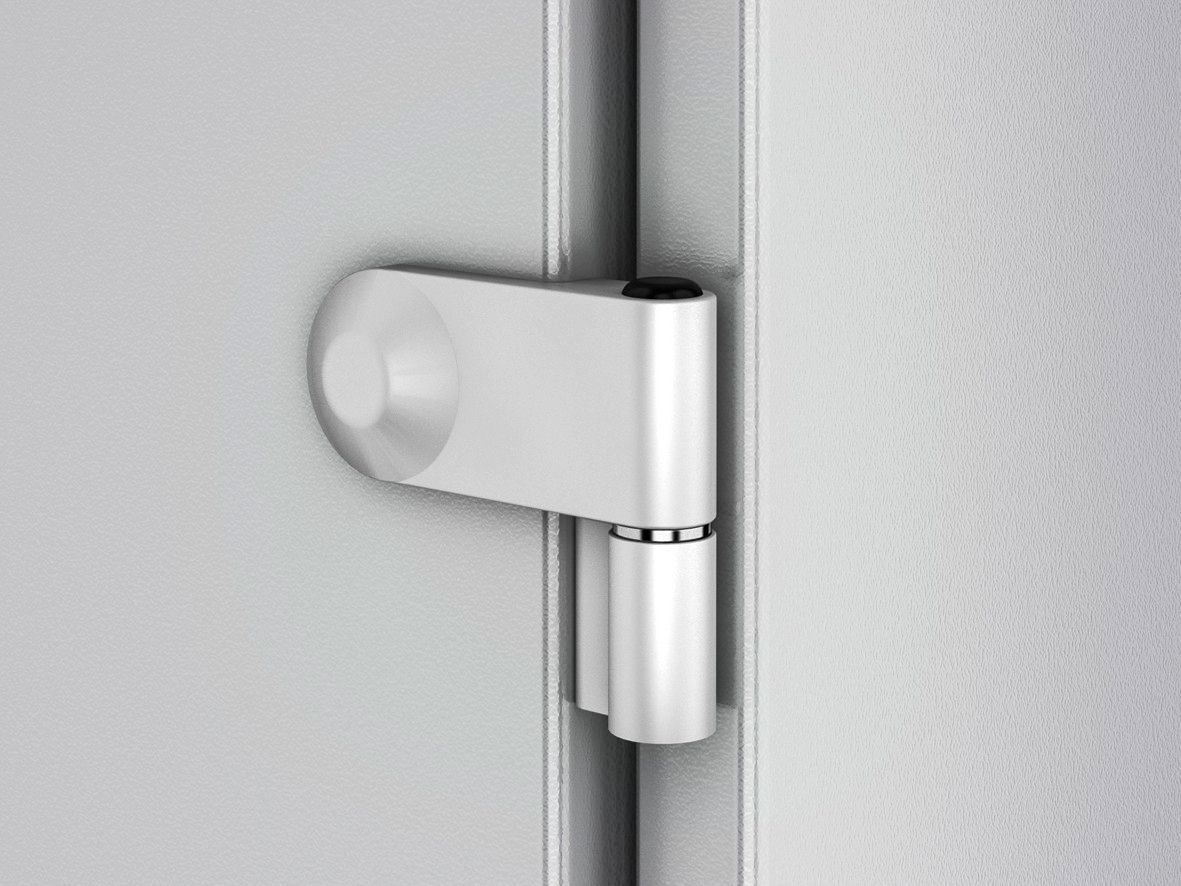

Mounting is done by screwing to the rear panel of the enclosure. The included fastening material enables secure and stable fixation. Mounting is only possible in the rear panel area, ensuring even distribution of load. The maximum side panel depth of 800 mm must be observed to ensure proper function of the hinge. The side panel is opened via the 180° angle, enabling full access to the inner side.
Operational Advantages
The hinge provides secure and stable access to the side panel of the enclosure, facilitating maintenance work, inspections, or component installations. The IP 55 protection rating protects against environmental influences, increasing service life and reliability. Mounting is simple and requires no additional tools other than a screwdriver. The packaging unit of 6 pcs enables efficient procurement for larger projects. The colour RAL 7035 visually matches standard enclosure constructions, ensuring a uniform appearance.
| General | |
| Material | zinc die-cast |
| Colour | RAL 7035 |
| Scope of delivery | Including mounting hardware |
| Door opening angle | 180° |
| Mounting note | Hinge mounting only possible in the area of the rear wall, only usable with side wall depth up to 800 mm |
| Degree of protection IP according to IEC 60 529 | IP 55 |
Questions & answers
What is the delivery time of Rittal 8106260 Hinges for side panel, screwable?
The article Rittal 8106260 Hinges for side panel, screwable is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8106260 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8106260 Hinges for side panel, screwable always at the best possible price. We can give you a discount of 2% on Rittal 8106260 Hinges for side panel, screwable if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
