Rittal 8165245 VX side panel, screwable, for HT: 1600x500 mm,

Your rating:
Average rating
product review for Rittal 8165245 VX side panel, screwable, for HT: 1600x500 mm,
( 4.5 / 5 ) 32 ratings

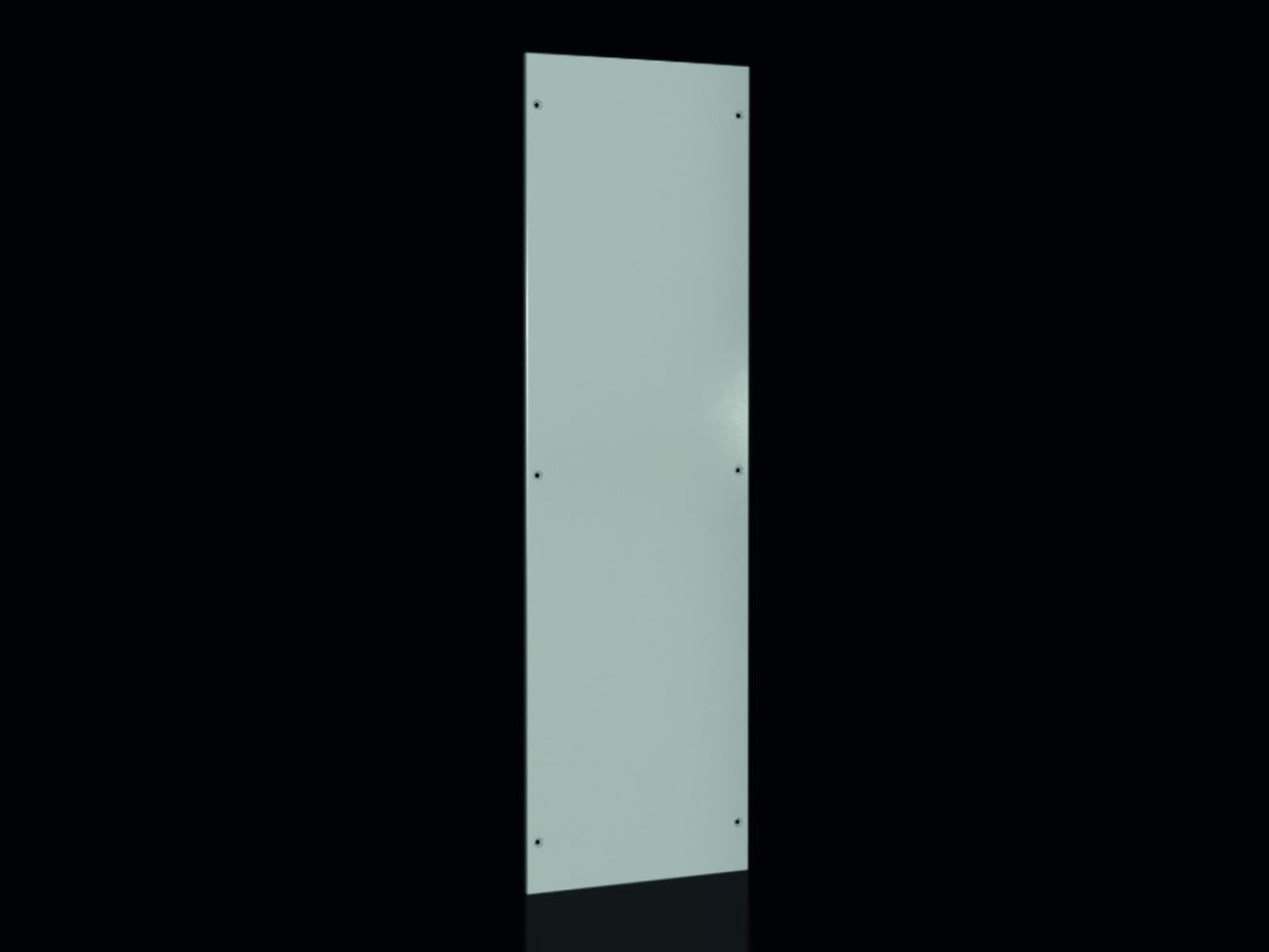

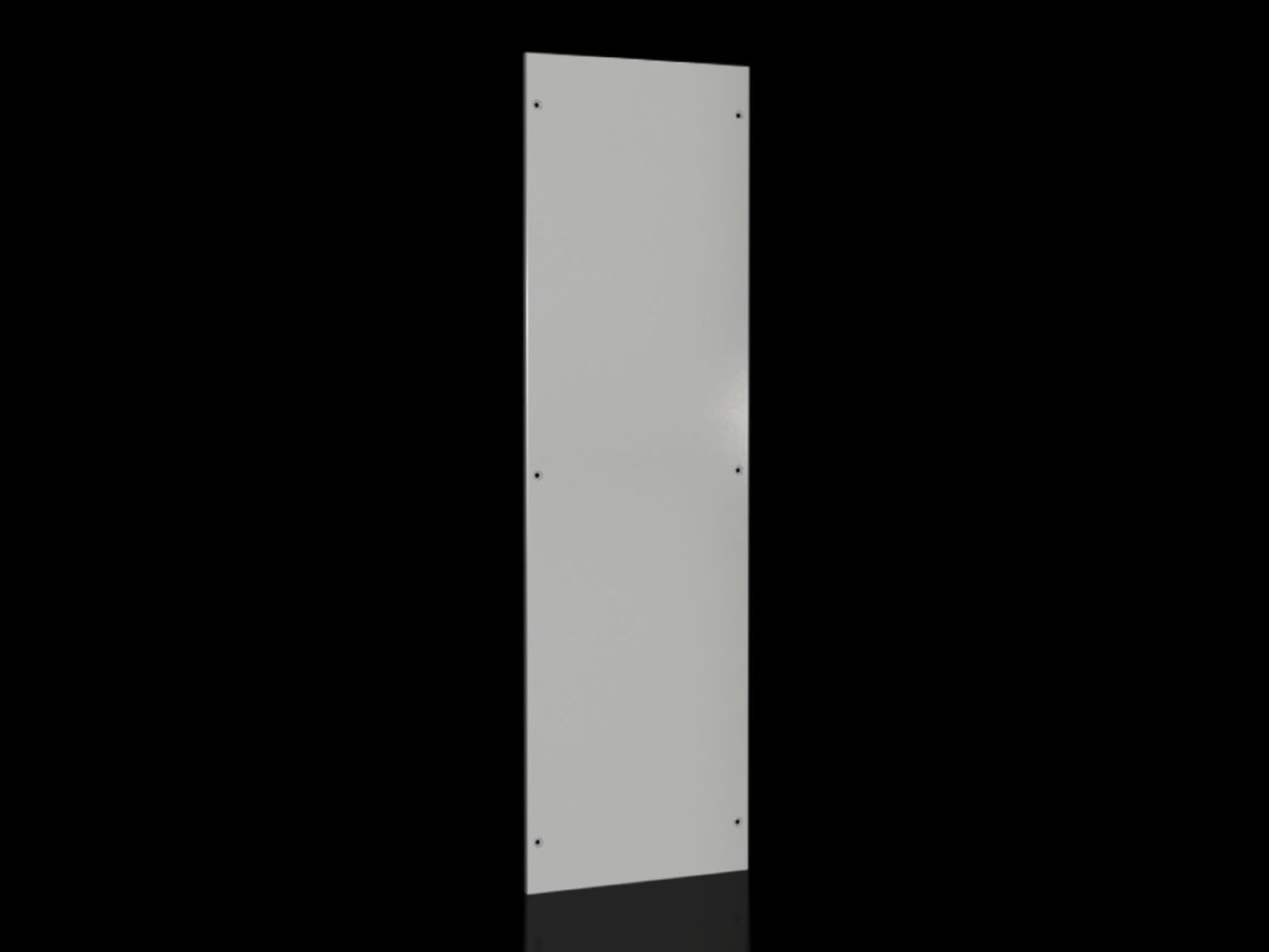

Rittal 8165245
This image may differ from the desired article.
Rittal 8165245Rittal 8165245Rittal 8165245
118,99 EUR
( 141,60 EUR incl. VAT )
≈ £99.59  |  ≈ $130.77
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8165245 VX side panel, screwable, for HT: 1600x500 mm,
Datasheet:file_download Download
Lieske Part No.:1440654
Mfg Part No: 8165245
UPC/EAN: 4028177827639
Weight:19.4 kg
Type:VX 8165.245

Product information for Rittal 8165245:

The Rittal VX 8165.245 is a screw-mounted side panel made of sheet steel, specifically designed for enclosures in the VX system. It is intended for enclosures with a height of 1,600 mm and a depth of 500 mm, serving as a stable closure for the enclosure sides. The side panel is manufactured from 1.5 mm thick sheet steel, which is dip-primed and externally powder-coated, resulting in a uniform, durable surface in the colour RAL 7035. The coating ensures high corrosion resistance and visual elegance, suitable for industrial applications.

Applications

The side panel is intended for use in industrial environments where high mechanical stability and protection against dust and splashing water are required. It fits enclosures in the VX system, used in electrical and automation technology, manufacturing industry, and building automation. The protection rating IP 55 according to IEC 60 529 ensures effective protection against dust and splashing water from any direction, making it suitable for outdoor areas or humid indoor environments. The type rating according to UL 50E (Type 1 and Type 12) confirms suitability for indoor use with limited splash protection.

Functions and Equipment in Detail

The side panel is mounted by screwing and is designed for single-person installation. The clip-on side panel holders enable time-saving fastening, while the hanging aid ensures easy positioning in height and depth. The flat part holders integrate internal contact elements, providing automatic equipotential bonding and enhanced EMC protection. The earthing bolts feature a large, paint-free contact surface, ensuring optimal electrical connection and secure earthing.

Technology Explained Simply

The use of 1.5 mm thick sheet steel ensures sufficient mechanical strength to protect the side panel against mechanical loads such as vibrations or transport impacts. The dip priming and external powder coating protect the material from corrosion and ensure long service life. The IP 55 protection rating means the side panel is dust-tight and protected against splashing water from any direction, making it suitable for industrial applications with high environmental requirements. The UL approval Type 1 and Type 12 confirms suitability for indoor use with limited splash protection.

Compatibility and Accessories

The side panel is specifically designed for VX enclosures with a height of 1,600 mm and a depth of 500 mm. As accessories, hinges for side panels and a VX internal locking system for side panels (zinc-plated) are available, enabling additional fastening or locking. These components can be used to extend the functionality of the side panel, for example, for secure closure or to prevent unintended openings.

Installation and Mounting

Mounting is done by screwing, using the included fastening materials. The clip-on holders and hanging aid facilitate positioning and fastening, allowing the side panel to be installed quickly and precisely. Single-person installation is possible, making the installation process efficient in practice. The earthing bolts enable a secure electrical connection, which is important for the safety of the installation and personnel.

Operational Advantages

The side panel provides reliable mechanical stability and a high protection standard, increasing operational safety. The easy mounting and integrated earthing elements reduce installation time and improve EMC compatibility. The use of sheet steel and high-quality coating ensures long service life and low maintenance requirements. Compatibility with the VX system enables flexible integration into existing enclosure configurations.

The packaging unit includes 2 pieces of the side panel, with fastening materials included in the delivery scope. The net weight is 19.06 kg per packaging unit. The product description refers to article number VX 8165.245, which is a standard component in the Rittal system for VX enclosures. The PCF values (Cradle-to-Gate) amount to 59.63 kg CO2 eq per packaging unit, with class B indicating that the value is approximately calculated based on product weight and self-declared.

The side panel is designed for use in industrial enclosures requiring high mechanical strength, a high protection standard, and easy mounting. The combination of sheet steel, powder-coated surface, and integrated earthing elements makes it a reliable component for industrial use.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forHousing type: VX, Height: = 1,600 mm, Depth: = 500 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)59.63 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8165245, EAN: 4028177827639

Questions & answers

What is the delivery time of Rittal 8165245 VX side panel, screwable, for HT: 1600x500 mm, ?

The article Rittal 8165245 VX side panel, screwable, for HT: 1600x500 mm, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8165245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8165245 VX side panel, screwable, for HT: 1600x500 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8165245 VX side panel, screwable, for HT: 1600x500 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
