Rittal 5301235 VX internal locking for side panel galvanized
|
18,63 EUR |
|
|
( 22,17 EUR incl. VAT ) ≈ £15.59 | ≈ $20.47 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775855 |
| Mfg Part No: | 5301235 |
| UPC/EAN: | 4028177952454 |
| Weight: | 0.131 kg |
| Type: | VX 5301235 |
Product information for Rittal 5301235:
Applications
The internal locking mechanism is specifically designed for enclosures of the VX and VX IT series. It is used to additionally secure the side panels, particularly in applications where increased mechanical stress or higher safety requirements exist. The locking mechanism is suitable for industrial environments where enclosures are subjected to mechanical forces, for example in production plants, automation systems, or during the installation of electrical components.
Functions and Equipment in Detail
The locking mechanism consists of two mounting brackets, which are screwed to the frame profile of the enclosure using the included mounting hardware. The mounting brackets enable a secure and precise attachment of the side panel from the inside, reducing the risk of unintended loosening or displacement of the panel. The use of galvanized sheet steel ensures high strength and resistance to environmental influences such as moisture or minor corrosion.
Technology Explained Simply
The internal locking mechanism works via a mechanical connection: the mounting brackets are attached to the frame profiles and serve as connection points for the side panel. The screwing is done from the inside, so the locking mechanism is not visible and does not affect the external appearance of the enclosure. The protection rating IP 55, achieved in combination with VX and VX IT enclosures, means the device is dust-tight and protected against water jets from any angle – making the locking mechanism suitable for outdoor use, provided the entire control system meets the IP 55 standard.
Compatibility and Accessories
The internal locking mechanism is exclusively intended for enclosures of the VX and VX IT series. Installation requires access from the front and rear doors to correctly attach the mounting brackets to the frame profile.
Installation and Mounting
Mounting is done by screwing the two mounting brackets to the frame profile of the enclosure. The necessary fastening materials are included in the delivery scope. Installation requires access from the front and rear to correctly attach the brackets.
Operational Advantages
The internal locking mechanism increases the mechanical stability of the side panels, which is particularly beneficial during frequent mounting and dismounting operations. The locking mechanism prevents accidental loosening of the side panel, enhancing the safety of installed electrical components. The use of galvanized sheet steel ensures a long service life and low maintenance requirements. The IP 55 protection rating in combination with VX enclosures enables use in environments with increased humidity or dust exposure.
Delivery Scope

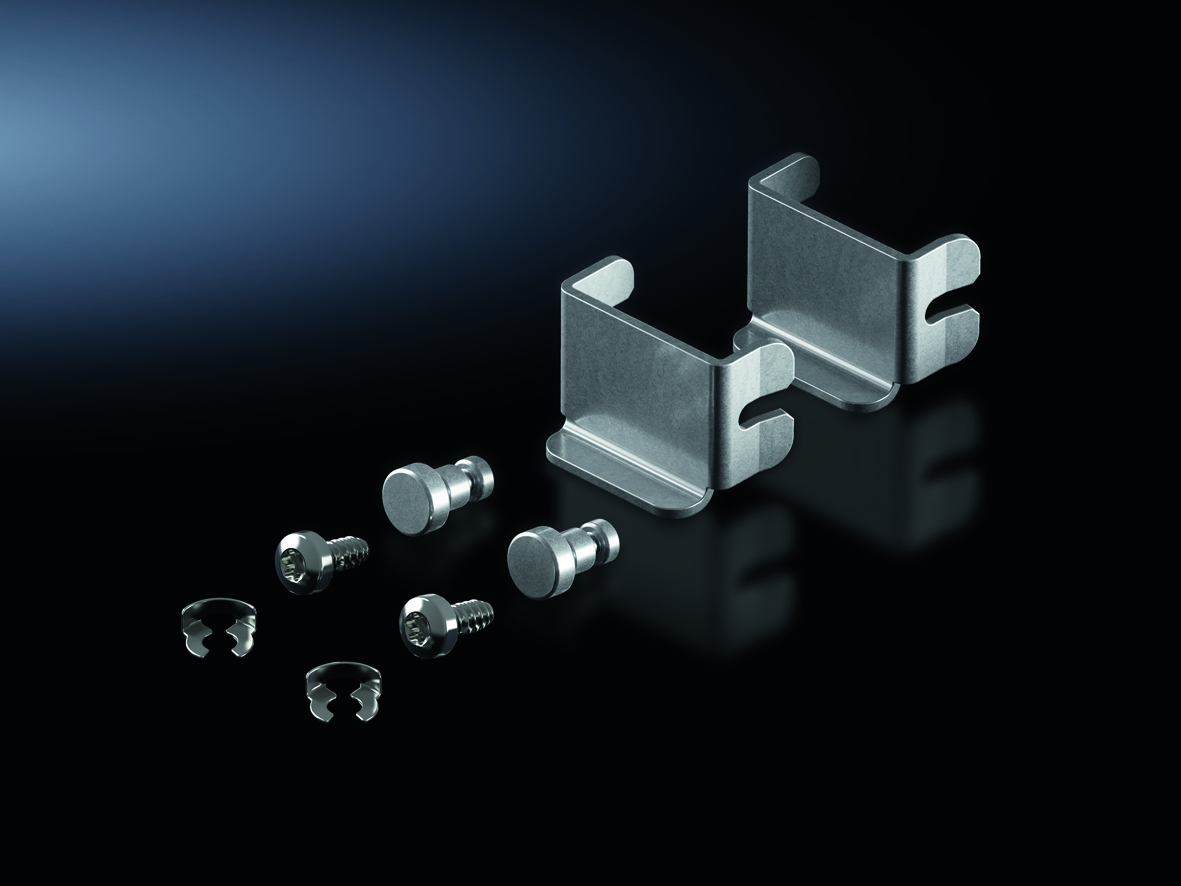

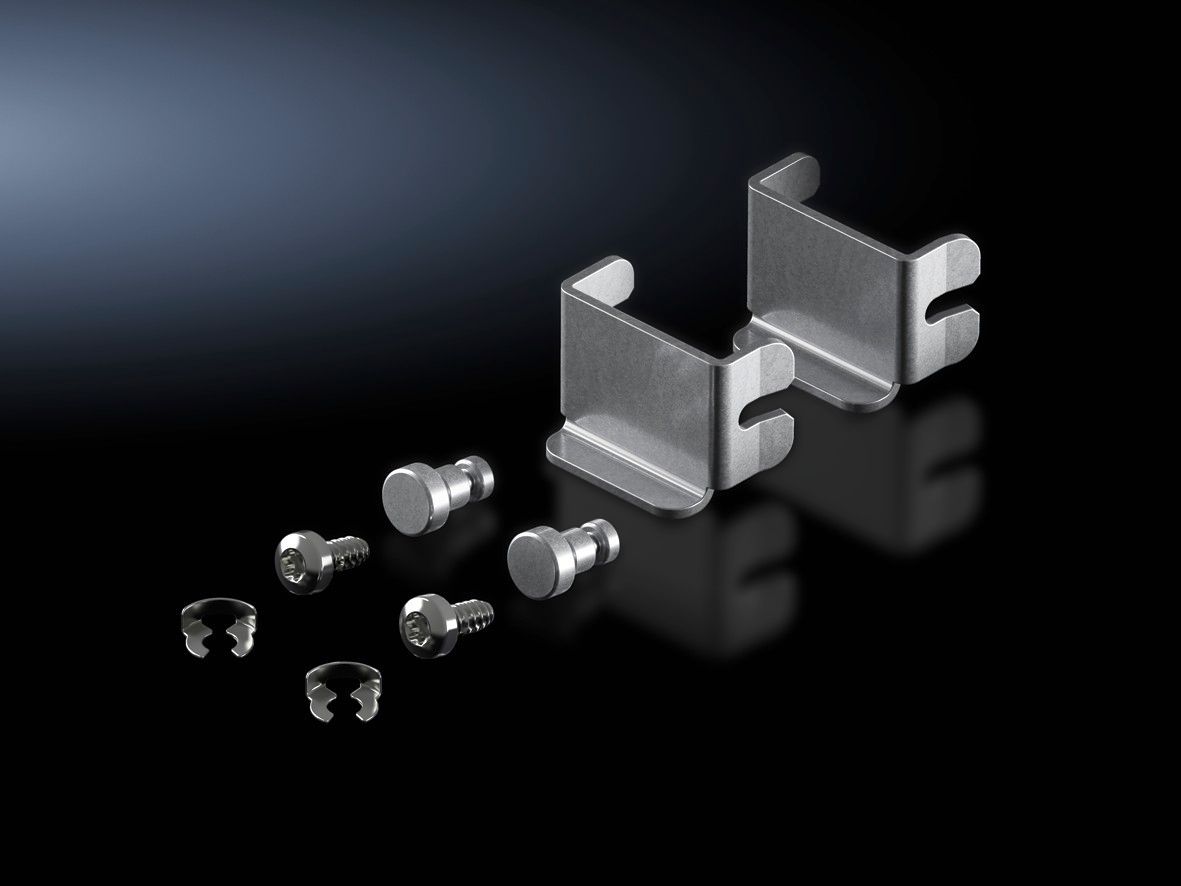

The delivery scope includes two mounting brackets and the required fastening materials.
| General | |
| Surface protection | Sheet steel, galvanised |
| Scope of delivery | 2 mounting brackets, including mounting material |
| Mounting note | Access through front and rear doors must be ensured |
| Degree of protection IP according to IEC 60 529 | IP 55 (in conjunction with cabinets from the VX, VX IT series) |
