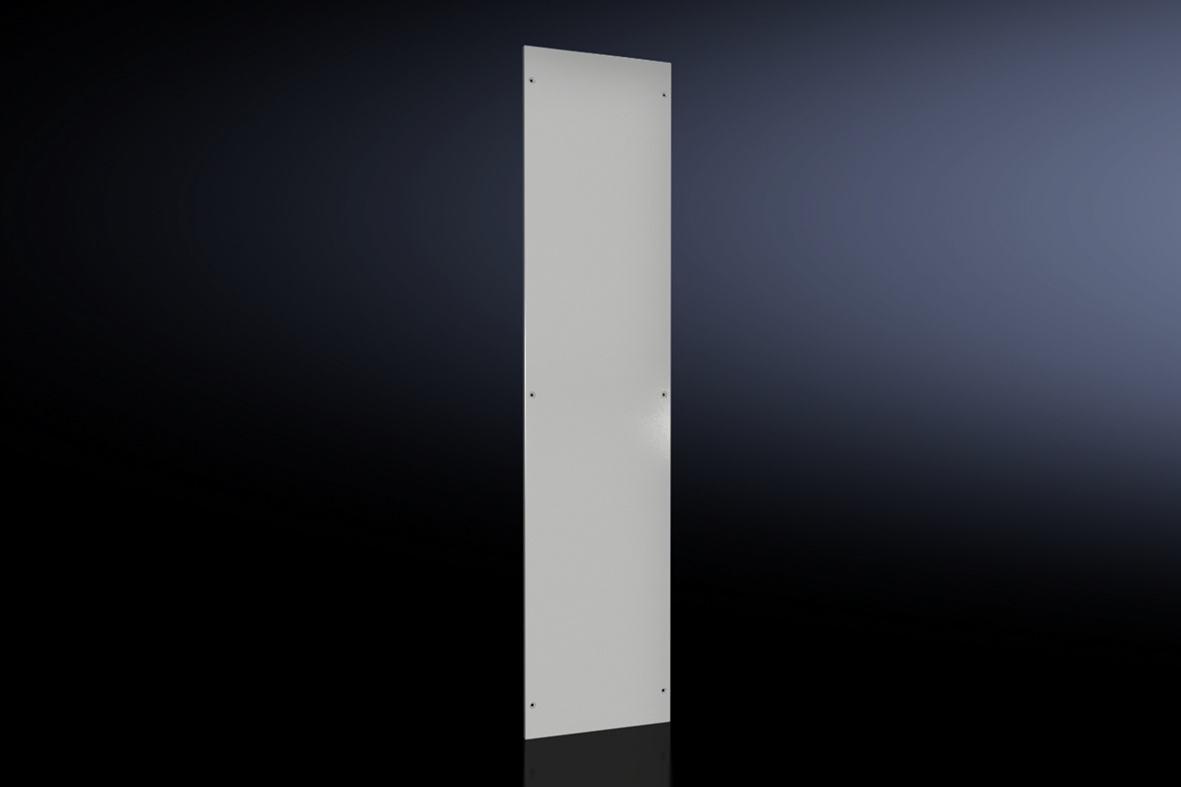

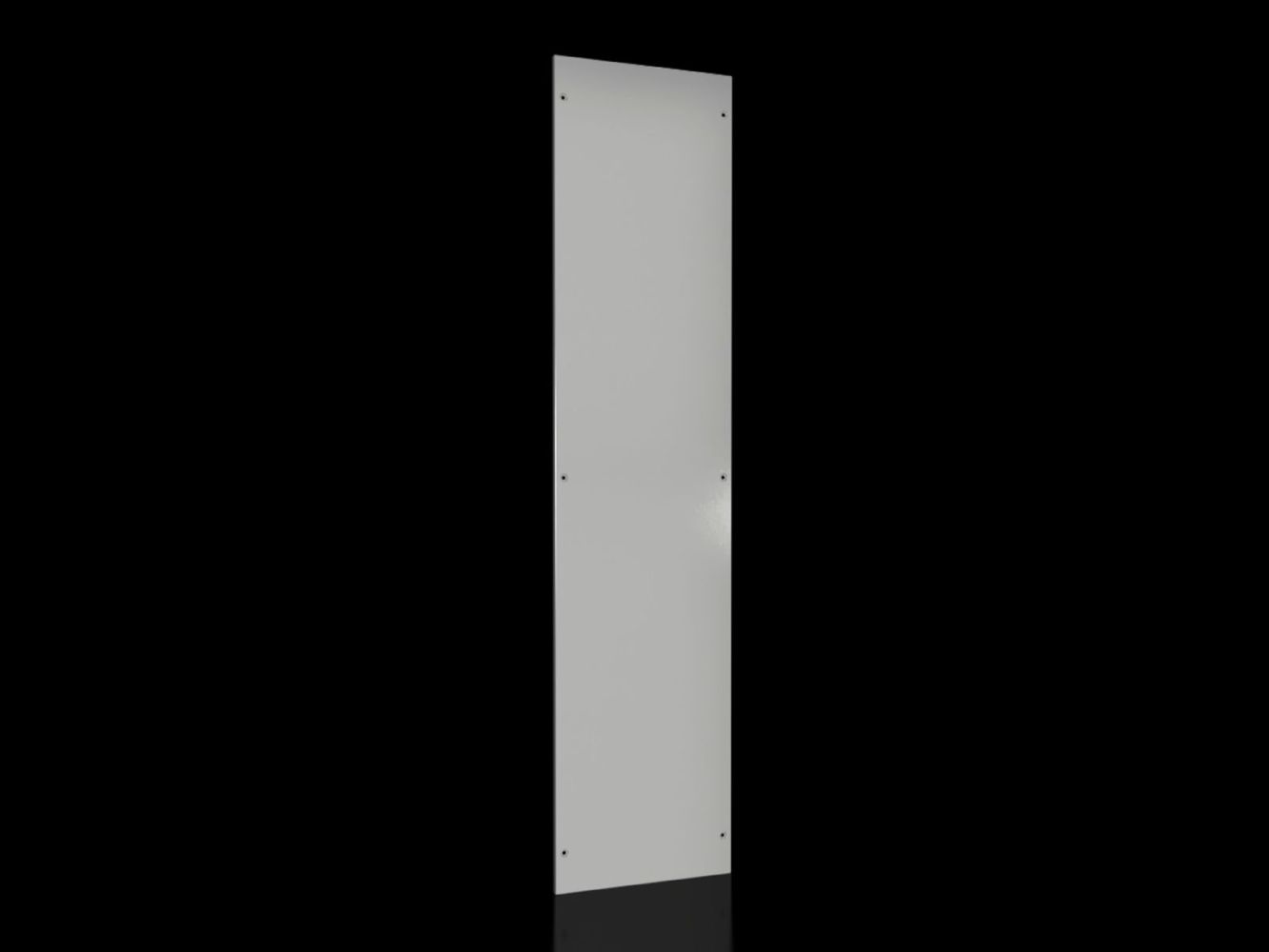

Rittal 8105245 VX side panel, screwable, for HT: 2000x500 mm

Your rating:
Average rating
product review for Rittal 8105245 VX side panel, screwable, for HT: 2000x500 mm
( 4.5 / 5 ) 52 ratings
Rittal 8105245
This image may differ from the desired article.
Rittal 8105245Rittal 8105245Rittal 8105245
135,91 EUR
( 161,73 EUR incl. VAT )
≈ £113.76  |  ≈ $149.37
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8105245 VX side panel, screwable, for HT: 2000x500 mm
Datasheet:file_download Download
Lieske Part No.:1440662
Mfg Part No: 8105245
UPC/EAN: 4028177827370
Weight:22.8 kg
Type:VX 8105.245

Product information for Rittal 8105245:

The Rittal VX 8105.245 is a screwable side panel made of sheet steel, specifically designed for enclosures of the VX system. It is intended for enclosures with a height of 2,000 mm and a depth of 500 mm, serving as a stable, screwable cover for closure and protection functions of the enclosure sides. The side panel is manufactured from 1.5 mm thick sheet steel, which is dip-primed and externally powder-coated, resulting in a uniform, durable surface in the colour RAL 7035. The protection rating IP 55 according to IEC 60 529 ensures protection against dust and splashing water, enabling use in industrial environments with increased requirements for ambient conditions. Additionally, the product complies with Type ratings Type 1 and Type 12 according to UL 50E, confirming its suitability for indoor applications with limited protection against dust and splashing water.

Applications

The side panel is intended for use in industrial enclosures of the VX system, particularly in installations with a height of 2,000 mm and a depth of 500 mm. It is used in environments where high mechanical stability and sufficient protection against environmental influences are required, such as in production plants, automation systems, or power supply technology. The IP protection rating 55 makes it suitable for areas with increased humidity or splashing water, but not for permanent underwater applications or direct exposure to rain.

Functions and Equipment in Detail

The VX 8105.245 enables time-saving installation through clip-on side panel holders, which allow for quick and secure attachment to the enclosure body. The flat part holders are equipped with internal contact elements, ensuring automatic equipotential bonding and improved EMC protection. The hanging aid facilitates precise positioning in height and depth, enabling accurate installation without additional tools. Single-person installation is feasible due to the constructive design of the holders and fastening elements. The earthing studs feature a large, paint-free contact surface, ensuring optimal electrical connection and reliable earthing contact.

Technology Explained Simply

The use of 1.5 mm thick sheet steel ensures sufficient mechanical strength to protect the side panel against external loads such as mechanical vibrations or pressure. The dip priming and external powder coating provide a corrosion-resistant surface that is resistant to moisture and chemical influences. The IP protection rating 55 means the side panel is dust-tight and protected against splashing water, making it suitable for use in industrial environments with increased ambient requirements. The internal contact elements in the flat part holders ensure direct electrical contact with the enclosure wall, improving equipotential bonding and EMC shielding.

Compatibility and Accessories

The side panel is specifically designed for enclosures of the VX system with a height of 2,000 mm and a depth of 500 mm. Compatible accessories include hinges for side panels, which are screw-mounted, as well as a VX internal locking mechanism for side panels, which is galvanised. These components can be used to extend the functionality of the side panel, for example, to improve accessibility or to provide additional security for the enclosure door.

Installation and Mounting

Installation is carried out by screwing onto the designated holders of the enclosure body. The clip-on side panel holders enable quick and secure fastening. The hanging aid supports precise positioning in height and depth. Fastening is done using the included mounting material, which is sufficient for installation. Single-person installation is possible due to the constructive design of the holders and fastening elements.

Operational Advantages

The VX 8105.245 provides a reliable and maintenance-friendly cover for enclosures. The IP protection rating 55 ensures high protection against environmental influences, increasing the service life and reliability of the enclosure. The automatic equipotential bonding function and improved EMC protection reduce the risk of disturbances in the electrical system. Easy installation and single-person installation reduce labour effort and installation time. The large, paint-free contact surface of the earthing studs ensures a reliable earthing connection, enhancing operational safety.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forHousing type: VX, Height: = 2,000 mm, Depth: = 500 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)73.44 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8105245, EAN: 4028177827370

Questions & answers

What is the delivery time of Rittal 8105245 VX side panel, screwable, for HT: 2000x500 mm?

The article Rittal 8105245 VX side panel, screwable, for HT: 2000x500 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8105245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8105245 VX side panel, screwable, for HT: 2000x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8105245 VX side panel, screwable, for HT: 2000x500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
