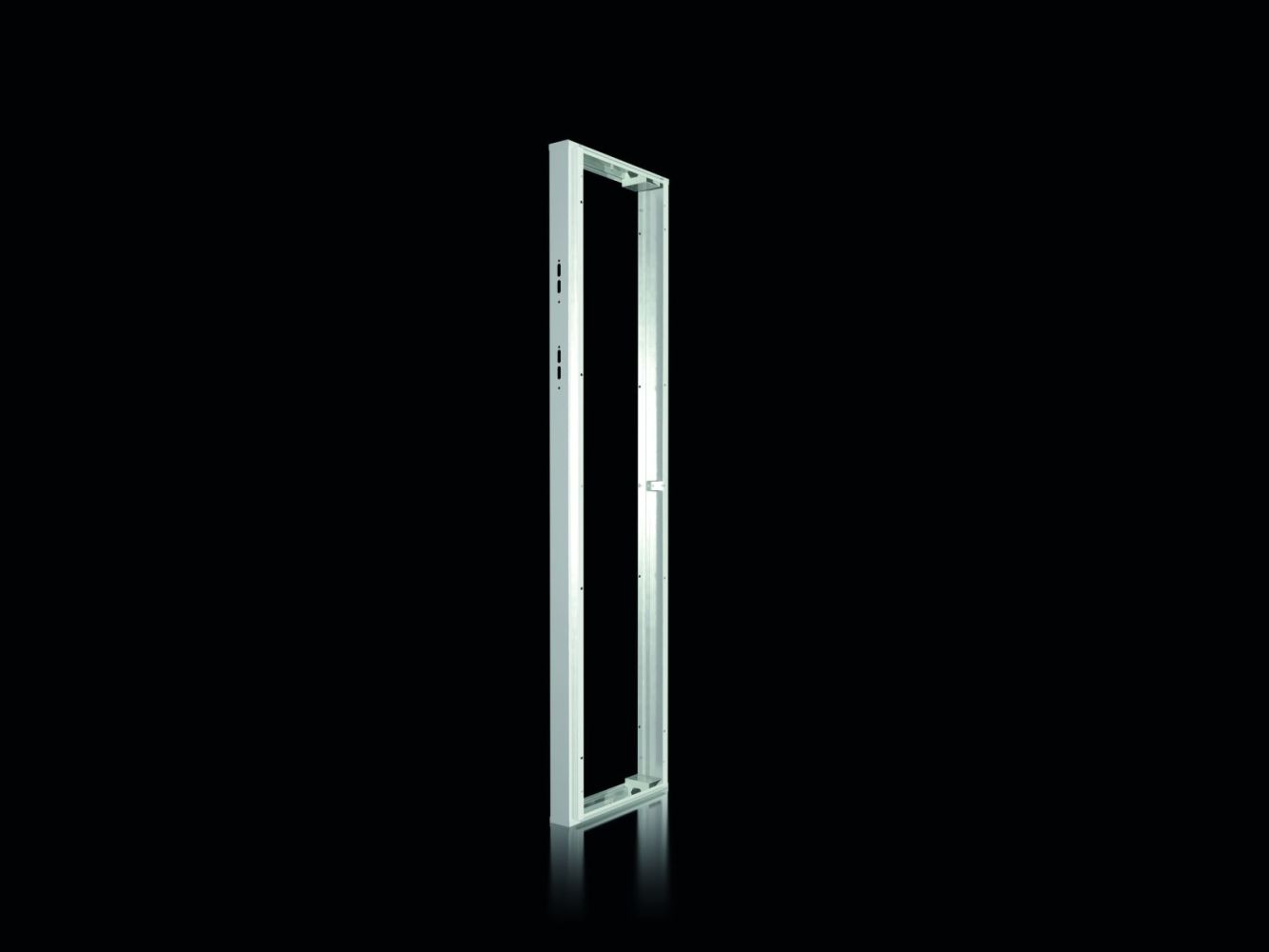

Rittal 8951000 VX disconnector hood, height: 2000x500 mm

Your rating:
Average rating
product review for Rittal 8951000 VX disconnector hood, height: 2000x500 mm
( 4.5 / 5 ) 35 ratings
Rittal 8951000
This image may differ from the desired article.
Rittal 8951000Rittal 8951000
373,75 EUR
( 444,76 EUR incl. VAT )
≈ £312.83  |  ≈ $410.75
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 8951000 VX disconnector hood, height: 2000x500 mm
Datasheet:file_download Download
Lieske Part No.:1440191
Mfg Part No: 8951000
UPC/EAN: 4028177921061
Weight:17.5 kg
Type:VX 8951.000

Product information for Rittal 8951000:

The Rittal VX 8951.000 is a disconnect switch hood for enclosures of the VX series, designed for the safe integration of disconnect switches in industrial electrical installations. The product is made of steel sheet with a wall thickness of 1.5 mm and is powder-coated in the colour RAL 7035. Dimensions are 103 mm width, 2,000 mm height, and 500 mm depth. The hood is supplied with a main door interlock, a cover plate, and the required mounting materials to ensure safety interlocking of enclosures and enclosure combinations in accordance with UL regulations.

Applications
The disconnect switch hood is intended for use on single-door enclosures with door tube frames and enables the conversion of such enclosures into disconnect switch enclosures. It is compatible with operating levers for main switches from various manufacturers, including Allen Bradley, Square D, General Electric, Eaton, and Siemens. The hood meets the requirements of UL 508 A and is suitable for use in bayed combinations when combined with auxiliary door interlocks, operating mechanisms, and slide rods.

Functions and Equipment in Detail
The hood can be mounted either on the left or right side of the enclosure, increasing installation flexibility. The entire mounting surface of the enclosure remains intact, which does not impair the installation of components. Two cutouts on the front allow for the installation of operating levers at different heights. In combination with an integrable mounting plate insert, the mounting surface of the main enclosure can be increased by up to 14%.

Technology Explained Simply
The hood is made of robust steel sheet, providing sufficient mechanical stability. The powder-coated surface in RAL 7035 ensures high corrosion resistance and visual harmony with other VX enclosure components. The integrated main door interlock ensures that the enclosure door can only be opened when the disconnect switch is in the OFF position, increasing safety during maintenance work. The protection rating IP 55 in combination with VX enclosures protects against dust and splashing water, making it suitable for use in industrial environments. The NEMA protection rating 12 (in combination with VX enclosures) meets the requirements for enclosed, dust- and splash-proof enclosures.

Compatibility and Accessories
The disconnect switch hood is specifically developed for the VX series and can be combined with various accessories. These include door interlocks for bayed combinations, mounting plate inserts for VX and TS enclosures, and VX side panels. The mounting plate inserts allow for an extension of the mounting surface, while the side panels increase the mechanical stability and protection of the enclosure.

Mounting and Installation
Mounting is exclusively on single-door enclosures with door tube frames. The hood is fastened using the mounting materials included in the delivery. The positioning on the left or right side of the enclosure is freely selectable, facilitating adaptation to existing installations. The designated cutouts for operating levers allow for flexible placement of the operating mechanism.

Operational Advantages
The disconnect switch hood provides a safe and standard-compliant solution for integrating disconnect switches into industrial enclosures. Compliance with UL 508 A and protection ratings IP 55 and NEMA 12 ensures reliable operation in demanding environments. The expansion of the mounting surface through mounting plate inserts optimizes space utilization within the enclosure. The integrated interlock increases safety during maintenance and servicing, as the enclosure door can only be opened when the disconnect switch is turned off.

General
MaterialSheet steel, 1.5 mm
Surface protectionPowder-coated
ColourRAL 7035
Scope of deliveryIncluding main door lock, cover plate and mounting material.
Width103 mm
Height2.000 mm
Depth500 mm
NoteMounting of hood only on single-door cabinet with door frame
Type rating according to UL 50EType 1, Type 12
Degree of protection IP according to EN 60 529IP 55 in conjunction with VX series cabinets
NEMA degree of protectionNEMA 12 (in combination with VX series cabinets)


Product data sheet
Datasheet for Rittal 8951000, EAN: 4028177921061
