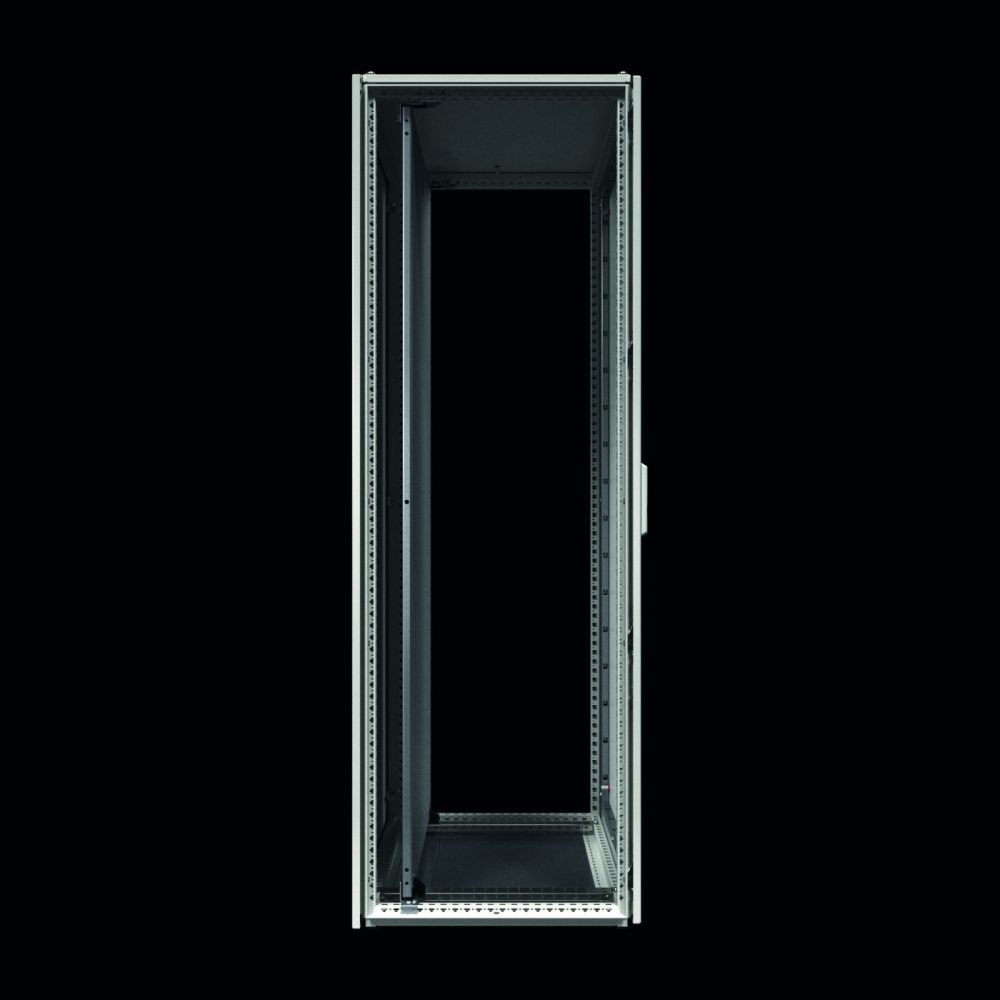

Rittal 8205000 VX bayed enclosure system, 2-door, W x H x D: 1200x2000x500 mm,
|
922,68 EUR 924,95 EUR |
|
|
( 1.097,99 EUR incl. VAT ) ≈ £772.28 | ≈ $1,014.03 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440699 |
| Mfg Part No: | 8205000 |
| UPC/EAN: | 4028177813625 |
| Weight: | 186.8 kg |
| Type: | VX 8205.000 |
Product information for Rittal 8205000:
Applications
This enclosure system is designed for use in industrial environments where protection against dust, splashing water, and mechanical impacts is required. It is suitable for use in factories, plant engineering, power supply, and other areas where electrical assemblies must be protected from external influences. The protection rating IP 55 according to EN 60 529 ensures high protection against dust and splashing water, while the protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for indoor use and lightly contaminated environments. The IK code IK10 indicates high mechanical strength against impact loads.
Functions and Equipment in Detail
The enclosure system features two front doors equipped with foamed PU foam seals to ensure a tight seal. The doors are fitted with removable square tube frames, also punched in a 25 mm grid, and include integrated hammerhead cutouts for cable strain relief. The lock door is positioned on the right and can be toollessly repositioned to the left. It is equipped with a four-point locking bar lock using a 3 mm double-bar lock insert according to DIN 43668. The secondary door is additionally secured with a swing lever for double locking. The hinges are fitted with screwed-on stops, and the door opening angle is 130°, with a toolless extension to 180° possible. The floor clearance is 17 mm.
Technology Explained Simply
The construction of the enclosure system enables space-saving and quick internal installation. The frame profiles are continuous and offer two mounting planes accessible from inside and outside. The entire square hole pattern allows the use of cage nuts and metric screws up to M8. The base frame is welded and features an integrated base reinforcement, enabling ground fixation via the inner side of the enclosure. The base plates are triple-divided, removable, and replaceable. The rear panel and roof plate are also removable and fitted with PU foam seals. The rear panel includes a positioning aid, and the roof is equipped with roof mounting screws M12.
Compatibility and Accessories
The enclosure system is supplied with a mounting plate that is C-flanged on the sides and features integrated plastic gliding pieces as well as reusable mounting rails, allowing depth adjustment in 25 mm increments. The mounting plate includes a mounting grid to simplify component positioning. Flat parts such as roof, doors, rear panel, and base plates are included in the delivery scope. Side panels are available as separate accessories. The rear panel, roof, and base plates are electrically conductive to the frame, enabling automatic equipotential bonding according to DIN 62 208. Additionally, the components are pre-prepared for earthing strap attachment.
Mounting and Installation
Mounting is done via integrated blind rivet nuts M6 and the square hole pattern in a 25 mm grid. The mounting plate is depth-adjustable, allowing flexible adaptation to specific installations. The base plates are removable, facilitating access to the floor. The doors are toollessly repositionable, and the hinges are fitted with non-removable hinge pins. The seals ensure a tight seal, and the integrated profiles allow for quick and secure mounting of components.
Operational Advantages
The enclosure system offers high mechanical strength, reliable protection against dust and splashing water, and easy mounting and maintenance. The double-door construction allows secure access to internal components, while the integrated mounting planes and mounting grid simplify the installation of assemblies. The conductive connection of flat parts to the frame ensures safe equipotential bonding, enhancing operational safety. The load capacity of 15,000 N makes the system suitable for demanding applications.
Delivery Scope
The enclosure system is delivered with enclosure frame, two doors (hinge on right, repositionable to left), roof plate, rear panel, base plates, mounting plate, two mounting rails 18 x 39 mm, and a 3 mm double-bar lock. The enclosure frame surface is dip-primed; the doors, roof, and rear panel are dip-primed and externally powder-coated with textured lacquer. The mounting plate and base plates are galvanized. The color is RAL 7035. Dimensions are width 1,200 mm, height 2,000 mm, depth 500 mm. The mounting plate dimensions are 1,099 mm x 1,896 mm. Protection ratings IP 55, NEMA 1, and NEMA 12, as well as IK code IK10, are complied with. The PCF values (Cradle-to-Gate) are 486.32 kg CO2 eq (Category B).
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.200 mm |
| Height | 2.000 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 486.32 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
