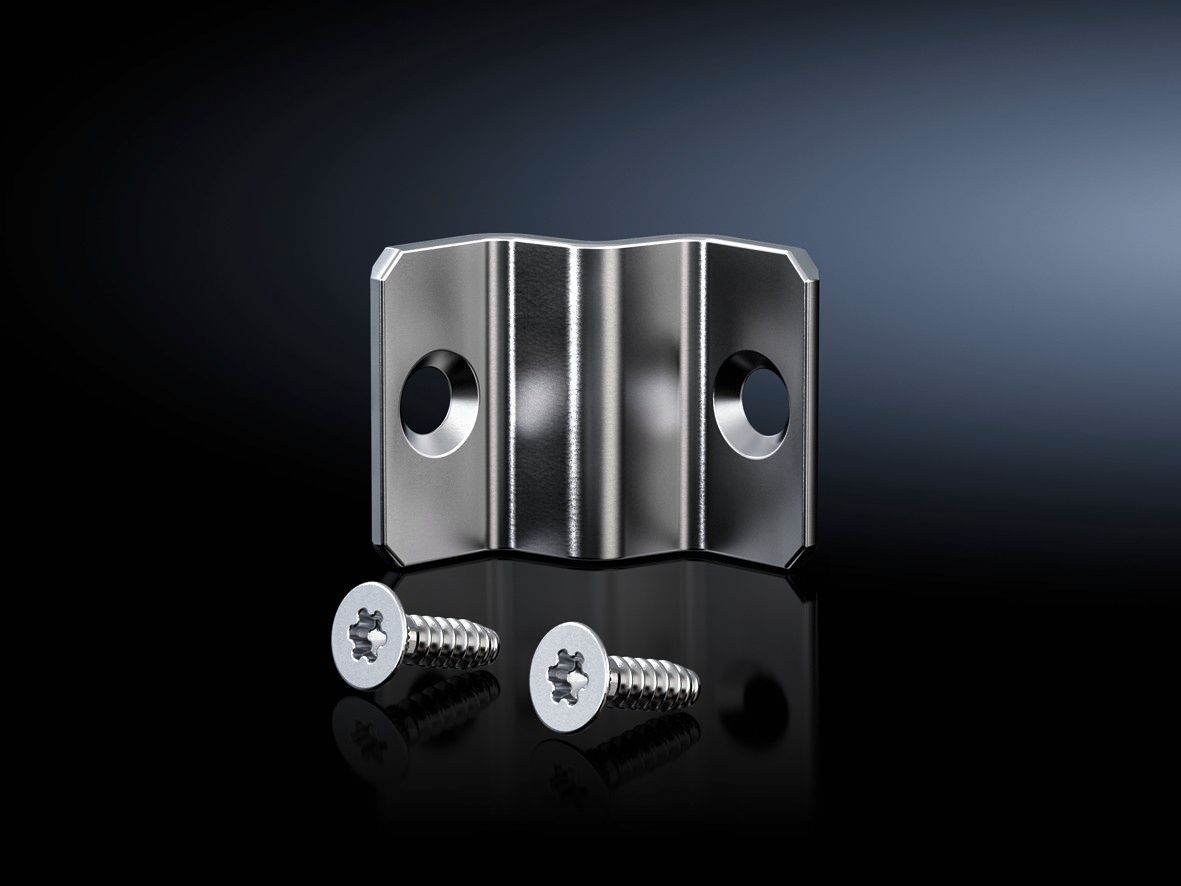

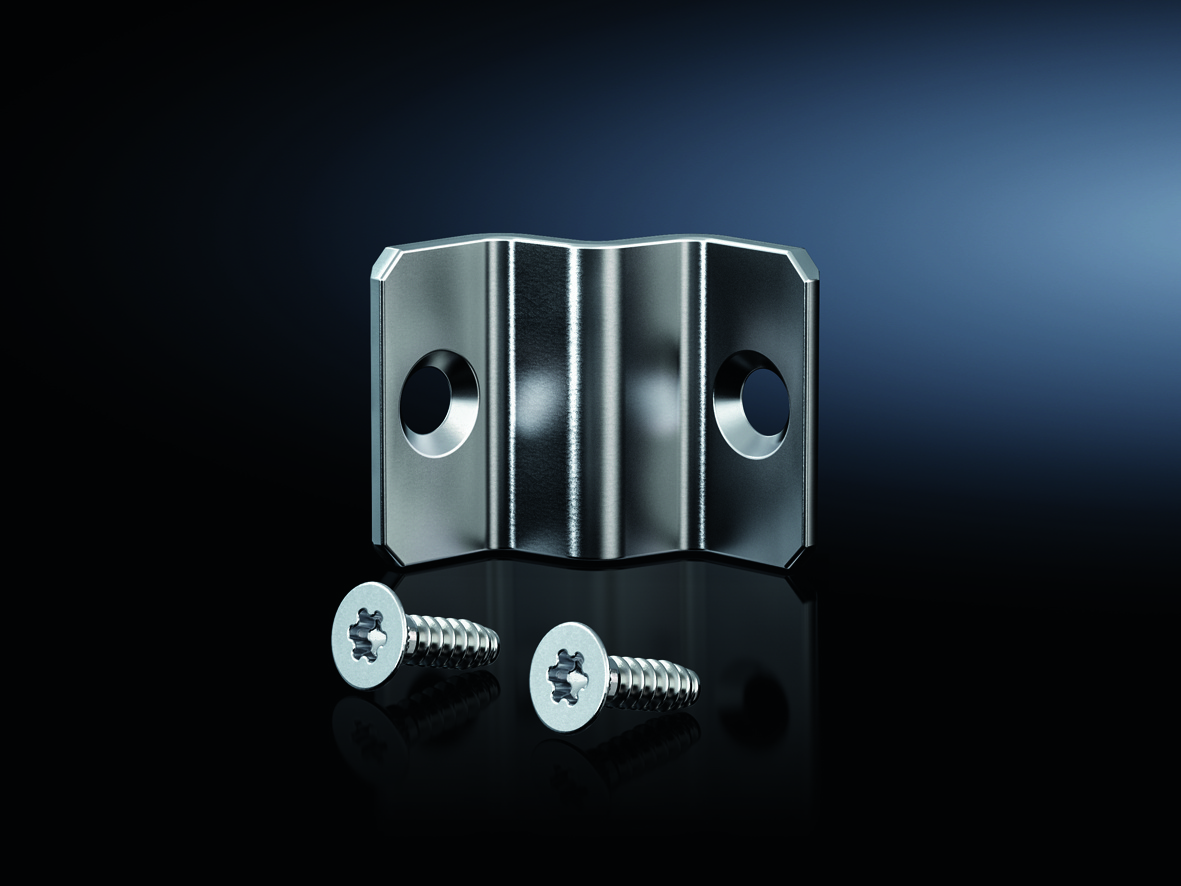

Rittal 8617502 VX baying connector, external, sheet metal: 1200 mm
|
23,38 EUR |
|
|
( 27,82 EUR incl. VAT ) ≈ £19.57 | ≈ $25.69 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440884 |
| Mfg Part No: | 8617502 |
| UPC/EAN: | 4028177919341 |
| Weight: | 0.813 kg |
| Type: | VX 8617.502 |
Product information for Rittal 8617502:
Applications
The baying connector is designed for industrial applications where multiple enclosures are arranged in a row, for example in production plants, automation systems, or power supply technology. It is particularly suitable for environments requiring high mechanical load capacity and protection against dust and splashing water. The protection rating IP 55 according to IEC 60 529 ensures that the connector is dust-tight and protected against splashing water from any direction, making it suitable for outdoor use as well. The UL 50E Type Rating approvals Type 1 and Type 12 confirm suitability for indoor use as well as for environments with limited splashing water or dust ingress.
Functions and Equipment in Detail
The connector is supplied with a baying seal, ensuring a watertight and dust-tight connection between the enclosures. The seal ensures that the IP 55 protection rating is maintained at the connection point. Additionally, fastening material is included in the delivery scope, required for mounting on the vertical profiles. A packaging unit (PU) contains six pieces, with one PU sufficient to realise one baying connection. The use of galvanised steel sheet ensures long service life and resistance to environmental influences.
Technology Explained Simply
The design of the baying connector enables a mechanically stable and simultaneously tight connection between enclosures. Installation is carried out from the outside on the vertical profiles, which does not require access to the interior of the enclosure. The use of galvanised steel sheet provides high corrosion protection, which is particularly important in humid or industrial environments. The UL 50E Type 1 and Type 12 approval confirms suitability for indoor use as well as for environments with limited splashing water or dust ingress.
Compatibility and Accessories
The baying connector is specifically designed for enclosures of type VX and VX IT. It is compatible with the corresponding vertical enclosure profiles and enables secure baying. Suitable accessories include baying brackets VX internal (6 pieces) and baying blocks VX internal (6 pieces), which can be used on the inner side of the baying connection. These components complement the external connector and support the mechanical stability of the entire baying arrangement.
Installation and Mounting
Installation is carried out from the outside on the vertical profiles of the enclosures. The included fastening materials are used to securely attach the connector to the profiles. The baying seal is placed between the enclosures to ensure a tight connection. One PU (6 pieces) is sufficient to realise one baying connection. Installation requires no special tools other than standard screwdrivers needed for securing the screws.
Operational Advantages
The baying connector provides a mechanically stable and tight connection between enclosures, maintaining the integrity of the entire installation. The IP 55 protection rating ensures high protection against dust and splashing water, increasing reliability in industrial environments. The use of galvanised steel sheet ensures long service life and resistance to corrosion. Installation from the outside on the vertical profiles enables simple and quick installation without access to the interior of the enclosure. The UL 50E Type 1 and Type 12 approval confirms suitability for various application environments, including indoor spaces with limited splashing water or dust ingress.
| General | |
| Material | Sheet steel, galvanised |
| Scope of delivery | Chassis connector, external, sealing gasket, including fastening material |
| Note | 1 unit is sufficient for one row position |
| Suitable for | Housing type: VX, VX IT |
| Type rating according to UL 50E | Type 1, Type 12 |
| Degree of protection IP according to IEC 60 529 | IP 55 |
