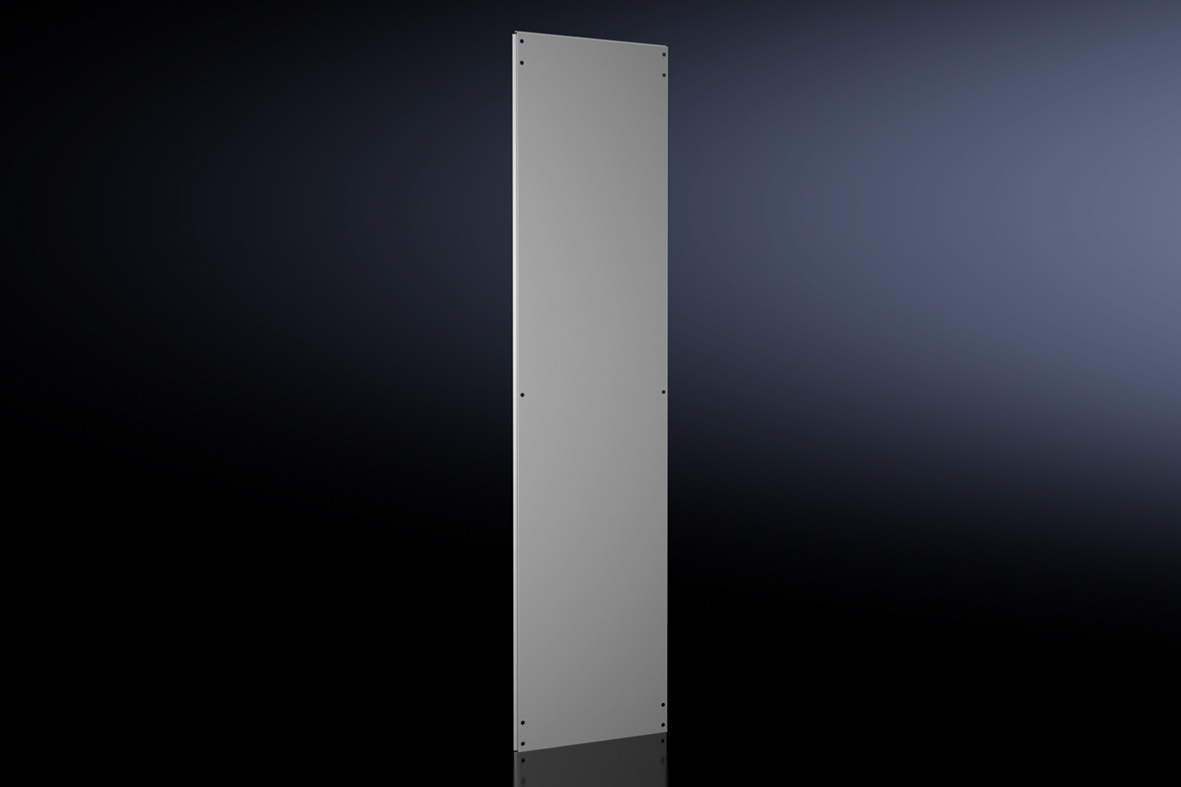

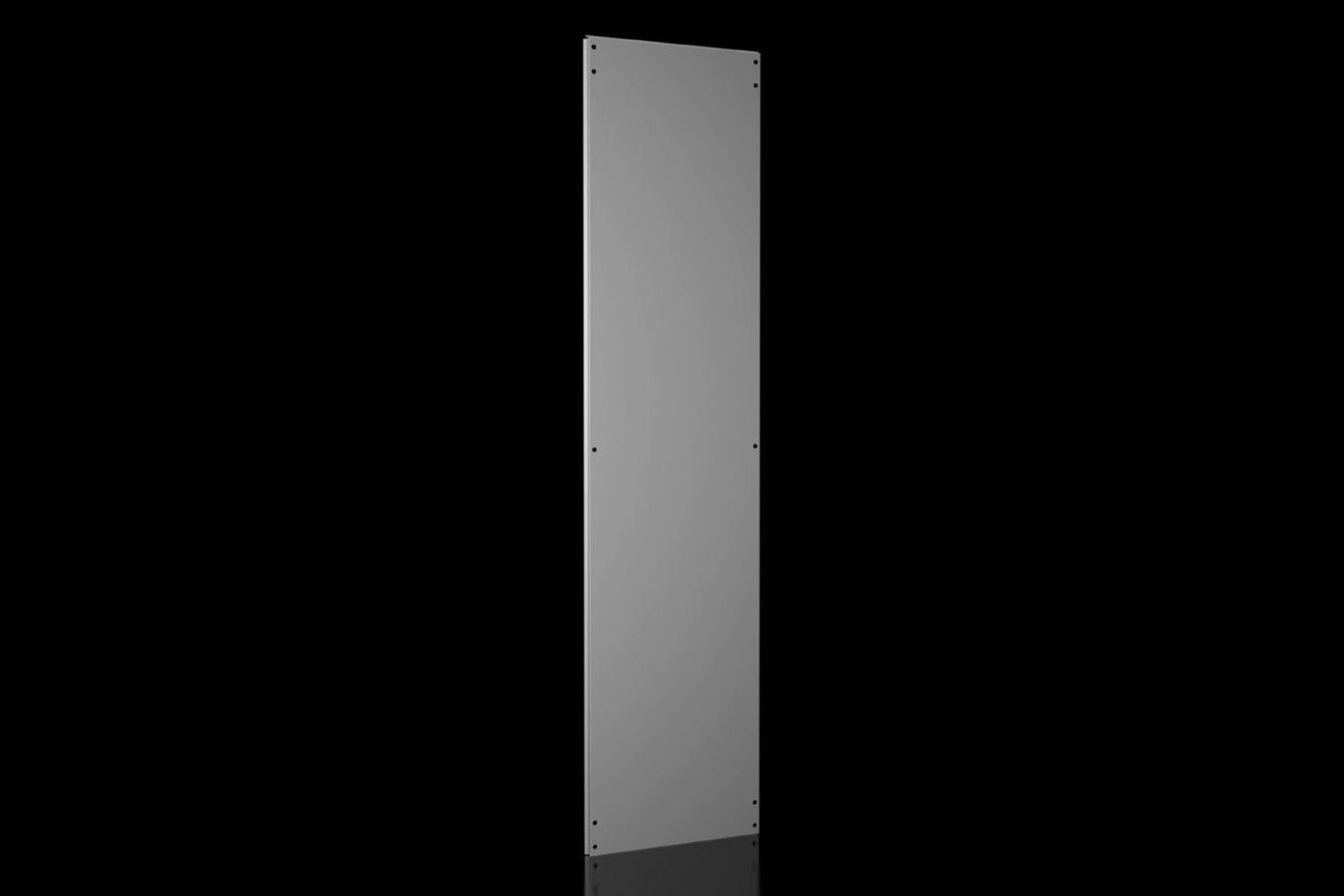

Rittal 8609201 VX partition panel, height: 1800 mm, width: 500 mm

Your rating:
Average rating
product review for Rittal 8609201 VX partition panel, height: 1800 mm, width: 500 mm
( 4.4 / 5 ) 17 ratings
Rittal 8609201
This image may differ from the desired article.
Rittal 8609201Rittal 8609201Rittal 8609201
76,48 EUR
( 91,01 EUR incl. VAT )
≈ £64.01  |  ≈ $84.05
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8609201 VX partition panel, height: 1800 mm, width: 500 mm
Datasheet:file_download Download
Lieske Part No.:1440929
Mfg Part No: 8609201
UPC/EAN: 4028177817753
Weight:10 kg
Type:VX 8609.201

Product information for Rittal 8609201:

Rittal VX partition panel, type 8609.201, is a system accessory for enclosures of the VX housing type, specifically designed for an enclosure height of 1,800 mm and a depth of 500 mm. It serves to compartmentalize individual enclosure cells and enables structured, spatial separation within the enclosure. The partition panel is manufactured from steel sheet with a thickness of 1.5 mm and features a zinc-coated surface providing corrosion protection. Installation takes place on the outer mounting plane of the enclosure, leaving the inner plane free for additional components. The required mounting materials are included in the delivery scope.

Applications

The partition panel is designed for use in industrial enclosures where clear separation of electrical or electronic assemblies is required. It is suitable, for example, for isolating frequency converters that direct their cooling fins outward for heat dissipation. In such cases, the partition panel can also be mounted at the rear, allowing the cooling fins to remain exposed while being protected or concealed by a cover hood. The symmetry of the frame system enables this flexible mounting position.

Functions and Equipment in Detail

The partition panel features a continuous, double hemming, which increases mechanical stability and allows for the installation of a seal. This contributes to achieving the protection rating IP 54 according to IEC 60 529, ensuring protection against dust and splashing water. The seal ensures that the compartmentalized enclosure cell is protected against environmental contamination and moisture, which is particularly important in industrial environments. The partition panel is therefore suitable for indoor use where a certain protection class against external influences is required.

Technology Explained Simply

The construction from 1.5 mm thick steel sheet provides sufficient strength to withstand mechanical loads within the enclosure. The zinc-coated surface protects the material against corrosion, extending the service life of the component. The double hemming along the edges ensures structural stability and enables the installation of a seal, supporting the IP 54 protection rating. Mounting on the outer mounting plane is a standard procedure in the VX system, increasing flexibility in interior design.

Compatibility and Accessories

The partition panel is specifically designed for enclosures of the VX type with a height of 1,800 mm and a depth of 500 mm. For baying multiple enclosures in combination with a partition panel, additional components are required: either the inner baying bracket 8617500 or the outer baying connector 8617502. These elements ensure a secure mechanical connection between enclosures. Compatible accessories also include the VX outer baying connectors (1,200 mm) and the VX inner baying brackets (6 pieces), which can be used for baying enclosures.

Mounting and Installation

Installation is performed on the outer mounting plane of the enclosure, with the mounting materials included in the delivery scope. The partition panel can also be mounted at the rear, which is advantageous when installing assemblies with external cooling. The inner mounting plane remains free, allowing additional components to be installed later.

Operational Advantages

The partition panel enables clear spatial separation within the enclosure, simplifying maintenance and inspection of individual assemblies. The IP 54 protection rating protects the compartmentalized cell against dust and splashing water, increasing the reliability of installed devices. The flexible mounting position (front or rear) offers additional design freedom, especially when integrating heat-dissipating assemblies. The use of standard mounting elements and compatibility with other VX accessories facilitates integration into existing systems.

General
MaterialSheet steel, 1.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable forCabinet type: VX, height: = 1800 mm, depth: = 500 mm
Mounting optionsInstallation is on the outer mounting plane; the inner plane remains free for further expansion
Mounting noteFor mounting in combination with a partition, the mounting bracket inside 8617500 or the mounting connector outside 8617502 is required
Degree of protection IP according to IEC 60 529IP 54


Product data sheet
Datasheet for Rittal 8609201, EAN: 4028177817753
