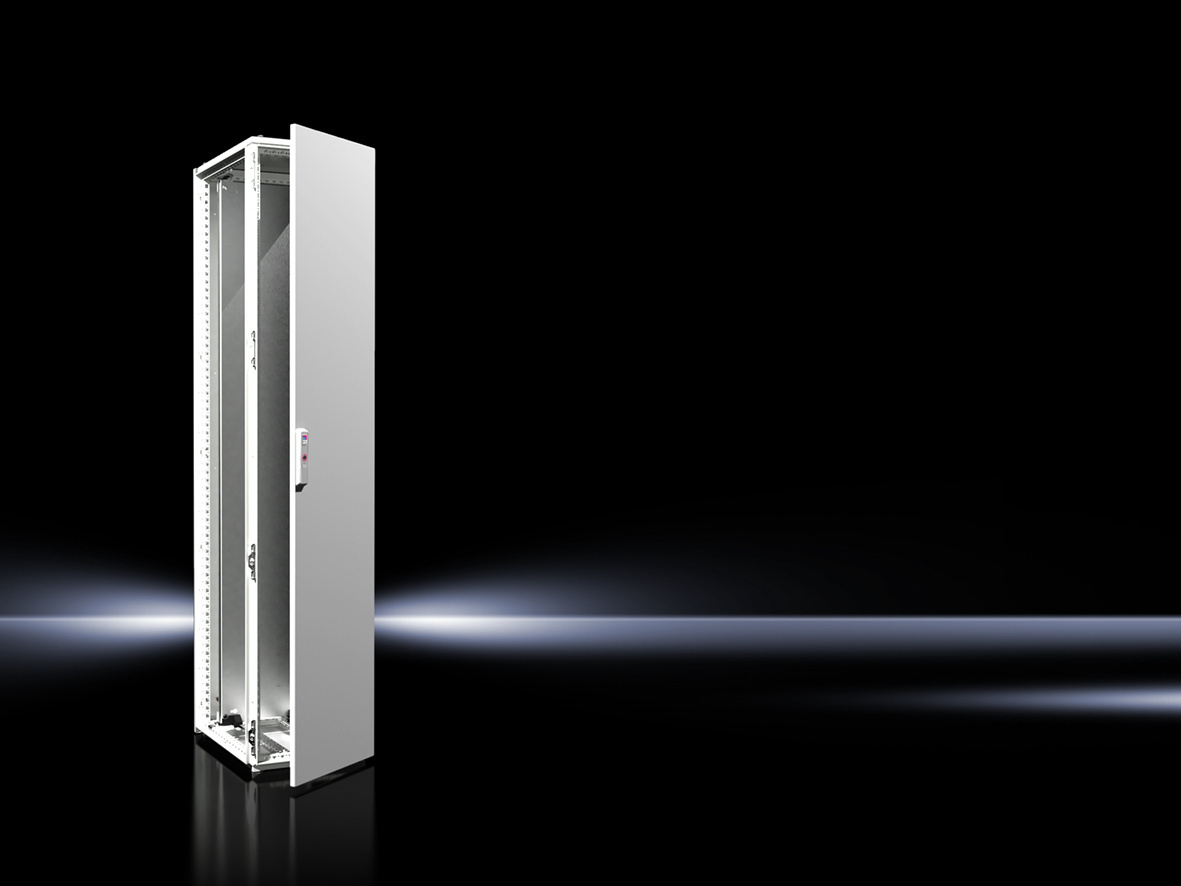

Rittal 8485000 VX bayed enclosure system, 1-door, W x H x D: 400x1800x500 mm
|
542,80 EUR |
|
|
( 645,93 EUR incl. VAT ) ≈ £454.32 | ≈ $596.54 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440951 |
| Mfg Part No: | 8485000 |
| UPC/EAN: | 4028177919303 |
| Weight: | 66.4 kg |
| Type: | VX 8485.000 |
Product information for Rittal 8485000:
Applications
This enclosure system is intended for use in production plants, automation technology, power supply systems, and other industrial applications where high mechanical stability and protection rating are required. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for outdoor use as well. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), comply with international standards for protection against mechanical influences and environmental conditions. The IK code IK10 indicates high mechanical resistance against impact and shock.
Functions and Equipment in Detail
The enclosure system includes an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, a door made of 2.0 mm sheet steel, a roof plate, a rear panel, base plates, and a mounting plate made of 3.0 mm sheet steel. The door is fitted with a foamed PU foam seal and features a four-point locking bar lock with double bar insert according to DIN 43668. The door hinges are factory-mounted on the right side but can be reconfigured to the left. The door opening angle is standard 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The surface of the enclosure frame is dip-primed, while the door, roof, and rear panel are additionally powder-coated externally using a textured lacquer. The mounting plate and base plates are galvanized to prevent corrosion. The mounting plate is C-bent on the sides and depth-adjustable in 25 mm increments via integrated plastic gliding pieces and reusable mounting rails. The flat parts — roof, door, rear panel, and base plates — are included in the delivery scope and are electrically conductively connected to the frame, enabling automatic equipotential bonding according to DIN 62 208. The rear panel and roof plate are removable and fitted with PU foam seals to ensure a tight seal.
Compatibility and Accessories
Various accessories are available for this enclosure system to meet individual requirements for mounting, transportation, and safety. These include levelling feet M12 with an adjustment height of 18–43 mm, TS mounting brackets for the external mounting level, various VX partial mounting plates in different dimensions, transport eyes for freight shipping, VX comfort handles for different locking systems (e.g. profile half cylinder, ASSA, padlock), a multi-locking system for six padlocks, a circuit diagram pocket made of sheet steel, SZ plug-through grommets IP 55, an AS multitool, VX partition panels, and VX support rollers. These components allow flexible adaptation of the enclosure to specific requirements.
Mounting and Installation
Mounting is performed via the integrated mounting levels and the 25 mm grid perforation. The mounting plate is depth-adjustable and provides a mounting grid to simplify component positioning. The base plates are split and removable, enabling easy cleaning and replacement. The fixation to the floor is achieved via the welded base frame with integrated base reinforcement.
Operational Advantages
The enclosure system offers high mechanical stability, reliable protection rating, and flexible mounting design. The integrated mounting levels and 25 mm grid simplify component installation. The conductive connection of the flat parts to the frame ensures automatic equipotential bonding, enhancing electrical safety. The removable rear panel and roof plate facilitate access to internal components. The tool-free door opening extension and the adjustability of the mounting plate increase efficiency during mounting and maintenance.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 400 mm |
| Height | 1.800 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 299 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 200.83 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8485000 VX bayed enclosure system, 1-door, W x H x D: 400x1800x500 mm?
The article Rittal 8485000 VX bayed enclosure system, 1-door, W x H x D: 400x1800x500 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8485000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8485000 VX bayed enclosure system, 1-door, W x H x D: 400x1800x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8485000 VX bayed enclosure system, 1-door, W x H x D: 400x1800x500 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
