Rittal 8617660 VX partial mounting plate, mounting outside, W x H: 500x400 mm

Your rating:
Average rating
product review for Rittal 8617660 VX partial mounting plate, mounting outside, W x H: 500x400 mm
( 5 / 5 ) 1 ratings
Rittal 8617660
This image may differ from the desired article.
Rittal 8617660Rittal 8617660Rittal 8617660Rittal 8617660
27,60 EUR
( 32,84 EUR incl. VAT )
≈ £23.10  |  ≈ $30.33
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8617660 VX partial mounting plate, mounting outside, W x H: 500x400 mm
Datasheet:file_download Download
Lieske Part No.:2035729
Mfg Part No: 8617660
UPC/EAN: 4028177947207
Weight:2.32 kg
Type:VX 8617660

Product information for Rittal 8617660:

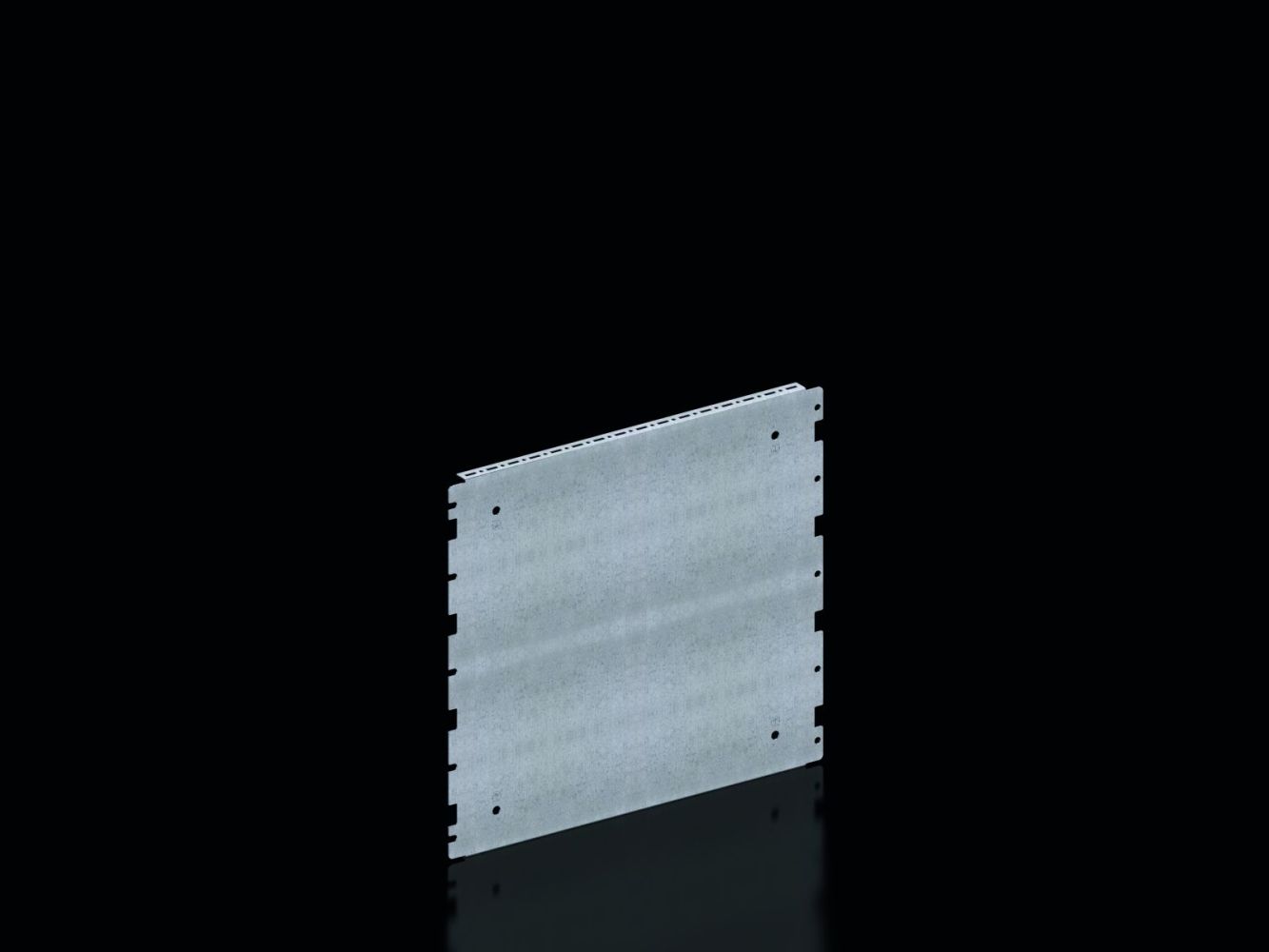

The Rittal VX 8617660 is a partial mounting plate made of steel sheet with a thickness of 1.5 mm, specifically designed for use in enclosures of type VX and VX SE. It serves as a platform for additional components in internal assembly and enables flexible, individual mounting of modules, controls, or other electrical elements. The plate dimensions are 500 mm in depth and 400 mm in height, with actual external dimensions of 438 mm (width) and 398 mm (height). The surface is zinc-coated, providing good corrosion protection and supporting long-term durability in industrial applications.

Applications

The partial mounting plate is designed for use in enclosures with a depth of 500 mm and thus fits the enclosure types VX and VX SE. It is frequently used in industrial electrical and automation applications where modular and adaptable internal fitting is required. The plate can be used, for example, to mount connectors, relays, fuses, indicator lights, or small control devices. The integrated system perforations along the flange facilitate component mounting and enable quick, tool-free installation.

Functions and Equipment in Detail

Mounting is done directly to the enclosure profile, with VX SE models requiring a VX adapter rail to mount the plate correctly. The delivery includes the fastening material needed for mounting on the designated profiles. The plate is therefore immediately ready for use as soon as the mounting position in the enclosure is available. The material thickness of 1.5 mm ensures sufficient stability to safely support larger or heavier modules.

Technology Explained Simply

The zinc coating of the surface protects the steel sheet from moisture and corrosion, which is particularly important in damp or industrial environments. The system perforations along the flange are standardized and allow the use of screws, clamps, or other fastening elements commonly used in electrical installations. The dimensions of 500 mm depth and 400 mm height correspond to common module sizes in enclosure systems, enabling easy integration into existing constructions.

Compatibility and Accessories

The partial mounting plate is specifically designed for enclosure types VX and VX SE, which have a depth of 500 mm. For VX SE systems, mounting to the enclosure profile in conjunction with a VX adapter rail is required.

Mounting and Installation

Mounting is done directly to the enclosure profile using the provided fastening elements from the delivery. For VX SE systems, the use of a VX adapter rail is necessary to secure the plate correctly. The system perforations along the flange facilitate positioning and mounting of additional components. Installation can be done without special tools, although screwdrivers or similar tools are required for fastening.

Advantages in Operation

The partial mounting plate offers a flexible and modular solution for internal enclosure assembly. The integrated system perforations enable quick and precise mounting of modules. The zinc coating ensures high corrosion resistance, extending service life in industrial use. Compatibility with VX and VX SE systems, along with predefined dimensions, simplifies planning and integration into existing enclosure configurations. Delivery includes fastening material, reducing installation effort and ensuring immediate readiness for use.

General
MaterialSheet steel, 1.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Mounting optionsMounting is directly onto the cabinet profile
NoteIn VX SE on cabinet profile in combination with adapter rail VX
Width438 mm
Height398 mm
Suitable for housing typeVX, VX SE
Suitable forHousing type: VX, VX SE, Width/Depth: 500 mm


Product data sheet
Datasheet for Rittal 8617660, EAN: 4028177947207

Questions & answers

What is the delivery time of Rittal 8617660 VX partial mounting plate, mounting outside, W x H: 500x400 mm?

The article Rittal 8617660 VX partial mounting plate, mounting outside, W x H: 500x400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617660 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617660 VX partial mounting plate, mounting outside, W x H: 500x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617660 VX partial mounting plate, mounting outside, W x H: 500x400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
