Rittal 8215000 bayed enclosure system VX25 W x H x D 1200x1200x500 mm (freight shipping)

Your rating:
Average rating
product review for Rittal 8215000 bayed enclosure system VX25 W x H x D 1200x1200x500 mm (freight shipping)
( 4.6 / 5 ) 25 ratings

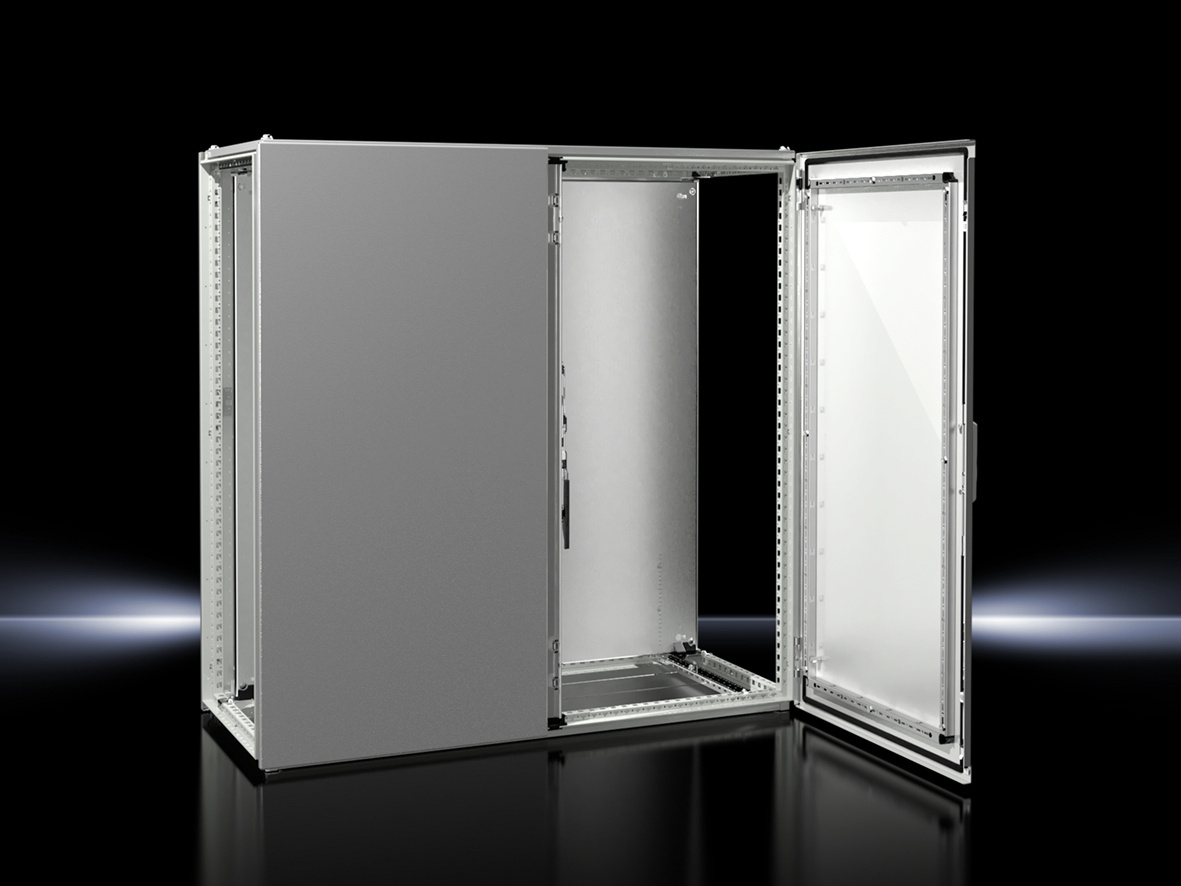

Rittal 8215000
This image may differ from the desired article.
Rittal 8215000Rittal 8215000Rittal 8215000Rittal 8215000Rittal 8215000Rittal 8215000Rittal 8215000
834,87 EUR
( 993,50 EUR incl. VAT )
≈ £698.79  |  ≈ $917.52
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 8215000 bayed enclosure system VX25 W x H x D 1200x1200x500 mm (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1440696
Mfg Part No: 8215000
UPC/EAN: 4028177813588
Weight:125.8 kg
Type:VX 8215.000

Product information for Rittal 8215000:

The Rittal bayed enclosure system VX 8215.000 is an industrial enclosure made of sheet steel, designed for use in production plants, automation systems, and other technical environments where a robust and protection-rated covering of electrical components is required. The system features a symmetrical profile frame construction with closed and profiled hollow sections, equipped with a perforation grid spaced at 25 mm intervals. The frame profiles are fitted with integrated blind rivet nuts M6 to allow protection-rated attachment of fittings. All profile edges are rounded, and horizontal profiles feature an additional groove above the PU foam seal to support the sealing function. The enclosure system is bayable on all sides and offers a load capacity of up to 15,000 N.

Applications
This enclosure system is designed for use in industrial environments requiring high mechanical stability and protection against dust and splashing water. It is suitable for use in factories, machine building, power supply, and other areas where electrical components must be protected from environmental influences. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, making it suitable for indoor use as well as in slightly damp outdoor environments. The protection ratings NEMA 1 and NEMA 12, along with the type rating according to UL 50E (Type 1, Type 12), confirm suitability for dry and damp indoor spaces as well as environments with limited splashing water. The IK code IK10 indicates high mechanical strength against mechanical impacts such as shocks and vibrations.

Functions and Equipment in Detail
The enclosure system features two front doors equipped with foamed PU foam seals to ensure a tight seal. Door hinges are standardly positioned on the right but can be toollessly repositioned to the left. The lock door is fitted with a quadruple locking bar lock using a double-bar insert according to DIN 43668. The secondary door is additionally secured with a swing lever for double locking. The hinges are fitted with non-removable hinge pins, and the door opening angle is 130°, with a toolless extension to 180° possible. The clearance from the floor is 17 mm.

Technology Explained Simply
The mounting plate is C-flanged on the sides and is depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. It features a mounting grid to simplify component positioning. The mounting plate is made of sheet steel with a thickness of 3.0 mm, while the enclosure frame, roof, rear panel, and base sheets are made of sheet steel with a thickness of 1.5 mm. The doors are made of 2.0 mm thick sheet steel. The enclosure frame surface is dip-primed, while doors, roof, and rear panel are dip-primed and externally powder-coated with a textured finish. The mounting plate and base sheets are galvanized. The color corresponds to RAL 7035.

Compatibility and Accessories
The enclosure system is compatible with various accessories to meet individual requirements for enclosure expansion. These include levelling feet M12 with an adjustment height of 18–43 mm, TS mounting brackets for the outer mounting plane, C-profile rails 30/15 according to EN 60715, VX partial mounting plates in various dimensions, cable routing spaces, transport eyes, VX base sheets, comfort handles for various locking systems, dust protection strips, cable entry ferrules in various diameters, multi-locking systems for padlocks, circuit diagram pockets, plug-through ferrules, and an AS Multitool AX/VX.

Mounting and Installation
Mounting is performed using integrated mounting rails and plastic glides, enabling depth-adjustable installation of the mounting plate. The base sheets are triple-divided, removable, and replaceable. The rear panel and roof plate are removable and fitted with PU foam seals. The rear panel is equipped with a positioning aid, and the roof is secured with M12 fastening screws. Electrical conductivity between the rear panel, roof, base sheets, and frame ensures automatic equipotential bonding according to DIN 62 208 and is prepared for the attachment of earthing straps.

Operational Advantages
The enclosure system offers high mechanical stability, reliable sealing, and flexible mounting. The integrated mounting planes enable space-saving and quick internal installation. The toolless repositioning of door hinges and extension of door opening angles increases installation flexibility. The use of sheet steel with varying thicknesses and a robust surface coating ensures long service life and resistance to environmental influences. The protection rating IP 55 and mechanical strength IK10 make the system suitable for demanding industrial applications. The delivery includes the enclosure frame, doors, roof plate, rear panel, base sheets, mounting plate, two mounting rails 18 x 39 mm, and a 3 mm double-bar lock.

General
MaterialCabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm
Surface protectionCabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised
ColourRAL 7035
Scope of deliverycabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar
Width1.200 mm
Height1.200 mm
Depth500 mm
Mounting plate dimensions (W x H)1.099 mm x 1.096 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK10
Number of doors2
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)323.21 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8215000, EAN: 4028177813588
