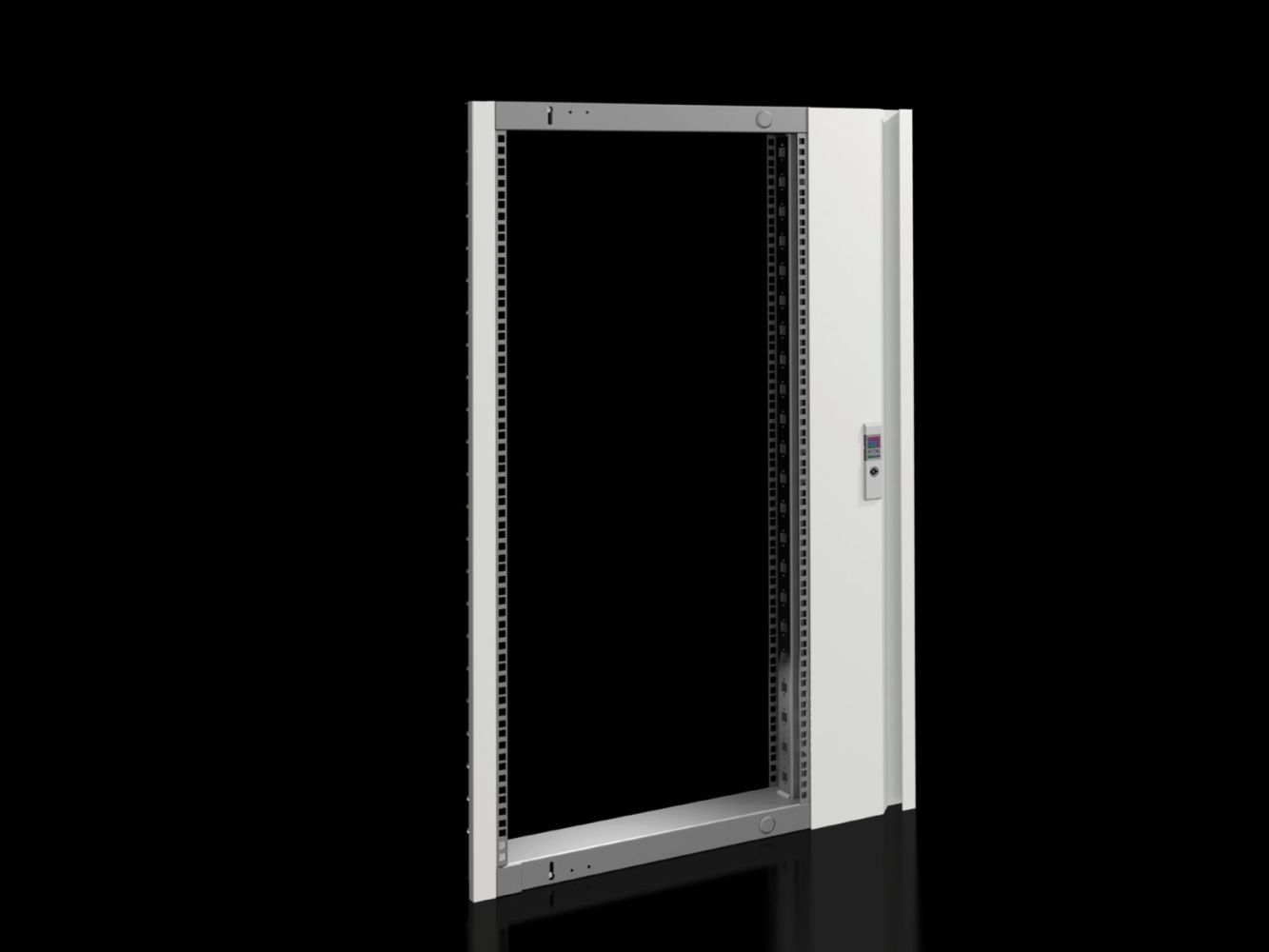

Rittal 8619020 VX swing frame, large, trim panel one-sided, W: 800 mm

Your rating:
Average rating
product review for Rittal 8619020 VX swing frame, large, trim panel one-sided, W: 800 mm
( 4.6 / 5 ) 16 ratings
Rittal 8619020
This image may differ from the desired article.
Rittal 8619020Rittal 8619020
278,30 EUR
( 331,18 EUR incl. VAT )
≈ £232.94  |  ≈ $305.85
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8619020 VX swing frame, large, trim panel one-sided, W: 800 mm
Datasheet:file_download Download
Lieske Part No.:1441925
Mfg Part No: 8619020
UPC/EAN: 4028177920415
Weight:13.566 kg
Type:VX 8619.020

Product information for Rittal 8619020:

The Rittal VX 8619.020 is a swing frame, large, with single-sided trim panel, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in enclosures. It is designed for enclosures with a width of exactly 800 mm and a minimum height of 1,200 mm, and provides space for 22 height units (HE). The product is made of sheet steel, with the frame galvanized and the trim panel painted in RAL 7035. The construction allows for flexible mounting of devices in standard 48,3 cm ( 19 inch ) format within VX control systems.

Applications

The swing frame is used in industrial and technical installations where secure and accessible mounting of network or control components is required. It is particularly suitable for enclosures in the VX system with a width of 800 mm and a minimum height of 1,200 mm. The single-sided trim panel ensures an orderly and visually uniform appearance in the enclosure, while the swivel motion facilitates access to the mounted devices.

Functions and Equipment in Detail

The swing frame is supplied with a lock system and a 130° hinge, enabling secure and stable movement. The trim panel is arranged on one side, ensuring access to the mounted components from one side. Mounting is carried out using material intended for securing to the mounting kit. Depending on the installation situation, system chassis with dimensions 23 x 64 mm are required for securing to the enclosure walls.

Technology Explained Simply

The use of sheet steel as material ensures high mechanical stability and durability. The galvanized surface of the frame protects against corrosion, while the painted trim panel in RAL 7035 provides a uniform, weather-resistant color tone. The 130° hinge allows sufficient opening angle to easily access devices inside the enclosure. The integrated lock system ensures the frame remains securely closed when not in use.

Compatibility and Accessories

The swing frame is specifically designed for enclosures with a width of 800 mm and a minimum height of 1,200 mm. It is part of the VX system and can be combined with other components such as VX system chassis in various widths (e.g. 400 mm, 500 mm, 600 mm, 800 mm) and mounting kits for swing frames (e.g. for 800 mm or 1200 mm width).

Mounting and Installation

Mounting is carried out on a mounting kit, with securing achieved using designated material. Depending on the installation situation, system chassis with dimensions 23 x 64 mm are required to securely fix the frame in the enclosure. Mounting kits for swing frames in widths of 800 mm and 1200 mm are available as suitable accessories.

Advantages in Operation

The swing frame enables quick and secure mounting of 48,3 cm ( 19 inch ) devices in the enclosure. The single-sided trim panel ensures a clear structure and facilitates access to the devices. The integrated lock system and 130° hinge ensure stable and secure movement. The use of galvanized sheet steel and painted surface ensures high corrosion resistance and durability in industrial environments. Compatibility with the VX system and matching mounting kits enables flexible and modular equipment of enclosures.

General
ModelBlind on one side
Materialsteel sheet
Surface protectionFrame: galvanised, faceplate: painted
ColourShutter: RAL 7035
Scope of deliveryIncluding closure system, 130° hinge, material for mounting on installation kit
Mounting noteDepending on the expansion situation, system chassis 23 x 64 mm are required
NoteTo lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail"
Suitable forWidth: = 800 mm, Height: ≥ 1,200 mm
Height units22 HE


Product data sheet
Datasheet for Rittal 8619020, EAN: 4028177920415
