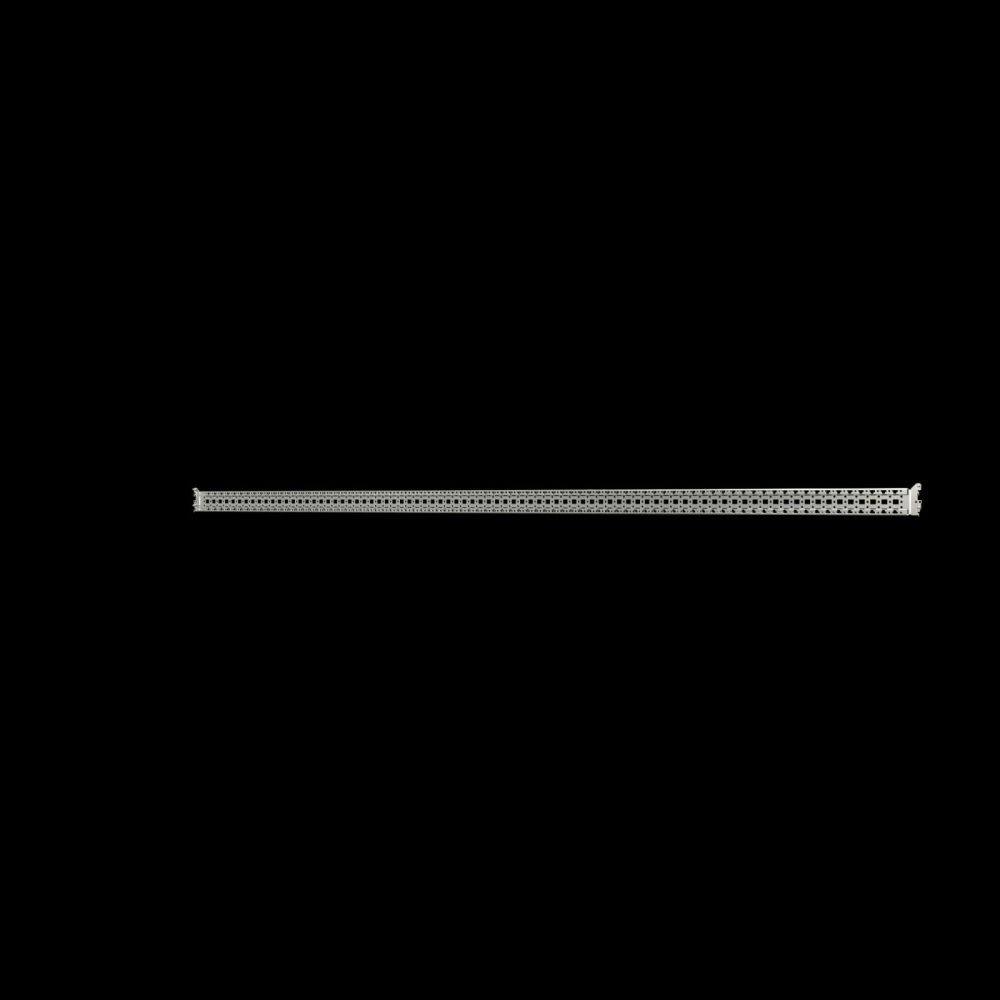

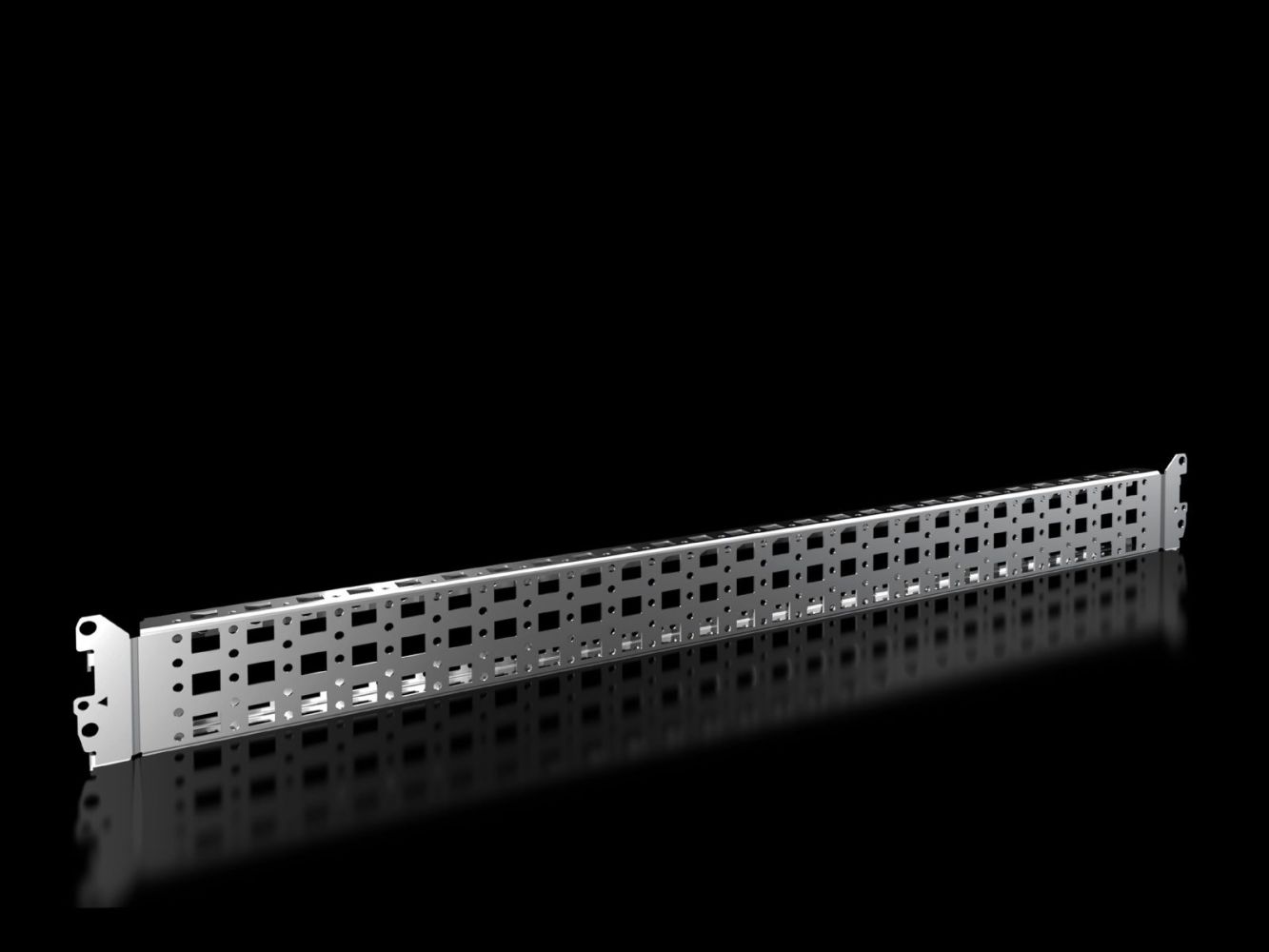

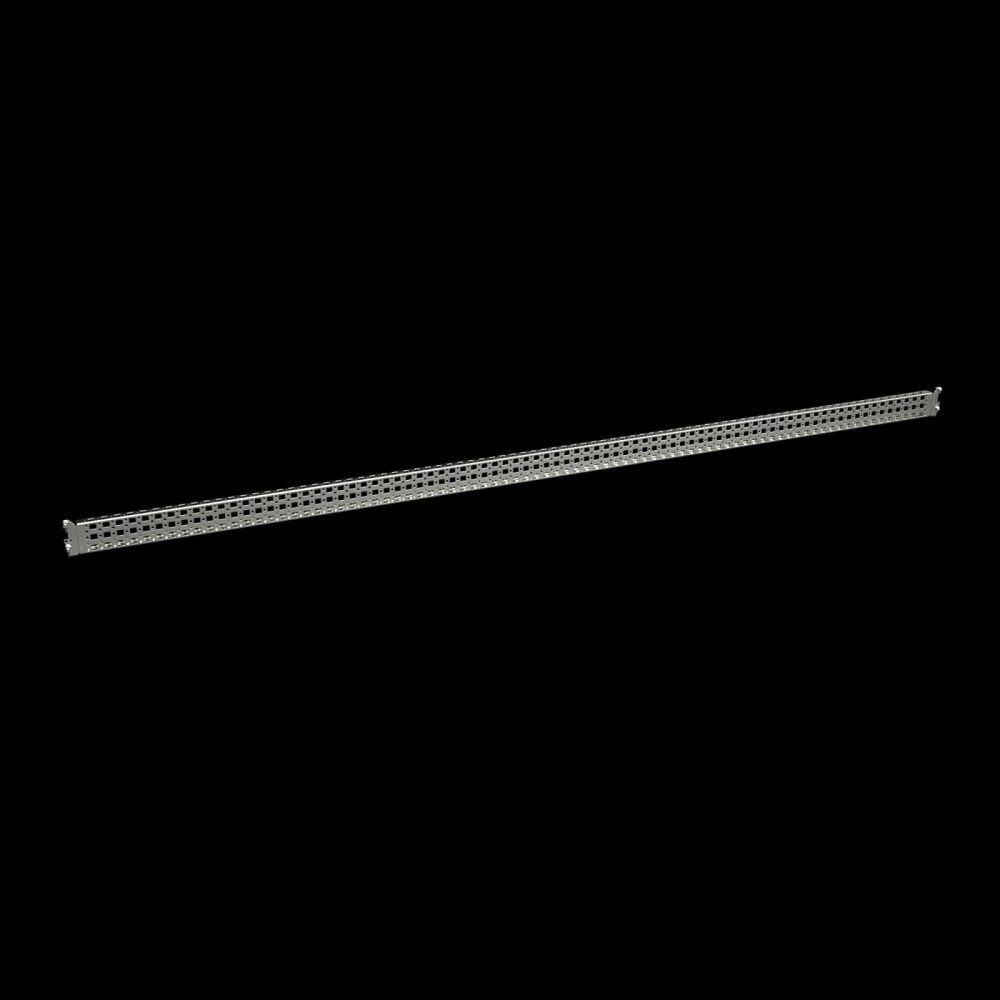

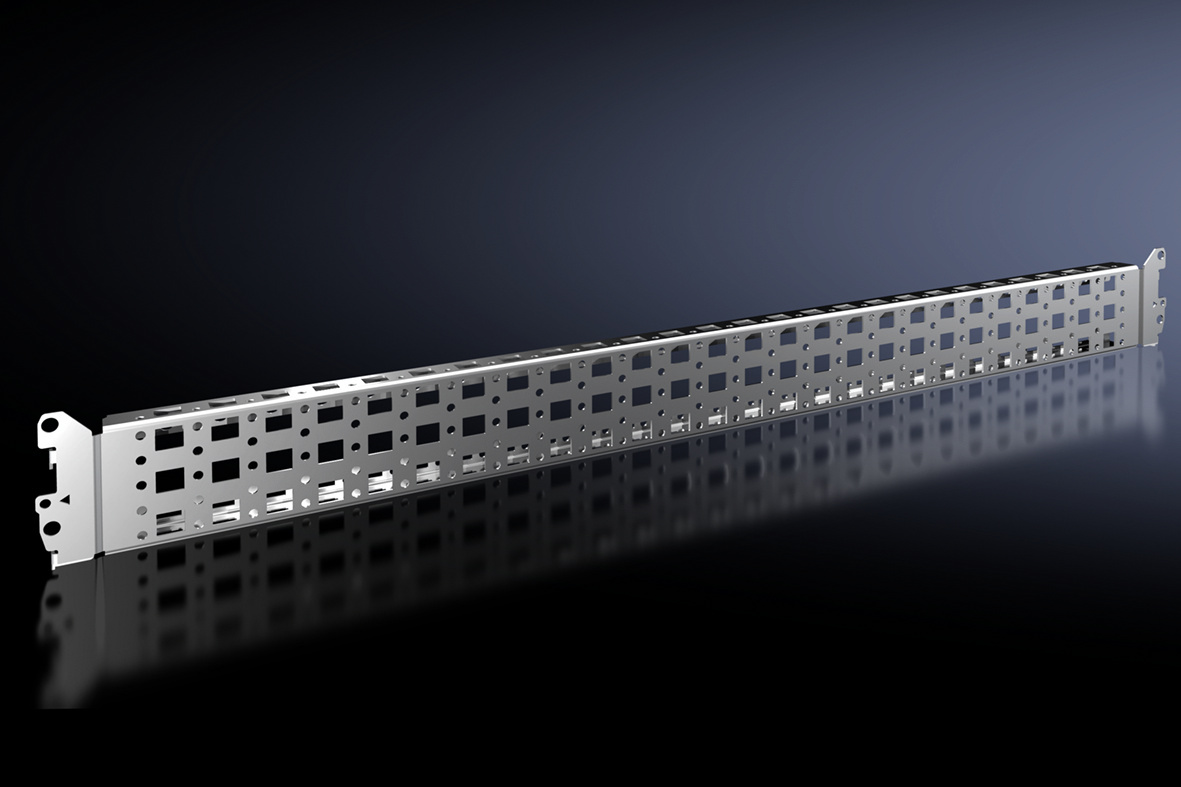

Rittal 8617140 VX system chassis 23 x 64 mm W x H x D: 800 mm
|
60,89 EUR 60,90 EUR |
|
|
( 72,46 EUR incl. VAT ) ≈ £50.96 | ≈ $66.92 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1349707 |
| Mfg Part No: | 8617140 |
| UPC/EAN: | 4028177829145 |
| Weight: | 3.376 kg |
| Type: | VX 8617.140 |
Product information for Rittal 8617140:
Applications
The system chassis is suitable for various enclosure types, including VX, VX IT, VX SE, PC, AX, AX stainless steel, and AX plastic. It can be mounted in enclosures with a width or depth of 800 mm, where different adapters or accessories are required depending on the enclosure type. For example, it is directly usable in VX enclosures, while for AX enclosures, the AX interior fitting rail and the AX base fitting rail are required. For AX plastic enclosures, the universal angle is required, and for VX plinth systems, the plinth fitting angle is used. Mounting takes place on the inner mounting plane, where the chassis is hung into the system perforation and screwed in place.
Functions and Equipment in Detail

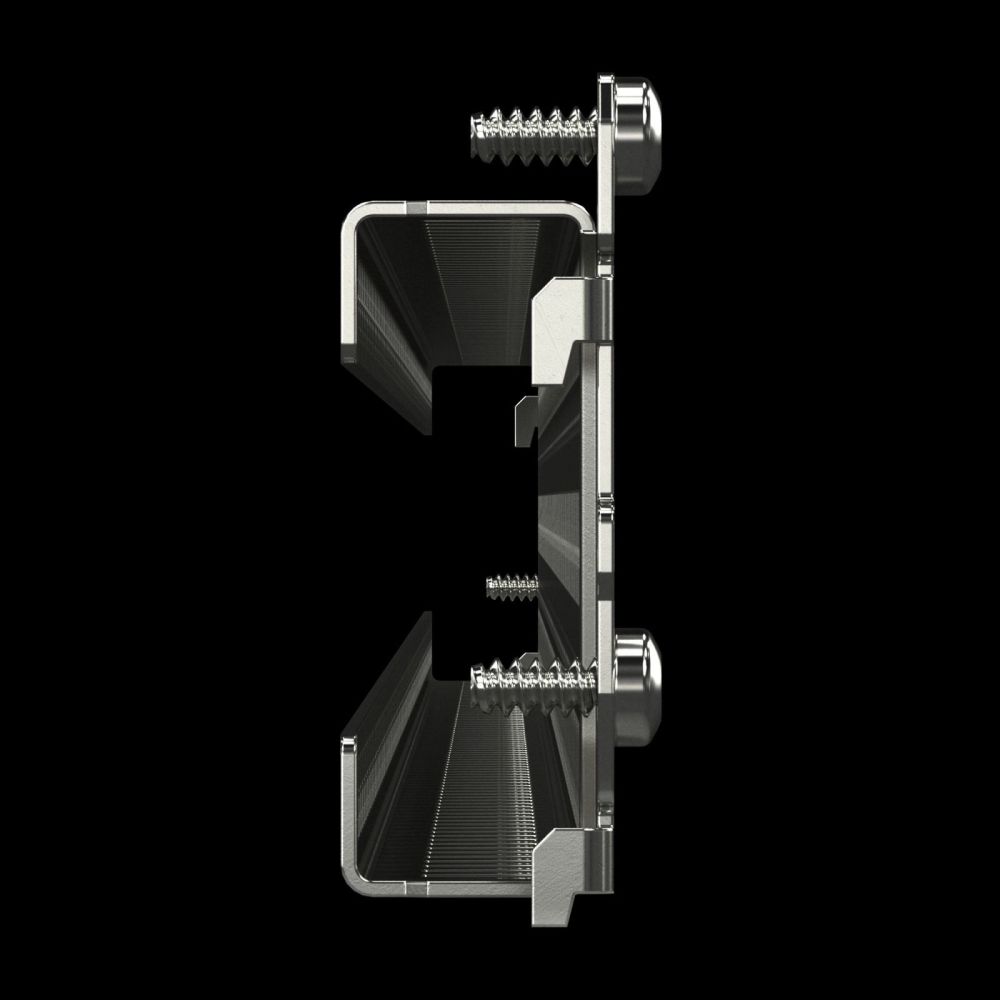

The chassis features a system perforation on all four sides, enabling flexible mounting of components. Special perforations for cage nuts are integrated along the top and bottom edges, allowing user components to be secured using metric screws. This construction allows for individual adaptation to different mounting requirements within the enclosure. The material execution in galvanised steel sheet ensures high mechanical stability and corrosion resistance.
Technology Explained Simply
The term system chassis describes a modular component that fits into the predefined perforation patterns of Rittal enclosure frames. The dimension 23 x 64 mm refers to the width and height of the chassis, with the depth determined by the mounting within the enclosure structure. The perforation on all sides allows components to be mounted at any position, enabling flexible arrangement of controls, power electronics, or other components within the enclosure. The cage nut perforations along the top and bottom edges provide a secure mounting option for additional modules.
Compatibility and Accessories
The chassis is compatible with various Rittal enclosure types, with specific adapters or mounting aids required depending on the type. For AX plastic enclosures, the universal angle is required, which is available in the product range. Cable ties with a length of 150 mm can be used to secure cables to the chassis surfaces. The use of these accessories enables secure and orderly mounting within the enclosure.
Mounting and Installation
Mounting is performed by hanging the chassis into the system perforation of the enclosure frame and then screwing it in place. Fastening is done using the mounting materials included in the delivery scope. Positioning on the inner mounting plane ensures stable fastening and optimal use of available space. When used in AX enclosures or VX plinth systems, additional mounting aids such as the base fitting rail or plinth fitting angle are required.
Advantages in Operation
The system chassis offers a flexible and modular solution for the interior fitting of enclosures. The integrated system perforation and cage nut perforations enable quick and secure mounting of components. The use of galvanised steel sheet ensures high mechanical strength and durability. Compatibility with various enclosure types and the ability to use the chassis in combination with specific adapters increases adaptability to different applications. The delivery in packs of 4 pieces facilitates planning and use in larger projects.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options VX | In cabinet width/depth 800 mm, on the inner mounting plane |
| Mounting options VX SE | In cabinet width 800 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility |
| Mounting options AX | In cabinet width/height 800 mm, in combination with the rail for internal installation AX and floor installation rail for AX |
| Mounting options AX stainless steel | In housing width 800 mm, in combination with the floor mounting rail |
| Mounting options AX plastic | In housing width 800 mm, in combination with universal angle |
| PC mounting options | In cabinet width 800 mm, in combination with adapter rail for VX compatibility |
| Mounting options VX socket | Installation in 800 mm wide/deep base panels, in combination with base mounting angles |
| Suitable for | Housing type: VX, VX IT, VX SE, PC, AX, AX plastic, suitable for width or height or depth: 800 mm |
| PCF/VE (Cradle-to-Gate) | 17,61 |
Questions & answers
What is the delivery time of Rittal 8617140 VX system chassis 23 x 64 mm W x H x D: 800 mm?
The article Rittal 8617140 VX system chassis 23 x 64 mm W x H x D: 800 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617140 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8617140 VX system chassis 23 x 64 mm W x H x D: 800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617140 VX system chassis 23 x 64 mm W x H x D: 800 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
