Rittal 8619540 VX swing frame, small, for W: 600/800 mm

Your rating:
Average rating
product review for Rittal 8619540 VX swing frame, small, for W: 600/800 mm
( 4.4 / 5 ) 13 ratings
Rittal 8619540
This image may differ from the desired article.
Rittal 8619540Rittal 8619540Rittal 8619540
96,60 EUR
( 114,95 EUR incl. VAT )
≈ £80.85  |  ≈ $106.16
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8619540 VX swing frame, small, for W: 600/800 mm
Datasheet:file_download Download
Lieske Part No.:1441170
Mfg Part No: 8619540
UPC/EAN: 4028177919600
Weight:4.142 kg
Type:VX 8619.540

Product information for Rittal 8619540:

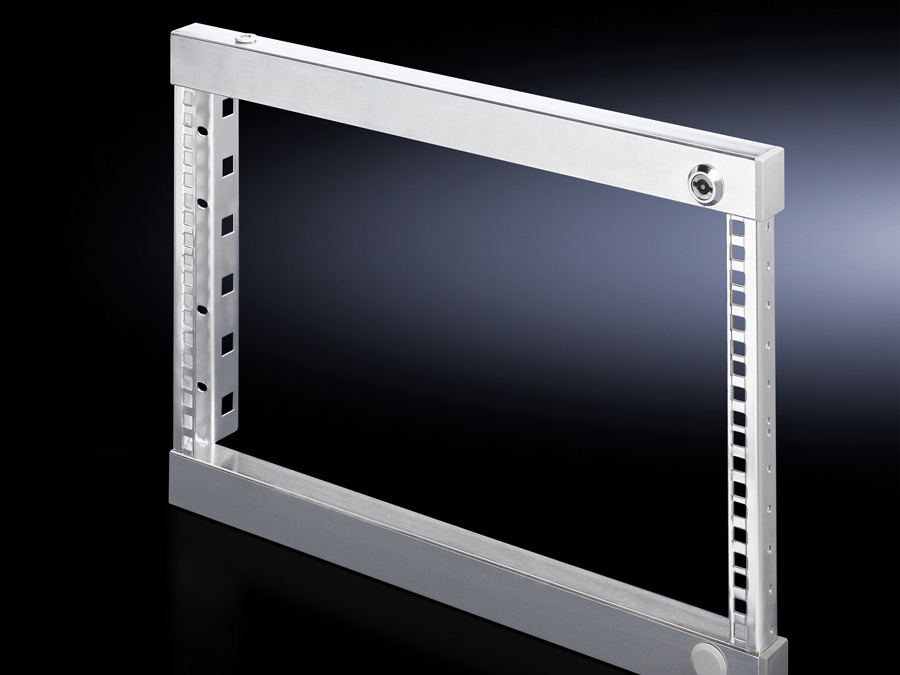

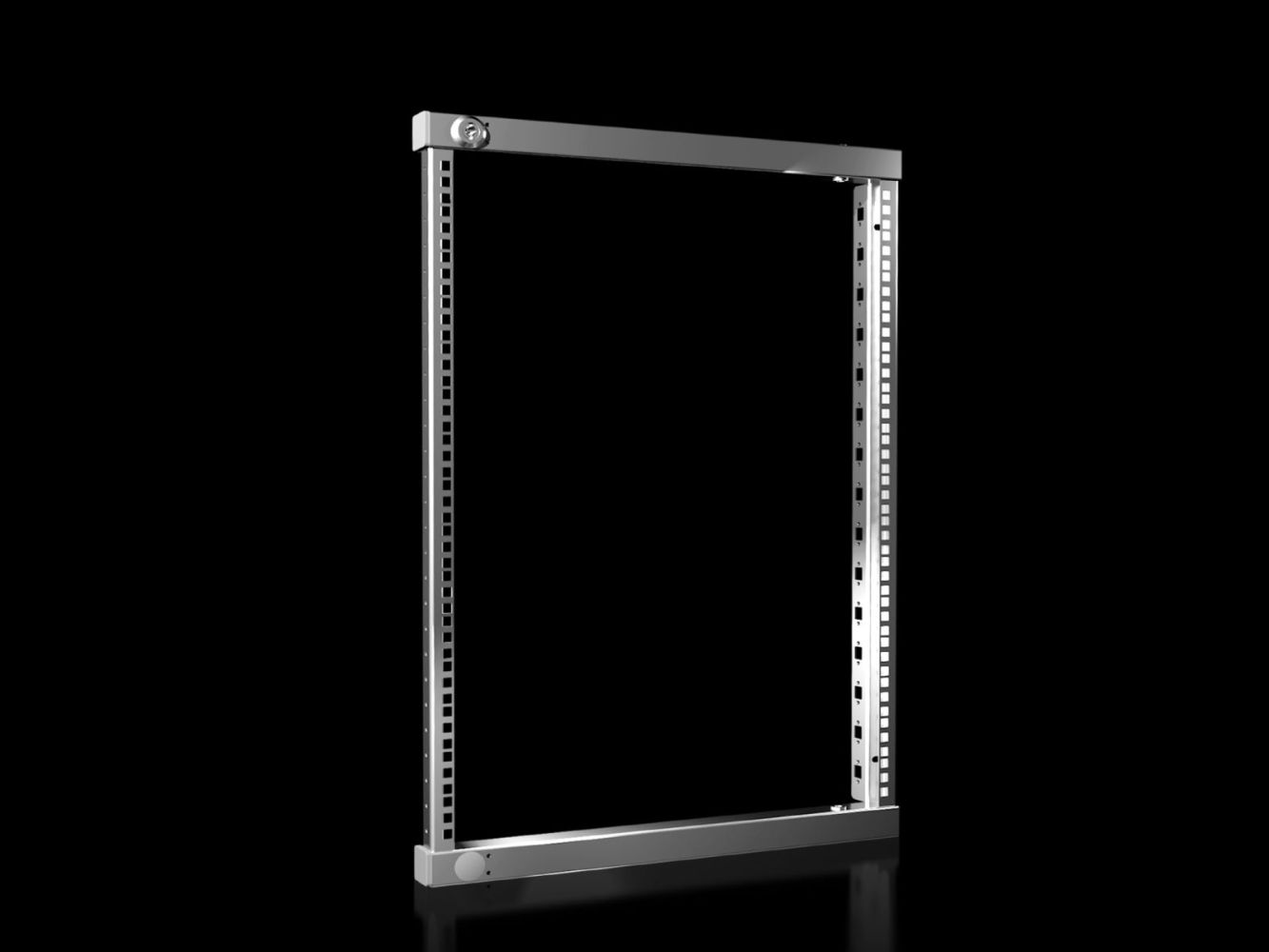

The Rittal VX 8619.540 is a swing frame, small, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in enclosures of type VX and VX SE. It is designed for enclosures with a width of 600 mm and 800 mm and offers a height of 15 U. The product is made of sheet steel with a galvanized surface, ensuring good corrosion protection and mechanical stability. It serves as a mounting base for devices used in industrial environments and enables a flexible, swivelling installation that facilitates access to the mounted components.

Applications
The swing frame is intended for use in industrial enclosures, particularly in systems of the Rittal VX series. It is suitable for applications requiring a swivelling mounting of installation devices to simplify maintenance, inspection, or replacement of components. Use in enclosures with a width of 600 mm or 800 mm allows for flexible integration into existing systems. Mounting is done on the enclosure profile, with a VX adapter rail required for VX SE systems.

Features and Equipment in Detail

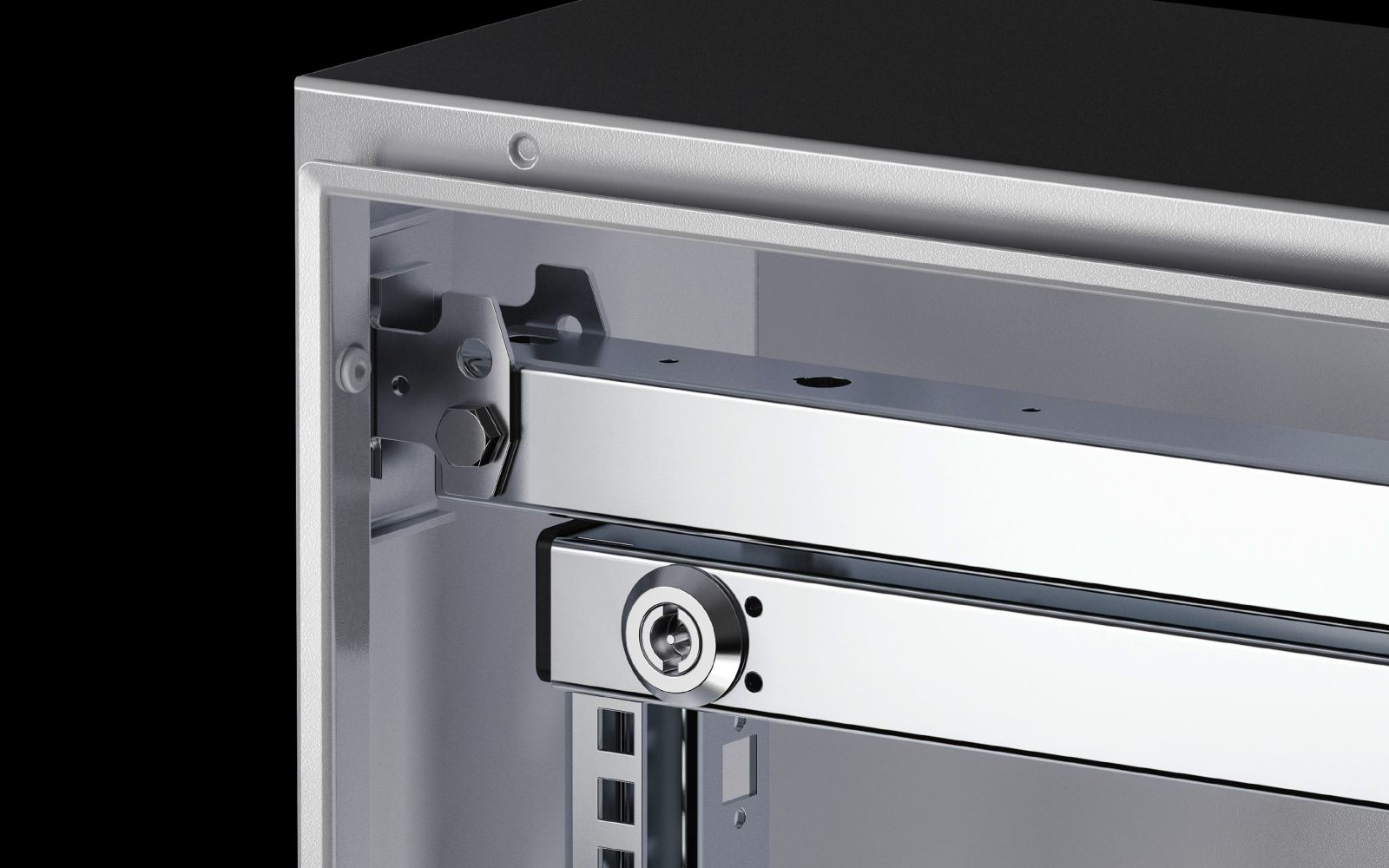

The delivery includes two hinges with an opening angle of 130°, a latch with double-bar lock insert, and the necessary mounting material for the mounting kit. The hinges enable a stable, swivelling mounting of the installation devices. The double-bar lock insert ensures secure locking of the frame.

Technology Explained Simply
The swing frame is made of sheet steel, galvanized to ensure high mechanical strength and corrosion resistance. The galvanized surface protects the material from environmental influences, especially in industrial environments. Mounting is done via the included hinges, which allow an opening angle of 130°. The 15 U height corresponds to a standard size for 48,3 cm ( 19 inch )-installation devices and enables mounting of devices with matching height. The use of system chassis 23 x 64 mm may be required depending on the expansion situation to support mounting.

Compatibility and Accessories
The swing frame is compatible with enclosure types VX and VX SE. It is designed for enclosures with a width of 600 mm and 800 mm. For mounting in VX SE enclosures, the use of a VX adapter rail is required. As accessories, system chassis 23 x 64 mm are available in various widths (400 mm, 500 mm, 600 mm, 800 mm), which may be needed depending on the expansion situation.

Mounting and Installation
Mounting is done on the enclosure profile of the VX or VX SE enclosure. For VX SE systems, the use of a VX adapter rail is necessary. The included hinges are mounted at the designated mounting points, with the mounting material included in the delivery. The installation devices are mounted on the swing frame, with the 15 U height enabling mounting of standard 48,3 cm ( 19 inch ) devices.

Advantages in Operation
The swing frame enables a flexible and accessible mounting of installation devices, simplifying maintenance and inspection work. The swivelling construction reduces space requirements in the enclosure, as devices can be folded back against the enclosure wall when not in use. The galvanized sheet steel construction ensures high mechanical stability and durability. The use of standard 48,3 cm ( 19 inch ) dimensions enables mounting of many common devices without additional modifications.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of delivery2 hinges 130°, including strike plate with double-bolt lock insert, material for mounting on installation kit
NoteTo lock the opened swivel frame, the swivel frame locking mechanism is required. Depending on the installation situation, system chassis 23 x 64 mm are required. In VX SE on cabinet profile in combination with adapter rail VX. For further installation options, see "Technology in detail".
Suitable forEnclosure type: VX, VX SE, Width: = 600 mm, = 800 mm
Suitable for housing typeVX, VX SE
Height units15 HE


Product data sheet
Datasheet for Rittal 8619540, EAN: 4028177919600

Questions & answers

What is the delivery time of Rittal 8619540 VX swing frame, small, for W: 600/800 mm?

The article Rittal 8619540 VX swing frame, small, for W: 600/800 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619540 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619540 VX swing frame, small, for W: 600/800 mm always at the best possible price. We can give you a discount of 2% on Rittal 8619540 VX swing frame, small, for W: 600/800 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
