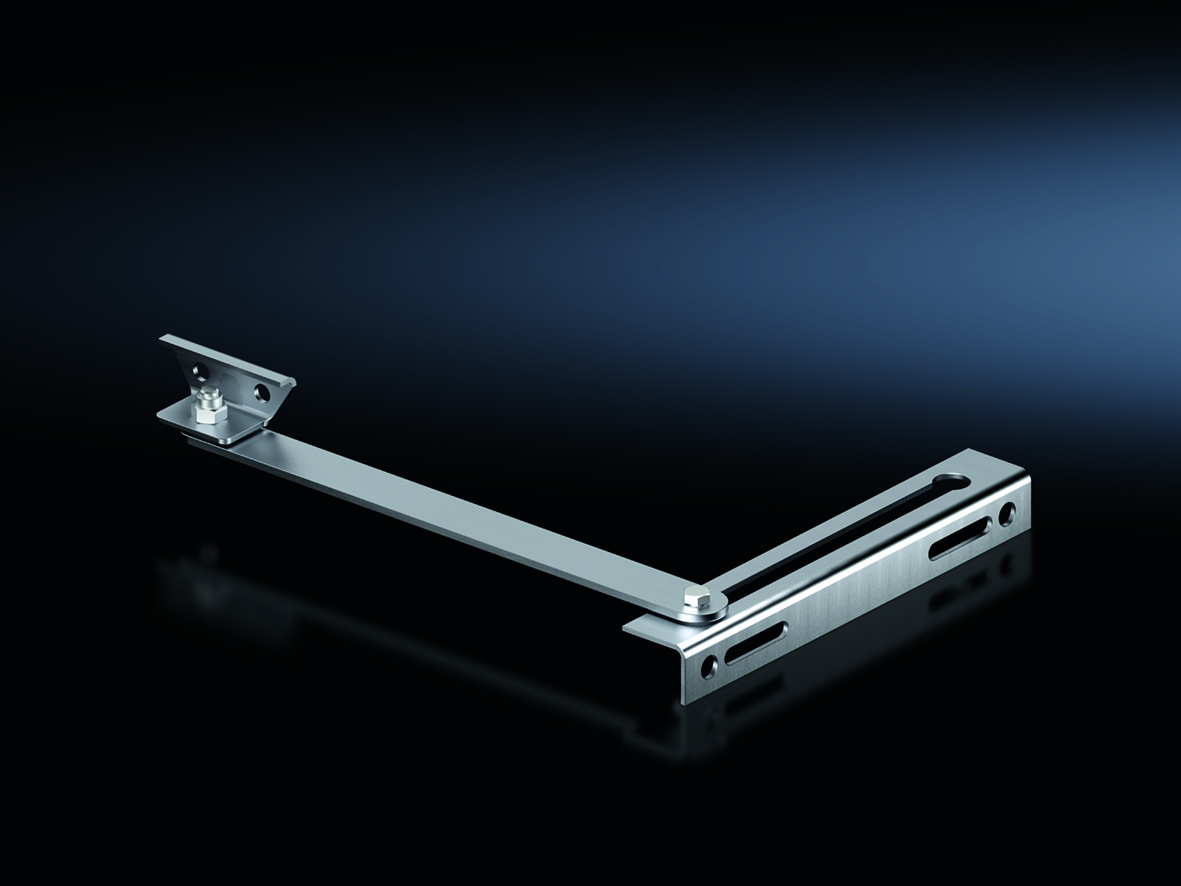

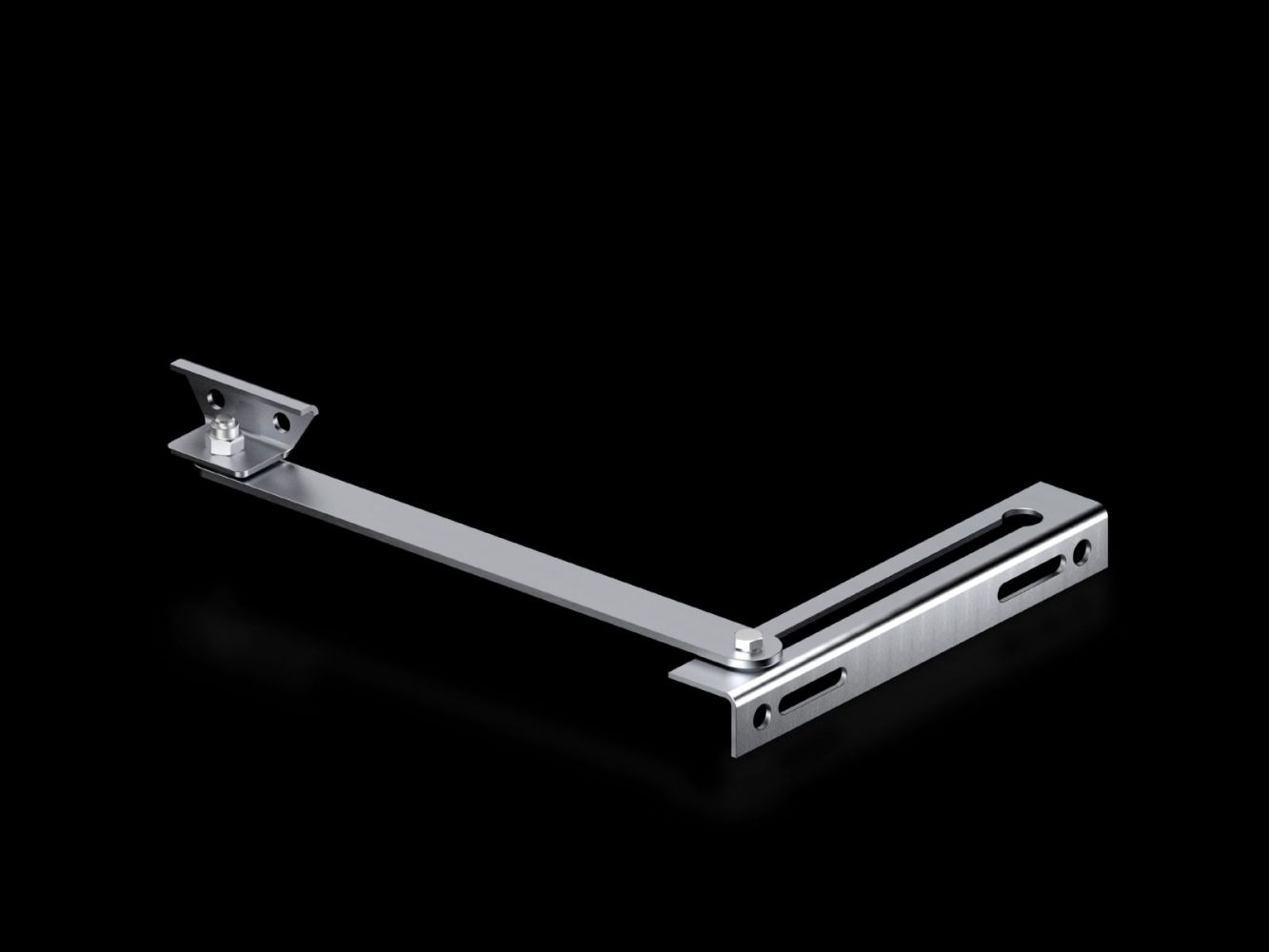

Rittal 8619270 VX swing frame locking device, for 130° hinge

Your rating:
Average rating
product review for Rittal 8619270 VX swing frame locking device, for 130° hinge
( 4.7 / 5 ) 6 ratings
Rittal 8619270
This image may differ from the desired article.
Rittal 8619270Rittal 8619270Rittal 8619270
11,97 EUR
( 14,24 EUR incl. VAT )
≈ £10.02  |  ≈ $13.16
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8619270 VX swing frame locking device, for 130° hinge
Datasheet:file_download Download
Lieske Part No.:1441928
Mfg Part No: 8619270
UPC/EAN: 4028177921917
Weight:0.241 kg
Type:VX 8619.270

Product information for Rittal 8619270:

The Rittal VX 8619.270 is a swing frame latch, specifically developed for use with 130° hinges in industrial enclosures. The product serves to securely fix the swing frame in the open position, facilitating access to internal components during maintenance or installation work. The latch is mounted on the mounting kit of the swing frame, with the mounting position located at the top of the mounting kit. The design with 130° hinge enables precise and stable holding of the frame in the open position, ensuring a safe working position for the operator.

Swing frame latch is the central function of this product, ensuring that the swing frame does not close unintentionally or move during work. This latch is suitable for swing frames in both sizes – large and small – with mounting always taking place at the upper section of the mounting kit. The construction is tailored to the specific requirements of Rittal swing frames to ensure secure and reliable locking.

Applications include primarily the installation and maintenance of electrical and electronic components within enclosures, especially in environments where a secure and stable opening of the frame is required. The latch is typically used in industrial plants, machine building, or during the installation of control systems, where continuous access to internal components is necessary.

Functions and equipment in detail include the specific design with 130° hinge, enabling precise positioning of the frame. Mounting is directly on the mounting kit, with positioning specified at the top of the mounting kit. The construction is designed to withstand mechanical stress in the open position and ensure secure locking. The latch is designed for use with Rittal swing frames, which are also equipped with 130° hinges.

Technology explained simply shows that the latch holds the swing frame in the open position through mechanical locking. The 130° hinge design allows for a clear and defined opening angle, sufficient for most industrial applications. Mounting is done without additional tools or components, as the latch is directly attached to the mounting kit. The construction is robust and designed for industrial environments.

Compatibility and accessories include use with Rittal swing frames in both sizes – large and small – and is specifically designed for mounting at the top of the mounting kit. The latch is only suitable for swing frames with 130° hinges, as the construction is specifically adapted to this angle.

Mounting and installation are carried out directly on the mounting kit of the swing frame, with positioning specified at the top of the mounting kit. The latch is mounted at the designated attachment points, requiring no additional tools or components. Installation is simple and does not require special skills, as the attachment is directly to the mounting kit.

Operational advantages lie in the secure and stable fixation of the swing frame in the open position, which facilitates access to internal components and increases work safety. The latch prevents the frame from closing unintentionally during work, which is particularly beneficial during maintenance tasks. The construction is robust and designed for industrial use, ensuring long service life and reliability. The use with 130° hinges enables precise and defined opening, sufficient for most applications. Mounting is simple and requires no additional tools or components, speeding up and simplifying installation.

General
ModelWith 130° hinge
Mounting optionsMounting on large swing frame: top of mounting kit, mounting on small swing frame: top of mounting kit


Product data sheet
Datasheet for Rittal 8619270, EAN: 4028177921917

Questions & answers

What is the delivery time of Rittal 8619270 VX swing frame locking device, for 130° hinge?

The article Rittal 8619270 VX swing frame locking device, for 130° hinge is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619270 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619270 VX swing frame locking device, for 130° hinge always at the best possible price. We can give you a discount of 2% on Rittal 8619270 VX swing frame locking device, for 130° hinge if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
