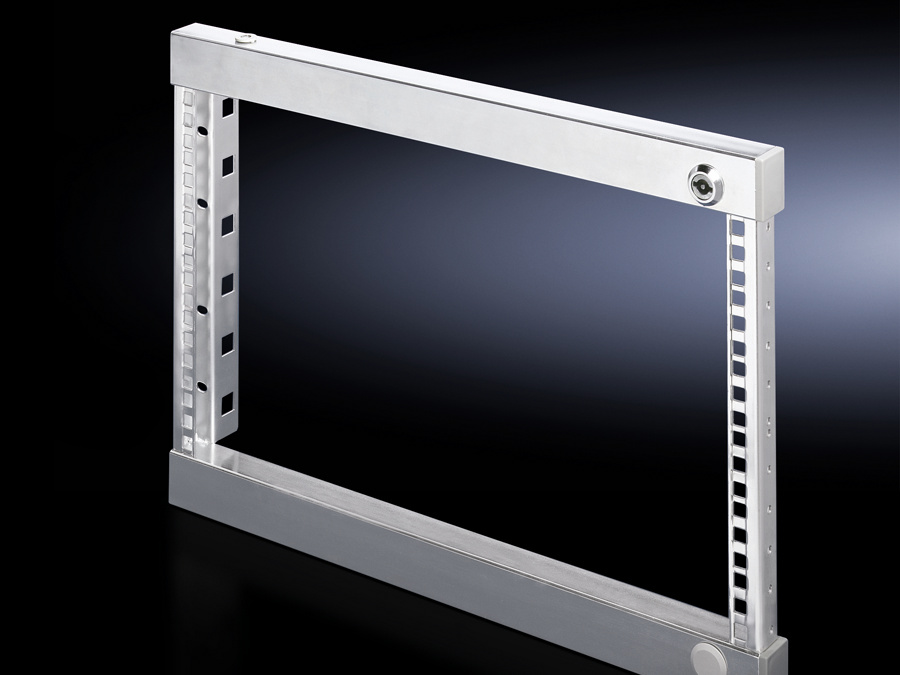

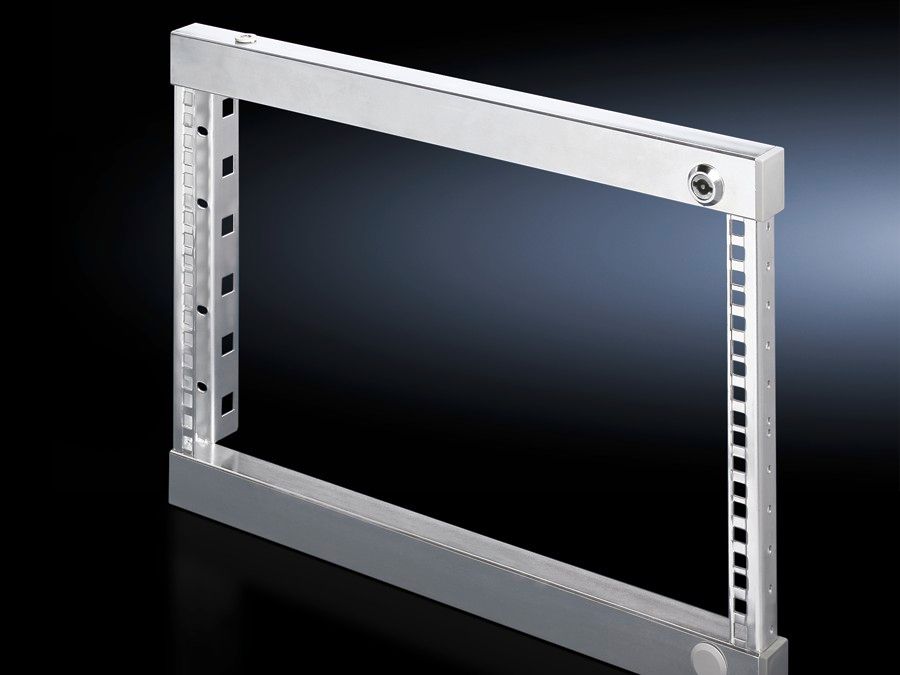

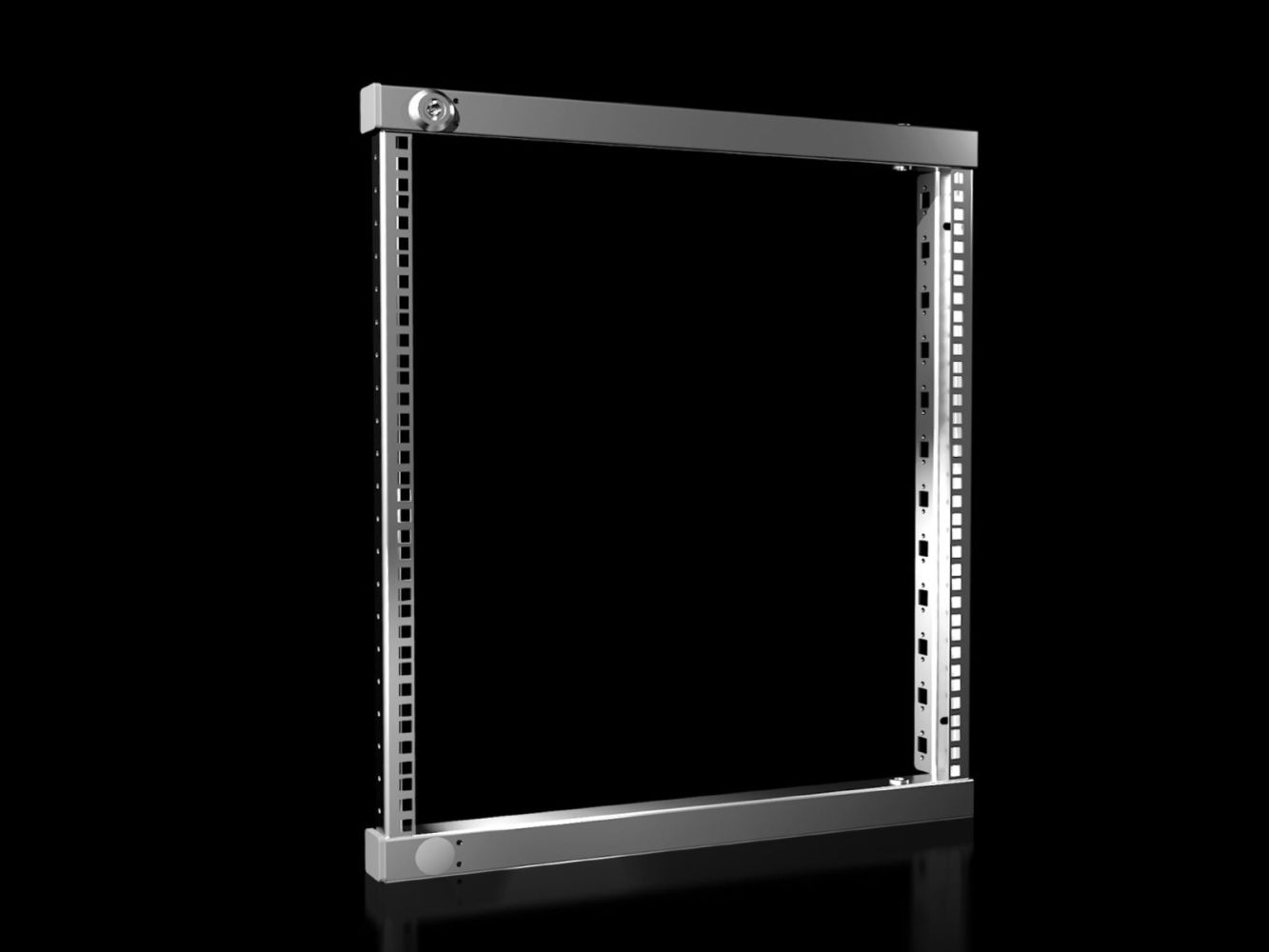

Rittal 8619530 VX swing frame, small, for W: 600/800 mm

Your rating:
Average rating
product review for Rittal 8619530 VX swing frame, small, for W: 600/800 mm
( 4.4 / 5 ) 22 ratings
Rittal 8619530
This image may differ from the desired article.
Rittal 8619530Rittal 8619530Rittal 8619530Rittal 8619530
89,93 EUR
( 107,02 EUR incl. VAT )
≈ £75.27  |  ≈ $98.83
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8619530 VX swing frame, small, for W: 600/800 mm
Datasheet:file_download Download
Lieske Part No.:1441183
Mfg Part No: 8619530
UPC/EAN: 4028177919594
Weight:3.925 kg
Type:VX 8619.530

Product information for Rittal 8619530:

The Rittal VX 8619.530 is a swing frame, small, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in enclosures of the VX, VX SE and AX series. It enables flexible installation of devices that would otherwise be permanently mounted in the enclosure, and provides the option to make these components accessible by rotating the frame. The frame is designed for enclosures with a width of 600 mm or 800 mm and offers space for 12 height units (HE). It is made of sheet steel and features a zinc-coated surface, providing good corrosion protection.

Applications
The swing frame is used in industrial and technical installations where quick maintenance or inspection of installed devices is required. It is particularly suitable for enclosures used in production environments, automation systems or IT infrastructures. Installation is carried out in enclosures with a minimum height of 760 mm, with the width limited to 600 mm or 800 mm. Use in VX SE enclosures requires mounting on the enclosure profile in combination with a VX adapter rail.

Functions and equipment in detail

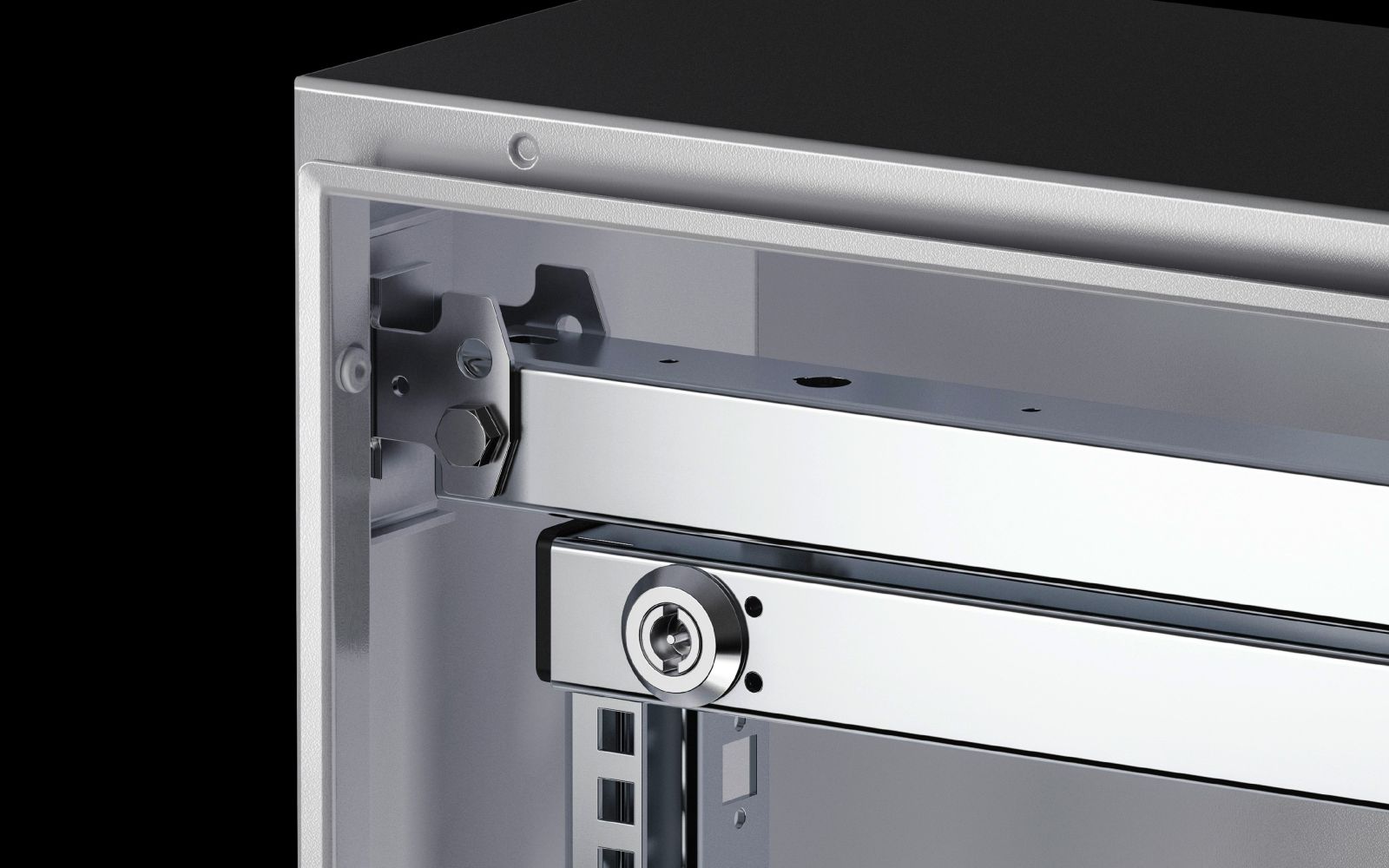

The delivery includes two hinges with a 130° opening angle, a latch with double-bar lock insert and the material for securing to the mounting kit. These components enable secure and stable mounting of the frame in the enclosure. The 130° opening angle provides sufficient access to the front side of the mounted devices. The double-bar lock ensures secure locking of the frame in the closed position.

Technology explained simply
The swing frame is designed to mount 48,3 cm ( 19 inch ) devices, such as network switches, server modules or control devices, in an enclosure without permanently anchoring them. The rotating function allows the frame to be opened to access the devices for maintenance, inspection or replacement. The use of sheet steel and zinc-coated surface ensures high mechanical stability and good protection against environmental influences such as moisture or minor corrosion. Installation is carried out using the mounting elements included in the delivery, attached to the mounting kit.

Compatibility and accessories
The swing frame is compatible with enclosure types VX, VX SE and AX. For installation in AX enclosures, the AX mounting kit is additionally required. Depending on the expansion situation, system chassis 23 x 64 mm may be required to enable installation. The use of system chassis in various widths (e.g. 400 mm, 500 mm, 600 mm, 800 mm) allows adaptable mounting for different enclosure configurations.

Mounting and installation
Mounting is carried out on the enclosure profile, with VX SE enclosures requiring the VX adapter rail. Fixing is done using the mounting materials included in the delivery. Installation requires no additional tools beyond standard screw and nut tools. The frame is typically positioned in the middle of the enclosure space, with the 12 HE height defining the maximum installation length for the mounted devices.

Advantages in operation
The swing frame enables faster maintenance and inspection of devices, as they are accessible without fully disassembling the enclosure contents. The rotating function reduces the need to open the entire enclosure or move other components. The use of zinc-coated sheet steel ensures long service life and resistance to environmental influences. The integrated locking mechanism with double-bar lock provides secure fixation of the frame in the closed position, ensuring stability during operation.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of delivery2 hinges 130°, including strike plate with double-bolt lock insert, material for mounting on installation kit
NoteTo lock the opened swivel frame, the swivel frame locking mechanism is required. Depending on the installation situation, system chassis 23 x 64 mm are required. In VX SE on cabinet profile in combination with adapter rail VX. For further installation options, see "Technology in detail".
Note on part numberFor installation in AX, additional installation kit AX required
Suitable forHousing type: VX, VX SE, AX, Width: = 600 mm, = 800 mm, Height: ≥ 760 mm
Suitable for housing typeVX, VX SE
Height units12 HE


Product data sheet
Datasheet for Rittal 8619530, EAN: 4028177919594
