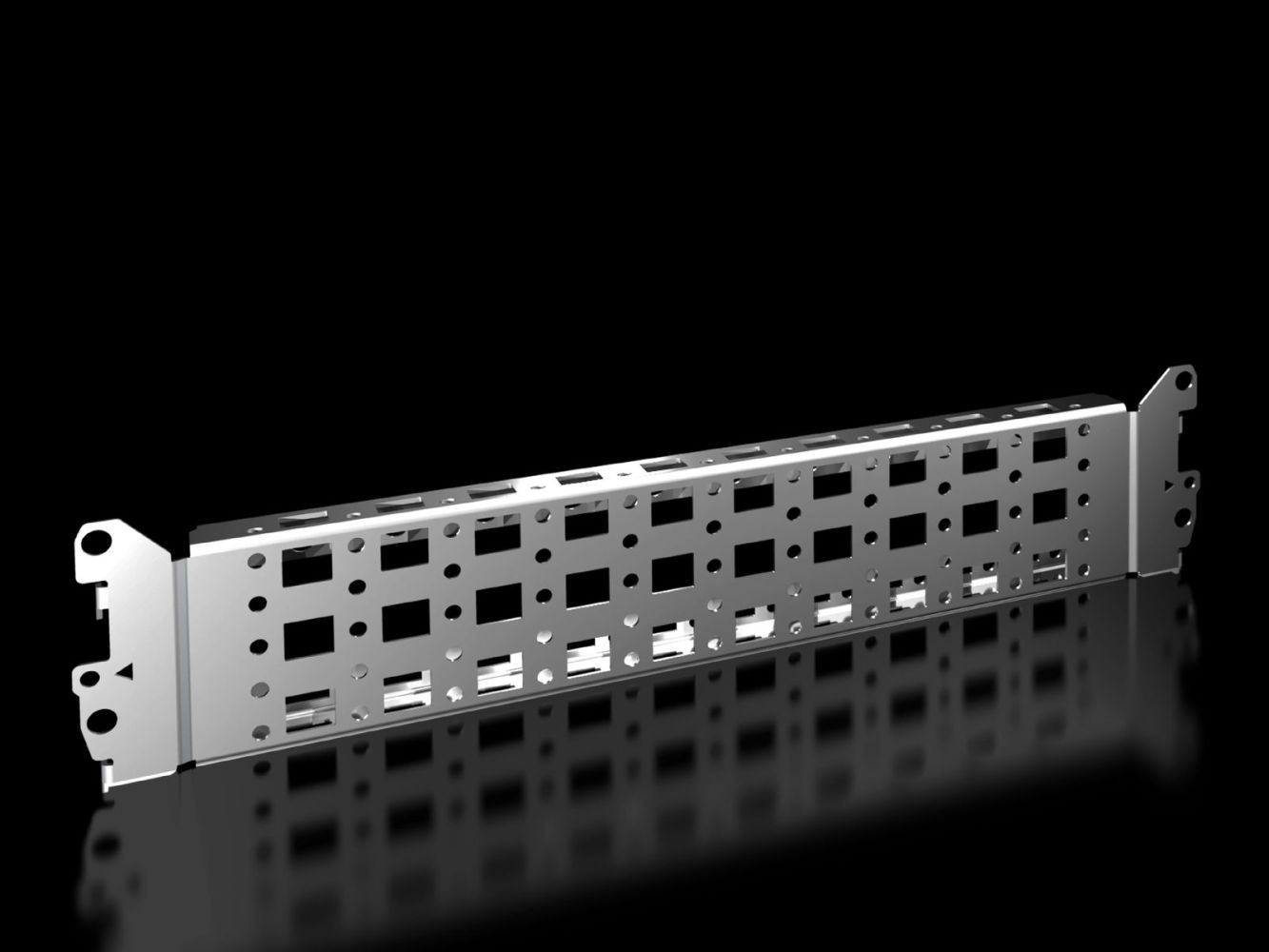

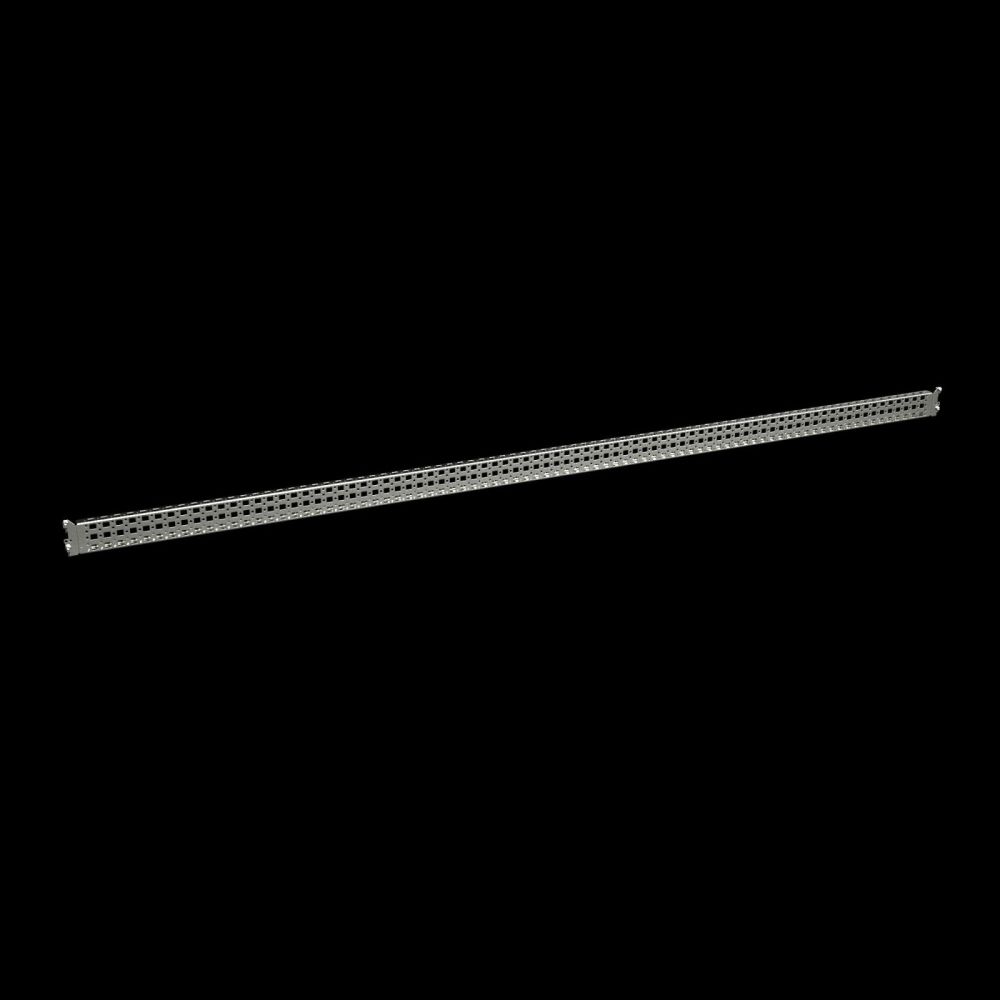

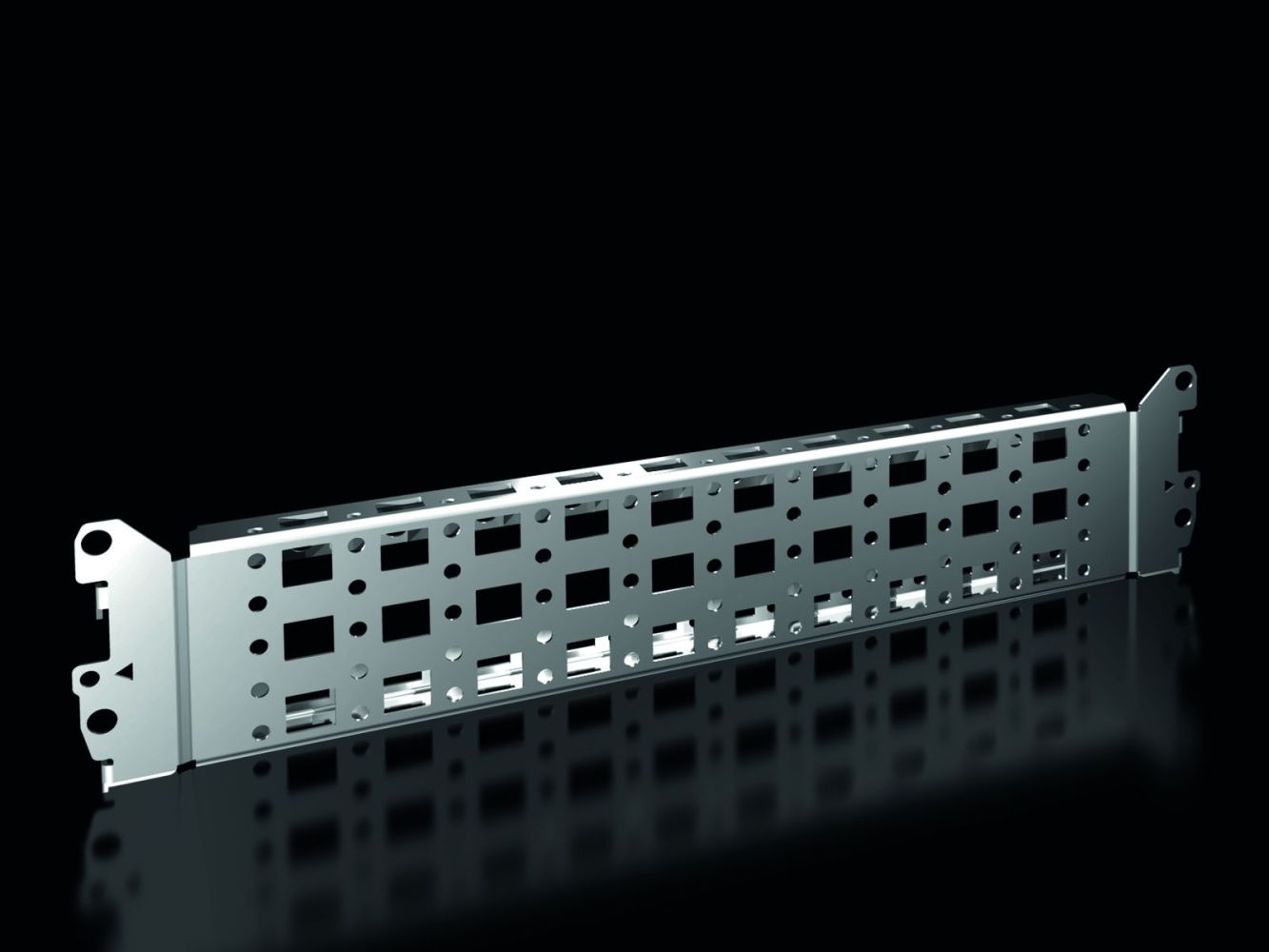

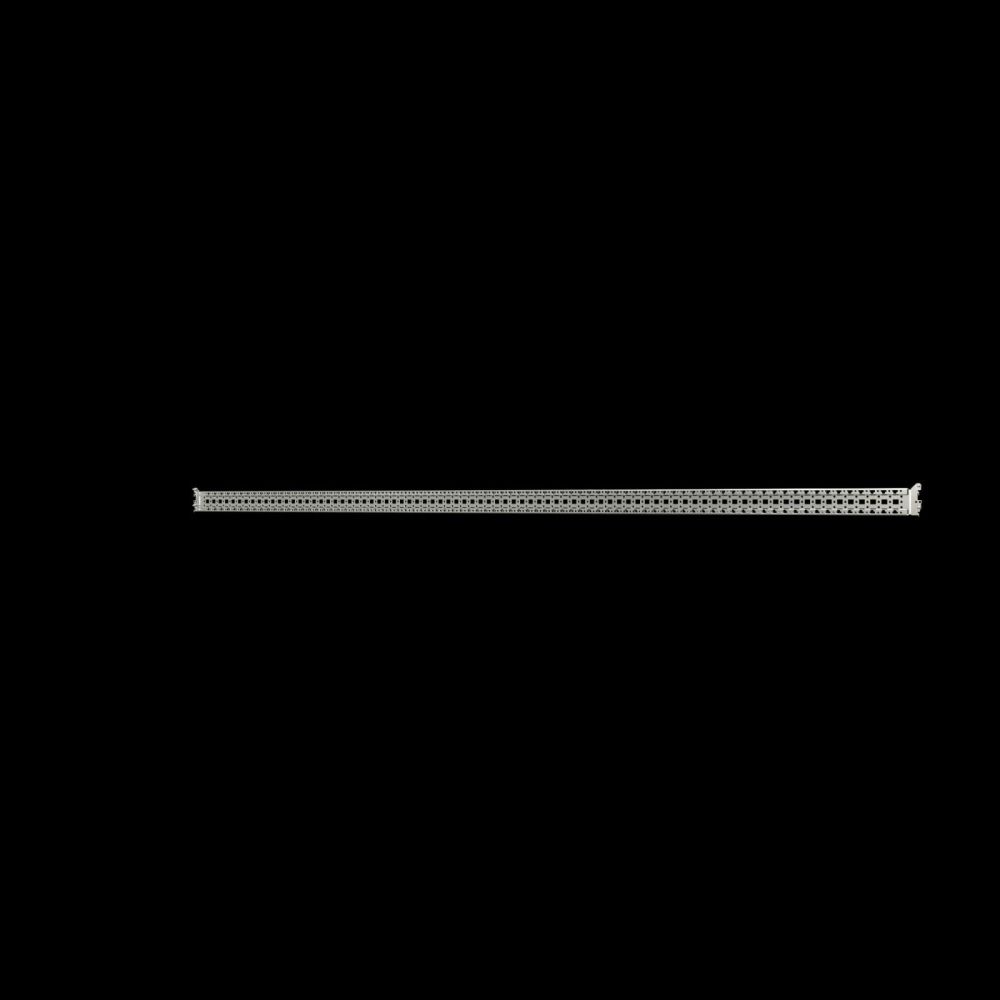

Rittal 8617110 VX system chassis 23 x 64 mm W x H x D: 400 mm
|
39,79 EUR 41,02 EUR |
|
|
( 47,35 EUR incl. VAT ) ≈ £33.30 | ≈ $43.73 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441093 |
| Mfg Part No: | 8617110 |
| UPC/EAN: | 4028177829114 |
| Weight: | 1.53 kg |
| Type: | VX 8617.110 |
Product information for Rittal 8617110:
Applications
The system chassis is intended for use in compact enclosures where flexible and modular mounting of components is required. It enables the integration of controls, power electronics, network devices, or other components that are secured via the system perforation. Its use in various enclosure types—such as VX, AX, or CX—makes it a universal component for different enclosure configurations. It is particularly suitable for applications requiring quick and secure mounting without additional drilling.
Functions and Features in Detail
The chassis features system perforation on all four sides, enabling flexible mounting within the enclosure structure. At the top and bottom, special perforations for cage nuts are integrated, allowing components to be secured with metric screws. Mounting is achieved by inserting the chassis into the system perforation and then screwing it in place. The delivery includes fastening material required for installation. The packaging unit contains 4 pieces.
Technology Explained Simply

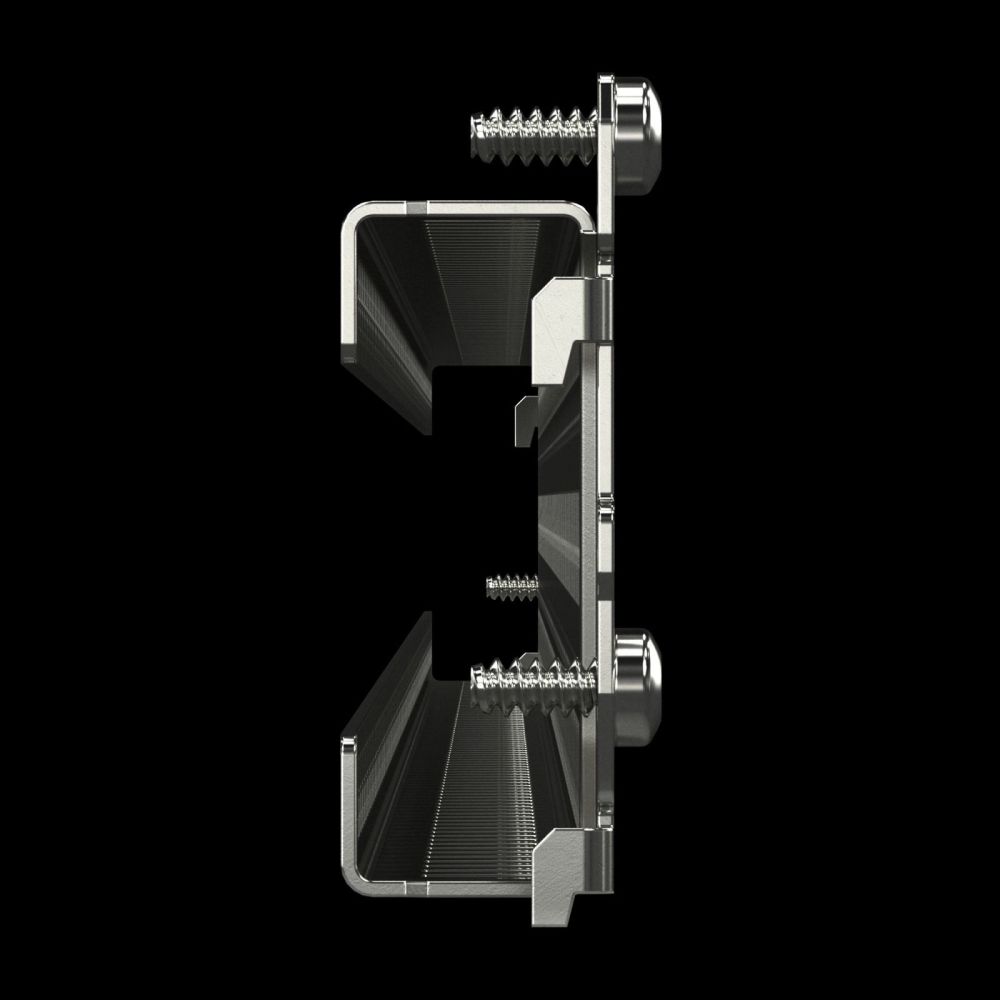

The chassis is made of sheet steel and zinc-coated to prevent corrosion and ensure a longer service life. The zinc-coated surface provides good protection against environmental influences, especially in industrial environments. The dimensions of 23 x 64 mm correspond to a standard format used in many enclosure systems. The integrated system perforation allows for quick and precise mounting without additional tools or drilling. The cage nut perforations at the top and bottom edges offer a secure mounting option for additional components.
Compatibility and Accessories
The system chassis is compatible with various enclosure types: VX, VX IT, VX SE, AX, AX plastic, CX console sub-frames, and VX plinth systems. For AX enclosures, the use of the AX internal fitting rail and the AX floor fitting rail is required. For AX plastic, the universal bracket is needed. For VX SE, the adapter rail for VX compatibility is required. For CX console sub-frames and VX plinth systems, special fitting brackets are provided. Suitable accessories include cable ties L150 mm and the universal bracket for AX plastic.
Mounting and Installation
Mounting is performed by inserting the chassis into the system perforation of the enclosure frame and then securing it with screws. Fastening is done via the integrated system perforation, using the included fastening material. Positioning takes place on the internal mounting plane, with exact placement varying depending on the enclosure type and configuration. Installation is tool-free, as the system perforation ensures precise alignment.
Operational Advantages
The system chassis offers quick and secure mounting of components within enclosures. The integrated system perforation and cage nut perforations enable flexible and modular arrangement of components. The use of sheet steel with a zinc-coated surface ensures high mechanical stability and corrosion resistance. Compatibility with various enclosure types increases flexibility in planning and executing enclosure installations. Delivery with fastening material reduces installation effort.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Mounting options VX | In cabinet width/depth 400 mm, on the inner mounting plane |
| Mounting options VX SE | In cabinet depth 400 mm, on the inner mounting plane, in combination with the adapter rail for VX compatibility |
| Mounting options AX | In enclosure width/height 400 mm, in combination with the rail for indoor installation AX and floor installation rail for AX |
| Mounting options AX stainless steel | in housing width 400 mm, in combination with floor mounting rail |
| Mounting options AX plastic | In housing width 400 mm, in combination with universal angle |
| Mounting options CX | In console base unit in housing depth 400 mm, In standing console base unit in housing depth 400 mm |
| Mounting options VX socket | In base width/depth 400 mm on base panels, in combination with base mounting angles |
| Suitable for | Cabinet type: VX, VX IT, VX SE, AX, AX plastic; Suitable for width or height or depth: 400 mm |
| PCF/VE (Cradle-to-Gate) | 8,39 |
Questions & answers
What is the delivery time of Rittal 8617110 VX system chassis 23 x 64 mm W x H x D: 400 mm?
The article Rittal 8617110 VX system chassis 23 x 64 mm W x H x D: 400 mm is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617110 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8617110 VX system chassis 23 x 64 mm W x H x D: 400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617110 VX system chassis 23 x 64 mm W x H x D: 400 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
