Rittal 8660001 VX plinth corner piece with trim panel, front/back, H: 100

Your rating:
Average rating
product review for Rittal 8660001 VX plinth corner piece with trim panel, front/back, H: 100
( 5 / 5 ) 3 ratings
Rittal 8660001
This image may differ from the desired article.
Rittal 8660001Rittal 8660001Rittal 8660001Rittal 8660001Rittal 8660001Rittal 8660001
35,05 EUR 35,06 EUR
( 41,71 EUR incl. VAT )
≈ £29.34  |  ≈ $38.52
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660001 VX plinth corner piece with trim panel, front/back, H: 100
Datasheet:file_download Download
Lieske Part No.:1103898
Mfg Part No: 8660001
UPC/EAN: 4028177978034
Weight:3.665 kg
Type:VX 8660001

Product information for Rittal 8660001:

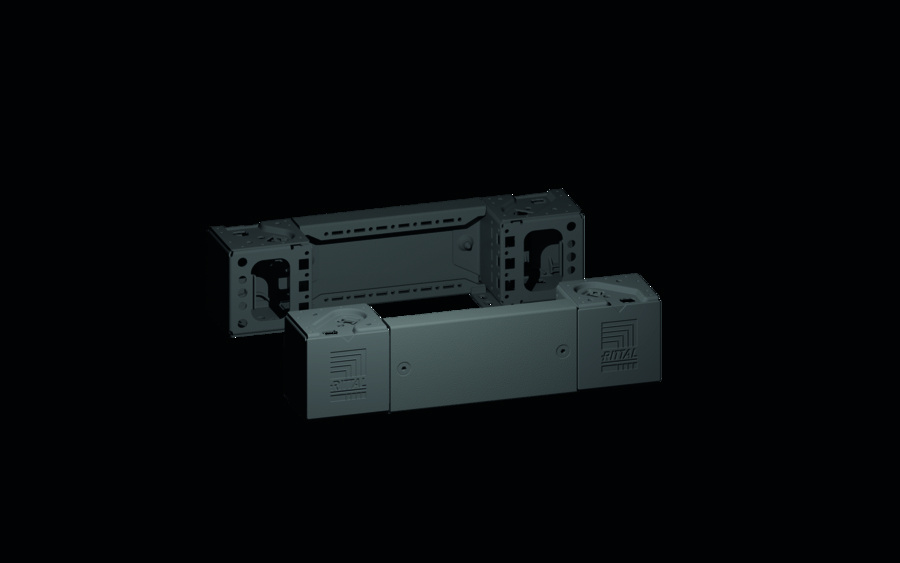

The Rittal VX 8660001 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically designed for enclosures and housings of the plinth system VX. It serves as a stable end and connection element for plinth units with a width of 400 mm. The component consists of sheet metal for the corner pieces and trim panels, and plastic for the corner and baying covers. The colour is RAL 9005, a dark grey standard tone that blends well in industrial environments. The height is 100 mm, representing a standard installation size for many enclosure systems.

Applications
The plinth corner piece is primarily used in industrial electrical engineering and IT infrastructure, where enclosures and housings are arranged in rows. It is compatible with various housing types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX, provided the width is 400 mm. Its use is particularly common in the installation of enclosures requiring a stable base and a clean external finish. The trim panels serve not only as a visual finish but also for additional stabilisation between plinths or as a base for internal installation.

Functions and Equipment in Detail
The plinth corner pieces ensure high stability of the plinth and enable a flush finish between baying points. The integrated front and rear trim panels offer flexible cable entry and support internal installation. The delivery includes 4 corner covers, 4 plinth corner pieces (100 mm high), and 2 plinth trim panels front/rear (100 mm), including fastening material. The material combination of sheet metal and plastic ensures a balanced mix of strength and easy installation. The trim panels are side-mountable and serve both as a finish for a plinth unit and for stabilising multiple plinths in a row.

Technology Explained Simply
The sheet metal construction provides high mechanical strength, required for use in industrial environments. The plastic covers at the corners and baying points ensure a clean visual finish and simultaneously protect against mechanical damage. The height of 100 mm is standardised and matches common plinth heights. The colour RAL 9005 is an industrially common grey tone that integrates well in technical environments.

Compatibility and Accessories
The plinth corner piece is suitable for a wide range of housing types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX, provided the width is 400 mm. It can be combined with various accessories, such as levelling feet M12, TS mounting brackets, VX castors, plinth baying brackets, VX plinth expansion angles, double swivel castors, VX optional trim panel fastening system, VX 8660100 fastening brackets, levelling elements VX, VX system chassis, and VX cable strain relief rail angle profile. These components extend the functionality of the plinth and allow individual adaptation to specific mounting and operating environments.

Installation and Mounting
Installation is carried out by fastening the plinth corner pieces to the corners of the plinth, with the integrated front and rear trim panels mounted simultaneously. The included fastening materials enable secure and quick installation. The corner covers ensure a clean finish at the corners and baying points. The component is designed to be installed without additional tools or aids, making installation in industrial environments efficient.

Advantages in Operation
The use of the Rittal VX 8660001 provides high plinth stability, increasing the long-term load capacity and safety of the enclosure installation. The flexible internal installation function allows individual adaptation to different cable and mounting requirements. The flush finish between baying points ensures a professional appearance and reduces the risk of mechanical damage. Compatibility with various housing types and accessories increases flexibility in planning and realising enclosure systems. The materials are designed for use in industrial environments, ensuring high service life and reliability. The type rating according to UL 50E (Type 1, Type 12) confirms suitability for indoor use and protection against dust and splashing water, increasing operational safety.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, incl. fastening material, 4 socket corner pieces, 100 mm high, 2 socket front/rear panels, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height100 mm
Suitable forHousing type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width: = 400 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU3,67 kg
PCF/VE (Cradle-to-Gate)14.58 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660001, EAN: 4028177978034

Questions & answers

What is the delivery time of Rittal 8660001 VX plinth corner piece with trim panel, front/back, H: 100?

The article Rittal 8660001 VX plinth corner piece with trim panel, front/back, H: 100 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660001 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660001 VX plinth corner piece with trim panel, front/back, H: 100 always at the best possible price. We can give you a discount of 2% on Rittal 8660001 VX plinth corner piece with trim panel, front/back, H: 100 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
