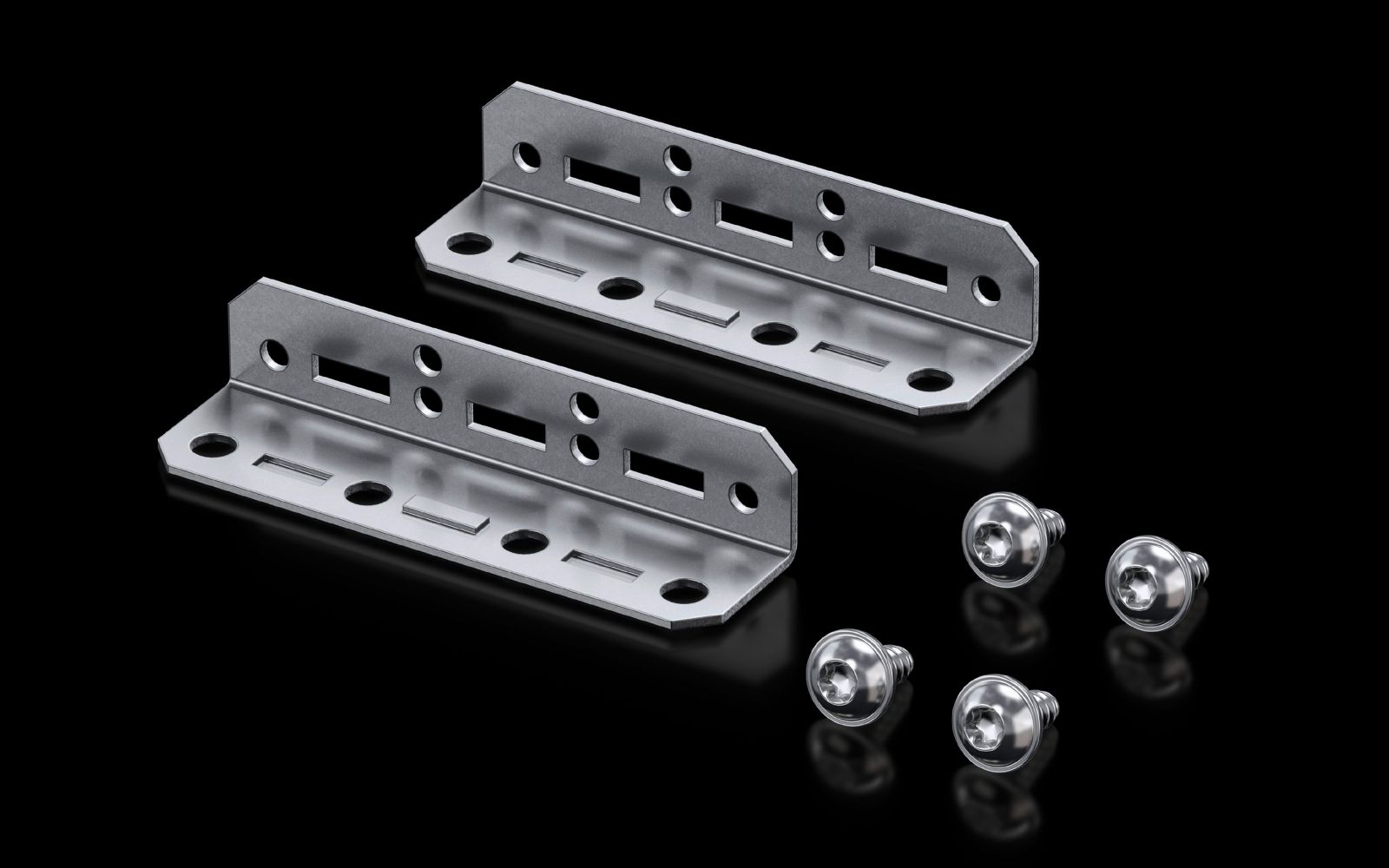

Rittal 8660400 VX plinth extension angle, for plinth trim panels H: 100 mm
|
16,10 EUR |
|
|
( 19,16 EUR incl. VAT ) ≈ £13.48 | ≈ $17.69 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 682799 |
| Mfg Part No: | 8660400 |
| UPC/EAN: | 4028177984776 |
| Weight: | 0.097 kg |
| Type: | VX 8660400 |
Product information for Rittal 8660400:
Applications
The expansion angle is used in industrial electrical engineering and enclosure construction, particularly for integrating control elements, display or operating units into plinth trim panels. It is suitable for installations where secure and rear-side mounting of components in the plinth area is necessary, for example in machine controls, distribution boxes or industrial enclosures. Mounting is performed on upright plinth trim panels, where the expansion angles ensure the necessary stability and alignment.
Functions and Equipment in Detail
The expansion angles are made of sheet steel and are intended for internal assembly on upright plinth trim panels. They enable the mounting of system chassis or mounting brackets, which are attached to the rear side of the plinth trim panel. The delivery includes 2 expansion angles as well as the required mounting material, which is needed for direct mounting onto the plinth trim panel. The expansion angles are designed to utilize the system hole pattern of the plinth trim panels to ensure precise and stable mounting.
Technology Explained Simply
The expansion angles are mechanical aids that facilitate the mounting of components in the plinth area. They are mounted on the inner side of the plinth trim panel and serve as connection points for system chassis or mounting bracket elements. The use of sheet steel ensures high mechanical strength and durability. Mounting is done via the integrated mounting holes, which are screwed in place using the mounting material included in the delivery. The expansion angles are not required for plinth trim panels mounted rotated by 90°, as in this position the system hole pattern of the panels can be used directly.
Compatibility and Accessories
The expansion angle is specifically designed for the plinth system VX and fits exclusively with sheet steel plinth trim panels with a height of 100 mm or 200 mm. It is not intended for other plinth systems or materials. Mounting is performed in conjunction with system chassis or mounting brackets, which are attached to the rear side of the plinth trim panel via the expansion angles. Compatibility is limited to the specified plinth trim panel heights and the VX system.

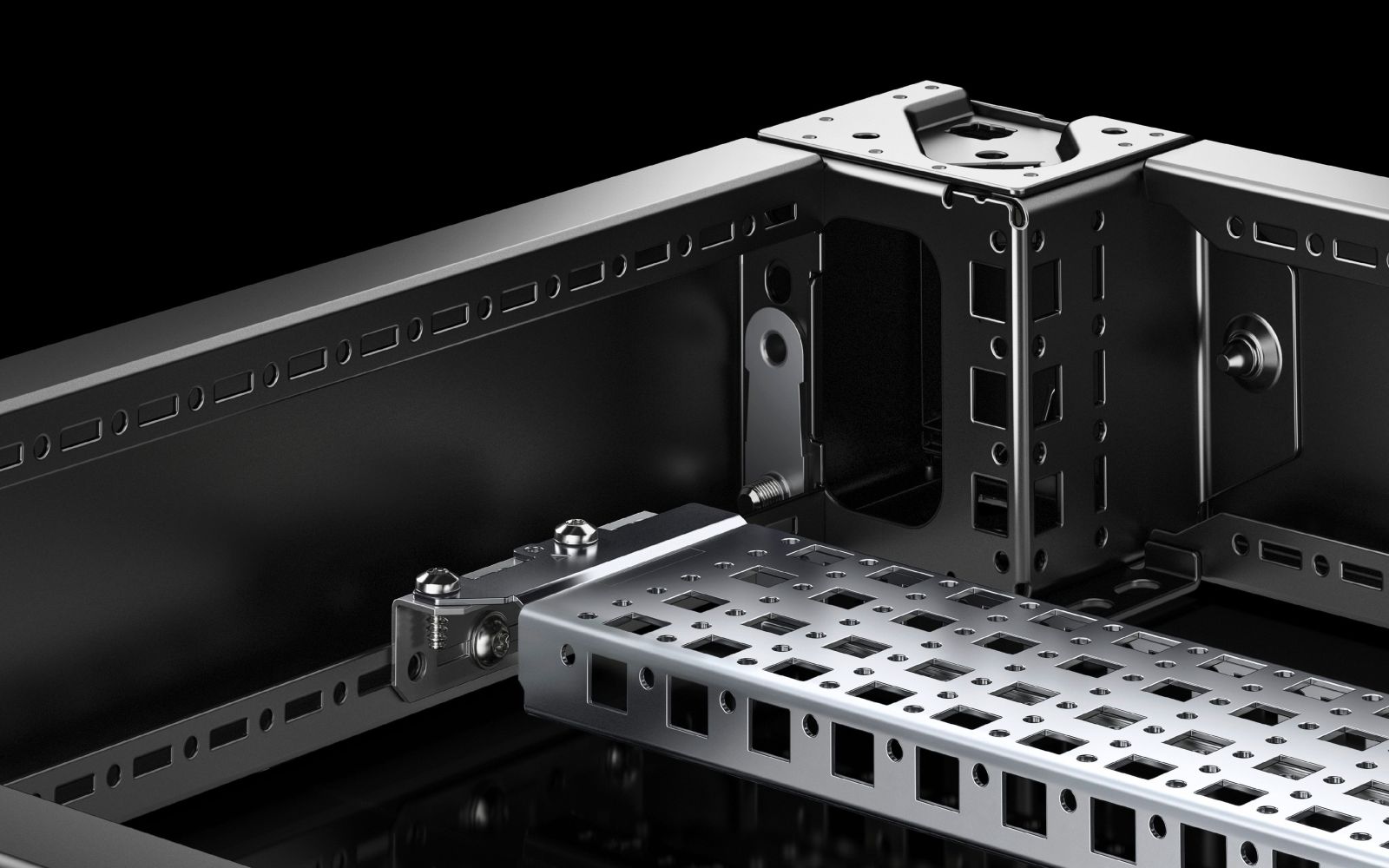

Mounting and Installation
Mounting is performed on upright plinth trim panels. The expansion angles are fastened to the inner side of the panel using the included mounting material. The holes in the expansion angles align with the system hole pattern of the plinth trim panel to ensure precise alignment. After securing the expansion angles, system chassis or mounting bracket elements can be attached to them. For plinth trim panels mounted rotated by 90°, the expansion angles are not required, as the system hole pattern can be used directly.
Operational Advantages
Using the Rittal VX 8660400 enables quick and secure mounting of components in the plinth area. The expansion angles provide a stable mounting solution that increases mechanical load capacity and ensures precise alignment. The integrated system hole pattern allows for simple and standardized mounting, reducing installation time. The use of sheet steel ensures high durability and resistance to mechanical stress in industrial applications.
| General | |
| Material | steel sheet |
| Scope of delivery | 2 mounting angles, including fastening material |
| Weight/PU | 0,096 kg |
| Mounting options | For indoor installation on upright socket enclosures. For socket enclosures rotated 90°, the installation angle is not required, as the socket enclosure’s system mounting holes can be used directly in this position. |
| Suitable for | for VX socket system, sheet steel |
Questions & answers
What is the delivery time of Rittal 8660400 VX plinth extension angle, for plinth trim panels H: 100 mm?
The article Rittal 8660400 VX plinth extension angle, for plinth trim panels H: 100 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660400 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8660400 VX plinth extension angle, for plinth trim panels H: 100 mm always at the best possible price. We can give you a discount of 2% on Rittal 8660400 VX plinth extension angle, for plinth trim panels H: 100 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
