Rittal 8660000 VX plinth corner piece with trim panel, front/rear, H: 100

Your rating:
Average rating
product review for Rittal 8660000 VX plinth corner piece with trim panel, front/rear, H: 100
( 4 / 5 ) 1 ratings
Rittal 8660000
This image may differ from the desired article.
Rittal 8660000Rittal 8660000Rittal 8660000Rittal 8660000Rittal 8660000Rittal 8660000
-10% 92,46 EUR 103,14 EUR
( 110,03 EUR incl. VAT )
≈ £77.39  |  ≈ $101.61
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8660000 VX plinth corner piece with trim panel, front/rear, H: 100
Datasheet:file_download Download
Lieske Part No.:682698
Mfg Part No: 8660000
UPC/EAN: 4028177978027
Weight:3.243 kg
Type:VX 8660000

Product information for Rittal 8660000:

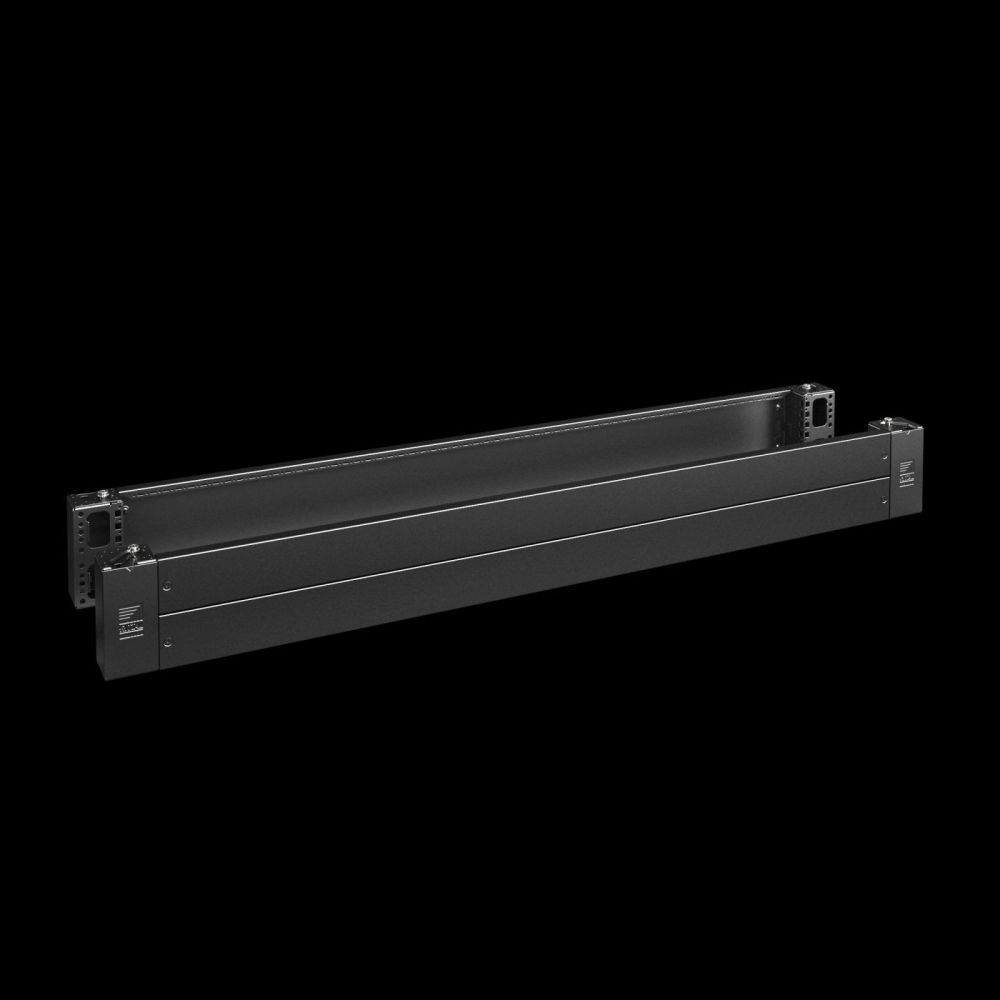

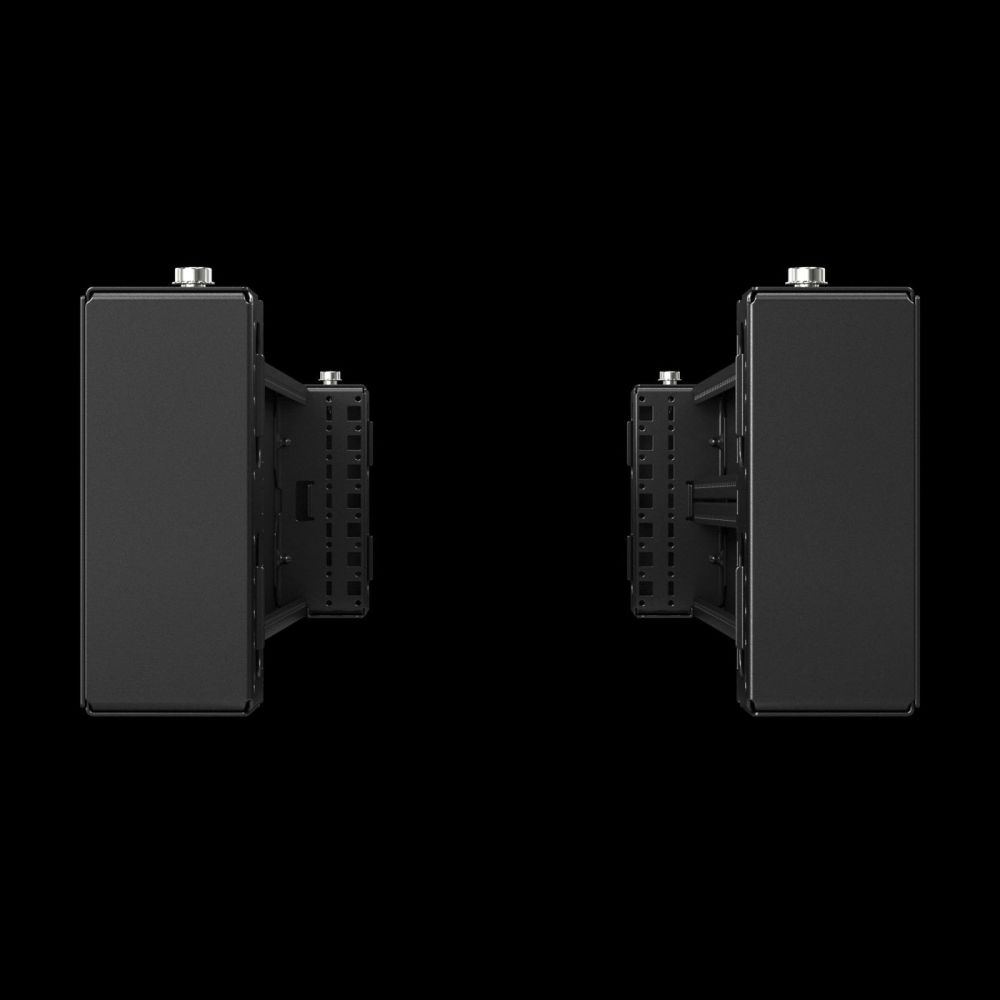

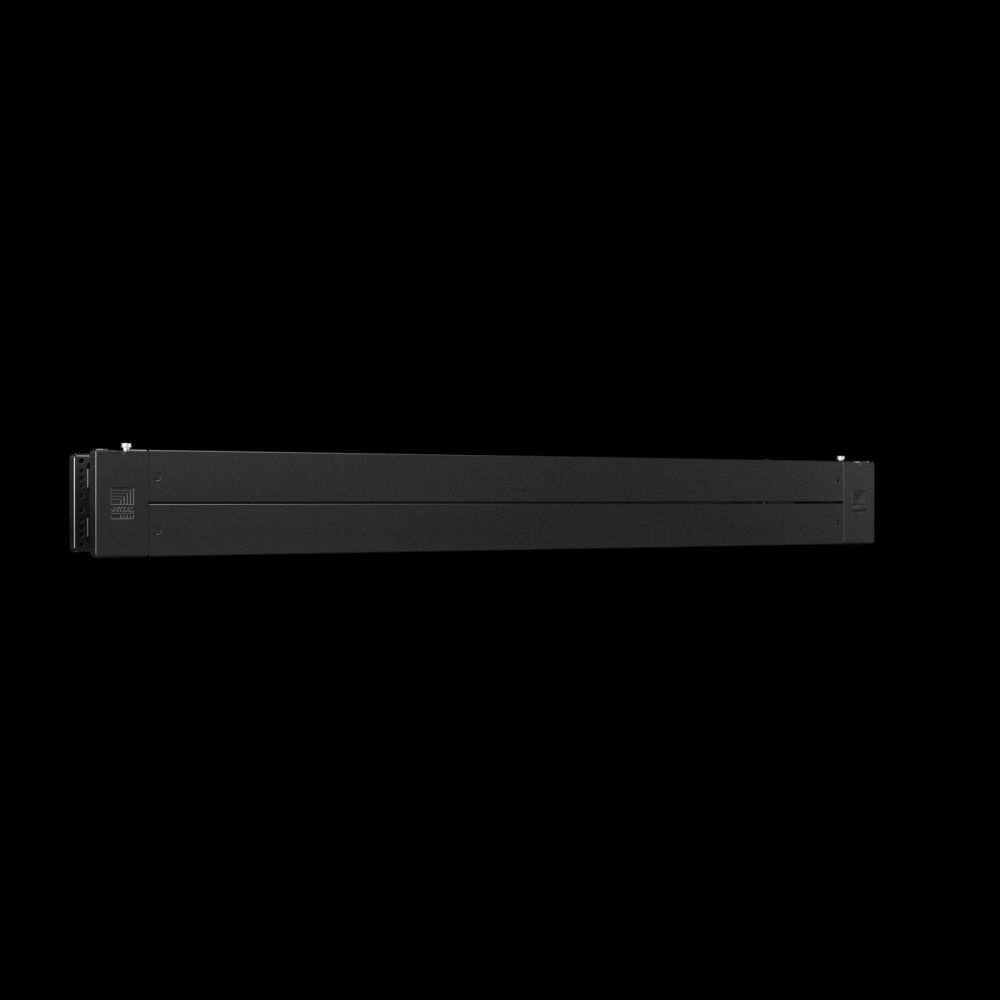

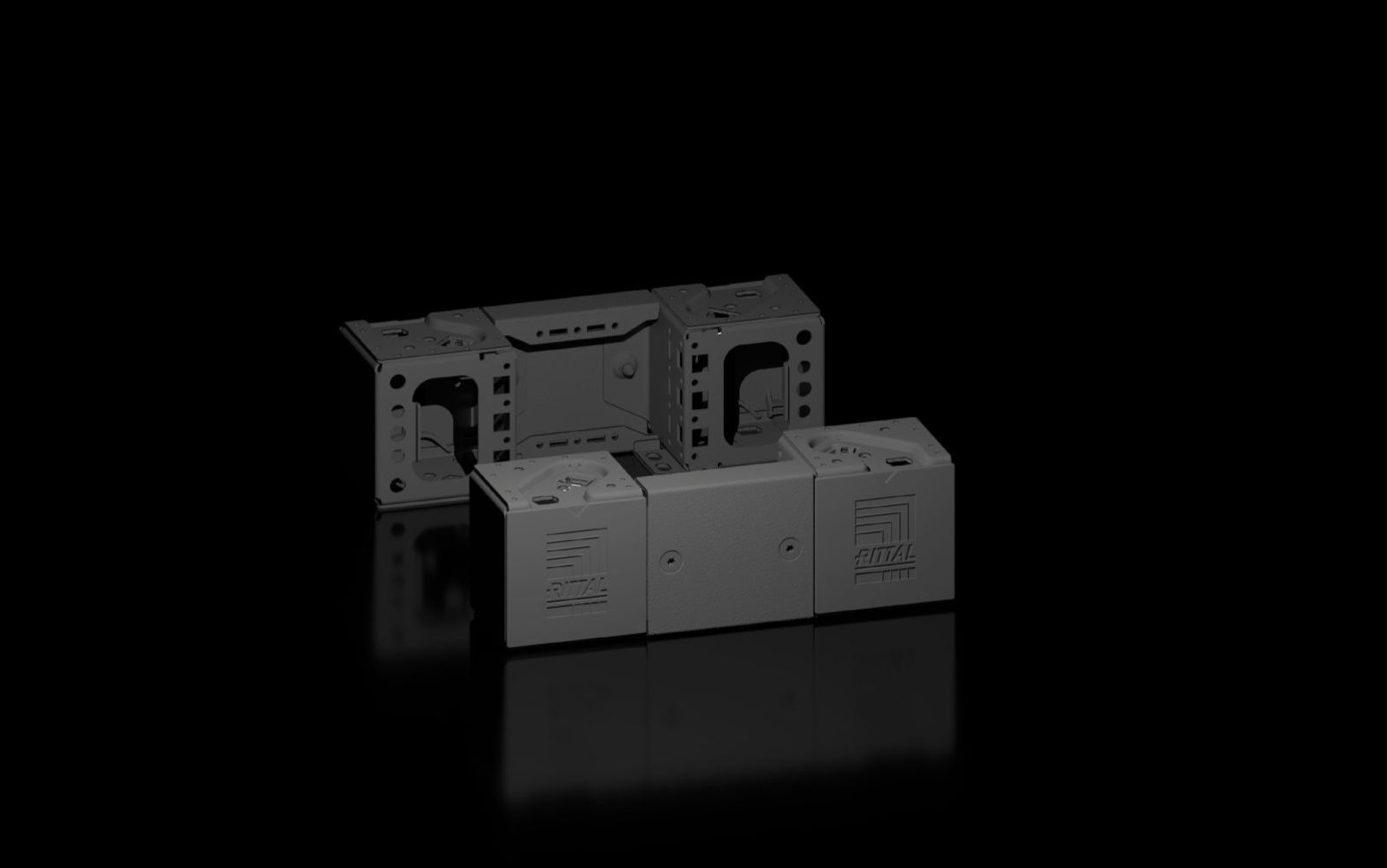

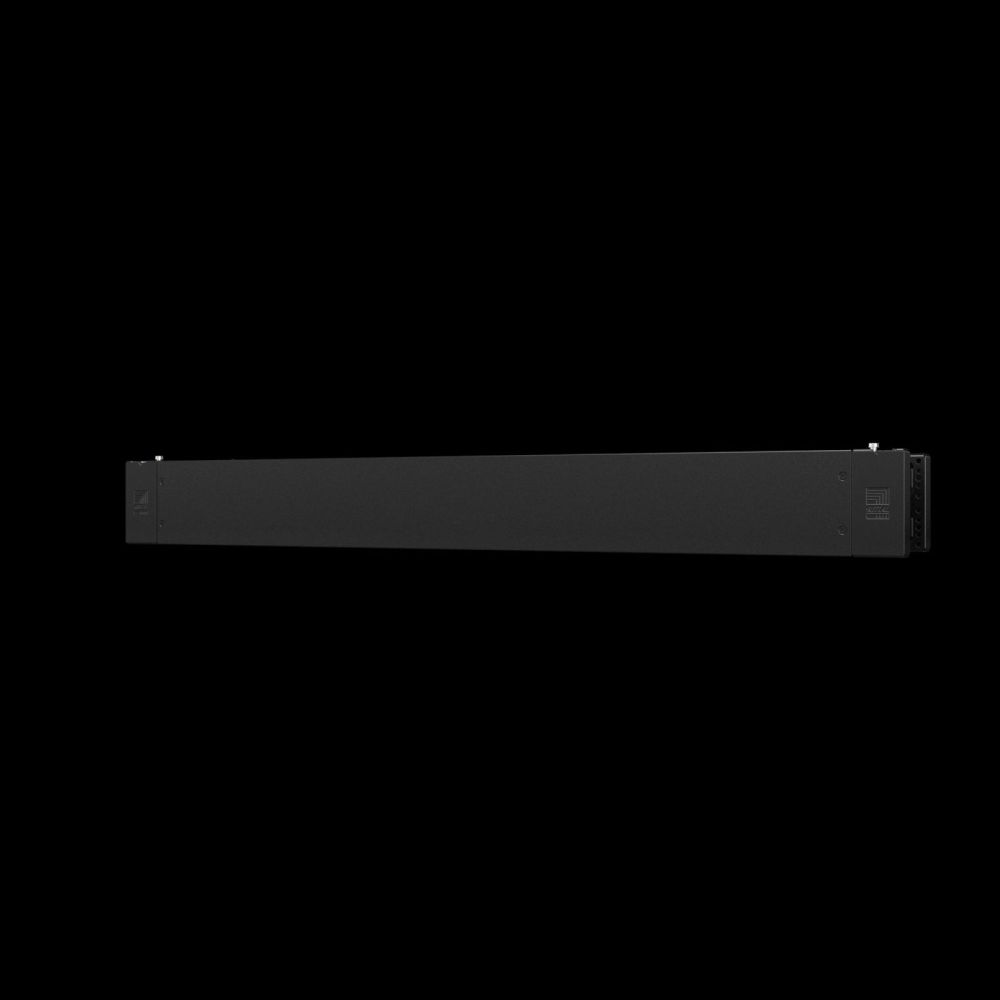

The Rittal VX 8660000 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for the VX plinth system. It serves as a stable end and connection element for plinth constructions with a width of 300 mm. The component consists of sheet steel for the corner pieces and front/rear trim panels, while the corner and baying covers are made of plastic. The colour is RAL 9005, a dark grey standard tone that blends well in industrial environments. The height is 100 mm, representing a standard installation size for many enclosure plinths.

Applications
This product is suitable for a wide range of enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is particularly used in installations where high plinth stability is required, such as in industrial control systems or when mounting enclosures in rows. The plinth trim panels serve not only as an aesthetic finish but also contribute to additional stabilisation between plinths and enable internal installation solutions, such as integrating cable ducts or mounting brackets.

Functions and Equipment in Detail
The plinth corner pieces provide a flush finish between baying points, ensuring a clean optical and mechanical connection. The integrated front and rear trim panels support cable entry and prevent dust or moisture ingress at the edges. The delivery includes 4 corner covers, 4 plinth corner pieces (100 mm high), 2 plinth trim panels front/rear (100 mm), and the required mounting hardware. The packaging unit is 2 pieces, with a total weight per packaging unit of 3.24 kg.

Technology Explained Simply
The use of sheet steel for the corner pieces and trim panels ensures high mechanical strength and durability. The plastic covers at the corners and baying points are resistant to mechanical stress and support the visual harmony of the plinth. The height of 100 mm corresponds to a standard dimension used in many industrial enclosure systems. The colour RAL 9005 is a neutral, robust-looking shade that integrates well in technical environments.

Compatibility and Accessories
The plinth corner piece is compatible with various enclosure types used in industrial electrical engineering and IT infrastructure. It can be combined with other VX accessories, such as levelling feet M12, castors, plinth baying brackets, plinth expansion angles for trim panel heights of 100 mm or 200 mm, double swivel castors M12, optional trim panel mounting, floor mounting brackets, or levelling elements for plinths H100 mm. These components allow for flexible adaptation to different mounting and operating conditions.

Installation and Mounting
Mounting is done using the included mounting hardware. The corner pieces are attached to the corners of the plinth, while the front and rear trim panels close off the open edges. The baying covers ensure a clean transition between adjacent plinths. Installation requires no special tools other than a screwdriver or appropriate wrench. The pre-drilled holes and standard dimensions facilitate easy mounting and ensure a secure connection.

Operational Advantages
The high stability of the plinth is achieved through the robust construction of sheet steel and additional stabilisation provided by the trim panels. The flexible internal installation capability allows for individual adaptation to specific requirements, such as cable routing or mounting of additional components. The flush finish between baying points ensures a professional appearance and prevents ingress of foreign objects. Compatibility with various enclosure types increases the product’s application flexibility in different industrial environments.

Type rating according to UL 50E
The product meets the requirements of UL 50E standard in categories Type 1 and Type 12. Type 1 protects against contact with moving parts and ingress of solid foreign objects, while Type 12 additionally provides protection against splashing water from all directions. This certification makes the product suitable for indoor use, particularly in environments with increased humidity or occasional splashing water exposure.

Environmental Information
The product life cycle (Cradle-to-Gate) has a PCF value of 13.39 kg CO2 equivalent per packaging unit. This value is classified in category B, meaning it is approximately calculated based on product weight and self-declared. The information serves transparency regarding the environmental impact of production and is part of the manufacturer’s sustainability communication.

General
MaterialSocket corner piece: sheet steel, socket front/rear cover: sheet steel, corner and gang cover: plastic
ColourRAL 9005
Scope of delivery4 corner covers, incl. fastening material, 4 socket corner pieces, 100 mm high, 2 socket front/rear panels, 100 mm
NoteSocket inserts, side-mounted, serve to terminate a socket unit or for additional stabilization between sockets or for internal fitting of sockets
Height100 mm
Suitable forHousing type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, width: = 300 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU3,24 kg
PCF/VE (Cradle-to-Gate)13.39 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660000, EAN: 4028177978027

Questions & answers

What is the delivery time of Rittal 8660000 VX plinth corner piece with trim panel, front/rear, H: 100?

The article Rittal 8660000 VX plinth corner piece with trim panel, front/rear, H: 100 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660000 VX plinth corner piece with trim panel, front/rear, H: 100 always at the best possible price. We can give you a discount of 2% on Rittal 8660000 VX plinth corner piece with trim panel, front/rear, H: 100 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
