Rittal 8660100 VX mounting bracket 1=10 base for plinth
|
-6% 46,23 EUR 49,42 EUR |
|
|
( 55,01 EUR incl. VAT ) ≈ £38.69 | ≈ $50.81 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1103917 |
| Mfg Part No: | 8660100 |
| UPC/EAN: | 4028177984677 |
| Weight: | 1.389 kg |
| Type: | VX 8660100 |
Product information for Rittal 8660100:

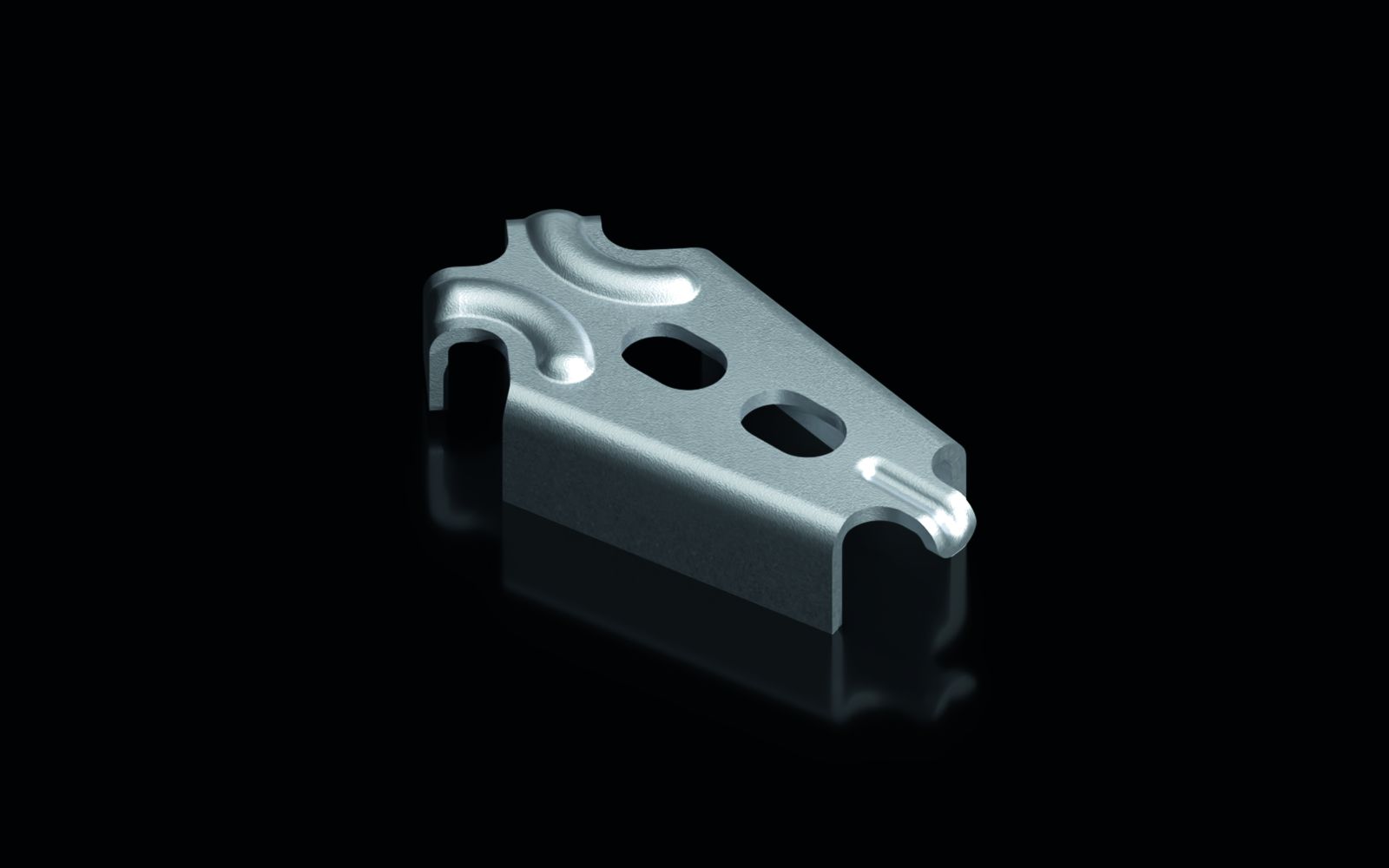

Floor mounting bracket
Mounting is achieved using screws with a diameter up to 12 mm, ensuring a stable connection. The design is engineered to safely transfer the weight of the enclosure to the floor without requiring the enclosure itself to be moved.
Applications
The floor mounting bracket is compatible with various enclosure systems from Rittal, including VX, VX IT, VX SE, TX, TS, TS IT, PC, IW, and TP, provided these are equipped with the VX plinth system. This makes it a universal component for different enclosure configurations in industrial environments where secure, vibration-free mounting is required.
Functions and equipment in detail
The bracket is made of sheet steel, ensuring high mechanical stability and longevity. The galvanized surface protects the material from moisture and oxidation, which is particularly beneficial in damp or industrial environments. Mounting is done using screws up to Ø 12 mm, with the exact screw selection depending on the substrate and load requirements.
Technology explained simply
The bracket acts as an intermediate connection between the enclosure plinth and the floor. It is placed under the plinth and screwed to the floor, thereby securely fixing the entire enclosure body. The use of sheet steel and a galvanized surface ensures high strength and resistance to environmental influences. The maximum screw size of 12 mm allows for secure fastening even under higher loads.
Compatibility and accessories
The bracket is specifically developed for the VX plinth system and can be used in combination with enclosure systems VX, VX IT, VX SE, TX, TS, TS IT, PC, IW, and TP. Compatibility requires that the respective enclosure module is equipped with the VX plinth system.
Installation and mounting
Installation involves placing the bracket under the enclosure plinth and then securing it to the floor using screws up to Ø 12 mm. It is essential to ensure that the substrate has sufficient load-bearing capacity to safely support the weight of the enclosure. The installation is performed without moving the enclosure, which simplifies mounting in existing installations.
Operational advantages
The floor mounting bracket provides a secure and stable anchoring of the enclosure to the floor, preventing vibrations, shifts, or tipping hazards. The ability to mount the enclosure without moving it reduces installation effort and the risk of damage. The galvanized surface ensures longer service life, especially in damp or corrosive environments. Compatibility with various enclosure systems increases flexibility in planning and installing enclosures.
| General | |
| Technical data | For mounting screws up to Ø 12 mm |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Note | Suitable for use in combination VX, VX IT, VX SE, TX, TS, TS IT, PC, IW, TP with socket system VX, ground support capacity must be checked |
| Weight/PU | 1,39 kg |
| Suitable for | for VX socket system, sheet steel |
Questions & answers
What is the delivery time of Rittal 8660100 VX mounting bracket 1=10 base for plinth?
The article Rittal 8660100 VX mounting bracket 1=10 base for plinth is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8660100 VX mounting bracket 1=10 base for plinth always at the best possible price. We can give you a discount of 2% on Rittal 8660100 VX mounting bracket 1=10 base for plinth if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
