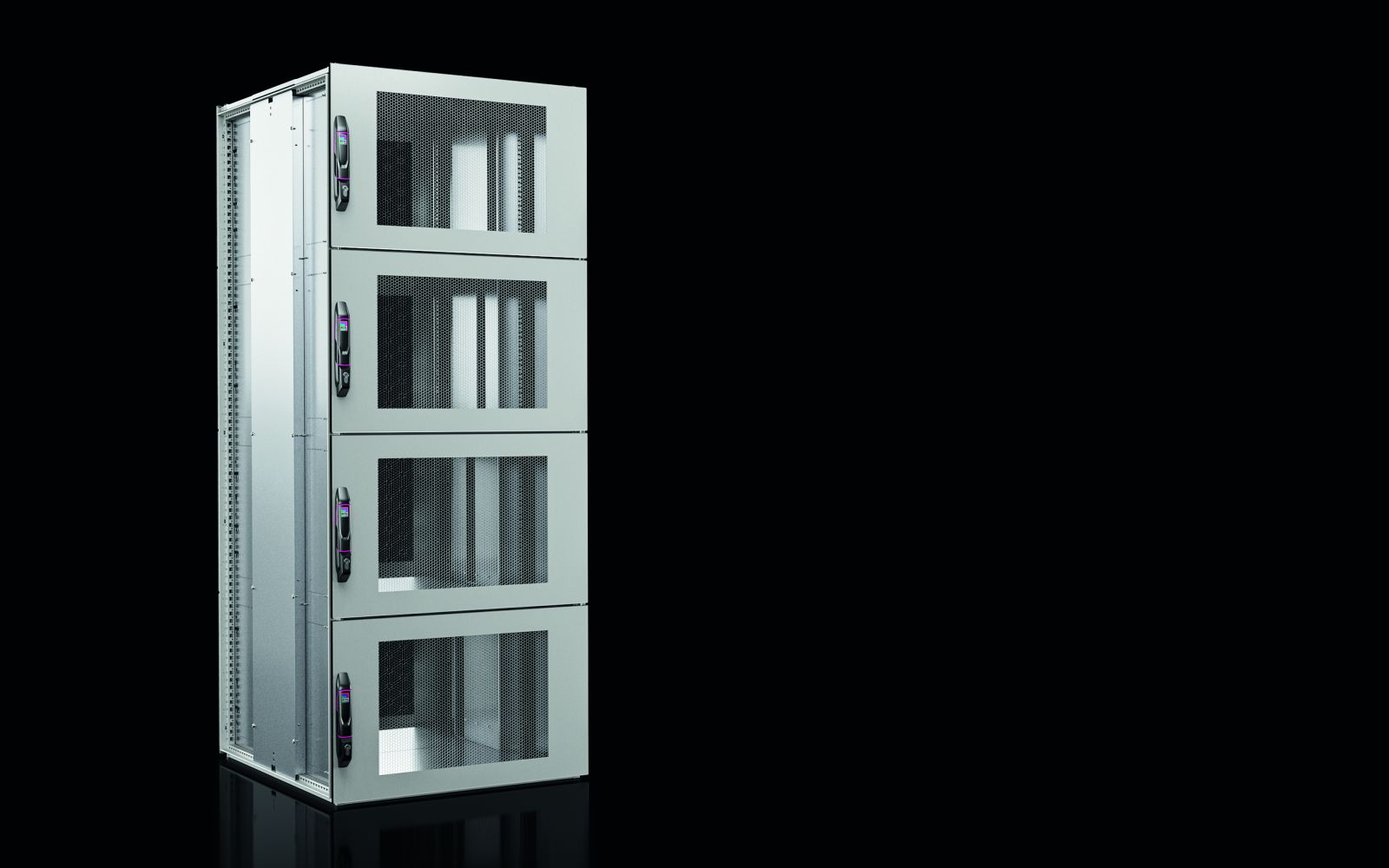

Rittal 5313185 VX IT Compartment Rack, ventilated, 4 doors, 4 x 11 U
|
-8% 3.974,40 EUR 4.304,38 EUR |
|
|
( 4.729,54 EUR incl. VAT ) ≈ £3,326.57 | ≈ $4,367.87 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101772 |
| Mfg Part No: | 5313185 |
| UPC/EAN: | 4028177950061 |
| Weight: | 0.123 kg |
| Type: | VX 5313185 |
Product information for Rittal 5313185:
Applications
The VX IT Compartment Rack is suitable for use in data centres, server rooms, IT infrastructure installations, and other environments where structured, access-secured, and ventilated housing of IT and electrical devices is required. The four separate compartments allow parallel use by different departments or systems, with each area being independently configurable and maintainable. The separate cabling per compartment ensures clear structuring of wiring and reduces the risk of interference or incorrect connections.
Functions and Equipment in Detail
Each of the four compartments features a 48,3 cm ( 19 inch ) mounting plane with a width of 482.6 mm, installed both front and rear. These mounting planes are depth-variable and can be independently adjusted in 12.5 mm increments, allowing flexible adaptation to different device heights. Mounting is done using universal mounting brackets, which are screwed to the integrated partition panels on the left and right. The 48,3 cm ( 19 inch ) profile rails are made of steel sheet with a thickness of 2.5 mm, providing stable fixation for IT devices. The mounting planes are equipped with integrated air baffle plates, which optimize airflow within the enclosure and thus support the cooling performance of installed devices.
Technology Explained Simply
The enclosure is made of steel sheet, with the enclosure frame, roof plate, and front and rear doors each having a sheet thickness of 1.5 mm. The floor sheet has a thickness of 1.0 mm. The construction is robust and designed for a maximum load capacity of 250 kg per compartment. The roof is single-piece and features dual-sided cabling in the central section, enabling flexible top cabling. The base frame is equipped with a pre-mounted, extendable, two-part, closed floor sheet covering the entire enclosure depth. This simplifies installation and maintenance, as the floor sheet can be easily pulled out. The colour scheme is RAL 7035 for the enclosure frame and flat parts, while the 48,3 cm ( 19 inch ) mounting plane, hinges, and handles are painted in RAL 9005. The doors are fitted with a 2-point rod lock, ensuring secure closure. The delivery includes eight keys for access security of the doors.
Compatibility and Accessories
The VX IT Compartment Rack is compatible with a wide range of accessories that extend functionality and customization options. These include, for example, routing panels in various heights, slide rails for different spacing, component shelves in various designs, drawers, cable routing trough panels, and document clamps. Mounting of 48,3 cm ( 19 inch ) PDUs (Power Distribution Units) within the mounting plane is possible, with special models featuring IEC C20 connectors available. The integrated equipotential bonding connection allows for the attachment of earthing straps, which is important for electrical safety and electromagnetic compatibility.
Mounting and Installation
The rack is pre-assembled and can be put into operation directly. Installation is done by securing it to a wall or foundation, with pre-mounted components such as floor sheet, doors, and mounting planes already in position. The spacing between planes is set at 740 mm at delivery but can be individually adjusted. The doors are equipped with comfort handles for half cylinders, enabling convenient operation. Baying is achieved via integrated baying elements, ensuring stable connection between multiple racks.
Advantages in Operation
The modular structure of the VX IT Compartment Rack enables flexible use and maintenance. The separate compartments reduce interference sensitivity between different systems and increase safety. The ventilated doors and integrated air baffle plates ensure efficient cooling, extending the service life of installed devices. The pre-assembled configuration reduces installation time and minimizes errors during installation. Access security via the 2-point rod lock and integrated earthing provide additional safety features for operation in critical environments.
| General | |
| Technical data | Max. load capacity 250 kg per compartment |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof sheet: steel sheet, 1.5 mm, floor sheet: steel sheet, 1.0 mm, front and rear doors: steel sheet, 1.5 mm, profile rails: steel sheet, 2.5 mm |
| Basic colour | RAL 7035 |
| Colour | Cabinet frame and flat parts: RAL 7035, 19" mounting surface, hinges and handles painted in RAL 9005 |
| Width | 600 mm |
| Height | 2.200 mm |
| Depth | 1.000 mm |
| Layer spacing (as delivered) | 740 mm |
| Number of front doors | 4 |
| Number of rear doors | 4 |
| 19" mounting | 4 x 11 U, including 482.6 mm (19") mounting plane, front and rear per compartment, individually, independently adjustable |
| Built-in PDU within the 19” mounting plane | 19"-PDU with IEC C20 connector, order no. 7979.102/.202/.302/.402/.502 |
| Model | Compartment rack, 4 x 11 U |
| Roof type | Roof sheet, single-piece, with double-sided cable routing in the middle part of the roof |
| Door configuration | Maximum door opening angle 130°, including 2-point rod lock |
| Door configuration rear | 4-way split, ventilated |
| Front door configuration | 4-way split, ventilated |
| Profile rail version | 19" profile rails in VX IT Compartment Rack |
| Floor version | Floor frame with pre-mounted, extendable, two-part, closed floor plate |
| 19" rack configuration | 19"-plane front and rear, 19"-mounting plane with universal mounting brackets, front and rear, variable depth, pitch 12.5 mm, screwed to left and right partitions, with integrated air guide plates |
| Mounting type for profile rail | 19"-level front and rear |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
Questions & answers
What is the delivery time of Rittal 5313185 VX IT Compartment Rack, ventilated, 4 doors, 4 x 11 U?
The article Rittal 5313185 VX IT Compartment Rack, ventilated, 4 doors, 4 x 11 U is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5313185 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5313185 VX IT Compartment Rack, ventilated, 4 doors, 4 x 11 U always at the best possible price. We can give you a discount of 2% on Rittal 5313185 VX IT Compartment Rack, ventilated, 4 doors, 4 x 11 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
