Rittal 7979402 PDU managed, 16 A/230 V, 1~, 6 x C13

Your rating:
Average rating
product review for Rittal 7979402 PDU managed, 16 A/230 V, 1~, 6 x C13
( 4.8 / 5 ) 4 ratings

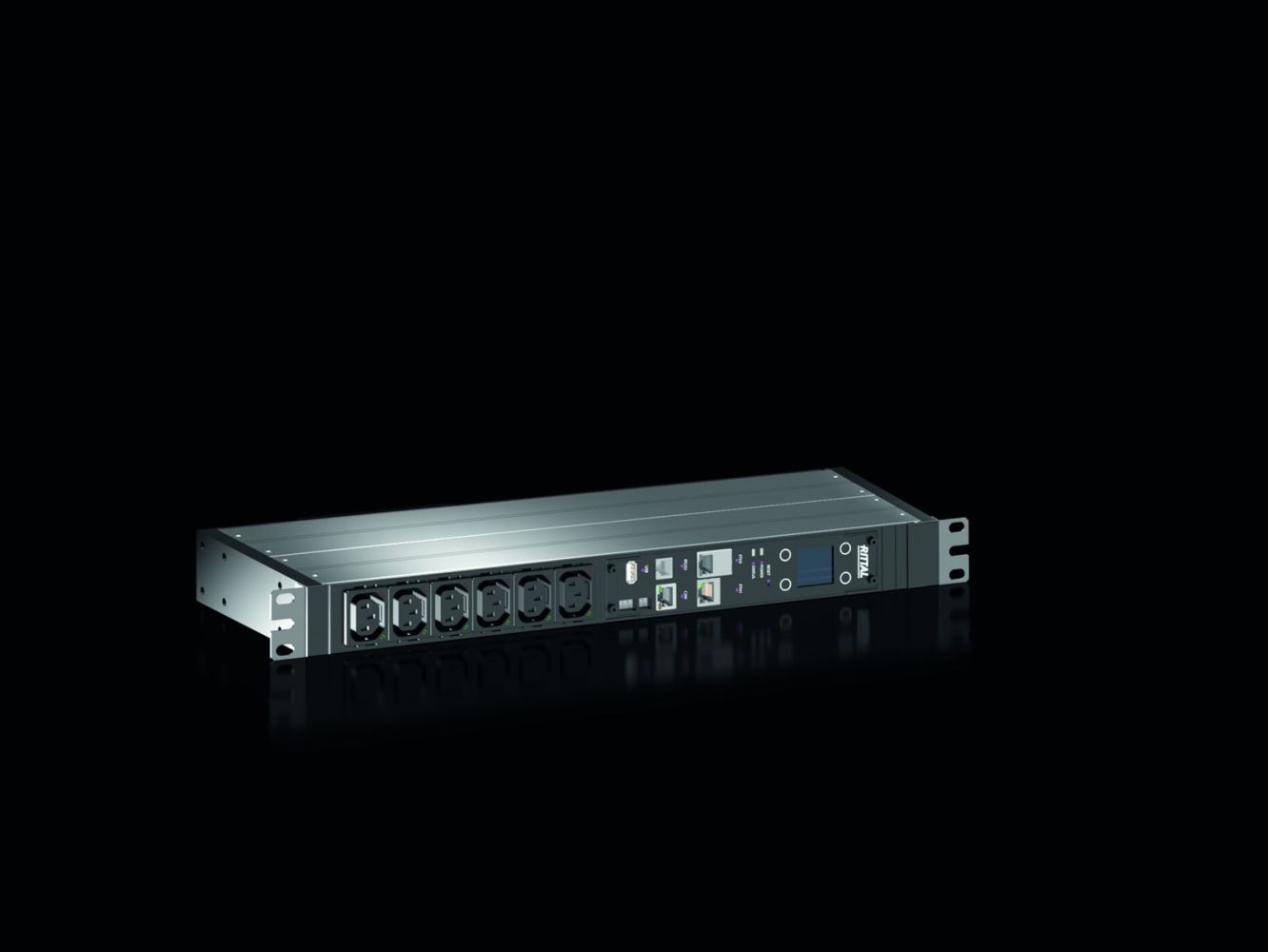

Rittal 7979402
This image may differ from the desired article.
Rittal 7979402Rittal 7979402Rittal 7979402Rittal 7979402Rittal 7979402Rittal 7979402Rittal 7979402Rittal 7979402
1.125,98 EUR 1.141,84 EUR
( 1.339,92 EUR incl. VAT )
≈ £942.45  |  ≈ $1,237.45
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979402 PDU managed, 16 A/230 V, 1~, 6 x C13
Datasheet:file_download Download
Lieske Part No.:1101070
Mfg Part No: 7979402
UPC/EAN: 4028177948044
Weight:3 kg
Type:DK 7979402

Product information for Rittal 7979402:

The Rittal DK 7979402 is a managed PDU (Power Distribution Unit) in 48,3 cm ( 19 inch ) format, specifically designed for use in IT network and server racks. It provides power distribution and comprehensive energy measurement and monitoring functions for each individual output socket. The unit is equipped with an integrated display and network interface to monitor and control the operation of IT systems. Power supply is via an IEC C20 connector, and the PDU is self-powered, requiring no external power source.

Applications

The PDU is intended for use in racks of type Rittal VX IT or TS IT, particularly in cabinet frames from 800 mm or on 48,3 cm ( 19 inch ) profile rails from 800 mm. When mounted vertically, it can be installed tool-free in Zero-U-Space, minimizing space requirements. The unit is designed for use in IT infrastructures where precise energy management, load monitoring, and remote control are required.

Functions and Equipment in Detail

The DK 7979402 features six C13 sockets, each equipped with energy measurement and switching functions. Measurement accuracy is ±1 % (kWh) according to standard EN 62053-21. Each output can be individually monitored, with configurable thresholds for voltage, current, and power. If these thresholds are exceeded, a warning or alarm is triggered. The switching function allows programmable turning on and off of outputs, for example, after power restoration (on, off, or last status) or according to time and logic programs. Relay states are retained even during power failure, ensuring configuration is preserved after restart.

Technology Explained Simply

The PDU is equipped with a powerful CPU (ARM Cortex A8) ensuring data processing and communication. A bright TFT display with 128x128 pixels (RGB) and backlighting shows performance data and basic configuration. The display is rotatable by 180° and replaceable, enabling operation in various mounting positions. Power supply is redundant across all phases, ensuring fault-tolerant operation. An integrated electromagnetic buzzer provides acoustic alarm signals. The real-time clock is equipped with a battery backup lasting up to 10 years and is replaceable.

Compatibility and Accessories

The PDU features a fully redundant Ethernet interface (10/100/1000 Mbit/s), suitable for integration into networks and DCIM software. Protocols such as HTTP, HTTPS, SSH, Telnet, SNMP, Modbus/TCP, OPC-UA, and FTP/SFTP can be used via the interface. The unit supports connection to LDAP(S), Radius, Active Directory, and Syslog servers (up to 2 servers). For environmental monitoring, up to 16 CMC III CAN-Bus sensors can be connected, with suitable connection cables (e.g., 0.5 m, 1.0 m, 1.5 m) available. Additionally, connection cables such as PSM C19/C20 16 A 1.8 m or D/C19 can be used. Covers for C13 and C19 sockets, as well as mounting adapters for VX IT, are also available.

Mounting and Installation

Mounting is tool-free in Zero-U-Space of VX IT or TS IT racks. The unit is supplied with mounting hardware for installation in cabinet frames or on profile rails. Connection cables must be provided by the customer. The color coding of phases (L1=pink, L2=black, L3=white) facilitates assignment and securing of circuits.

Operational Advantages

The DK 7979402 offers high operational reliability through redundant power supply and integrated fault detection. Energy measurement per output enables precise load distribution and monitoring. Remote control via network and protocol standards allows centralized management and response to alarms. Low self-consumption and energy-saving design reduce the PDU's own power demand. Integrated user management with rights management and support for TLS 1.2 and custom certificates enhance communication security. The ability to send emails on alarms via SMTP enables quick response to critical conditions.

Scope of Delivery

Includes mounting hardware. Connection cables are not included and must be provided by the customer.

General
Model19" version
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware, without connection cable, must be provided by customer
OptionsCMC III CAN-Bus sensors for environmental monitoring connectable, max. 16 sensors
Height44 mm
Depth144 mm
Length450 mm
Number of sockets and type6 x C13
Socket outlets6 x C 13
Rated operating voltage230 V (AC)
Rated current (max.)16 A
Nominal power3,7 kW
Power suppliesNumber: 1, Phases per input: 1~
Electrical connection typeIEC C20
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 800 mm, Housing type: VX IT 19"-profile rails: ≥ 800 mm


Product data sheet
Datasheet for Rittal 7979402, EAN: 4028177948044
