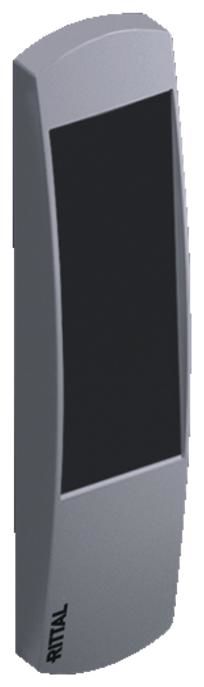

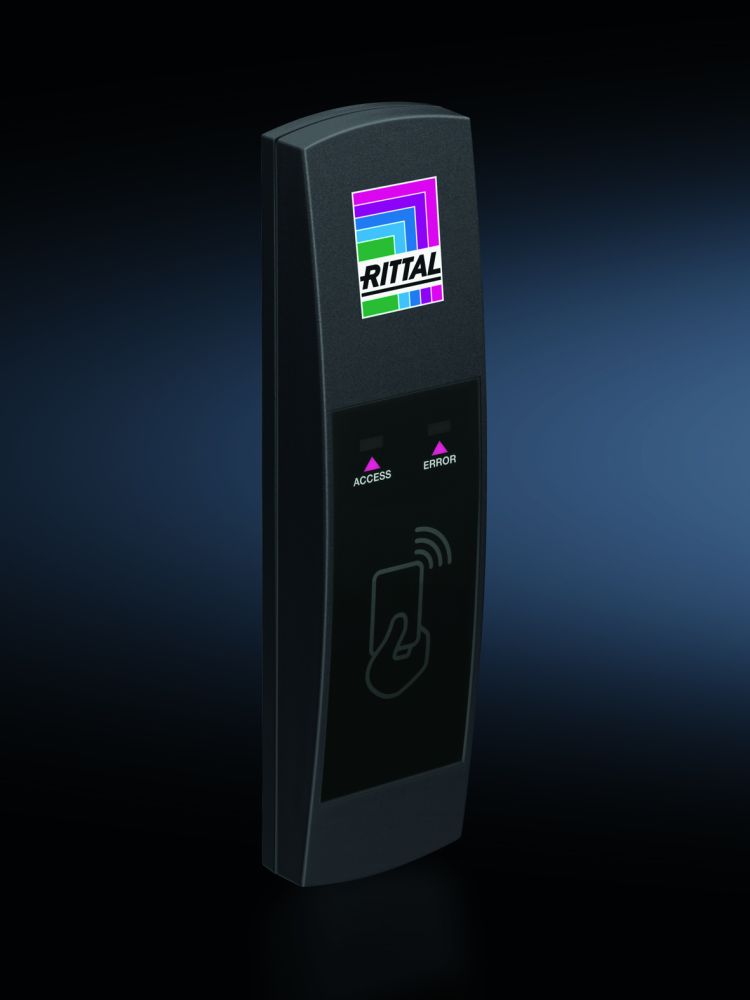

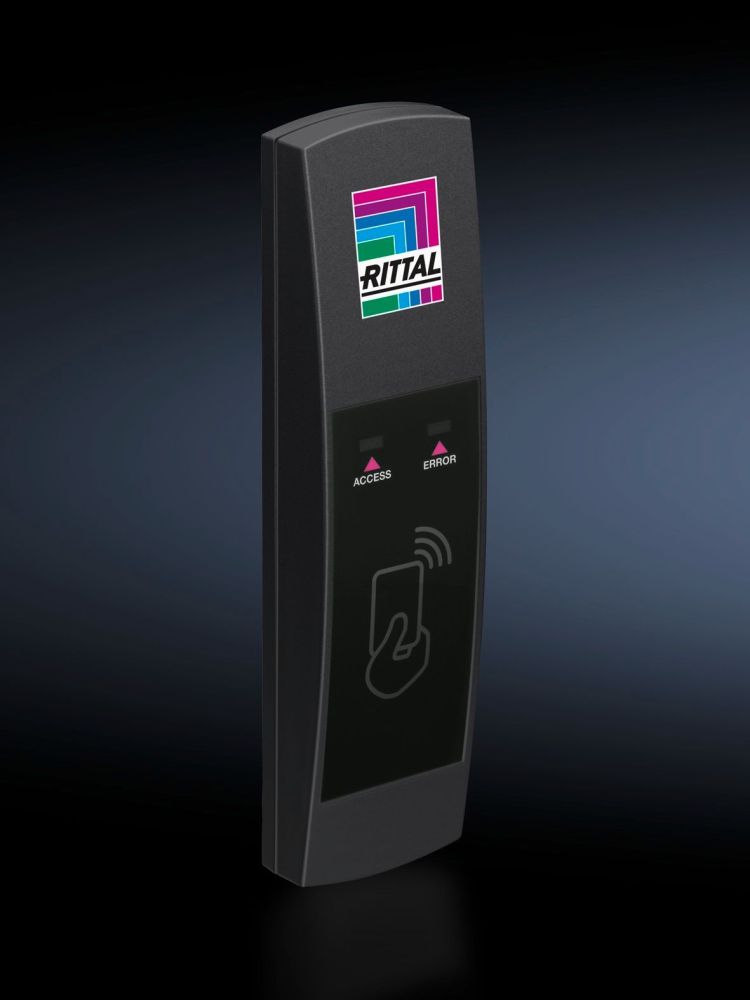

Rittal 7030233 VX IT CMC III transponder reader, RAL 9005
|
337,80 EUR |
|
|
( 401,98 EUR incl. VAT ) ≈ £282.74 | ≈ $371.24 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775580 |
| Mfg Part No: | 7030233 |
| UPC/EAN: | 4028177936546 |
| Weight: | 0.28 kg |
| Type: | IT 7030233 |
Product information for Rittal 7030233:
Applications
The transponder reader is primarily intended for use on VX IT doors but can also be mounted on side room doors. It is part of a comprehensive access control system used in data centers, server rooms, or protected IT areas. Direct connection to the CMC III system enables centralized management of access rights and integration into existing security architectures. The use of multiple handles with a single reader system is possible, provided they are connected to the same CMC III system or IoT interface.
Functions and Equipment in Detail
The reader features an optical (LED) and acoustic (alarm tone) status indicator, which visually and audibly signals the current status (e.g., access granted, denied, error). Door opening is achieved through authentication with a transponder, supporting the four-eyes principle: the door can be released by a maximum of two linked numeric codes, providing additional security. Control is managed via the CMC III system, which can also control external components such as the Online Comfort Handle VX, the Automatic Door Opening system (e.g., for ventilation dampers), or relay outputs.
Technology Explained Simply
The reader operates in the RFID frequency range of 13.56 MHz, typical for contactless data transmission over short distances. It is compatible with a wide range of transponder tag technologies, including MIFARE Classic, MIFARE DESFire, MIFARE Plus, NTAG2xx, Sony FeliCa, HID iCLASS, ICODE SLI, LEGIC Advant, and Tag-it. Support for various standards enables flexible integration into existing or new access systems. Communication occurs via the CMC III CAN-Bus, ensuring stable and reliable data transmission. The device is made of plastic and has dimensions of 50 mm (width), 190 mm (height), and 25 mm (depth).
Compatibility and Accessories
The transponder reader is designed for use with the CMC III system and the IoT interface. It can be combined with additional components such as the Online Comfort Handle VX with Master-Key function, which is also part of the CMC III system. Additionally, an adapter for aluminum viewing door for VX IT is included in the delivery, enabling installation on specific doors. The use of transponder cards such as Mifare classic is intended, and the card is also included in the delivery. Connection is made via a connection cable with a length of 2.9 m, which is included in the delivery. Mounting hardware is also provided.
Installation and Mounting
Mounting is performed on VX IT doors or side room doors, with the adapter for aluminum viewing doors enabling specific adaptation. Installation requires direct connection to the CMC III system or IoT interface using the included connection cable. The optical and acoustic status indicator supports installation and maintenance, as the operating status is immediately visible. Mounting is done using the included hardware.
Operational Advantages
Using the transponder reader provides high security through support of the four-eyes principle and centralized authorization management. Integration into existing CMC III systems enables scalable and flexible access control. The optical and acoustic feedback ensures clear user guidance. Compatibility with various transponder technologies increases flexibility in selecting access cards. Delivery with connection cable, adapter, and mounting hardware simplifies installation and reduces additional purchasing and mounting effort.
| General | |
| Model | Transponder reader for Mifare, Legic Advant, HID, FeliCa (Legic Prime on request) |
| Technical data | Frequency: 13.56 MHz, RFID frequency |
| Applications | At VX IT doors, side room doors |
| Function principle | Direct connection to CMC III Access Control or CMC III Door Control Module, optical (LED) and acoustic (alarm tone) status indication, permission management via CMC III system, IoT interface or RiZone, door opening via up to two linked PIN codes (two-person rule), control via CMC III of: Online comfort handle VX, Automatic Door Opening System (ventilation flaps), relay outputs of CMC III |
| Material | Plastic |
| Colour | RAL 9005 |
| Scope of delivery | Transponder reader, connection cable 2.9 m, adapter for aluminium vision door for VX IT, Mifare classic transponder card, including mounting material |
| Mounting options | At VX IT doors, side room doors |
| Transponder tags | ISO14443A - MIFARE Classic, ISO14443A - MIFARE Classic EV1, ISO14443A - MIFARE DESFire EV1, ISO14443A - MIFARE DESFire EV2, ISO14443A - MIFARE Plus S, X, ISO14443A - MIFARE Smart MX, ISO14443A - MIFARE Ultralight, ISO14443A - MIFARE Ultralight C, ISO14443A - NTAG2xx, ISO18092 ECMA-340 - Sony FeliCa, ISO15693 - HID iCLASS SE/SR, ISO15693 - ICODE SLI, ISO15693 - LEGIC Advant, ISO15693 - Tag-it |
| Width | 50 mm |
| Height | 190 mm |
| Depth | 25 mm |
