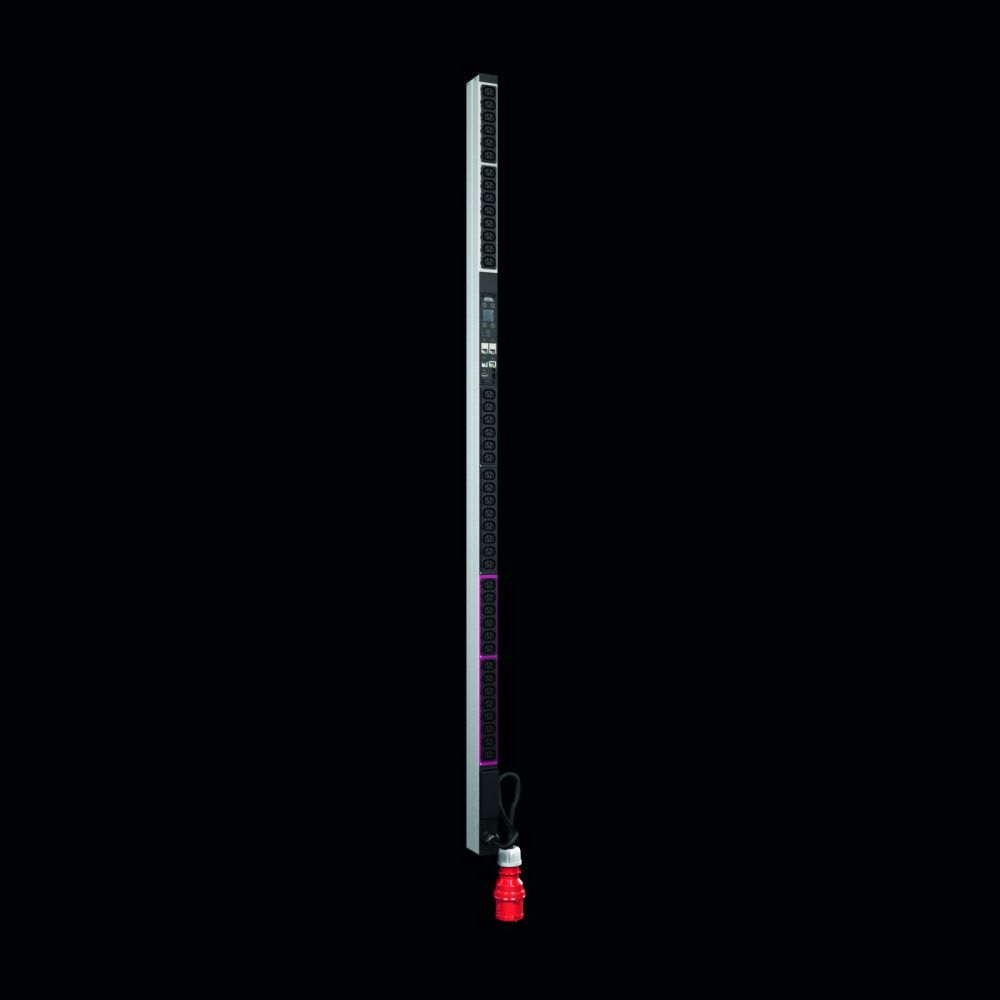

Rittal 7979446 DK PDU managed 16A 3-phase 18xC13+12xCombi

Your rating:
Average rating
product review for Rittal 7979446 DK PDU managed 16A 3-phase 18xC13+12xCombi
( 4 / 5 ) 1 ratings
Rittal 7979446
This image may differ from the desired article.
Rittal 7979446Rittal 7979446Rittal 7979446Rittal 7979446Rittal 7979446Rittal 7979446
2.060,11 EUR 2.148,26 EUR
( 2.451,53 EUR incl. VAT )
≈ £1,724.31  |  ≈ $2,264.06
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979446 DK PDU managed 16A 3-phase 18xC13+12xCombi
Datasheet:file_download Download
Lieske Part No.:895263
Mfg Part No: 7979446
UPC/EAN: 4069196014587
Weight:0.123 kg
Type:DK 7979446

Product information for Rittal 7979446:

The Rittal DK 7979446 is a managed PDU (Power Distribution Unit) for use in IT network and server racks. It serves for power distribution and monitoring in high-performance IT environments and provides energy measurement and switching functions for each individual output socket. The unit is designed for use in Rittal VX IT and TS IT racks and can be mounted tool-free in Zero-U-Space. The housing consists of an aluminium profile, black anodized, with sockets made of plastic. The PDU is equipped with an integrated, fully redundant power supply unit, which is fed from all phases, ensuring fault-tolerant power supply. The PDU is self-powered, meaning it does not require an external power supply.

Applications

The PDU is designed for use in IT infrastructures, particularly in server and network racks, where precise energy management and monitoring are required. It is suitable for racks with a minimum length of 1,800 mm, both with VX IT rack frames and 48,3 cm ( 19 inch ) profile rails. Vertical mounting enables efficient use of the rack space without requiring additional U-space. The phase color coding (L1=pink, L2=black, L3=white) simplifies assignment and maintenance.

Functions and Equipment in Detail

The PDU features 18 C13 sockets and 12 Combi sockets (C13/C19), providing flexible connection options for various IT devices. The rated operating voltage is 400 V (AC), with a maximum rated current of 16 A, corresponding to a rated power of 11 kW. Power supply is via a CEE connector with a 3 m supply cable. Measurement accuracy is ±1 % (kWh) according to standard EN 62053-21. Each output socket can be individually monitored and controlled, with voltage, current, and power thresholds individually adjustable. The PDU includes a bright TFT display (128x128 pixels, RGB) with backlight and energy-saving mode, showing performance data and basic configuration. The display unit is rotatable by 180° and replaceable. Multicolored LEDs (green/yellow/red) indicate the switching status and thresholds for each output.

Technology Explained Simply

The PDU is equipped with a powerful CPU (ARM Cortex A8) enabling energy management and monitoring. The integrated real-time clock with battery backup (up to 10 years, replaceable) ensures time accuracy even during power failure. An integrated electromagnetic buzzer enables acoustic alarm signaling for critical events. Switching is performed via bistable relays, offering low power consumption and high switching capacity, even for inrush currents up to 300 A. Relay states are retained even during power failure. The PDU supports sequential switching of outputs after power restoration to avoid overloading. A digital input (potential-free contact) and an additional alarm output (changeover contact) extend connection options.

Compatibility and Accessories

The PDU features a CAN-Bus interface (RJ45), allowing up to 16 CMC III environmental sensors to be connected. These sensors enable monitoring of environmental parameters such as temperature and humidity. The PDU supports various protocols, including web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into DCIM software, as well as FTP/SFTP for updates and file transfers. User management includes rights management, LDAP(S)/Radius/Active Directory integration, and Syslog server integration (up to 2 servers). Integrated email alerting for alarms (SMTP) is also available. The fully redundant Ethernet interface (10/100/1000 Mbit/s) ensures stable network connectivity. A USB 2.0 port (USB-A) is provided for mass configuration, firmware updates, and data logging.

Mounting and Installation

Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes the necessary mounting hardware. The PDU is designed for vertical mounting and fits in racks with a minimum length of 1,800 mm. The supply cable is 3 m long, allowing flexible positioning. Phase color coding facilitates correct installation.

Operational Advantages

The PDU offers high operational reliability through redundant power supply and integrated fault detection. Precise energy measurement and monitoring per output socket enable efficient energy management and early detection of anomalies. The integrated real-time clock and storage of relay states ensure continuity even during power failure. Support for numerous protocols and interfaces simplifies integration into existing IT infrastructures and DCIM systems. Tool-free mounting and compact design optimize rack space usage. The PDU is designed for operating temperatures from 5 °C to 50 °C and humidity levels from 10 % to 95 % (non-condensing). The storage temperature range is -20 °C to 70 °C. Compliance with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, as well as directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, ensures safety and conformity.

General
ModelPDU, managed
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsCMC III CAN-Bus sensors for environmental monitoring connectable, max. 16 sensors
Width44 mm
Depth70 mm
Length1.695 mm
Number of sockets and type18 x C13 / 12x Combi (C13/C19)
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979446, EAN: 4069196014587
