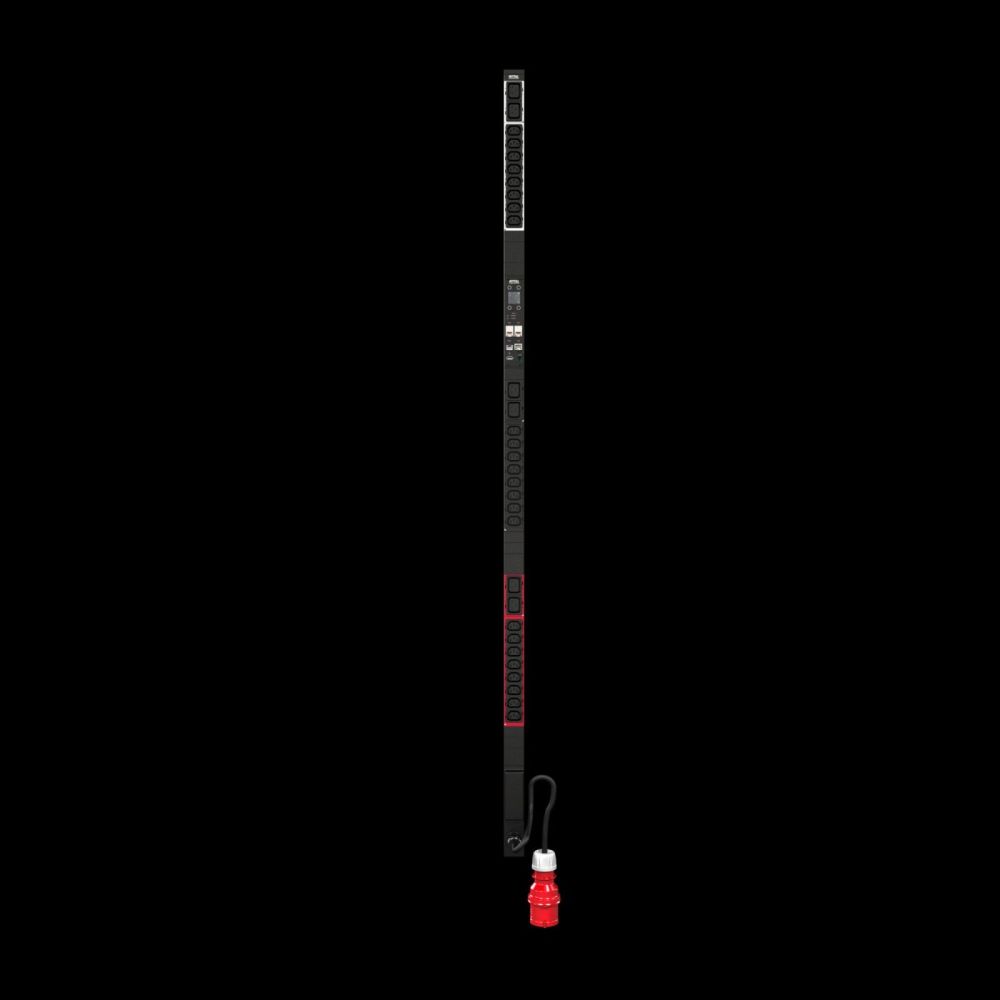

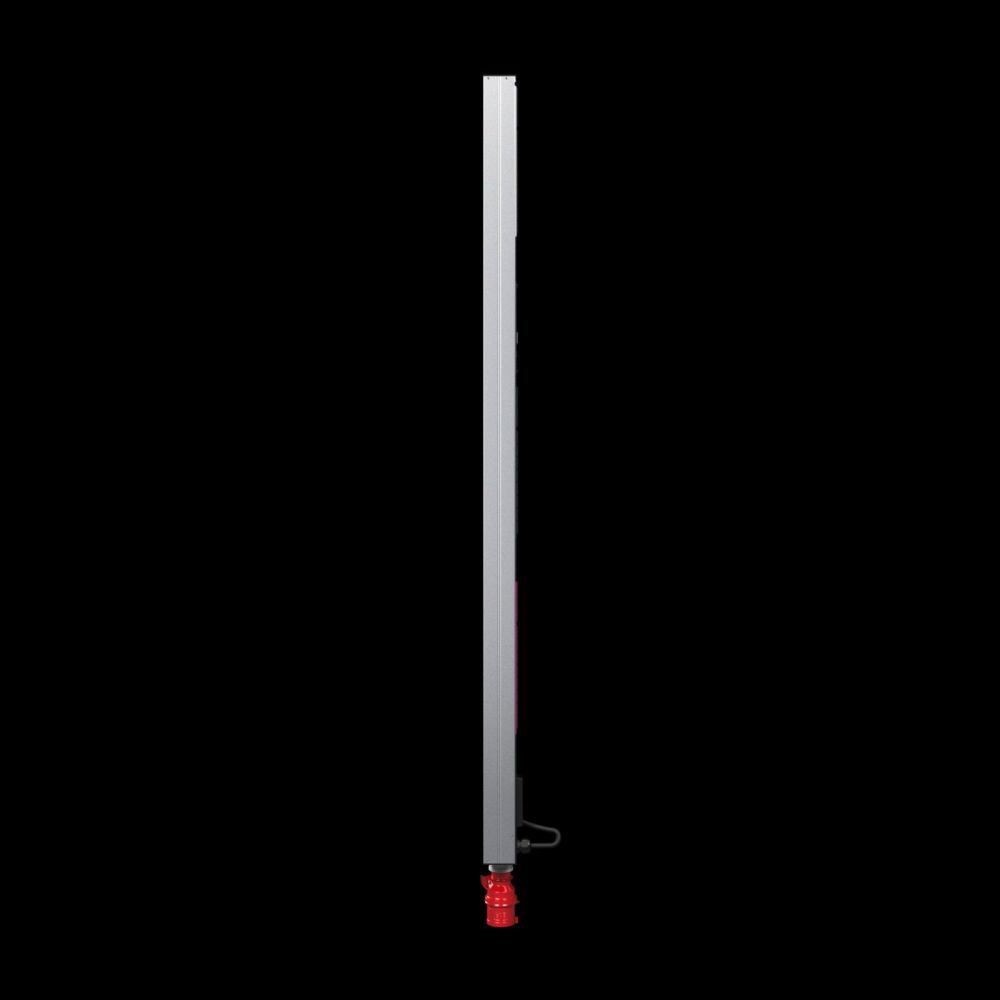

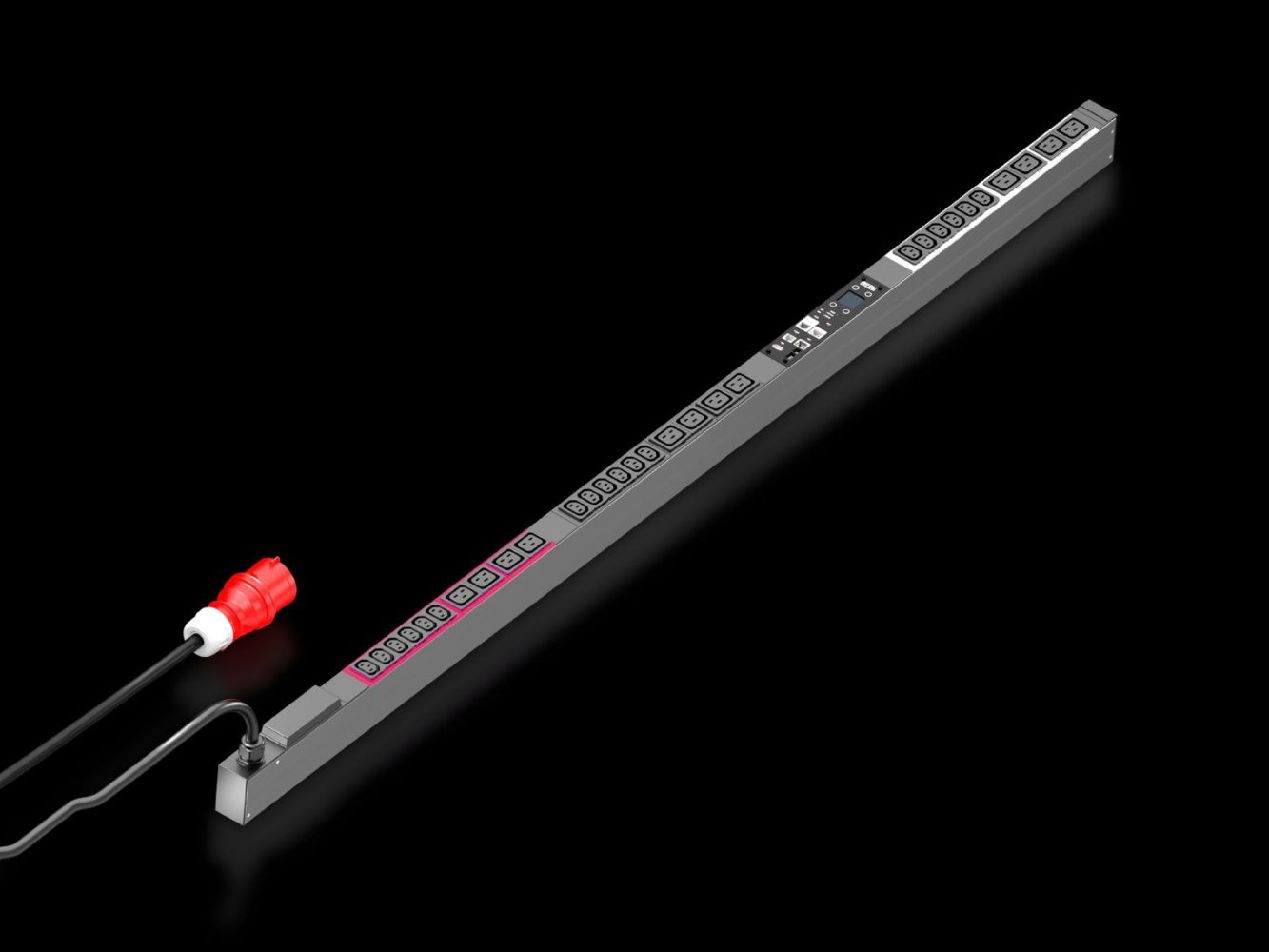

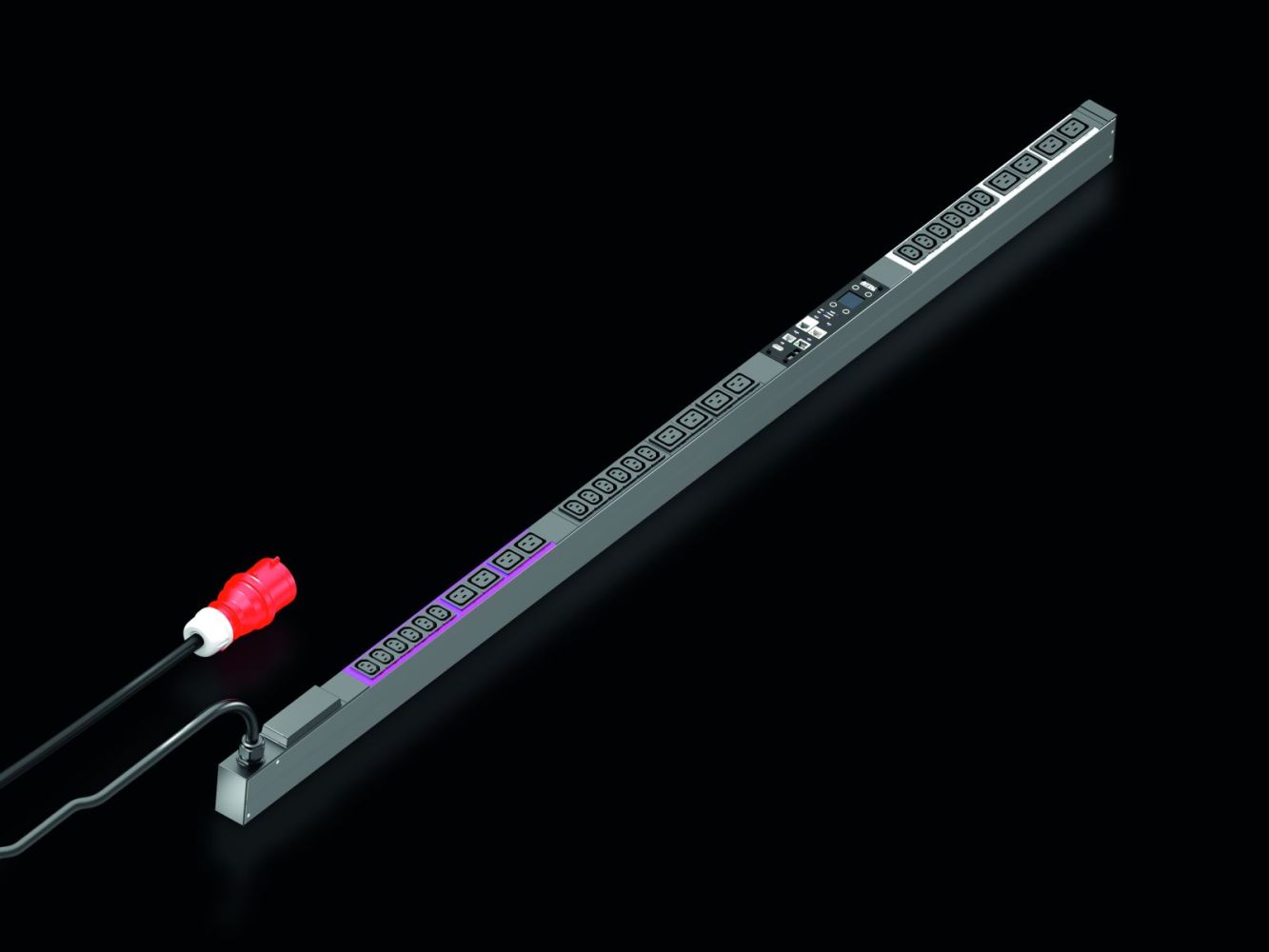

Rittal 7979238 PDU metered 16A/3P CEE 18 x C13 + 12 x C19

Your rating:
Average rating
product review for Rittal 7979238 PDU metered 16A/3P CEE 18 x C13 + 12 x C19
( 5 / 5 ) 1 ratings
Rittal 7979238
This image may differ from the desired article.
Rittal 7979238Rittal 7979238Rittal 7979238Rittal 7979238Rittal 7979238Rittal 7979238
793,53 EUR 801,55 EUR
( 944,30 EUR incl. VAT )
≈ £664.18  |  ≈ $872.09
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979238 PDU metered 16A/3P CEE 18 x C13 + 12 x C19
Datasheet:file_download Download
Lieske Part No.:593560
Mfg Part No: 7979238
UPC/EAN: 4028177947788
Weight:0.001 kg
Type:DK 7979238

Product information for Rittal 7979238:

The Rittal DK 7979238 is a PDU (Power Distribution Unit) with integrated energy measurement, specifically designed for use in IT network and server racks. As a metered PDU, it enables precise measurement of electrical parameters per phase and at the input, allowing the energy consumption of an entire rack to be monitored. The device features a compact design with dimensions of 44 mm width, 1,695 mm length, and 70 mm depth, making it suitable for installation in Rittal VX IT and TS IT racks. Mounting is tool-free in Zero-U-Space, ensuring efficient use of rack space. The housing is made of aluminium profile, black anodized, and the outlets are made of plastic. Power supply is self-contained via the mains, without requiring an external power source.

Applications

The PDU is designed for use in IT infrastructures, particularly in server and network racks, where precise energy monitoring and load distribution are required. It is suitable for racks with a minimum length of 1,800 mm (for VX IT cabinet frame) or 2,000 mm (for VX IT 48,3 cm ( 19 inch ) profile rails). The integrated energy measurement enables monitoring of voltage, current, frequency, active power, apparent power, power factor, and phase angle. Additionally, neutral conductor current is measured to detect unbalanced loads. Measurement accuracy is ±1 % (kWh) according to the standard EN 62053-21, ensuring reliable data collection for energy balances and DCIM systems.

Functions and Equipment in Detail

The PDU features 18 outlets of type C13 and 12 outlets of type C19, suitable for powering IT devices. The rated operating voltage is 400 V (AC), with a maximum rated current of 16 A, corresponding to a rated power of 11 kW. Power input is via a CEE cable with a length of 3 m. A bright TFT display with 128x128 pixels (RGB) and backlighting shows performance data and basic configuration. The display is rotatable by 180° and replaceable, ensuring optimal readability when mounted vertically. The display includes an energy-saving mode to minimize power consumption.

Technology Explained Simply

The PDU is equipped with a powerful CPU (ARM Cortex A8) that processes measurement data and enables communication via various interfaces. The integrated real-time clock is buffered by a battery that lasts up to 10 years and can be replaced during operation. An integrated electromagnetic buzzer serves as an acoustic alarm for exceeding set thresholds. Thresholds for voltage, current, and power are adjustable, enabling warnings or alarm signals to be triggered in critical conditions. An operating hour counter records total and cyclic operating time and is resettable.

Compatibility and Accessories

The PDU supports connection of environmental monitoring sensors via a CAN-Bus interface (RJ45), allowing up to 16 sensors to be connected. These include, for example, the monitoring systems CMC III CAN-Bus cables in various lengths (0.5 m, 1.0 m, 1.5 m) as well as the CMC III CAN-Bus connection cable. Optionally, a Type 3 surge protection device with replaceable discharge elements during operation can be integrated and monitored. Differential current measurement (Type B) is possible per input, phase, or fuse. For communication, various protocols are available, including HTTP, HTTPS, SSL, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, as well as FTP/SFTP for firmware updates and data transfer. The PDU can be integrated into 3rd-party DCIM software, enabling centralized energy management.

Mounting and Installation

Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes the fastening material required for installation. The PDU is designed for use in racks with a minimum length of 1,800 mm (cabinet frame) or 2,000 mm (48,3 cm ( 19 inch ) profile rails). The phase color coding (L1=pink, L2=black, L3=white) facilitates assignment and safe installation.

Operational Advantages

The PDU offers high operational reliability through redundant power supply from all phases and fault-tolerant power supply. The integrated network interface enables remote monitoring and control via various protocols. Support for email alerts (SMTP), Syslog server connection (up to 2 servers), and LDAP(S)/Radius/Active Directory integration enables flexible integration into existing IT infrastructures. The fully redundant Ethernet interface (10/100/1000 Mbit/s) ensures stable communication. The PDU is designed for operation at temperatures from 5 °C to 50 °C and humidity from 10 % to 95 % (non-condensing). The storage temperature range is -20 °C to 70 °C. Compliance with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6 as well as directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU ensures safety and compatibility in use.

The PDU is thus a powerful, intelligent power distribution unit designed for professional use in IT infrastructures, enabling precise energy monitoring, flexible communication, and secure installation.

General
ModelPDU, metered
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Description of measurement functionsmeasurement per phase or input, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact)
Width44 mm
Depth70 mm
Length1.695 mm
Number of sockets and type18 x C13 / 12 x C19
Rated operating voltage400 V (AC)
Rated current (max.)16 A
Nominal power11 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 2,000 mm


Product data sheet
Datasheet for Rittal 7979238, EAN: 4028177947788
