Rittal 7979537 PDU metered plus, 32A/400V, 3~, 24 x C13 + 6 x C19

Your rating:
Average rating
product review for Rittal 7979537 PDU metered plus, 32A/400V, 3~, 24 x C13 + 6 x C19
( 0 / 5 ) 0 ratings

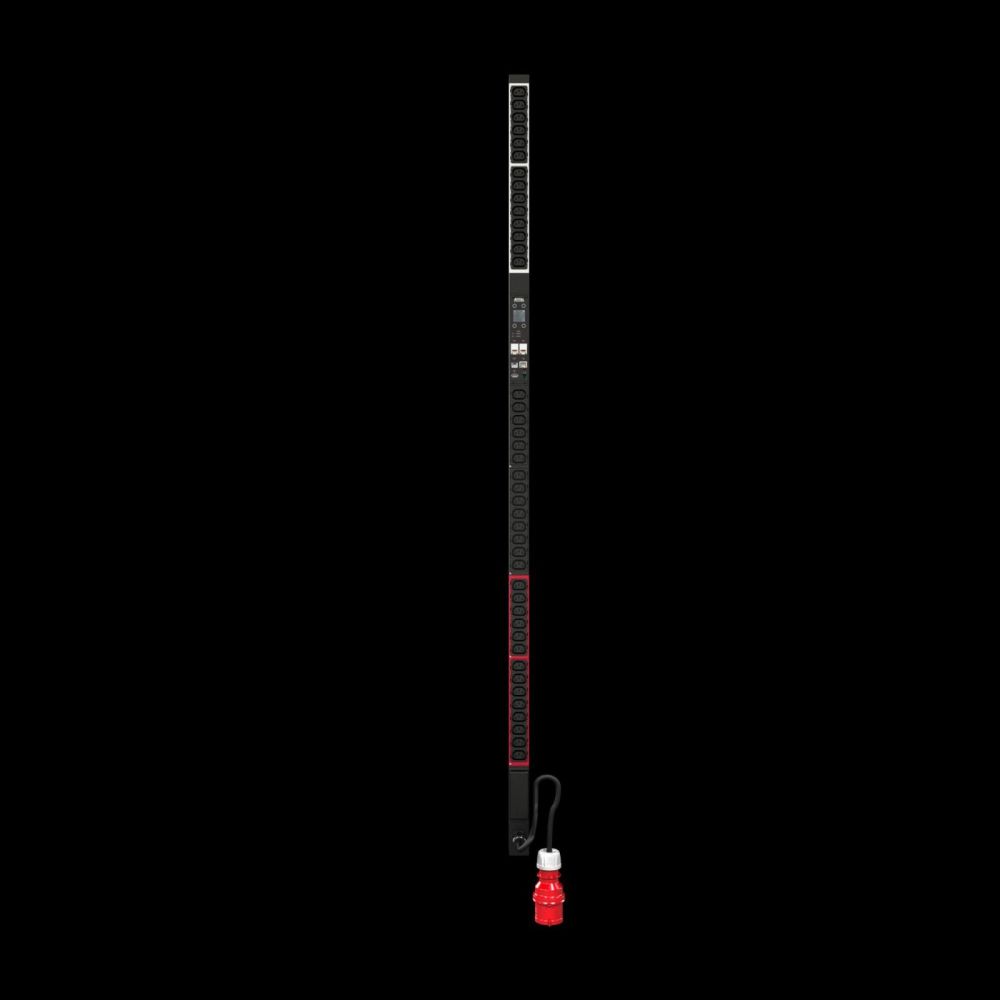

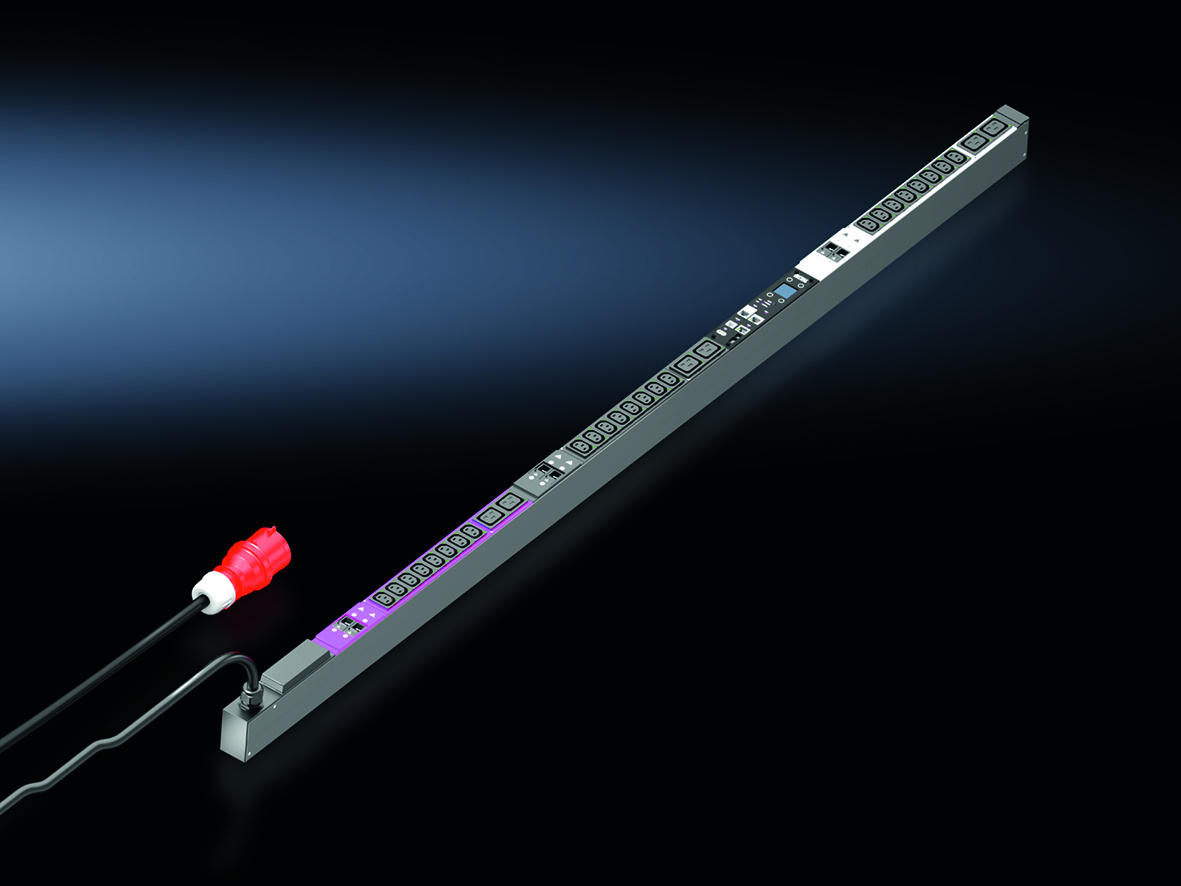

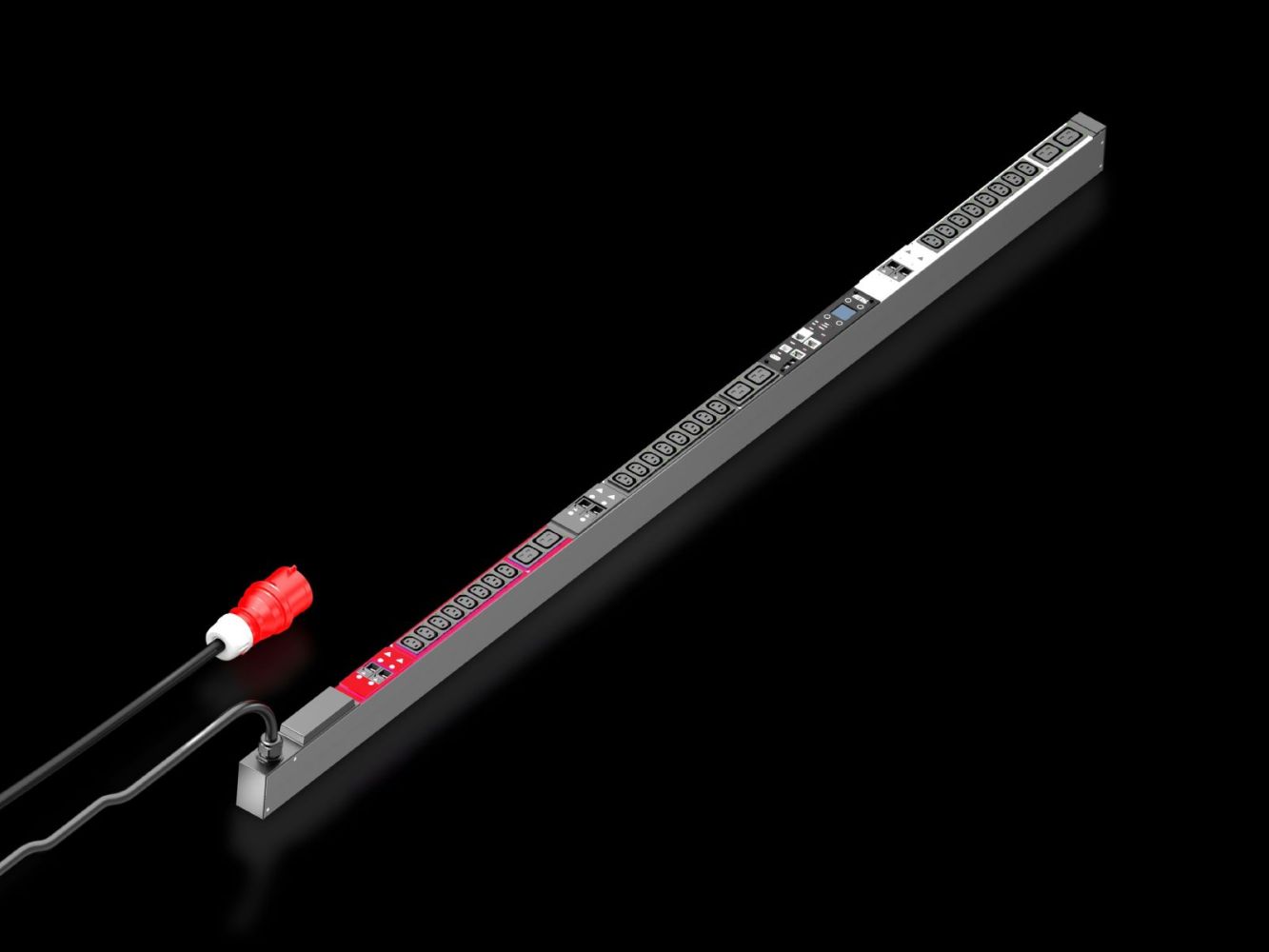

Rittal 7979537
This image may differ from the desired article.
Rittal 7979537Rittal 7979537Rittal 7979537Rittal 7979537Rittal 7979537Rittal 7979537Rittal 7979537
-9% 1.821,03 EUR 1.995,77 EUR
( 2.167,03 EUR incl. VAT )
≈ £1,524.20  |  ≈ $2,001.31
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 7979537 PDU metered plus, 32A/400V, 3~, 24 x C13 + 6 x C19
Datasheet:file_download Download
Lieske Part No.:593579
Mfg Part No: 7979537
UPC/EAN: 4028177948433
Weight:6.78 kg
Type:DK 7979537

Product information for Rittal 7979537:

The Rittal DK 7979537 is a PDU (Power Distribution Unit) of type metered plus, designed as an intelligent power distribution unit for IT network and server racks. It enables precise energy measurement per individual outlet socket, allowing the power demand of individual devices to be monitored and documented. The unit is housed in a compact aluminium profile, black anodized, with an overall length of 1,740 mm, a width of 44 mm, and a depth of 70 mm. Power supply is via a CEE connection cable with a length of 3 m, and the PDU is self-powered, requiring no external power source. The rated operating voltage is 400 V (AC), the maximum rated current is 32 A, corresponding to a rated power of 22 kW. Power input is via a three-phase (3~) connection cable.

Applications

The PDU is designed for use in IT infrastructures, particularly in racks of type Rittal VX IT or TS IT. When mounted vertically, it can be installed tool-free in Zero-U-Space, minimizing rack space requirements. The colour-coded phase marking (L1=pink, L2=black, L3=white) supports phase assignment and safety during installation. The unit is suitable for enclosure types with a minimum length of 2,000 mm, including VX IT rack frames and 48,3 cm ( 19 inch ) profile rails.

Functions and Equipment in Detail

The DK 7979537 features 24 C13 sockets and 6 C19 sockets, made of plastic. Measurement functions include energy measurement per phase or input, as well as per individual outlet socket. Measurement accuracy is ±1 % (kWh) according to standard EN 62053-21. An integrated real-time clock with battery backup (up to 10 years, replaceable) ensures correct timestamping of measurement values and events. An integrated electromagnetic buzzer enables acoustic alarm signaling in case of exceedances. Adjustable thresholds for voltage, current, and power can be individually configured per outlet socket.

Technology Explained Simply

The PDU is equipped with a powerful CPU (ARM Cortex A8) that processes measurement data and controls interfaces. The device is redundantly powered from all phases, ensuring fault-tolerant operation. The display is a bright TFT display with 128x128 pixels (RGB) and backlighting, showing power data and basic configuration. The display is rotatable by 180° and replaceable, allowing operation regardless of mounting position. Multicolour LEDs (green/yellow/red) indicate the switching state and thresholds per outlet socket. A power LED indicates voltage status.

Compatibility and Accessories

The PDU supports connection to CMC III CAN-Bus sensors for environmental monitoring, with up to 16 sensors connectable. The CAN-Bus interface (RJ45) enables communication with these sensors. Optionally, a Type 3 surge protection device with replaceable discharge elements during operation and status monitoring can be integrated. Differential current measurement (Type B) is available per input, phase, or fuse. For communication, various interfaces are available: USB 2.0 (USB-A) for mass configuration, firmware update, and datalogging; a serial interface RS232 (RJ12) for LTE unit, scripting, and CLI; and a fully redundant Ethernet interface (10/100/1000 Mbit/s). Protocol support includes web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into DCIM software, and FTP/SFTP for file transfers. User management including rights management allows integration with LDAP(S), Radius, or Active Directory. Email notification on alarm (SMTP) and Syslog server connection (up to 2 servers) are also integrated.

Mounting and Installation

Mounting is tool-free in Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes necessary mounting hardware. The PDU is designed for use in environments with an operating temperature of 5 °C to 50 °C and relative humidity of 10 % to 95 % (non-condensing). Storage temperature is -20 °C to 70 °C.

Operational Advantages

The energy-saving design ensures low self-consumption. The integrated network interface enables remote monitoring and control of the PDU. Detailed energy measurement per outlet socket supports energy efficiency and load distribution in the rack. Support for protocols such as SNMP, Modbus/TCP, and OPC-UA facilitates integration into existing DCIM systems. Redundant power supply and integrated real-time clock increase reliability and data quality. The ability to configure thresholds individually per outlet provides flexible and precise monitoring of connected devices.

The PDU is certified according to the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21. Measurement functions and protocol support enable comprehensive integration into modern IT infrastructures. The PDU is designed for use in IT racks with a minimum length of 2,000 mm.

General
ModelPDU, metered plus
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Description of measurement functionsMeasurement per phase or input, additional measurement per output socket, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact)
Width44 mm
Depth70 mm
Length1.740 mm
Number of sockets and type24 x C13 / 6 x C19
Socket outlets24 x C 13, 6 x C 19
Rated operating voltage400 V (AC)
Rated current (max.)32 A
Nominal power22 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
Number of RJ45 ports for sensor units max6
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forCabinet type: VX IT cabinet frame: ≥ 2,000 mm, Cabinet type: VX IT 19"-profile rails: ≥ 2,000 mm


Product data sheet
Datasheet for Rittal 7979537, EAN: 4028177948433
