Rittal 7979724 Surge protection module for end device protection

Your rating:
Average rating
product review for Rittal 7979724 Surge protection module for end device protection
( 4.7 / 5 ) 6 ratings

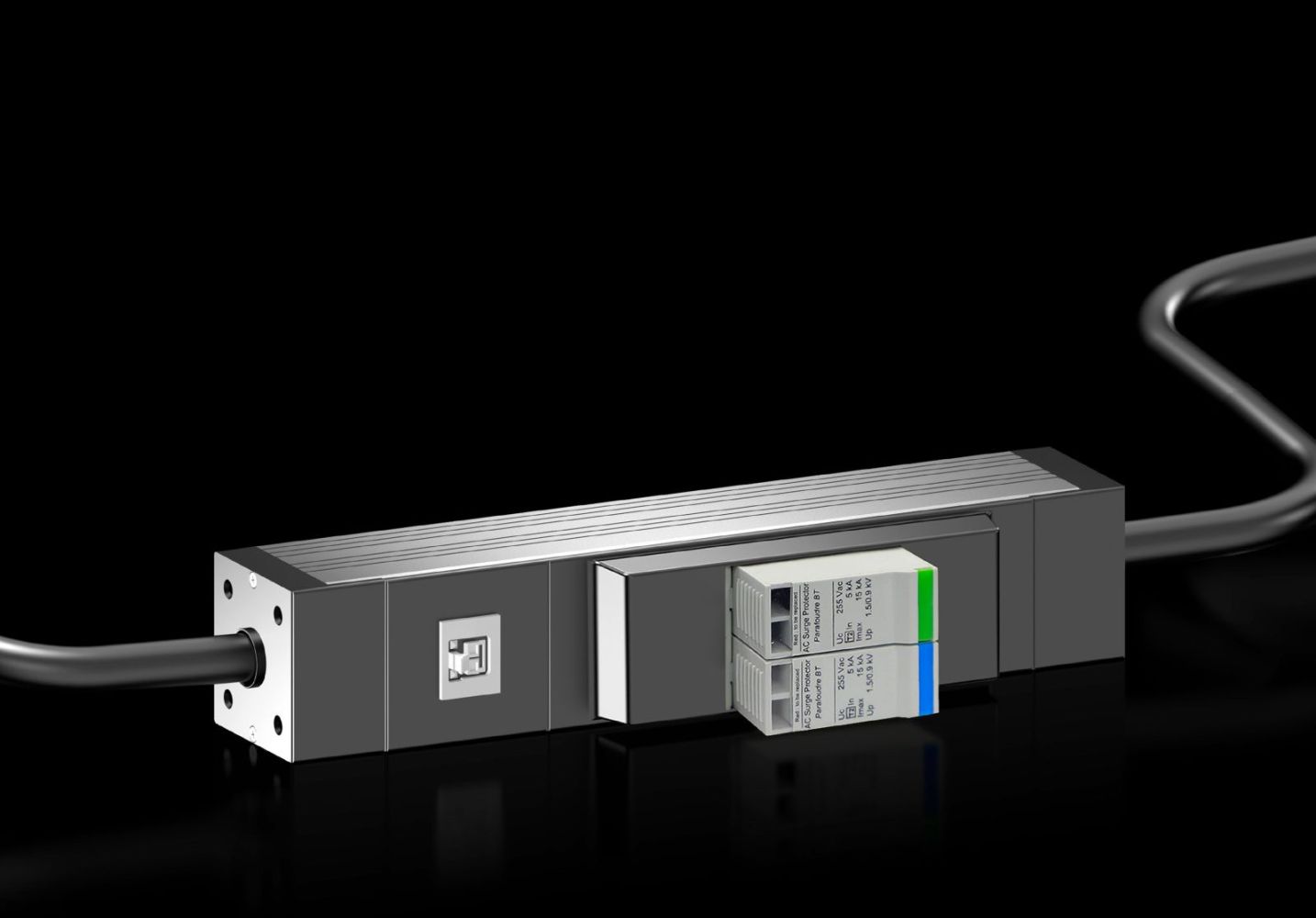

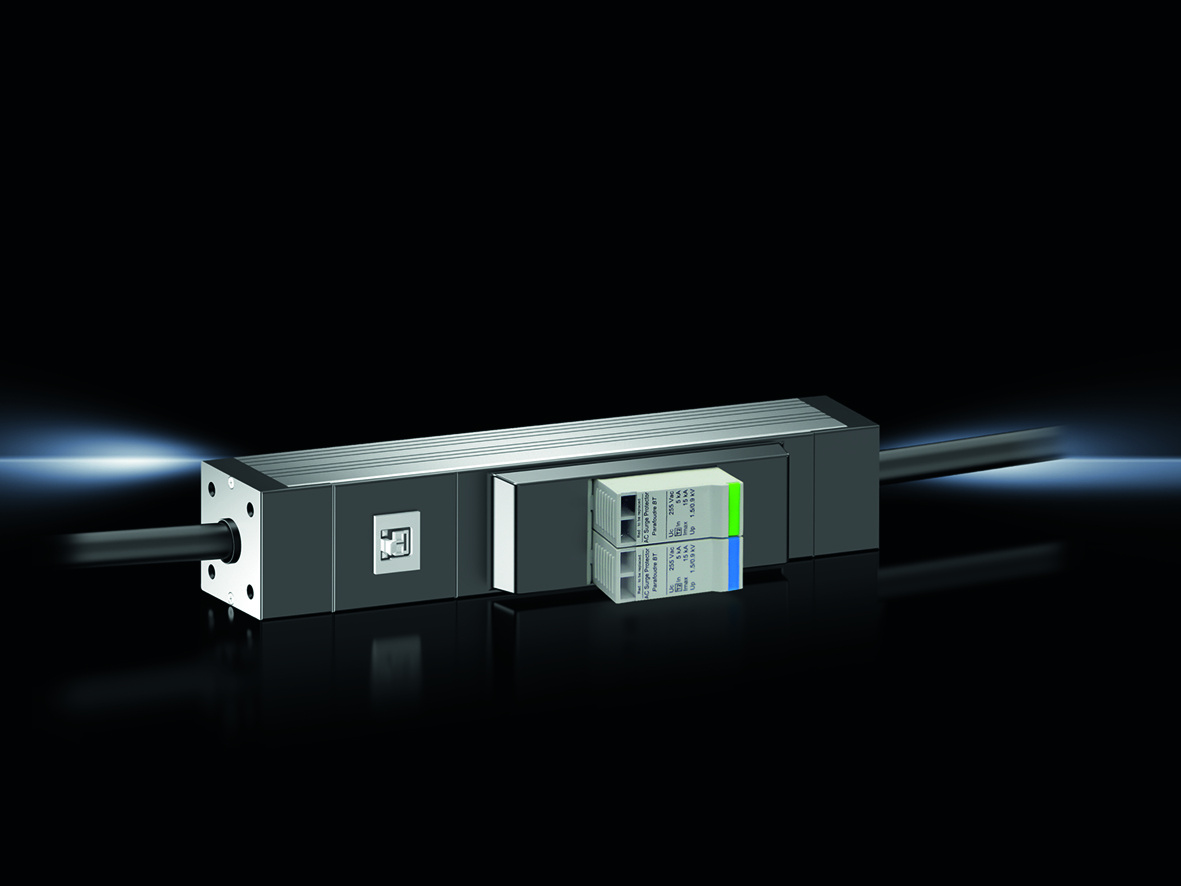

Rittal 7979724
This image may differ from the desired article.
Rittal 7979724Rittal 7979724Rittal 7979724
235,28 EUR
( 279,98 EUR incl. VAT )
≈ £196.93  |  ≈ $258.57
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 7979724 Surge protection module for end device protection
Datasheet:file_download Download
Lieske Part No.:1775586
Mfg Part No: 7979724
UPC/EAN: 4028177948556
Weight:2.96 kg
Type:DK 7979724

Product information for Rittal 7979724:

The Rittal surge protection module Type 3, model DK 7979724, is a compact protection device for end-device protection in electrical installations. It serves as the final stage in the surge protection chain and protects sensitive electronic devices from transient voltage spikes caused by lightning strikes or network disturbances. The module is designed for mounting on the enclosure frame and provides an immediately ready-to-use, connection-ready solution for 3-phase networks. It features a potential-free alarm contact that can monitor the status of the surge arrester and transmit it to external systems such as building management systems (BMS).

Applications
This device is universally applicable in industrial and commercial installations where sensitive electronics such as servers, controls, or communication devices must be protected from voltage spikes. It is specifically designed for TN-S networks, which are used in many modern building installations and distribution systems. Mounting on the enclosure frame allows space-saving integration into existing enclosures without requiring additional space for external protection devices.

Functions and Equipment in Detail
The surge protection module offers a rated power of 22 kW and a maximum rated current of 32 A. It is designed for 3-phase installations and features connection paths L/N and N/PE, enabling flexible integration into existing power supply systems. The optical status monitoring directly on the device allows for quick visual inspection of the operating status. The integrated alarm contact enables the transmission of status information, for example to a building management system, to trigger an alarm message in case of a fault or failure of the surge arrester.

Technology Explained Simply
The surge arrester operates according to the principle of surge protection Type 3, which functions as the final stage in the protection chain. It switches quickly to the grounding path during overvoltages to divert the voltage spike and protect connected devices. The use of CEE plugs and connectors at input and output enables a safe and standardized connection. The connection cables consist of cable type H05VV-F5G2.5 with a length of 1 m each, supporting flexible cabling within the enclosure. The housing is made of an anodized aluminum extruded profile in color RAL 9005, ensuring high mechanical stability and corrosion resistance.

Compatibility and Accessories
The module is part of a modular protection system architecture and can be combined with other Rittal surge protection modules. It is intended for use in systems with Type-1 and Type-2 protection devices, which must be installed in building installations or energy distributors to ensure a complete protection chain. The version with CEE connectors enables easy and safe integration into existing installations.

Mounting and Installation
Mounting is done directly on the enclosure frame, with the module equipped with a plug-in system for protection modules, enabling maintenance-friendly and quick installation. The delivery includes mounting hardware, so no additional mounting accessories are required. The compact design with dimensions 44 mm (width) × 75 mm (height) × 250 mm (length) allows space-saving installation.

Advantages in Operation
A key advantage is high availability: in case of failure, the surge arrester can be replaced without interrupting the power supply. The maintenance-friendly design with plug-in system reduces maintenance time and costs. The immediately ready-to-use configuration with pre-fabricated connection cables and CEE connectors significantly reduces installation time. The optical status indicator and alarm contact increase operational safety and enable proactive maintenance.

The device complies with standards IEC 61 643-11 and EN 61 643-11, as well as directives Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU, confirming conformity with European safety and EMC requirements.

General
ModelSurge protection Type 3
MaterialAluminium extruded profile, anodized
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Nominal power22 kW
Electrical connection typeCEE plug/coupler
Rated current (max.)32 A
PoliciesLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU
StandardsIEC 61 643-11, EN 61 643-11
Width44 mm
Height75 mm
Length250 mm
Input cable connection (type/length)H05VV-F5G2.5, 1 m
Connection output cable (type/length)H05VV-F5G2.5, 1 m


Product data sheet
Datasheet for Rittal 7979724, EAN: 4028177948556
