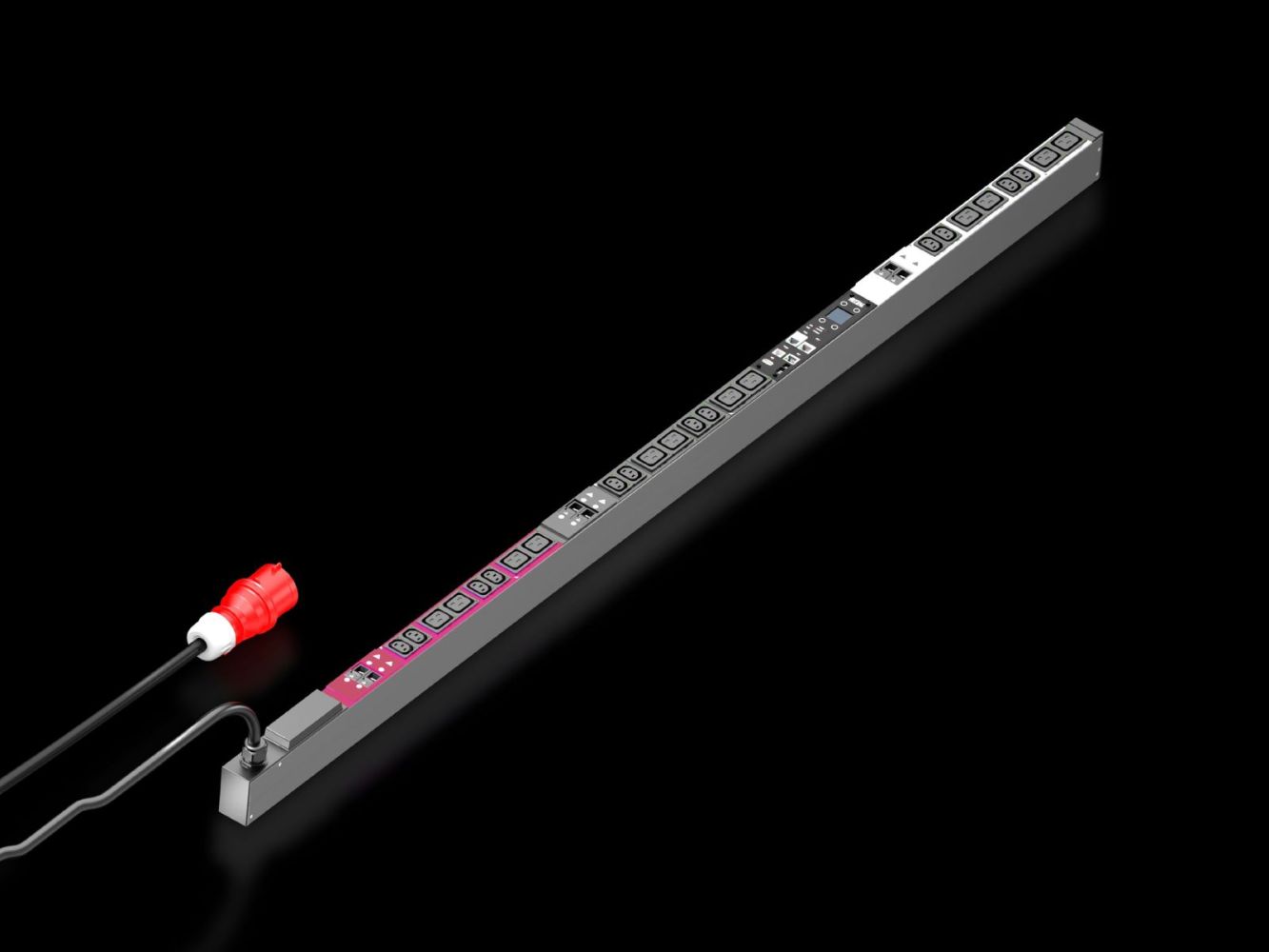

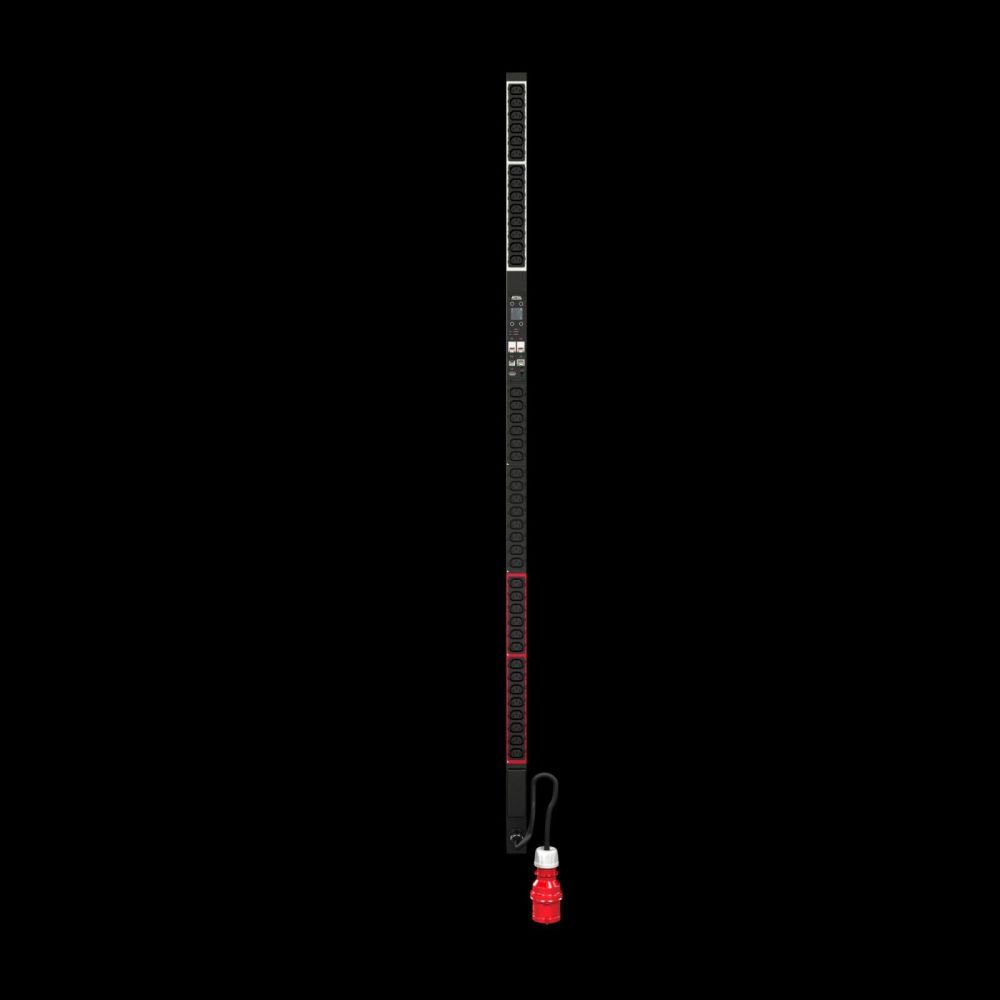

Rittal 7979439 PDU managed 32A/3P CEE 12xC13 + 12xC19
|
-9% 2.020,21 EUR 2.228,54 EUR |
|
|
( 2.404,05 EUR incl. VAT ) ≈ £1,690.92 | ≈ $2,220.21 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2144960 |
| Mfg Part No: | 7979439 |
| UPC/EAN: | 4028177948235 |
| Weight: | 7.4 kg |
| Type: | DK 7979439 |
Product information for Rittal 7979439:
Applications
The PDU is designed for use in professional IT infrastructures, particularly in data centres, server rooms, and network racks, where precise energy management and monitoring are required. It is suitable for applications requiring detailed power consumption analysis, load monitoring, and remote control of outputs. The vertical mounting enables efficient use of the rack without consuming U-space. The unit is suitable for enclosures with a minimum length of 1,800 mm (VX IT cabinet frame) or 2,000 mm (VX IT 19-inch profile rails).
Functions and Equipment in Detail
The PDU features 12 sockets of type C13 and 12 sockets of type C19, enabling flexible connection of various IT devices. The rated operating voltage is 400 V (AC), with a maximum rated current of 32 A, corresponding to a rated power of 22 kW. Power supply is via a CEE plug with a supply cable of 3 m length. The PDU is self-powered; external power supply is not required. An integrated real-time clock with battery backup (up to 10 years, replaceable) ensures time accuracy even during power failure. Measurement accuracy is ±1 % (kWh) according to EN 62 053-21.
Technology Explained Simply
The PDU is equipped with a powerful CPU (ARM Cortex A8) enabling energy measurement, monitoring, and control. Measurement is performed per phase and per output socket, capturing voltage, current, frequency, active power, apparent power, power factor (cosPhi), and phase angle. Neutral conductor current measurement enables detection of unbalanced loads. The PDU features a bright TFT display (128x128 pixels, RGB, with backlight) for displaying performance data and basic configuration. The display unit is rotatable by 180° and replaceable. Multicoloured LEDs (green/yellow/red) indicate the switching state and threshold values per output socket. An integrated electromagnetic buzzer provides acoustic alarm.
Compatibility and Accessories
The PDU is equipped with a fully redundant Ethernet interface (10/100/1000 Mbit/s), suitable for integration into networks and DCIM systems. CMC III CAN-Bus sensors can be connected via the interfaces to monitor environmental conditions such as temperature, humidity, or smoke. Up to 16 sensors can be connected. The PDU supports protocols such as HTTP, HTTPS, SSL, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA and MIBs for integration into third-party DCIM software. E-mail alerts (SMTP) and Syslog server connection (up to 2 servers) are also possible. As an option, a surge protection Type 3 with replaceable discharge elements during operation can be integrated, featuring status monitoring. Differential current measurement (Type B) is available per input, phase, and fuse. Compatible accessories include CAN-Bus cables (0.5 m, 1.0 m, 1.5 m), covers for C13 and C19 sockets, mounting adapters, universal locks, numeric code locks, transponder readers, and surge protection modules.
Mounting and Installation
Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The PDU is designed for vertical mounting and is installed using the included mounting hardware. The supply cable (CEE plug, 3 m) allows flexible positioning. Colour coding of phases (L1=pink, L2=black, L3=white) and fuse circuits facilitates assignment. The PDU is designed for operating temperatures of 5 °C to 50 °C and humidity levels of 10 % to 95 % (non-condensing). Storage temperature is -20 °C to 70 °C.
Operational Advantages
The PDU offers high operational reliability through redundant power supply across all phases and fault-tolerant power supply. Programmable switching functions enable sequential switching on of outputs after power restoration to avoid overloads. Relay states are retained even during power failure. The bistable relays feature low power consumption and high switching capacity, even for inrush currents up to 300 A. User management with rights management, LDAP(S)/Radius/Active Directory integration, and use of own certificates (TLS 1.2) enables secure and controlled usage. The integrated emergency power supply for the web server via PoE and sequential switching off of outputs in emergencies enhances system stability. The PDU is compliant with IT infrastructures according to EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6 and EN 62053-21, and meets EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.
| General | |
| Model | PDU, managed |
| Material | Aluminium profile, black anodised, mounting slots: plastic |
| Scope of delivery | Including mounting hardware |
| Options | Overvoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available |
| Width | 44 mm |
| Depth | 70 mm |
| Length | 1.695 mm |
| Number of sockets and type | 12 x C13 / 12 x C19 |
| Socket outlets | 12 x C 13, 12 x C 19 |
| Rated operating voltage | 400 V (AC) |
| Rated current (max.) | 32 A |
| Nominal power | 22 kW |
| Power supplies | Number: 1, phases per input: 3~ |
| Connection cable length | 3 m |
| Electrical connection type | CEE |
| Interfaces | USB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s |
| Number of RJ45 ports for sensor units max | 6 |
| Policies | EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Standards | EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 |
| Protocols | Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer) |
| Operating temperature range | 5 °C...50 °C |
| Humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| Suitable for | Housing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 2,000 mm |
