Rittal 7979334 PDU switched, 32A/400V, 3~, CEE 7/3: 24 x Schuko

Your rating:
Average rating
product review for Rittal 7979334 PDU switched, 32A/400V, 3~, CEE 7/3: 24 x Schuko
( 0 / 5 ) 0 ratings

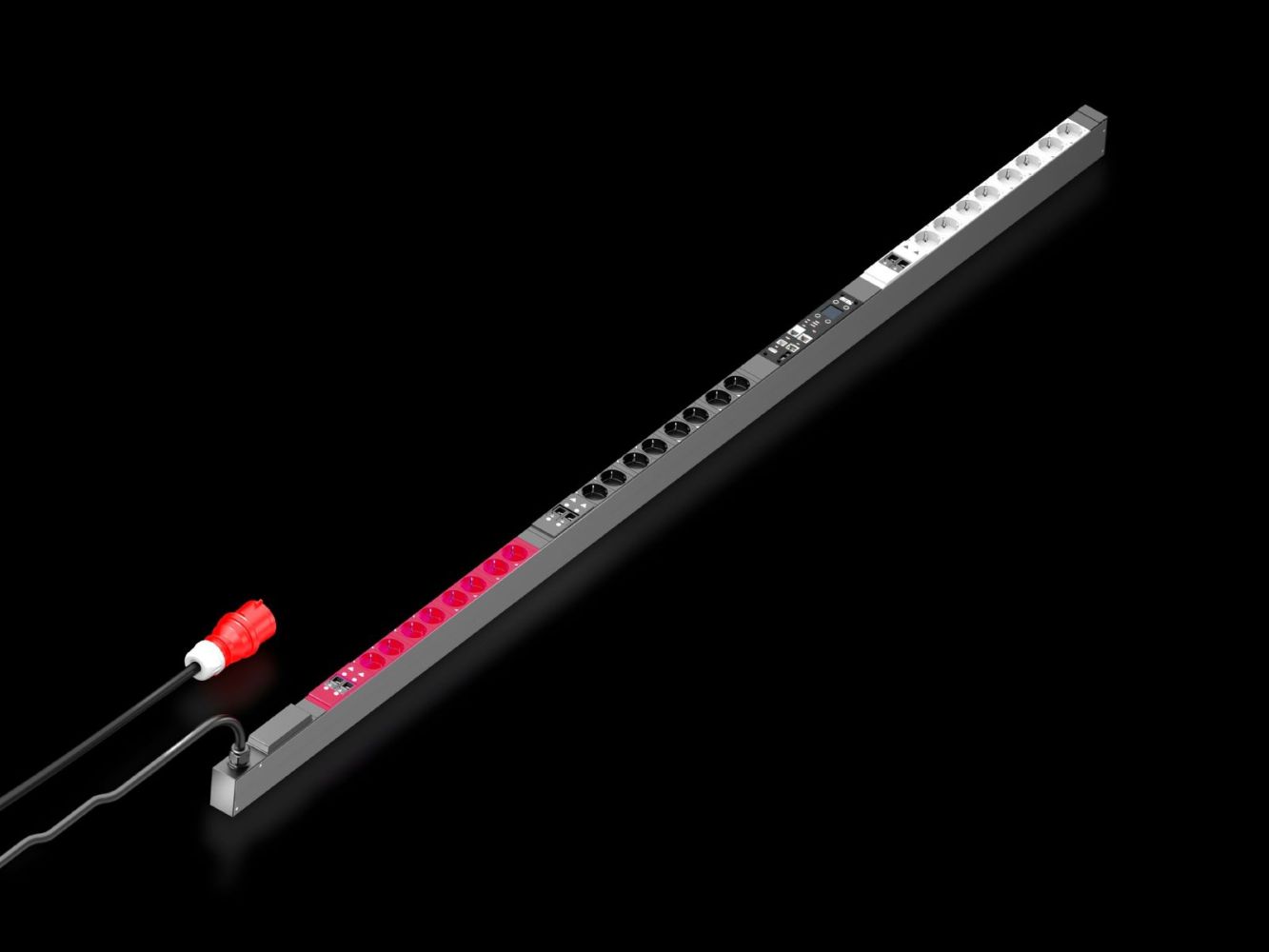

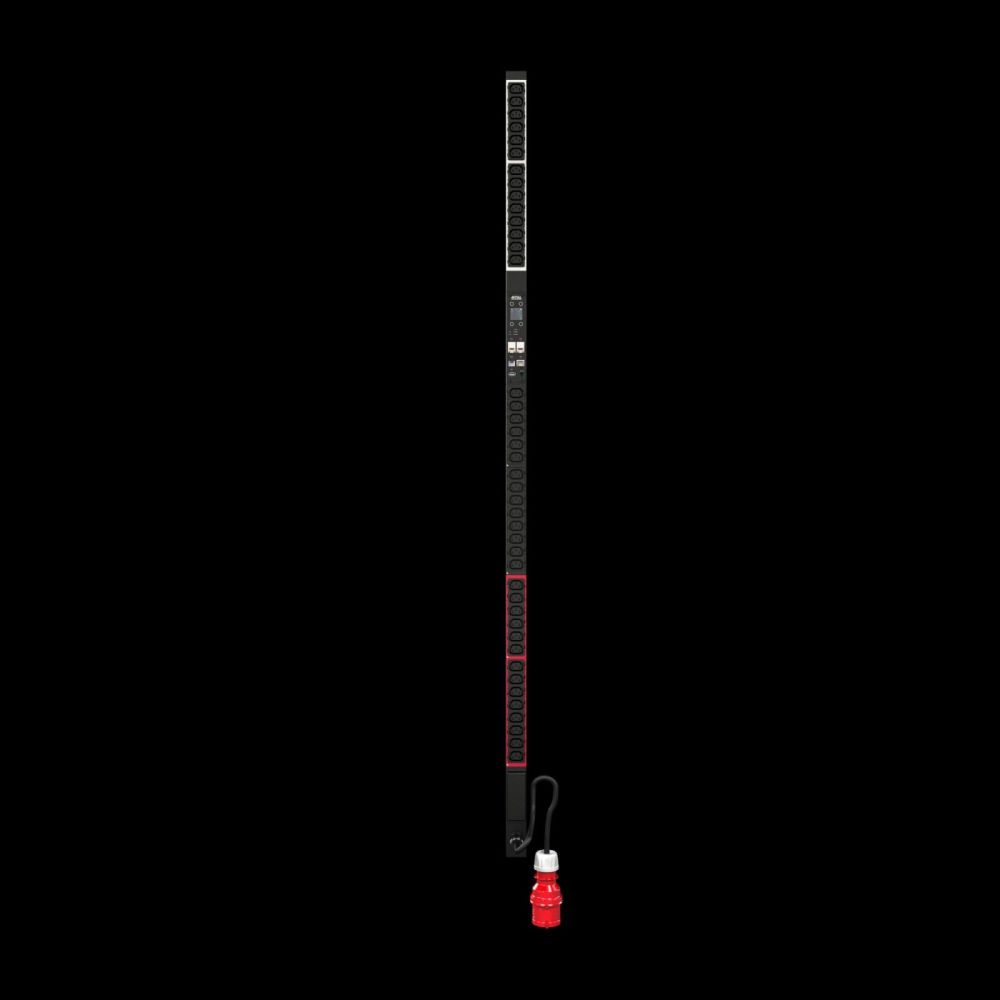

Rittal 7979334
This image may differ from the desired article.
Rittal 7979334Rittal 7979334Rittal 7979334Rittal 7979334Rittal 7979334Rittal 7979334Rittal 7979334Rittal 7979334
-9% 1.457,86 EUR 1.601,45 EUR
( 1.734,85 EUR incl. VAT )
≈ £1,220.23  |  ≈ $1,602.19
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979334 PDU switched, 32A/400V, 3~, CEE 7/3: 24 x Schuko
Datasheet:file_download Download
Lieske Part No.:1910660
Mfg Part No: 7979334
UPC/EAN: 4028177947962
Weight:0.001 kg
Type:DK 7979334

Product information for Rittal 7979334:

The Rittal DK 7979334 is a switched PDU (Power Distribution Unit) for use in IT network and server racks. It serves as an intelligent power distribution unit with integrated energy measurement per phase and enables individual control of the 24 output sockets. The unit is designed for operation in racks of type VX IT or TS IT and can be mounted tool-free in the Zero-U-Space. The housing consists of an aluminum profile, black anodized, while the sockets are made of plastic. Dimensions are 44 mm width, 70 mm depth, and 2,095 mm length, enabling compact integration into standard 19-inch racks.

Applications

The PDU is designed for use in professional IT infrastructures, particularly in data centers, server rooms, and network racks. It is suitable for central power distribution and monitoring for IT systems where precise energy measurement, load control, and remote monitoring are required. The unit is designed for a rated operating voltage of 400 V (AC) and supports a maximum rated power of 22 kW at a rated current of 32 A. Power input is via a CEE power cord with a length of 3 m, allowing flexible positioning within the rack.

Functions and Equipment in Detail

The DK 7979334 features 24 Schuko sockets (Type F, CEE 7/3), each individually switchable via integrated control. The switching function enables sequential activation of outputs upon voltage restoration to avoid inrush current peaks. Relay states are retained even during power failure, ensuring the last state is maintained upon voltage recovery. Control is performed via bistable relays, which offer low power consumption and high switching capacity even at high inrush currents (up to max. 300 A). The PDU also allows grouping of outputs to switch multiple sockets simultaneously.

Technology Explained Simply

The PDU is equipped with an integrated, fully redundant power supply unit fed from all phases, ensuring fault-tolerant power supply. Measurement functions include voltage, current, frequency, active power, active energy, apparent power, apparent energy, power factor (cosPhi), phase angle, and neutral conductor current measurement for unbalanced load detection. Measurement accuracy is ±1 % (kWh) according to standard EN 62053-21. A bright TFT display (128x128 pixels, RGB) with backlighting shows power data and basic configuration. The display unit is rotatable by 180° and replaceable, ensuring optimal visibility in various mounting positions. Multicolored LEDs (green/yellow/red) indicate switching states and warning or alarm thresholds per phase or input.

Compatibility and Accessories

The PDU features a fully redundant Ethernet interface (10/100/1000 Mbit/s) suitable for integration into networks and DCIM systems. The interface supports protocols such as HTTP, HTTPS, SSL, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA as well as MIBs for integration into third-party DCIM software. A USB 2.0 interface (USB-A) is provided for mass configuration, firmware updates, and data logging. Via a CAN-Bus interface (RJ45), up to 16 environmental sensors of type CMC III can be connected. A serial interface (RS232, RJ12) enables connection to an LTE unit, scripting, CLI access, and use of custom certificates and TLS 1.2. The PDU supports email alerts on alarm (SMTP), user management with rights management, integration with LDAP(S)/Radius/Active Directory, and connection to Syslog servers (max. 2 servers). Compatible accessories include CAN-Bus cables in various lengths (0.5 m, 1.0 m, 1.5 m), covers for C13 and C19 sockets, mounting adapters, universal locks, numeric code locks, transponder readers, and surge protection modules.

Mounting and Installation

Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes the fastening material required for installation. The PDU is self-powered; no external power supply is required. The power cord (CEE, 3 m) allows flexible positioning within the rack. Color coding of phases (L1=pink, L2=black, L3=white) facilitates assignment and maintenance.

Operational Advantages

The DK 7979334 offers high operational reliability through redundant power supply and an integrated real-time clock with battery backup (up to 10 years, replaceable). The integrated real-time clock enables precise timestamping of events. An integrated electromagnetic buzzer provides acoustic alarm signals. The PDU allows setting of thresholds for voltage, current, and power, triggering warnings and alarms upon exceedance. An operating hour counter (total and cyclic, resettable) supports maintenance planning. The PDU is designed for operating temperatures from 5 °C to 50 °C and humidity from 10 to 95 % (non-condensing). Storage is possible in the range of -20 °C to 70 °C. The unit complies with directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21.

General
ModelPDU, switched
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
Width44 mm
Depth70 mm
Length2.095 mm
Number of sockets and type24 x Schuko (Type F, CEE 7/3)
Socket outlets24 x Schuko
Rated operating voltage400 V (AC)
Rated current (max.)32 A
Nominal power22 kW
Power suppliesPhases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
Number of RJ45 ports for sensor units max6
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 2,200 mm, housing type: VX IT 19"-profile rails: ≥ 2,200 mm


Product data sheet
Datasheet for Rittal 7979334, EAN: 4028177947962
