Rittal 7979137 PDU basic 32A/3P CEE
24xC13+6xC19 (freight shipping)

Your rating:
Average rating
product review for Rittal 7979137 PDU basic 32A/3P CEE 24xC13+6xC19 (freight shipping)
( 4.7 / 5 ) 3 ratings
Rittal 7979137
This image may differ from the desired article.
Rittal 7979137Rittal 7979137Rittal 7979137Rittal 7979137Rittal 7979137Rittal 7979137Rittal 7979137Rittal 7979137
413,43 EUR
( 491,98 EUR incl. VAT )
≈ £346.04  |  ≈ $454.36
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 7979137 PDU basic 32A/3P CEE 24xC13+6xC19 (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1910544
Mfg Part No: 7979137
UPC/EAN: 4028177947535
Weight:6.02 kg
Type:DK 7979137

Product information for Rittal 7979137:

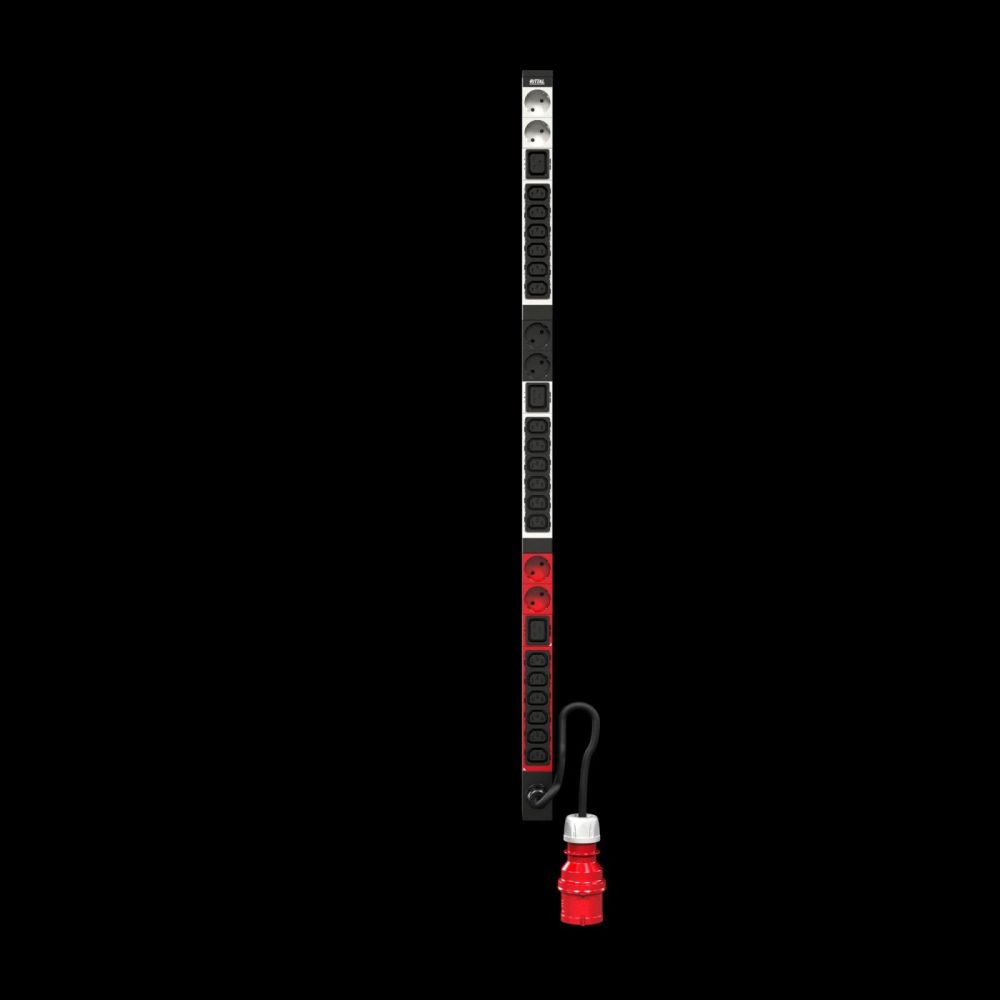

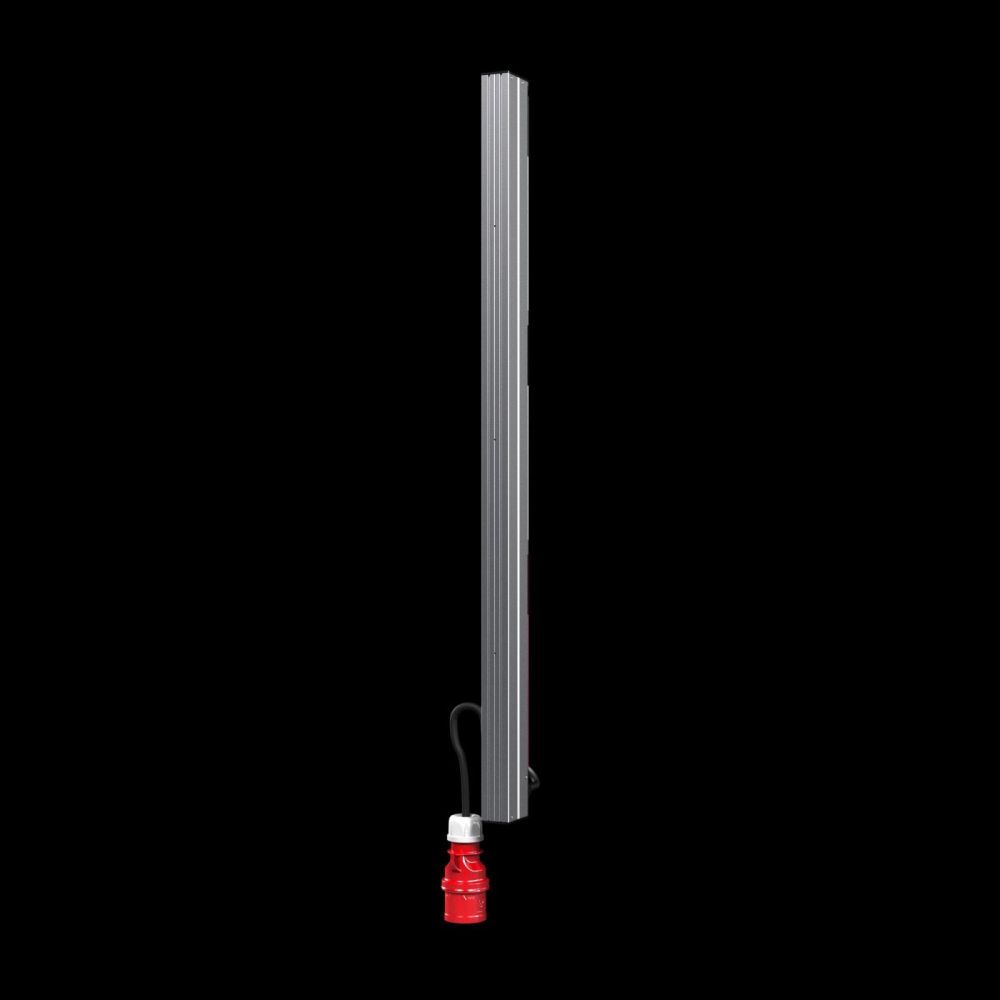

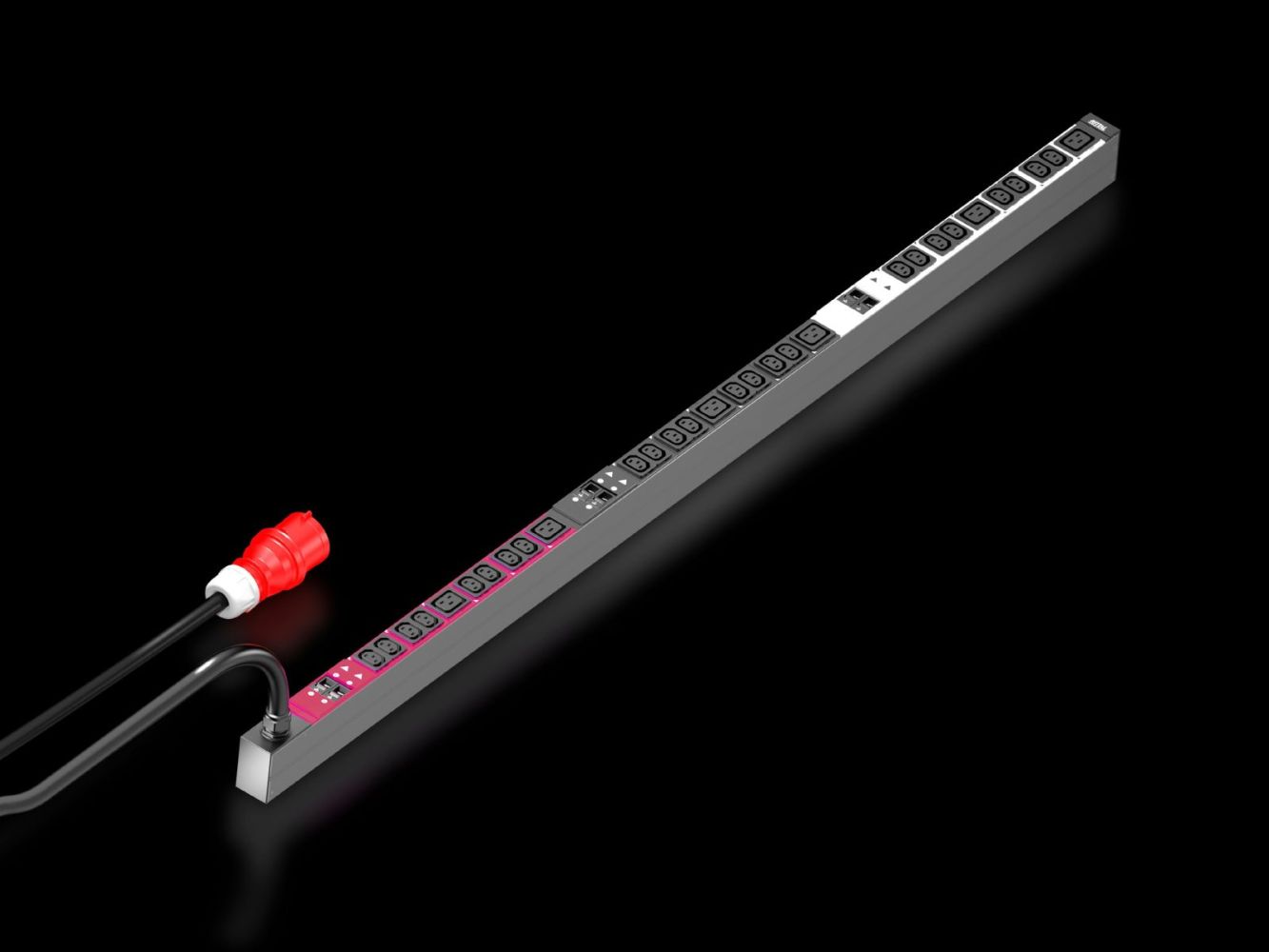

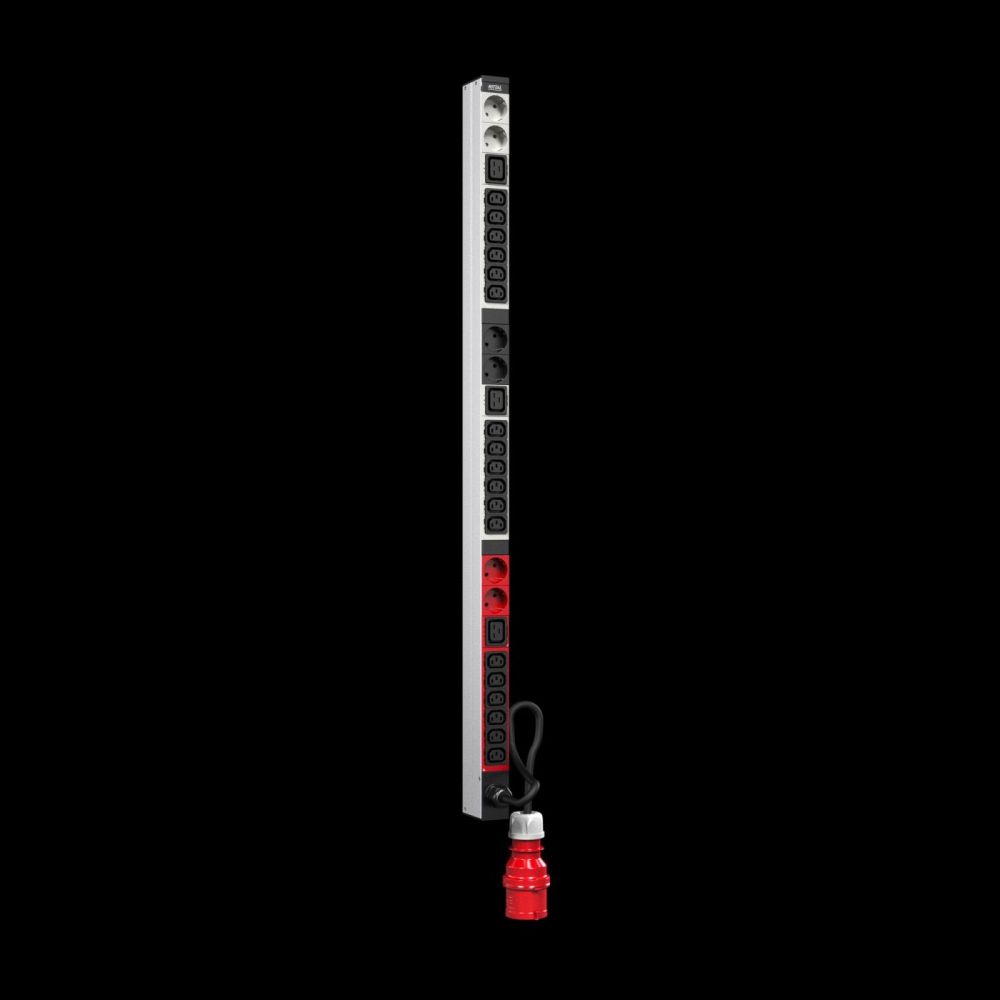

The Rittal DK 7979137 is a PDU Basic power distribution unit, specifically designed for use in IT server and network enclosures. It serves as a compact base power distribution unit, equipping every IT rack with a professional power supply. The unit is suitable for vertical mounting in the Zero-U-Space of Rittal VX IT- or TS IT-racks and can be installed tool-free using the included mounting kit. The power distribution unit features a robust aluminium extruded profile, anodized, with plastic sockets, ensuring high mechanical stability and durability.

Applications
The PDU is designed for use in IT infrastructures, particularly in server and network enclosures, where reliable and structured power supply is required. It is suitable for racks with a cabinet frame or 48,3 cm ( 19 inch ) profile rails with a minimum length of 1,800 mm. Vertical mounting enables efficient use of available space, especially in racks with limited height, as it can also be installed in the Zero-U area.

Functions and Equipment in Detail
The power distribution unit offers a total of 30 sockets: 24 sockets of type IEC 60320/C13 and 6 sockets of type IEC 60320/C19, suitable for connecting IT devices and servers. The sockets are colour-coded to facilitate assignment to phases (L1=pink, L2=black, L3=white) and fuse circuits. This supports proper load distribution and prevents overloading of individual phases. The sockets can be secured with a socket locking mechanism for IEC C14- and C20-plugs to prevent accidental disconnection. Unused sockets can be covered with optional socket covers to avoid unintended loading.

Technology Explained Simply
The PDU is powered via a CEE power cord with a length of 3 m. The rated operating voltage is 400 V (AC) at a nominal current of 32 A, corresponding to a nominal power of 22 kW. Power supply is via three-phase input (3~), enabling even load distribution across individual phases. The unit is designed for operating temperatures from 5 °C to 50 °C and humidity from 10 % to 95 % (non-condensing). Storage is possible in the range of -20 °C to 70 °C. The power distribution unit complies with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, as well as directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

Compatibility and Accessories
The PDU is specifically designed for Rittal VX IT enclosures featuring a cabinet frame or 48,3 cm ( 19 inch ) profile rails with a minimum length of 1,800 mm. Various accessory options are available, including surge protection modules Type 3 with replaceable discharge elements during operation, which can be integrated into the PDU enclosure. These modules provide protection against transient overvoltages and are equipped with status monitoring. Additional accessories include CAN-Bus cables for the monitoring system CMC III, socket covers for C13- and C19-sockets, mounting adapters, and a numeric code lock for CMC III. The enclosure colour can be optionally customized.

Mounting and Installation
Mounting is tool-free in Rittal VX IT- or TS IT-racks, using the included mounting kit. Vertical mounting in the Zero-U-Space enables space-saving installation without loss of U-space. Mounting materials are included in the delivery scope, as well as the socket locking mechanism for IEC C14- and C20-plugs.

Operational Advantages
The PDU basic provides reliable and structured power distribution with high mechanical stability. The colour coding of phases and fuse circuits facilitates load distribution and prevents overloads. Tool-free mounting and integrated socket locking mechanism increase safety and efficiency during installation and maintenance. Options such as surge protection and status monitoring enable extended operational monitoring and increase the availability of the IT infrastructure.

General
ModelPDU Basic
MaterialAluminium extruded profile, anodized, socket positions: plastic
Scope of deliveryPlug lock for IEC C14, C20 plugs, including mounting hardware
OptionsSurge protection Type 3 with replaceable discharge devices during operation, with status monitoring, integrable in PDU enclosure, other enclosure colours available
Width44 mm
Depth70 mm
Length1.495 mm
Number of sockets and type24 x C13 / 6 x C19
Rated operating voltage400 V (AC)
Rated current (max.)32 A
Nominal power22 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979137, EAN: 4028177947535
